Removal and Installation

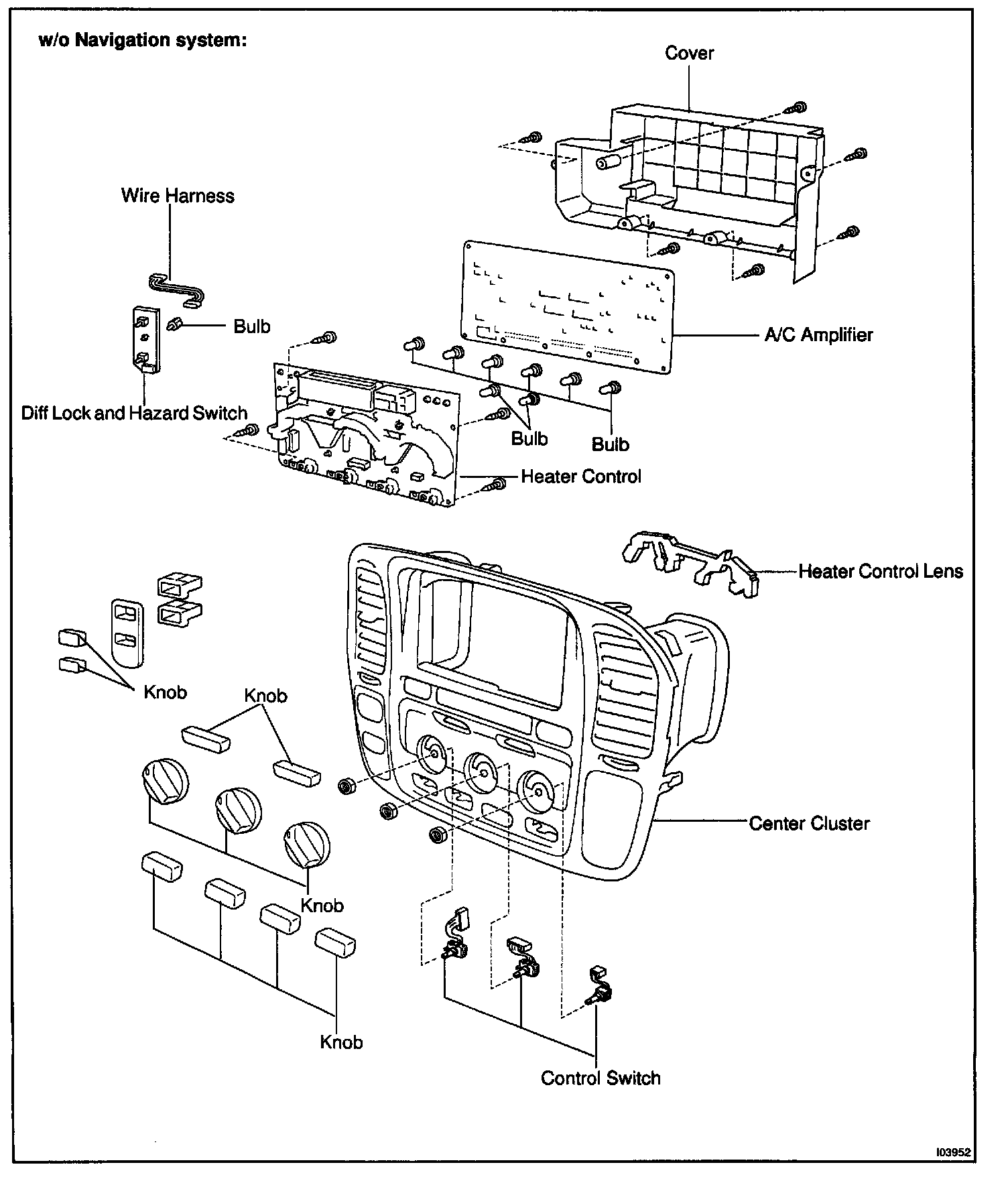

Air Conditioning Control Assembly - W/o Navigation System:

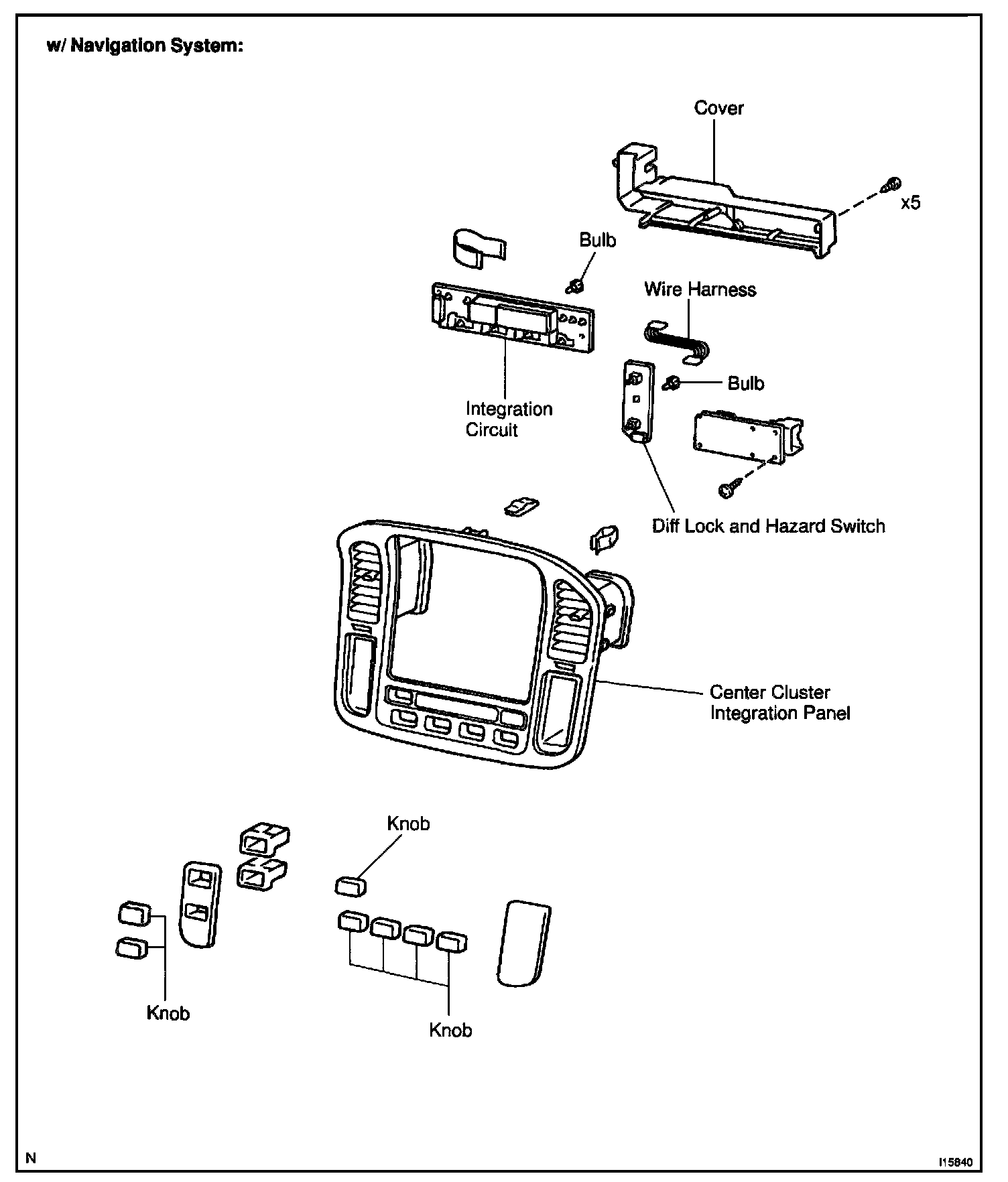

Air Conditioning Control Assembly - W/ Navigation System:

REMOVAL




REMOVE A/C CONTROL ASSEMBLY

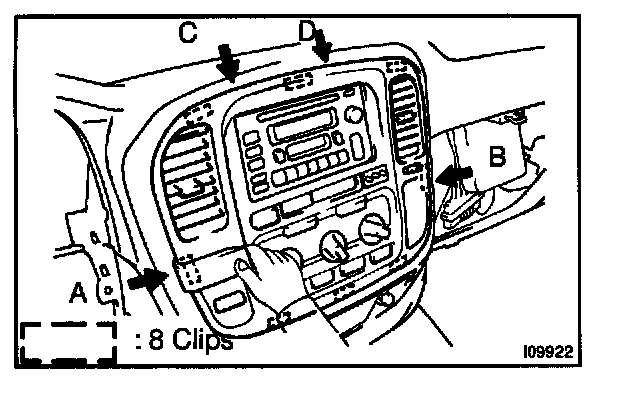

a. Using a moulding remover, remove the center cluster in order "A", "B", "C", "D", as shown in the illustration.
b. Disconnect the connector.

INSTALLATION
Installation is in the reverse order of removal.
