Relay Box
>>
Locations
Relay Box: Locations
Engine Room J/B Part 1:

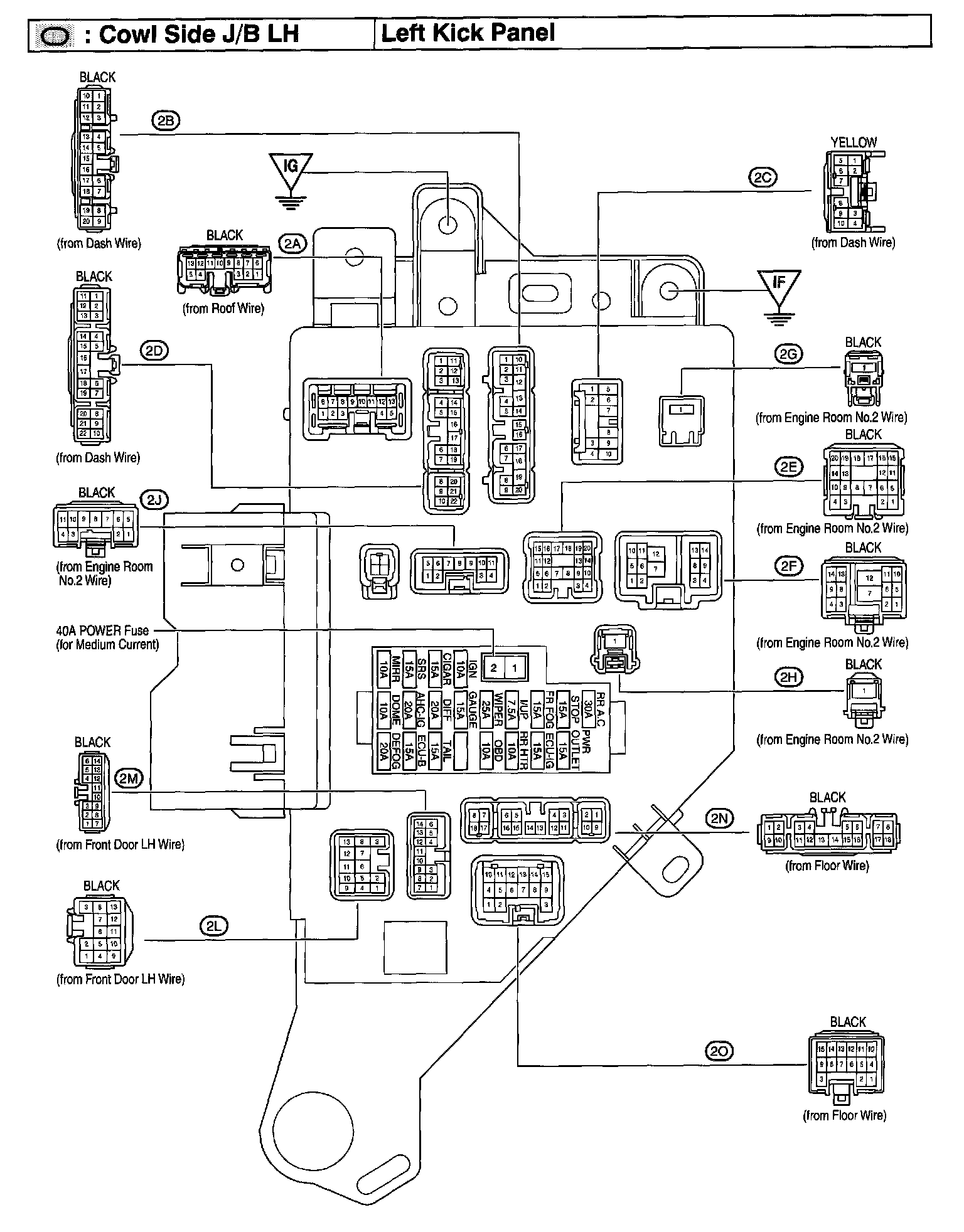

Cowl Side J/B LH Part 1:

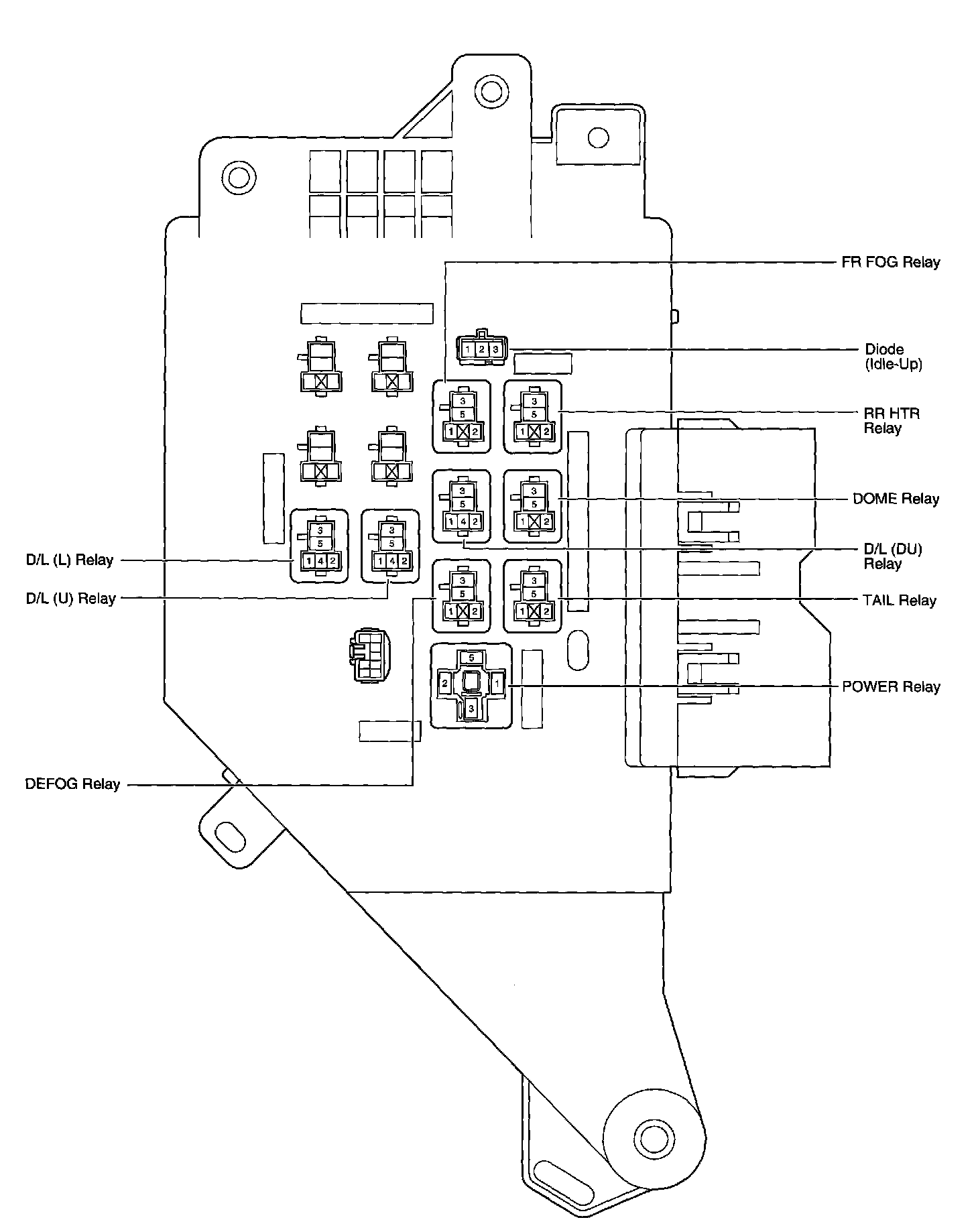

Cowl Side J/B LH Part 2:
Cowl Side J/B RH Part 2:
Fusible Link Block:
Details

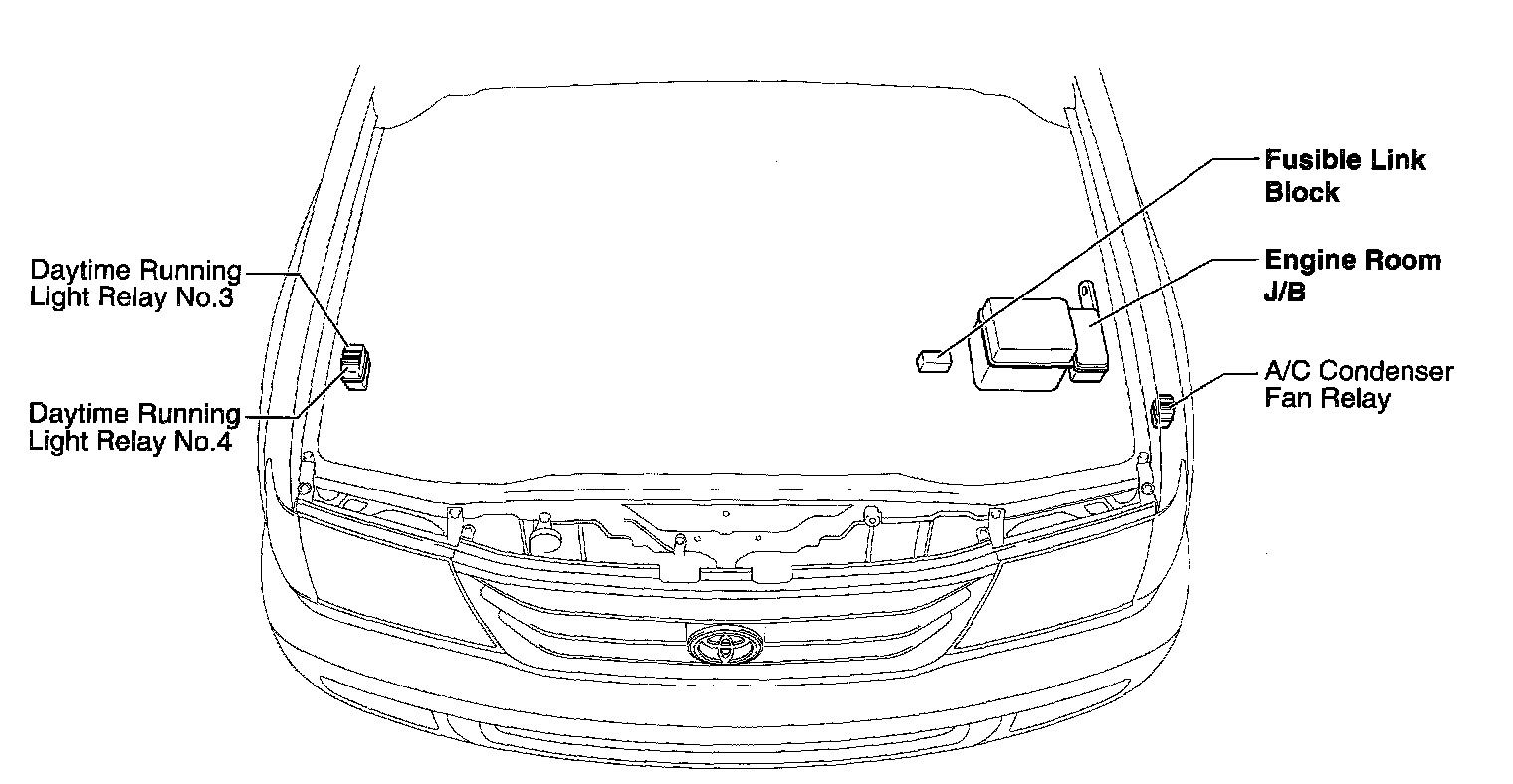

Engine Compartment:
Instrument Panel:
Body:
Locations
