Connector Locations

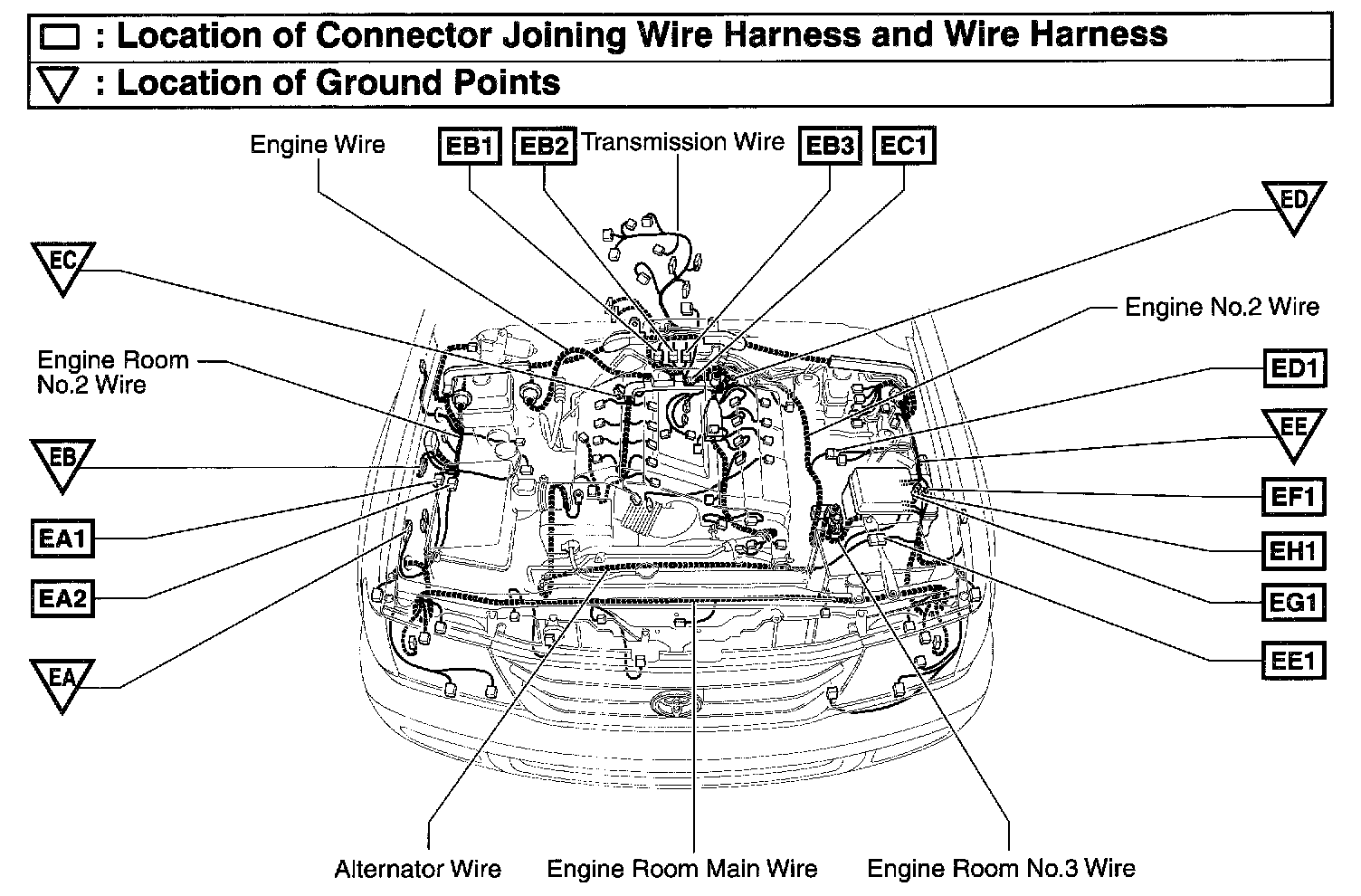

Engine Compartment:

Ground Location
EA Front Right Side of Fender Apron
EB Front Right Side of Fender Apron
EC Rear Bank of Right Cylinder Head
ED Rear Bank of Left Cylinder Head
EE Front Left Side of Fender Apron

Connector Location
EA1 Engine Room Main Wire and Engine Room No.2 Wire (Engine Compartment Right)
EA2 Engine Room Main Wire and Engine Room No.2 Wire (Engine Compartment Right)
EB1 Engine Wire and Transmission Wire (On the Transmission)
EB2 Engine Wire and Transmission Wire (On the Transmission)
EB3 Engine Wire and Transmission Wire (On the Transmission)
EC1 Engine No.2 Wire and Engine Wire (On the Transmission
ED1 Engine No.2 Wire and Engine Room No.2 Wire (Near the Engine Room J/B)
EE1 Engine Room Main Wire and Alternator Wire (Near the Battery)
EF1 Engine Room No.2 Wire and Engine Room Main Wire (Under the Engine Room J/B)
EG1 Engine Room No.2 Wire and Engine Room No.3 Wire (Under the Engine Room J/B)
EH1 Engine Room Main Wire and Engine Room No.3 Wire (Under the Engine Room J/B)

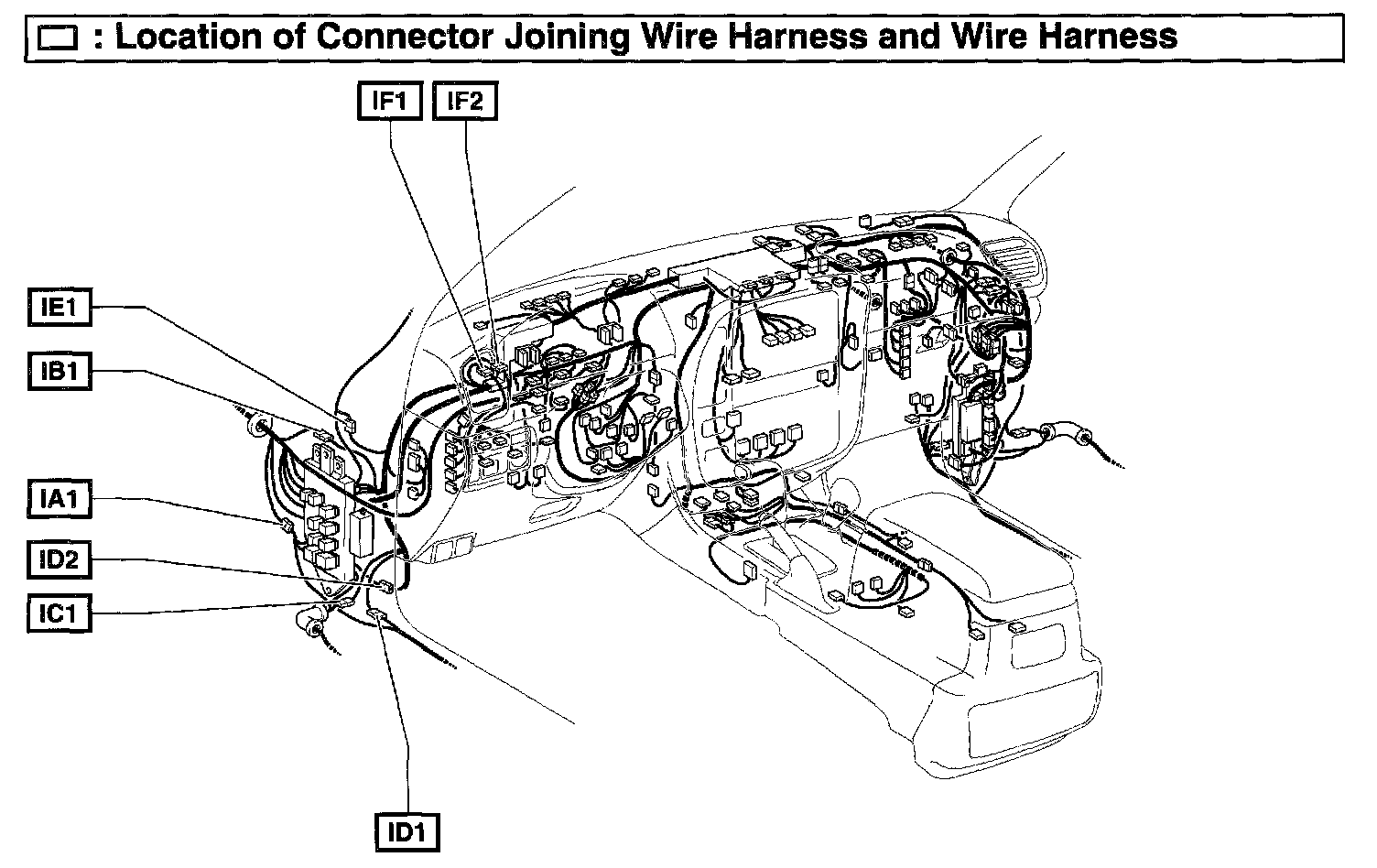

Instrument Panel:

Connector Location
IA1 Floor Wire and Engine Room NO.2 Wire (Left Kick Panel)
IB1 Engine Room No.2 Wire and Dash Wire (Left Kick Panel)
IC1 Front Door LH Wire and Dash Wire (Left Kick Panel)
ID1 Dash Wire and Floor Wire (Left Kick Panel)
ID2 Dash Wire and Floor Wire (Left Kick Panel)
IE1 Dash Wire and Roof Wire (Left Kick Panel)
IF1 Instrument Panel Integration Wire and Instrument Panel Wire (Left Side of Instrument Panel)
IF2 Instrument Panel Integration Wire and Instrument Panel Wire (Left Side of Instrument Panel)

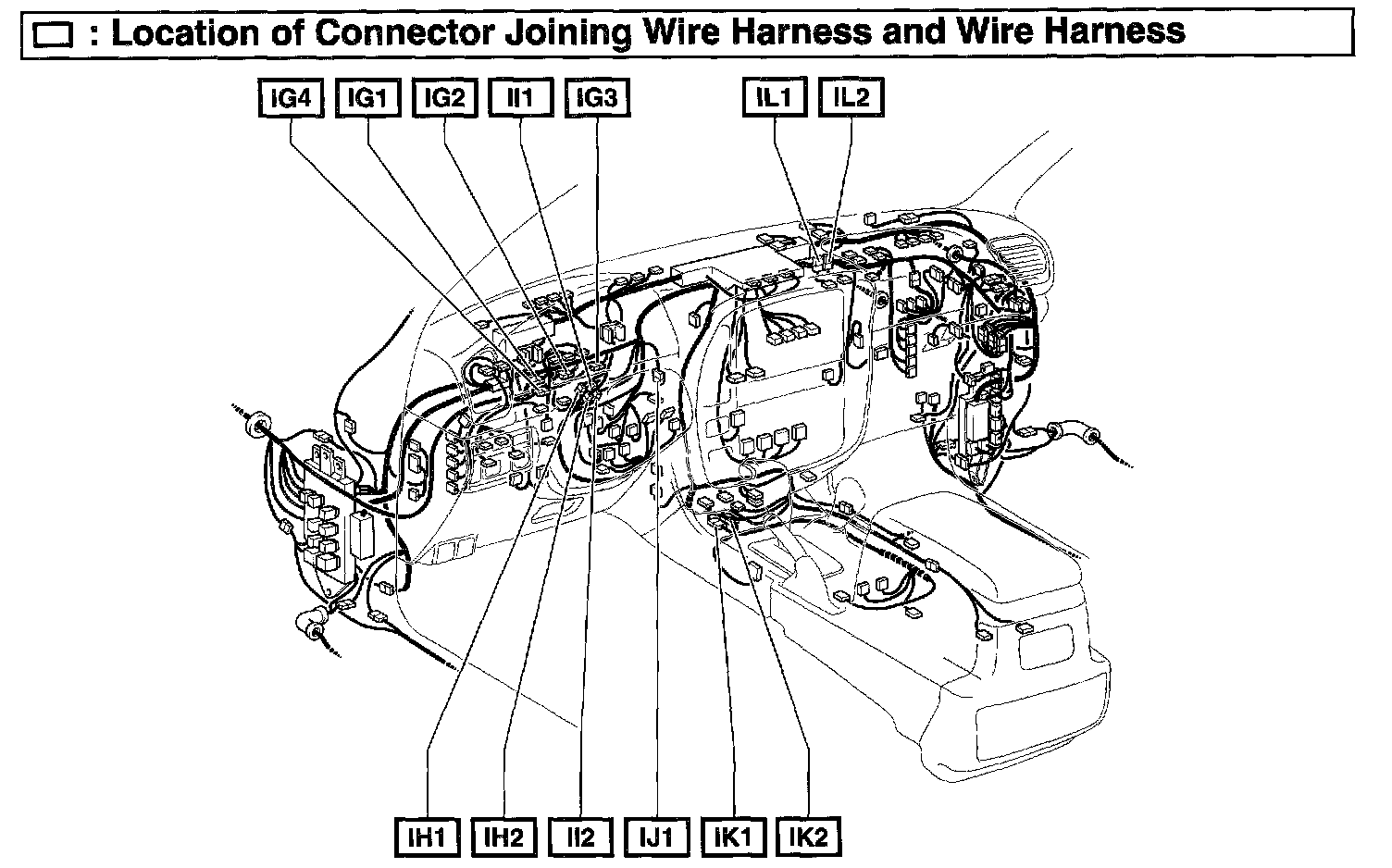

Instrument Panel:

Connector Location
IG1 Engine Room No.2 Wire and Dash Wire (Behind the Combination Meter)
IG2 Engine Room No.2 Wire and Dash Wire (Behind the Combination Meter)
IG3 Engine Room No.2 Wire and Dash Wire (Behind the Combination Meter)
IG4 Engine Room No.2 Wire and Dash Wire (Behind the Combination Meter)
IH1 Instrument Panel Integration Wire and Column Wire (Near the Ignition SW)
IH2 Instrument Panel Integration Wire and Column Wire (Near the Ignition SW)
II1 Dash Wire and Column Wire (Near the Ignition SW)
II2 Column Wire and Dash Wire (Near the Ignition SW)
IJ1 Dash Wire and Detector Wire (Instrument Panel Center)
IK1 Console Box Wire and Dash Wire (Left Side of Front Console)
IK2 Console Box Wire and Dash Wire (Left Side of Front Console)
IL1 Instrument Panel Integration Wire and Computer Wire (Instrument Panel Center)
IL2 Instrument Panel Integration Wire and Computer Wire (Instrument Panel Center)

Instrument Panel:

Connector Location
IM1 Instrument Panel Integration Wire and Instrument Panel No.3 Wire (Right Side of Instrument Panel)
IN1 Engine Wire and Dash Wire (Behind the Glove Box)
IO1 Engine Wire and Dash Wire (Behind the Glove Box)
IO2 Engine Wire and Dash Wire (Behind the Glove Box)
IP1 Rear Console Box Wire and Dash Wire (Right Side of Rear Console)
IQ1 Instrument Panel Integration Wire and Lamp Wire (Behind the Glove Box)
IR1 Engine Room No.2 Wire and Floor No.2 Wire (Right Kick Panel)
IS1 Dash Wire and Floor No.2 Wire (Right Kick Panel)
IT1 Engine Room No.2 Wire and Dash Wire (Right Kick Panel)
IU1 Instrument Panel Integration Wire and Dash Wire (Behind the Glove Box)
IU2 Instrument Panel Integration Wire and Dash Wire (Behind the Glove Box)
IU3 Instrument Panel Integration Wire and Dash Wire (Behind the Glove Box)
IU4 Instrument Panel Integration Wire and Dash Wire (Behind the Glove Box)
IU5 Instrument Panel Integration Wire and Dash Wire (Behind the Glove Box)

Instrument Panel:

Connector Location
IV1 Dash Wire and Floor No.2 Wire (Behind the Glove Box)
IV2 Dash Wire and Floor No.2 Wire (Behind the Glove Box)
IW1 Engine Room No.2 Wire and Dash Wire (Behind the Glove Box)
IW2 Engine Room No.2 Wire and Dash Wire (Behind the Glove Box)
IX1 Instrument Panel Integration Wire and Engine Wire (Behind the Glove Box)
IY1 Front Door RH Wire and Dash Wire (Right Kick Panel)
IZ1 Floor No.2 Wire and Dash Wire (Right Side of Front Console)

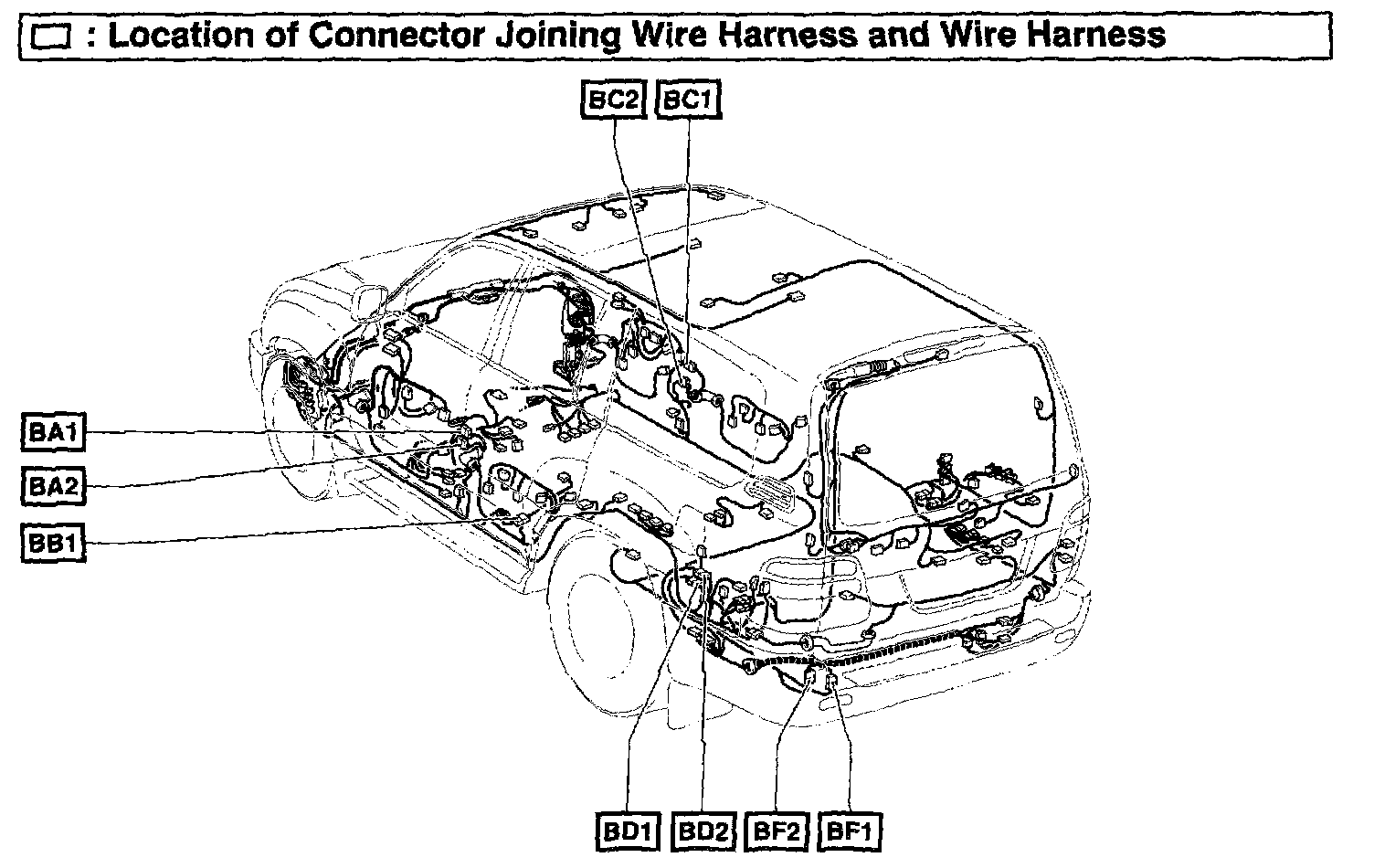

Body:

Connector Location
BA1 Rear Door LH Wire and Floor Wire (Left Side of Center Pillar)
BA2 Rear Door LH Wire and Floor Wire (Left Side of Center Pillar)
BB1 Floor Wire and Fuel Tank Wire (Near the Fuel Tank)
BC1 Rear Door RH Wire and Floor No.2 Wire (Right Side of Center Pillar)
BC2 Rear Door RH Wire and Floor No.2 Wire (Right Side of Center Pillar)
BD1 Floor No.3 Wire and Floor Wire (Left Rear Side Quarter Panel)
BD2 Floor No.3 Wire and Floor Wire (Left Rear Side Quarter Panel)
BF1 Frame Wire and Floor No.3 Wire (Left Side of Rear Floor Crossmember)
BF2 Frame Wire and Floor No.3 Wire (Left Side of Rear Floor Crossmember)

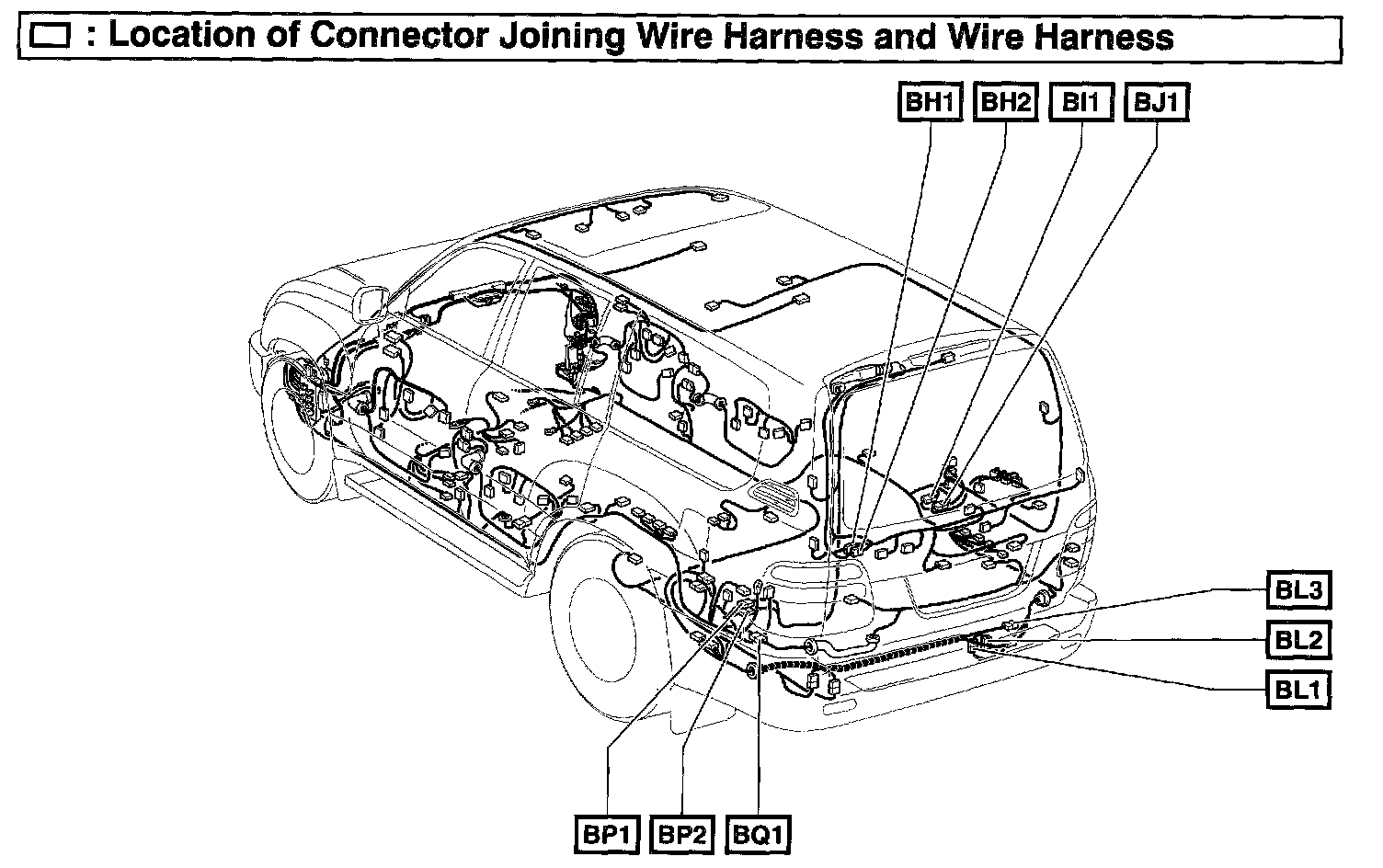

Body:

Connector Location
BH1 Pillar No.1 Wire and Back Door Upper Wire (Left Side of Back Door)
BH2 Pillar No.1 Wire and Back Door Upper Wire (Left Side of Back Door)
BI1 Roof No.2 Wire and Floor No.2 Wire (Right Side Rear Quarter Panel)
BJ1 Floor No.2 Wire and A/C Sub Wire (Right Side Rear Quarter Panel)
BL1 Floor No.2 Wire and Floor No.3 Wire (Right Side of Rear Floor Crossmember)
BL2 Floor No.2 Wire and Floor No.3 Wire (Right Side of Rear Floor Crossmember)
BL3 Floor No.2 Wire and Floor No.3 Wire (Right Side of Rear Floor Crossmember)
BP1 Pillar No.1 Wire and Floor Wire (Left Rear Side Quarter Panel)
BP2 Pillar No.1 Wire and Floor Wire (Left Rear Side Quarter Panel)
BQ1 Back Door Lower Wire and Floor Wire (Left Rear Side Quarter Panel)

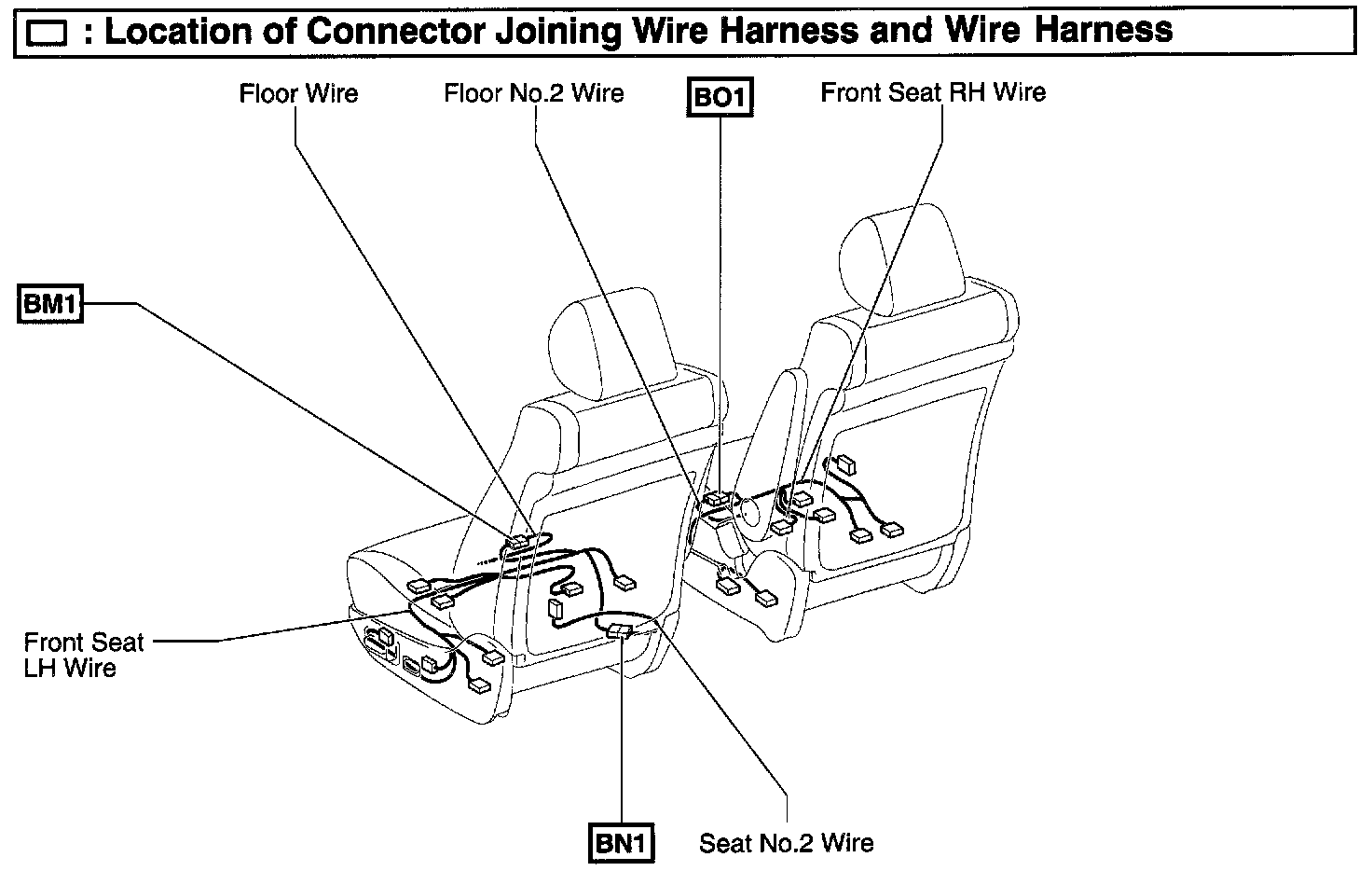

Seat:

Connector Location
BM1 Floor Wire and Front Seat LH Wire (Front Side Under the Driver's Seat)
BN1 Seat No.2 Wire and Front Seat LH Wire (Rear Side Under the Driver's Seat)
BO1 Floor No.2 Wire and Front Seat RH Wire (Front Side Under the Front Passenger's Seat)
