Splice Locations

Engine Compartment:

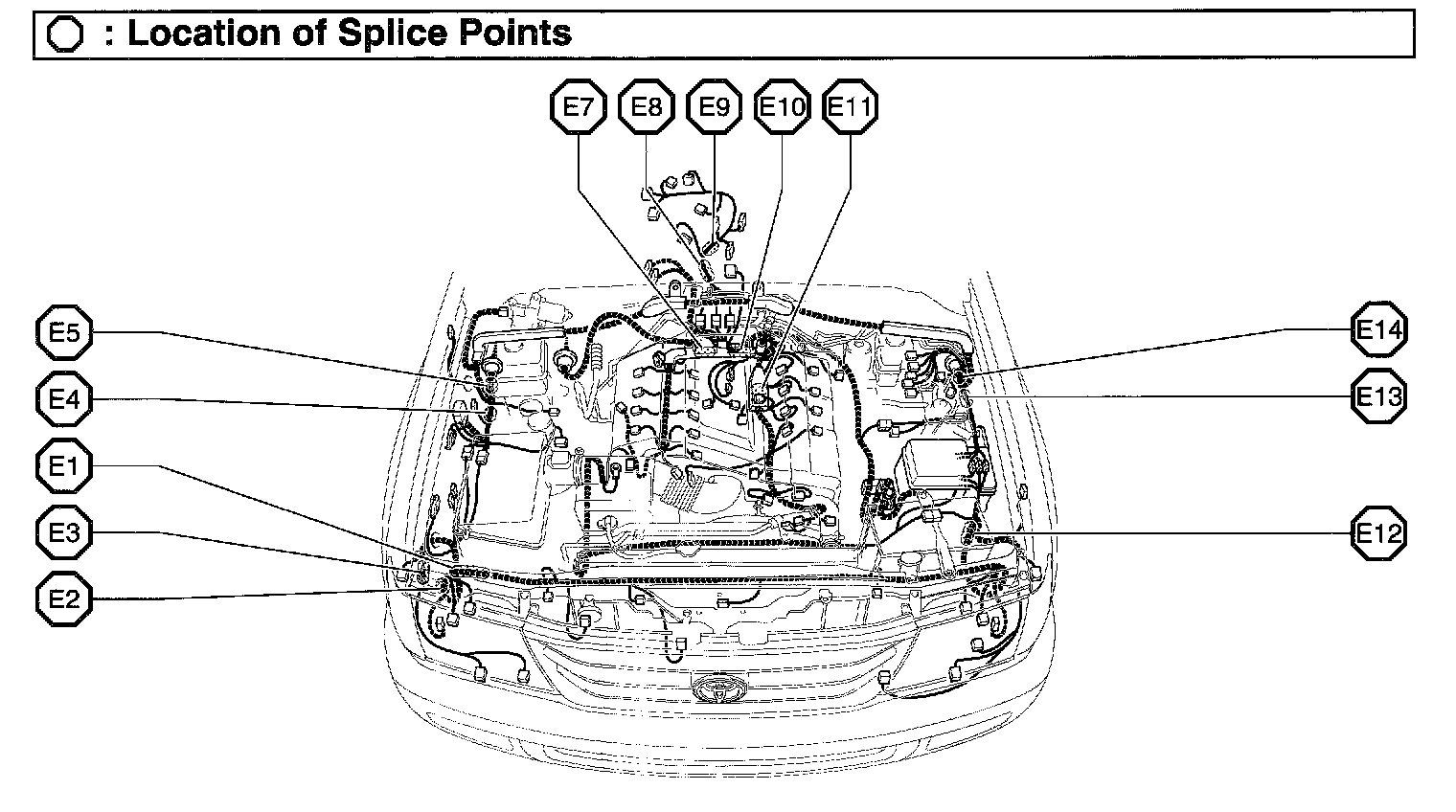

Splice Location
E1 Engine Room Main Wire
E2 Engine Room Main Wire
E3 Engine Room Main Wire
E4 Engine Room No.2 Wire
E5 Engine Room No.2 Wire
E7 Engine Wire
E8 Transmission Wire
E9 Transmission Wire
E10 Engine Wire
E11 Engine Wire
E12 Engine Room Main Wire
E13 Engine Room No.2 Wire
E14 Engine Room No.2 Wire

Instrument Panel:

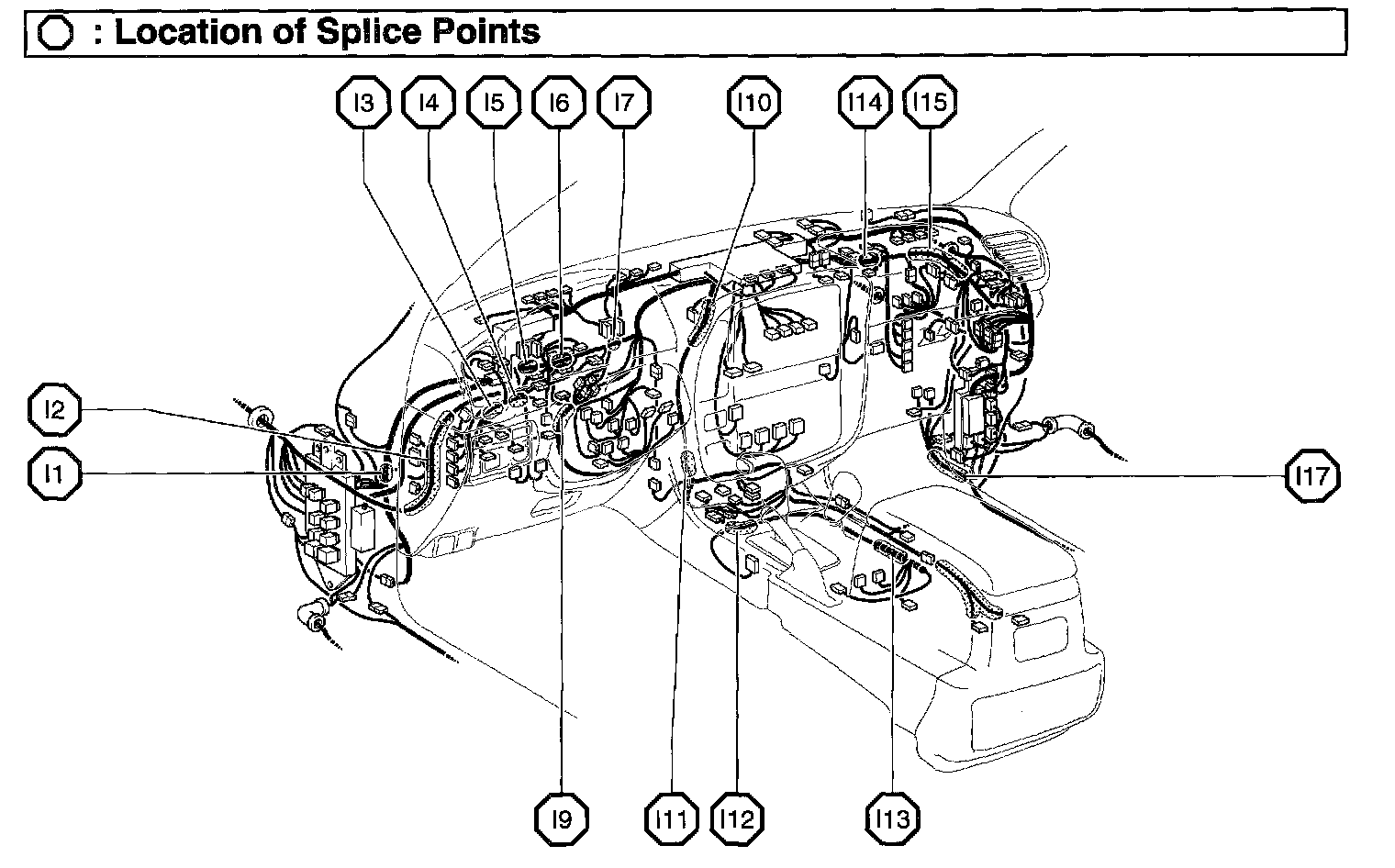

Splice Location
I1 Dash Wire
I2 Engine Room No.2 Wire
I3 Instrument Panel Wire
I4 Instrument Panel Wire
I5 Dash Wire
I6 Dash Wire
I7 Dash Wire
I9 Column Wire
I10 Dash Wire
I11 Dash Wire
I12 Console Box Wire
I13 Console Box Wire
I14 Dash Wire
I15 Dash Wire
I17 Floor No.2 Wire

Body:

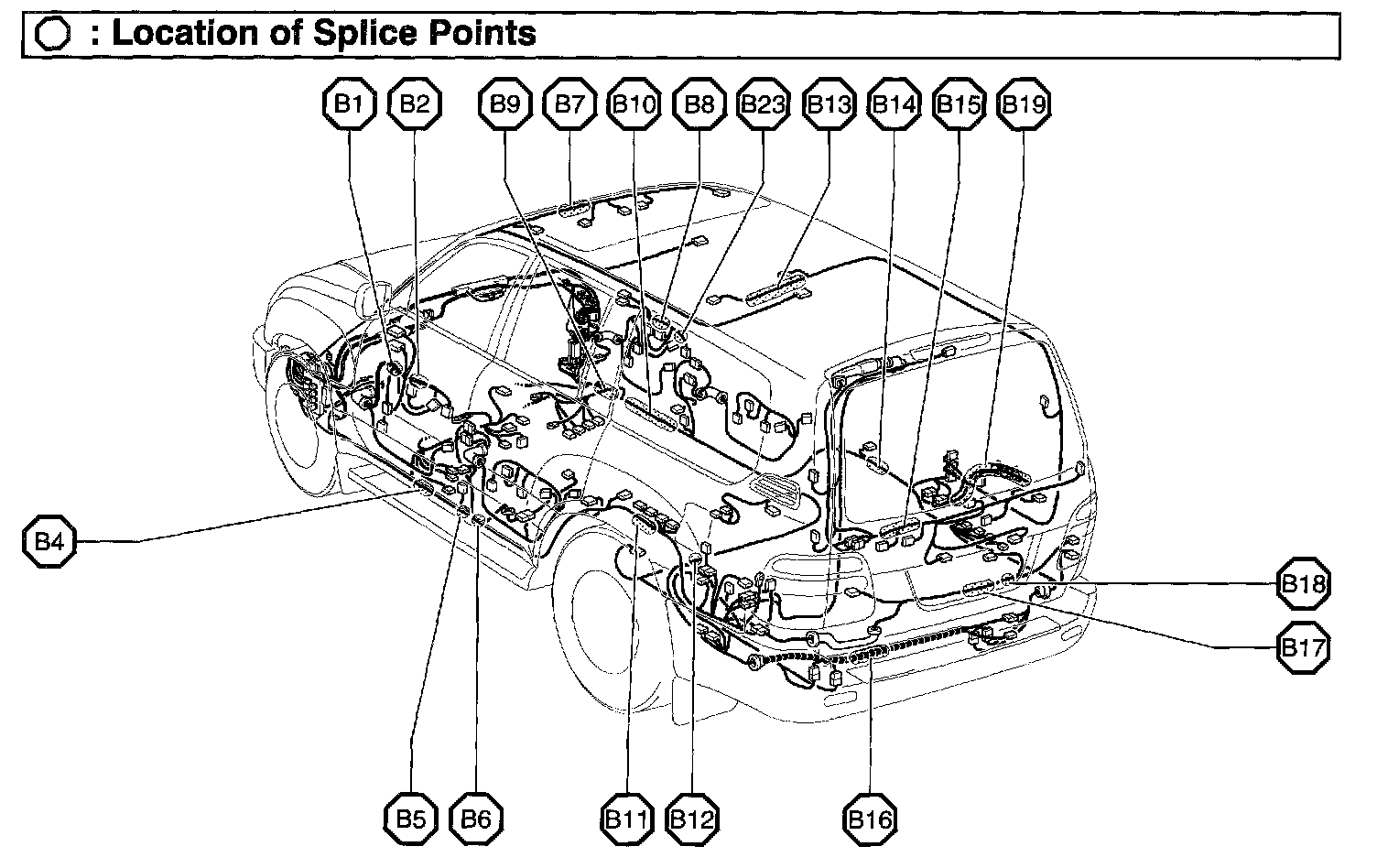

Splice Location
B1 Front Door LH Wire
B2 Front Door LH Wire
B4 Floor Wire
B5 Floor Wire
B6 Floor Wire
B7 Roof Wire
B8 Front Door RH Wire
B9 Floor No.2 Wire
B10 Floor No.2 Wire
B11 Floor Wire
B12 Frame Wire
B13 Roof No.2 Wire
B14 Floor No.2 Wire
B15 Back Door Upper Wire
B16 Floor No.3 Wire
B17 Back Door Lower Wire
B18 Back Door Lower Wire
B19 A/C Sub Wire
B23 Front Door RH Wire

Seat:

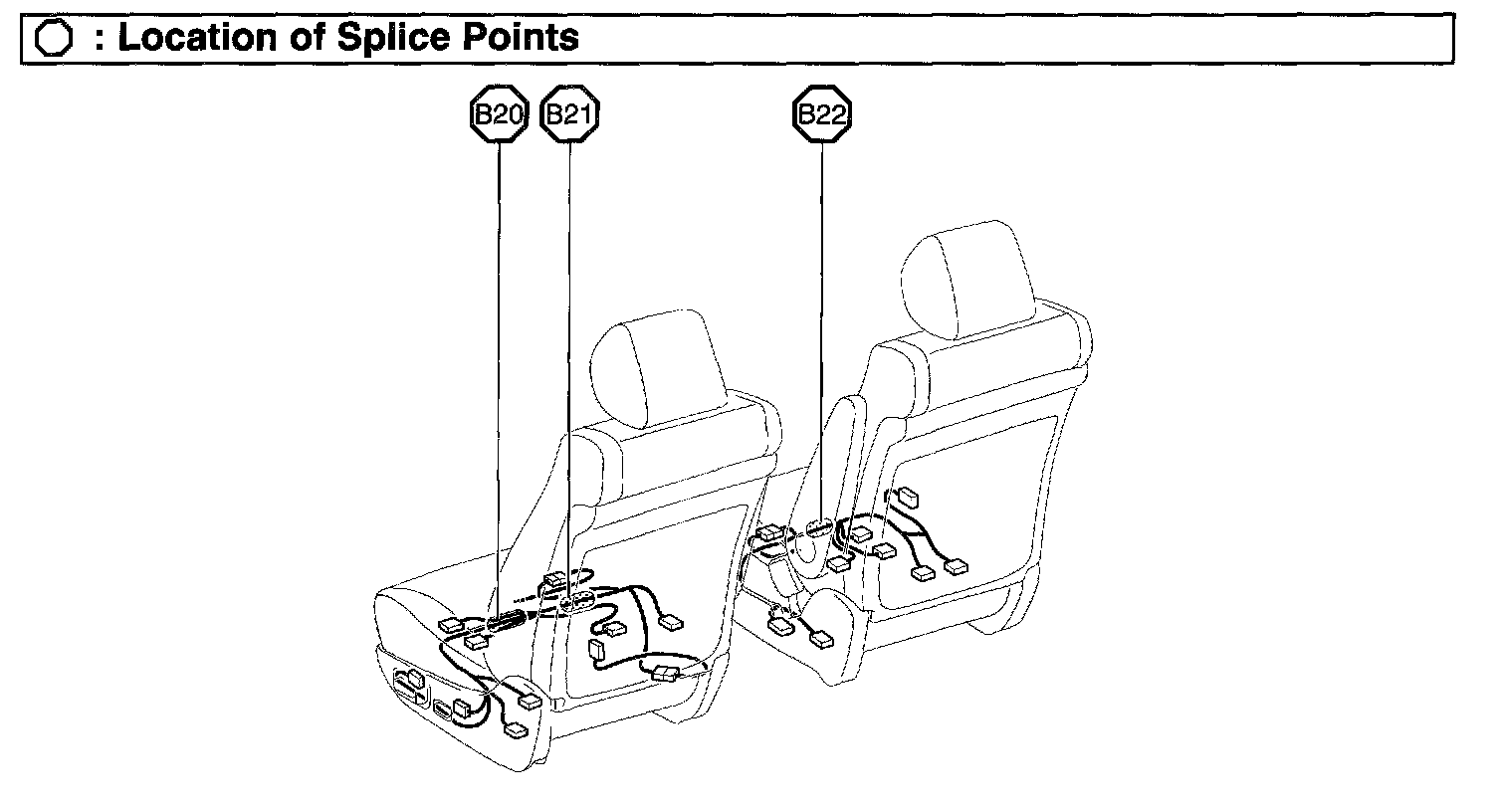

Splice Location
B20 Front Seat LH Wire
B21 Front Seat LH Wire
B22 Front Seat RH Wire
