Power and Ground Distribution
>>
Fuse Block
>>
Locations
Fuse Block: Locations

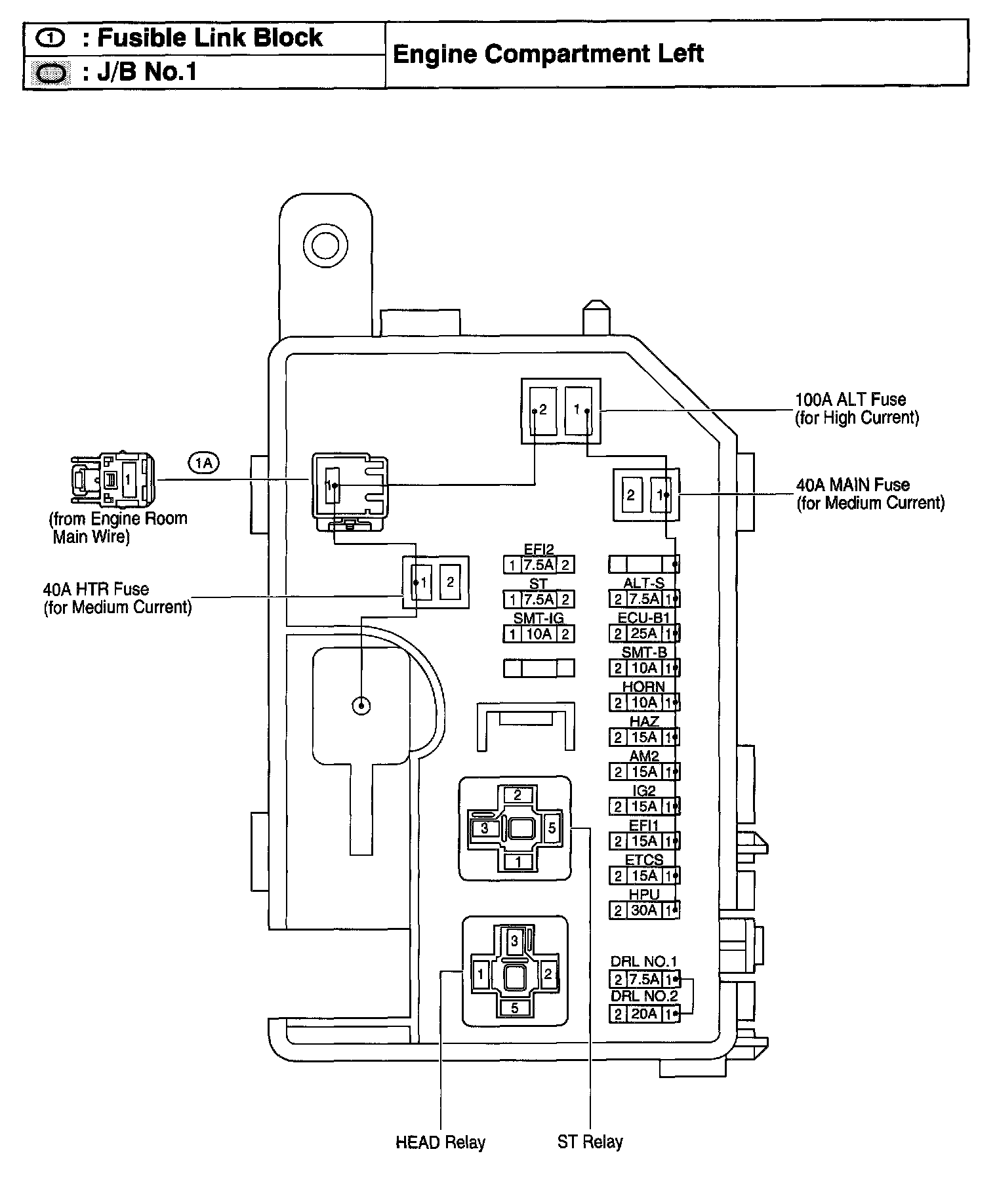

Fusible Link Block & J/B No.1:

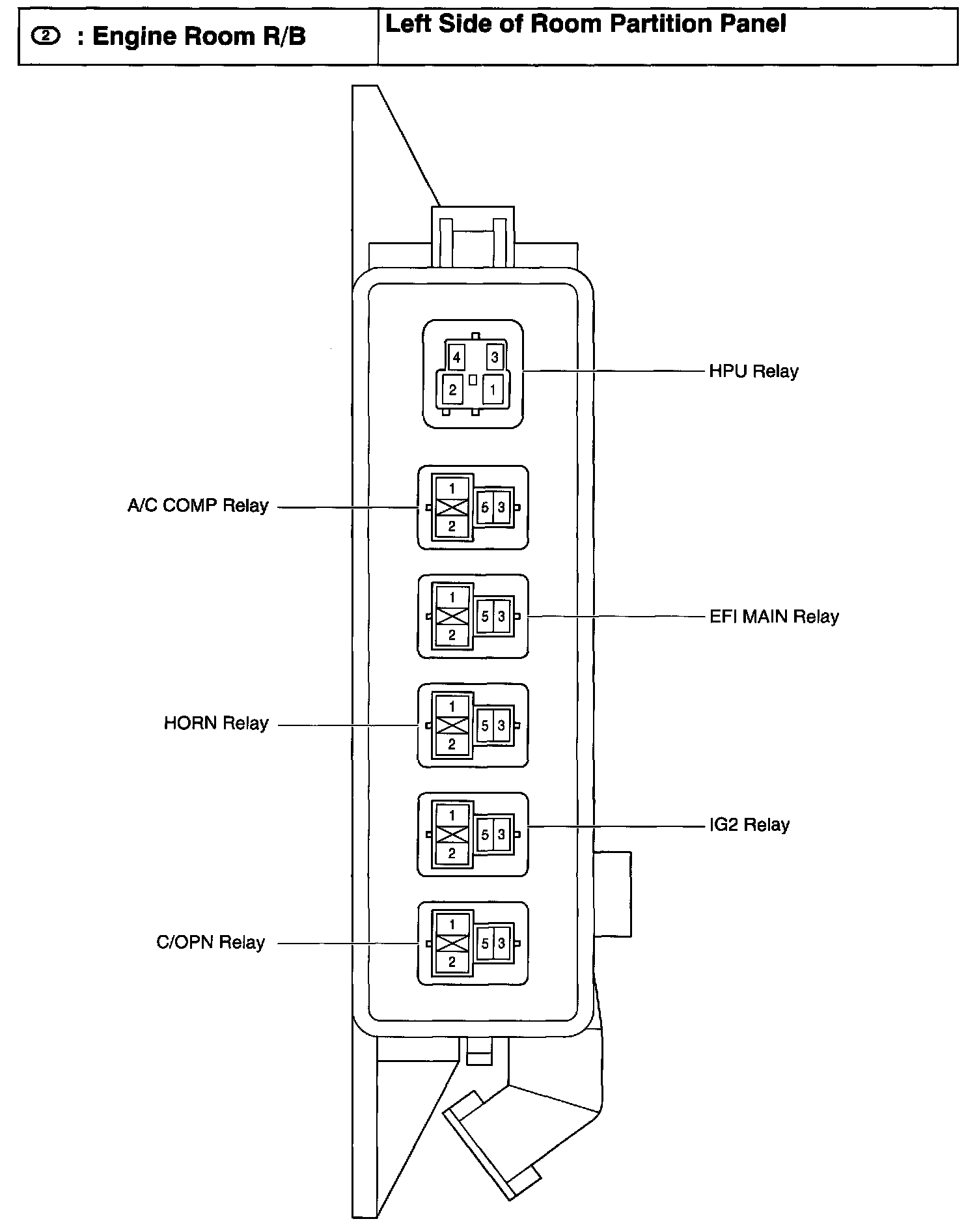

Engine Room R/B:

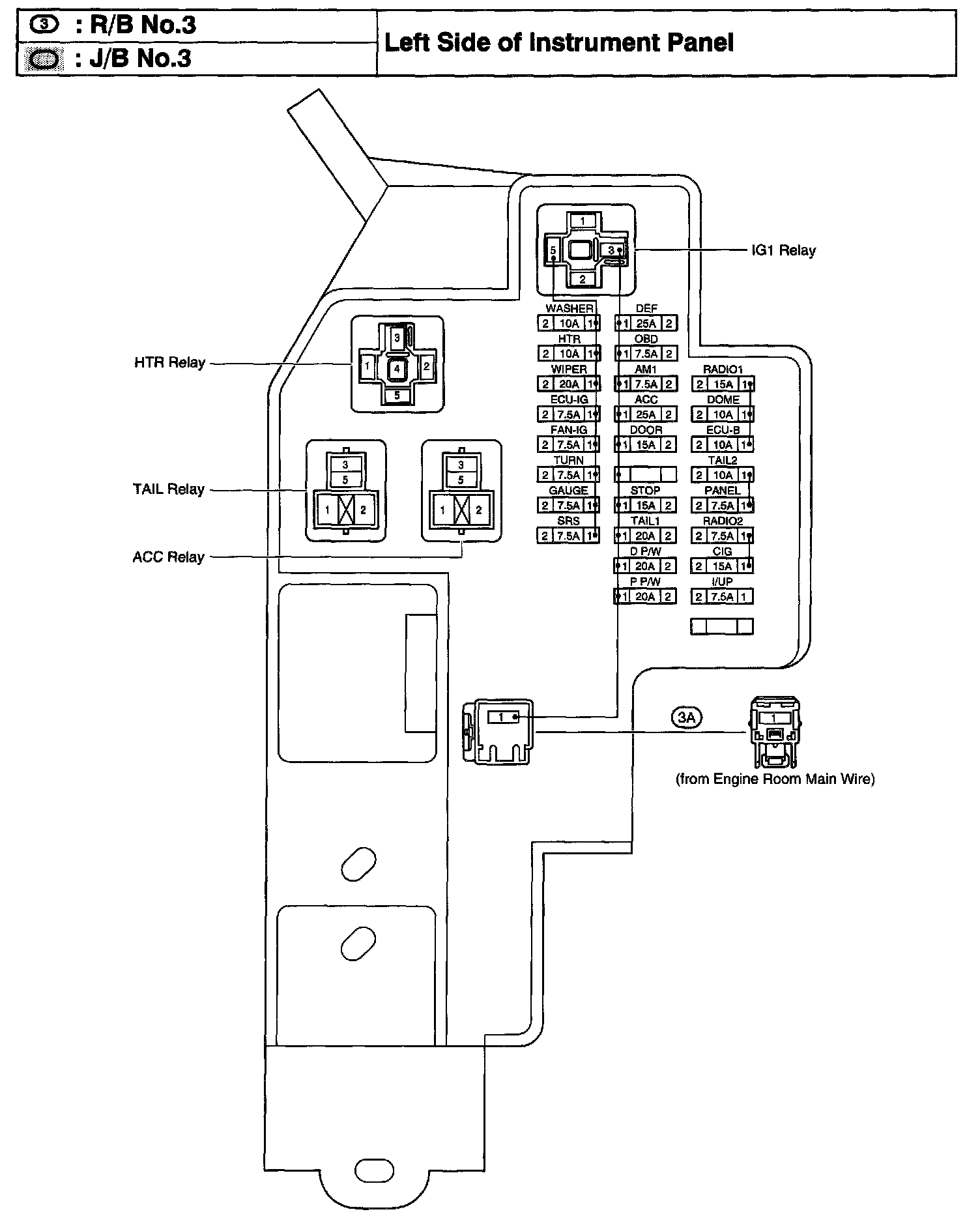

R/B & J/B No.3:

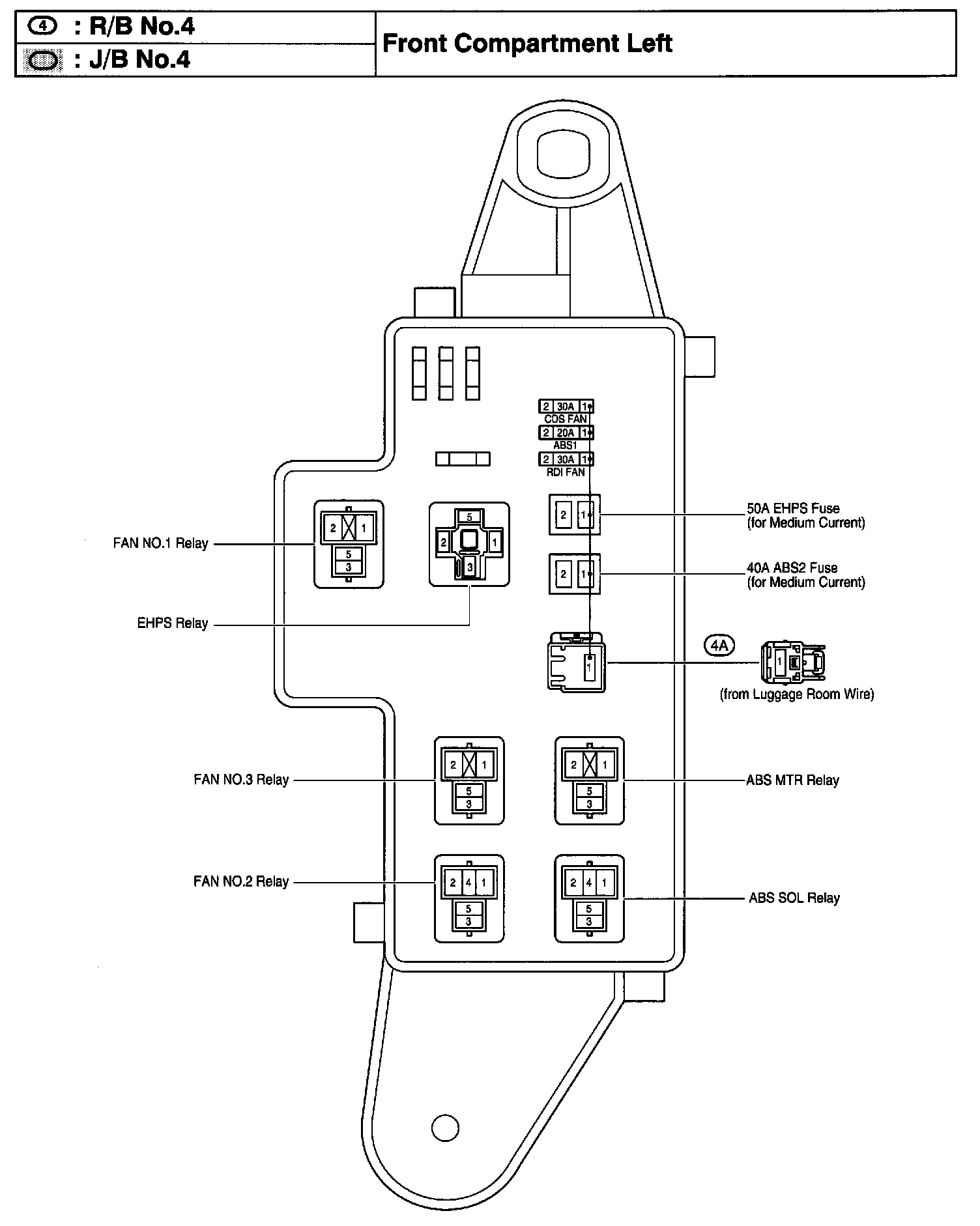

R/B & J/B No.4:

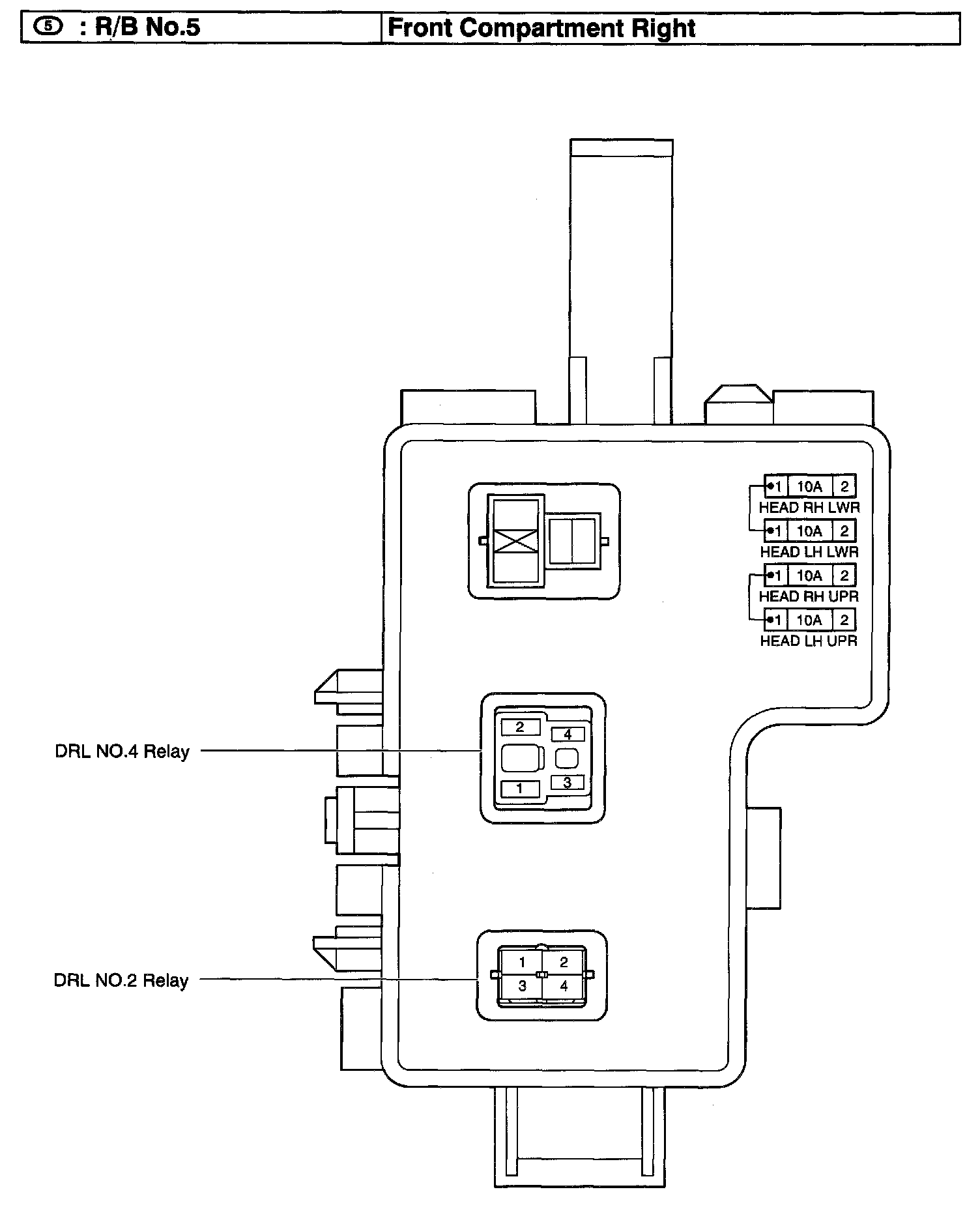

R/B No.5:
Details

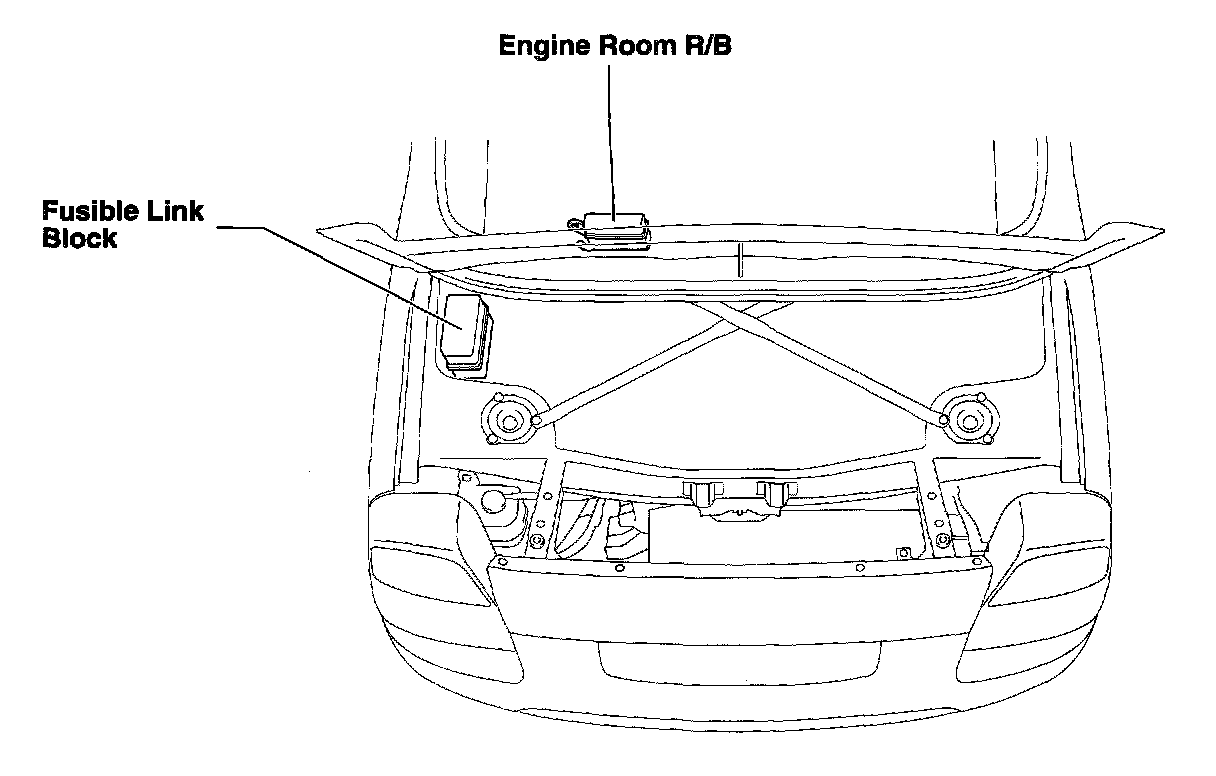

Engine Compartment:

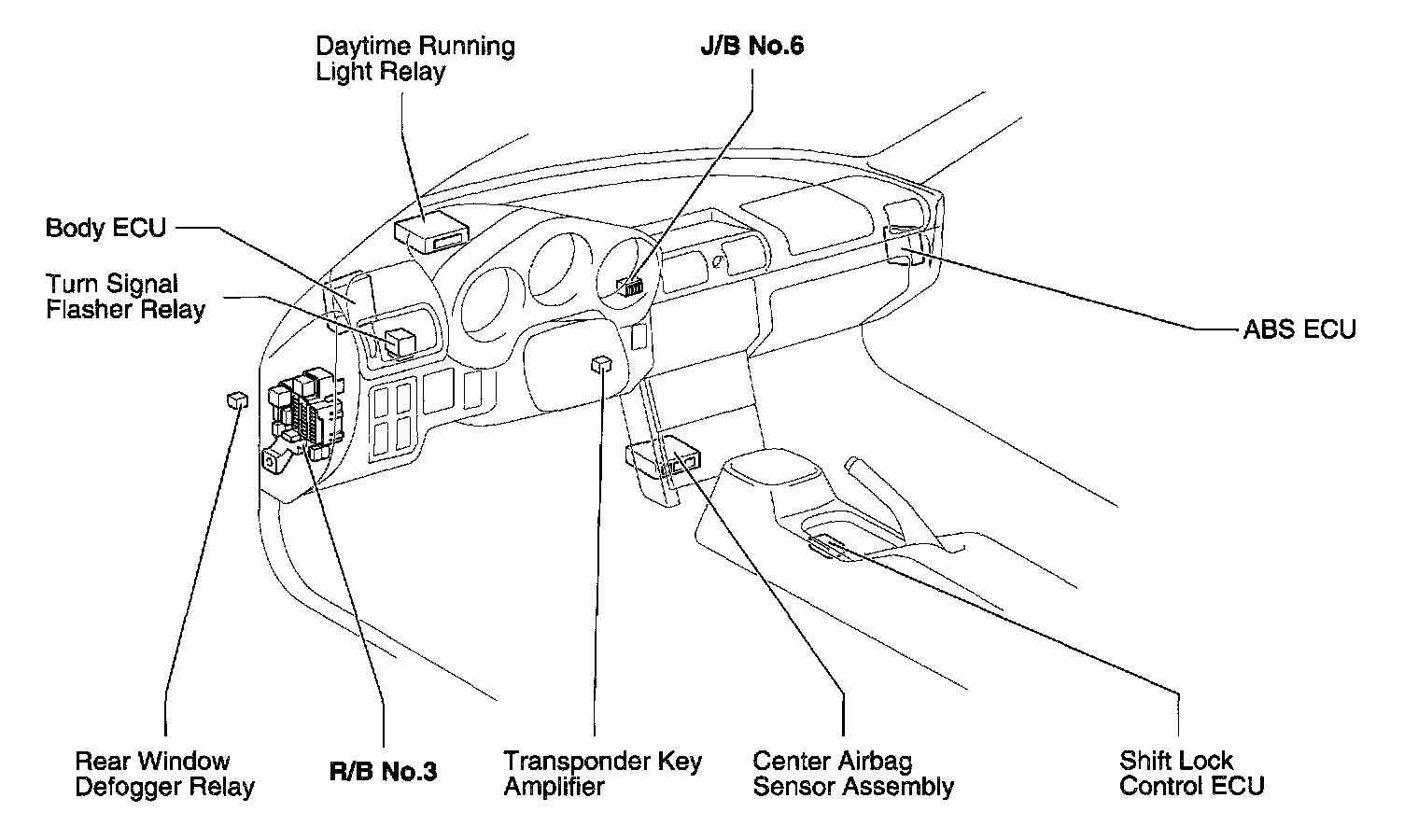

Instrument Panel:
Body:
Locations
