Symptom Related Diagnostic Procedures

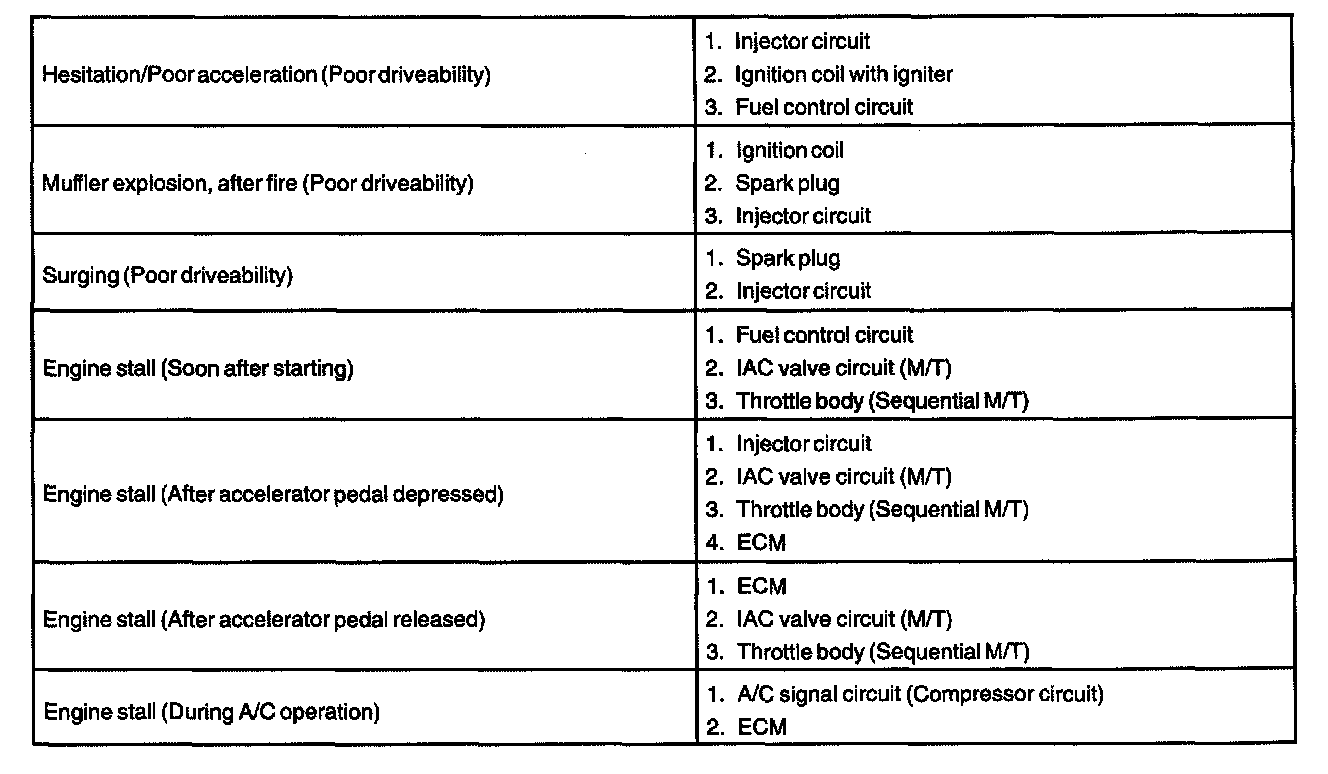

Problem Symptoms Table Part 1:

Problem Symptoms Table Part 2:

When the malfunction is not confirmed in the diagnostic trouble code check and the problem still can not be confirmed in the basic inspection, proceed to this table and troubleshoot according to the numbered order given.
