Throttle Position Sensor: Locations

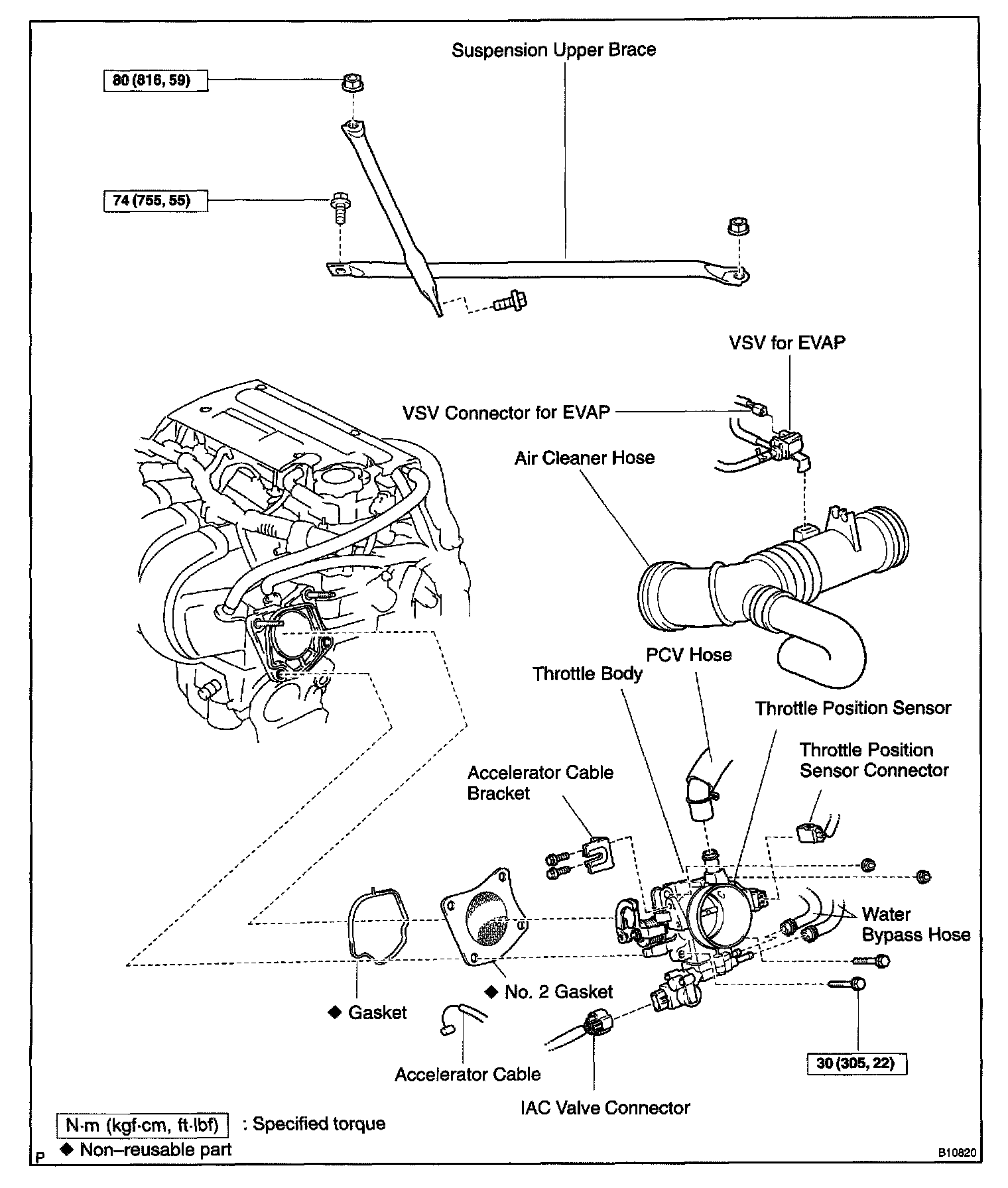

Throttle Body (M/T):

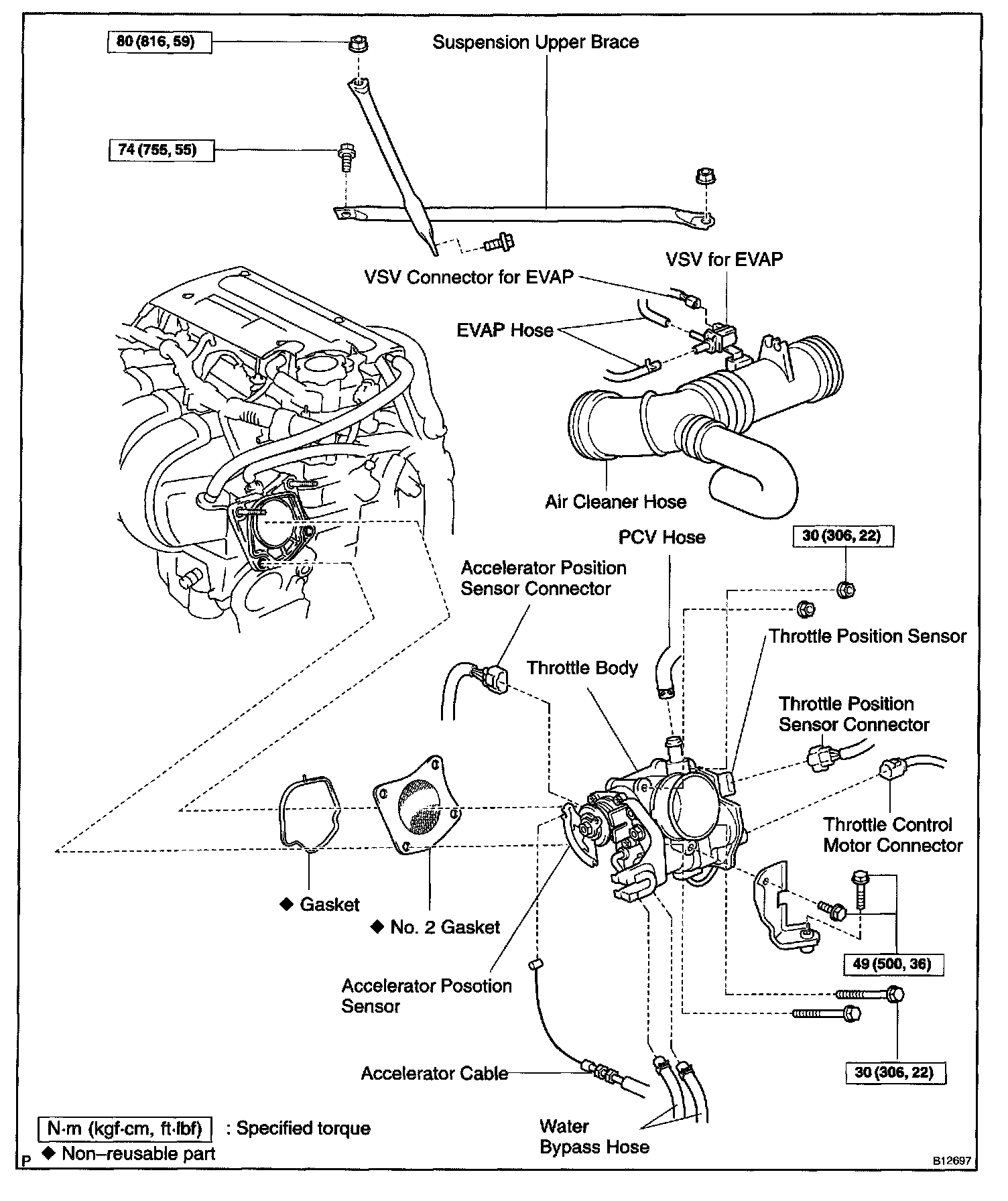

Throttle Body (SMT) Part 1:

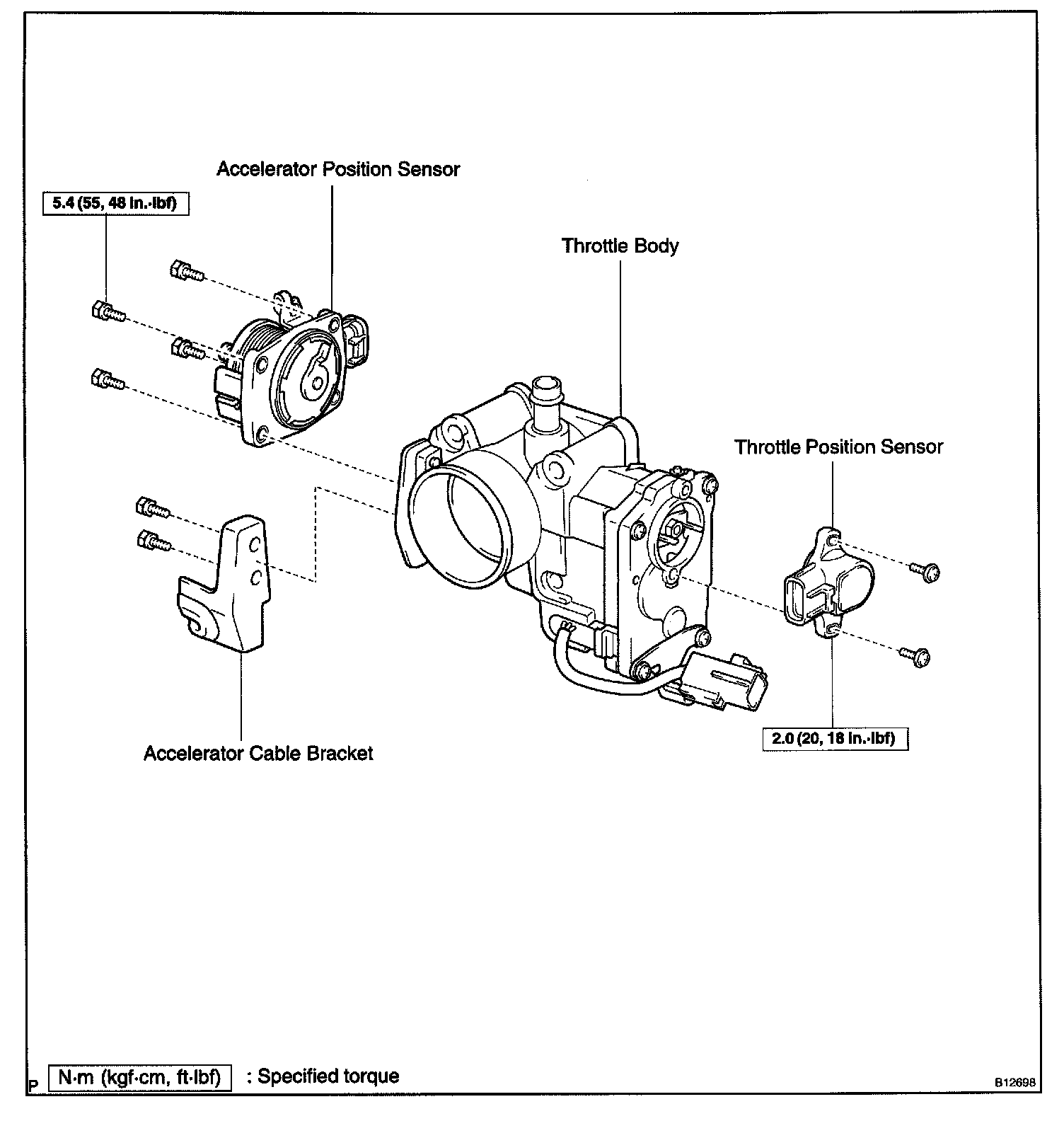

Throttle Body (SMT) Part 2:
