Symptom Related Diagnostic Procedures

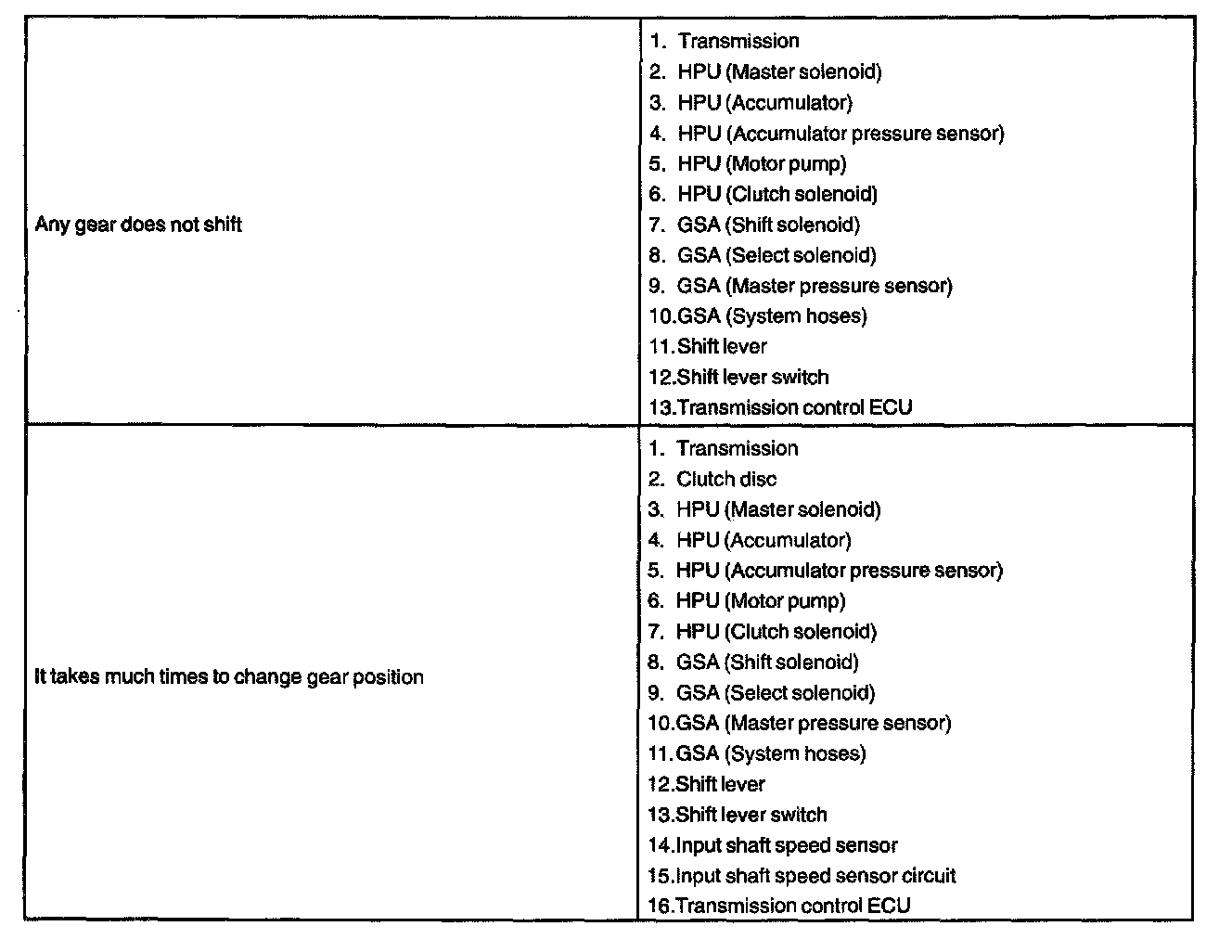

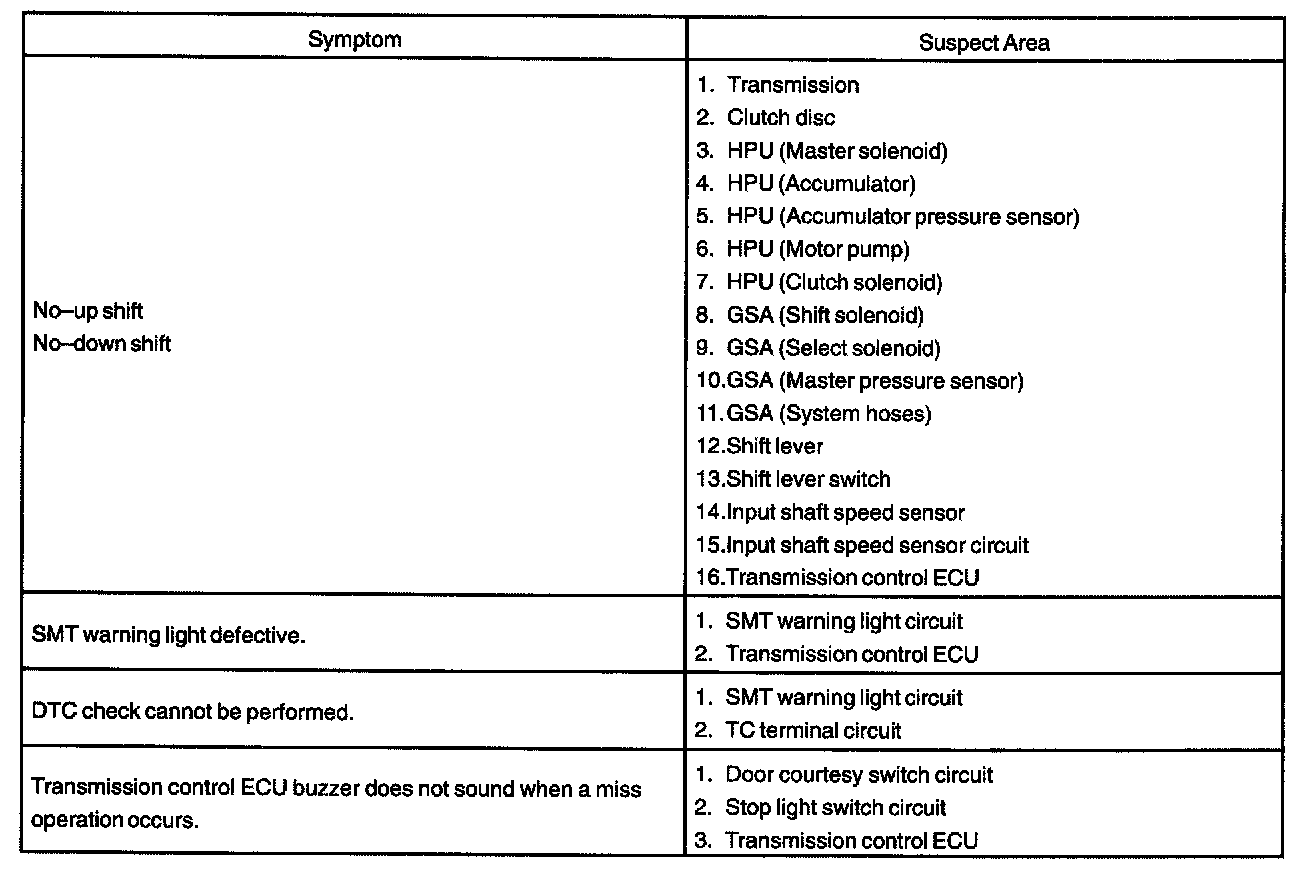

If a normal code is displayed during the DTC check but the problem still occurs, check the problem symptom in the order given in the table and proceed to the relevant troubleshooting given.

NOTE: When replacing the transmission control ECU or sensor, turn the ignition switch OFF and close the driver's door, and after replacing the transmission control ECU, make the transmission control ECU learn characteristics.
