INSPECTION

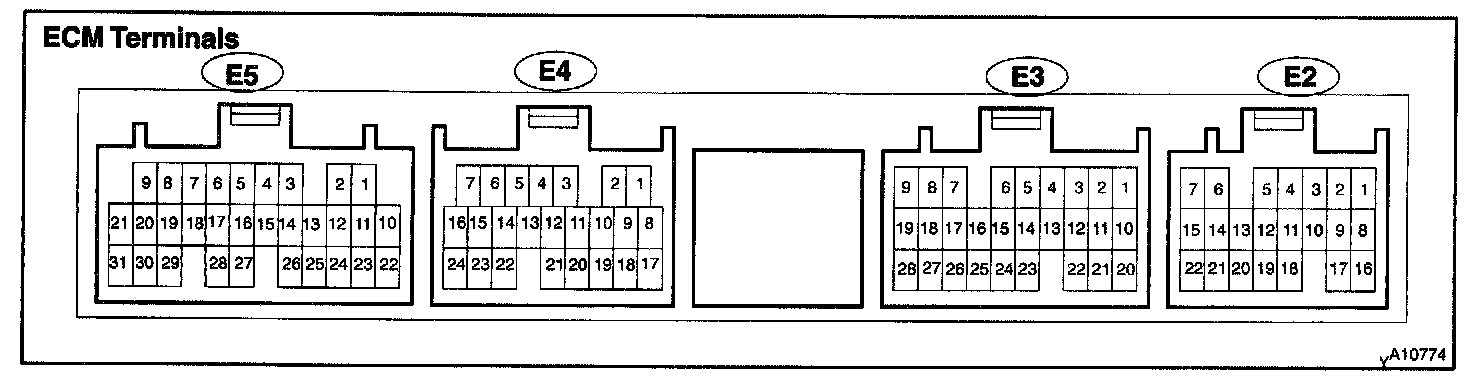

Terminals Of ECM - Connector View:

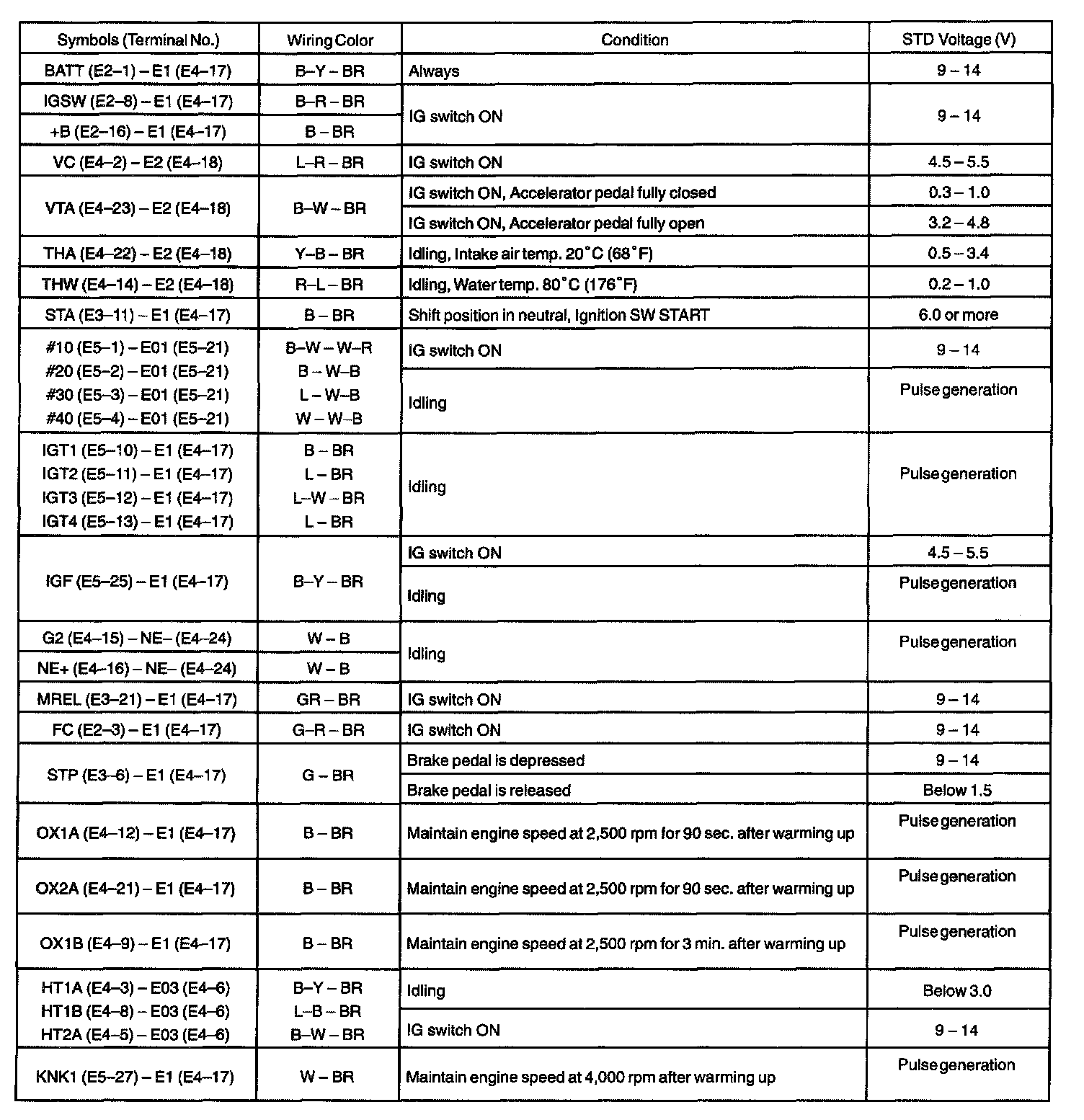

Terminals Of ECM - Pinouts Part 1:

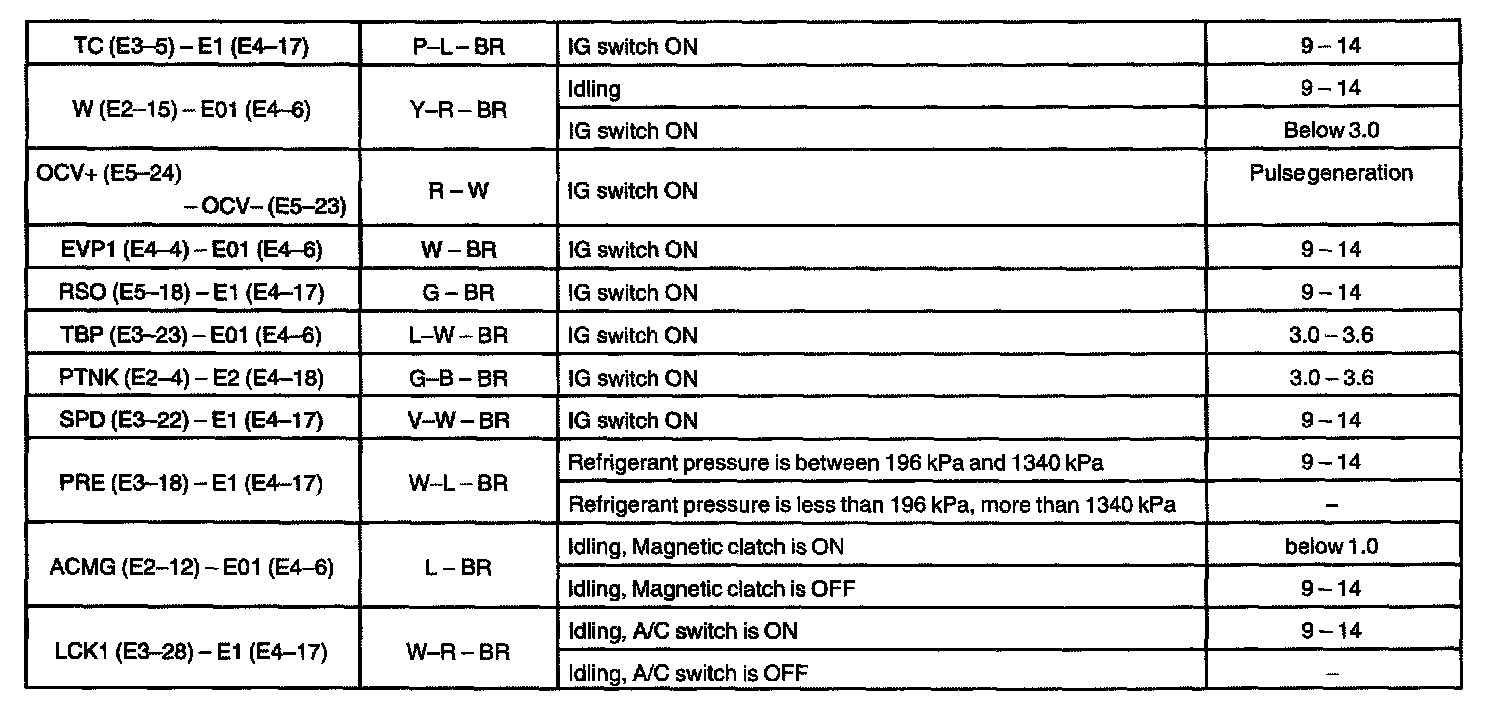

Terminals Of ECM - Pinouts Part 2:
INSPECT ECM
