Piston Ring, Engine
Ring groove clearance: 0.020 - 0.070 mm (0.0008 - 0.0028 inch)

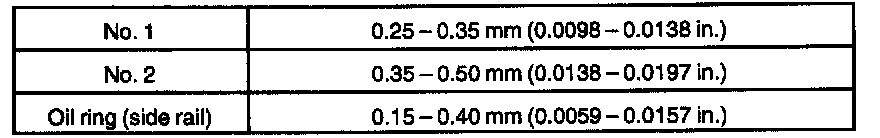

Standard end gap

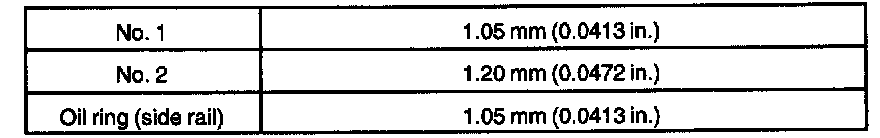

Minimum end gap
