Conventional Shift

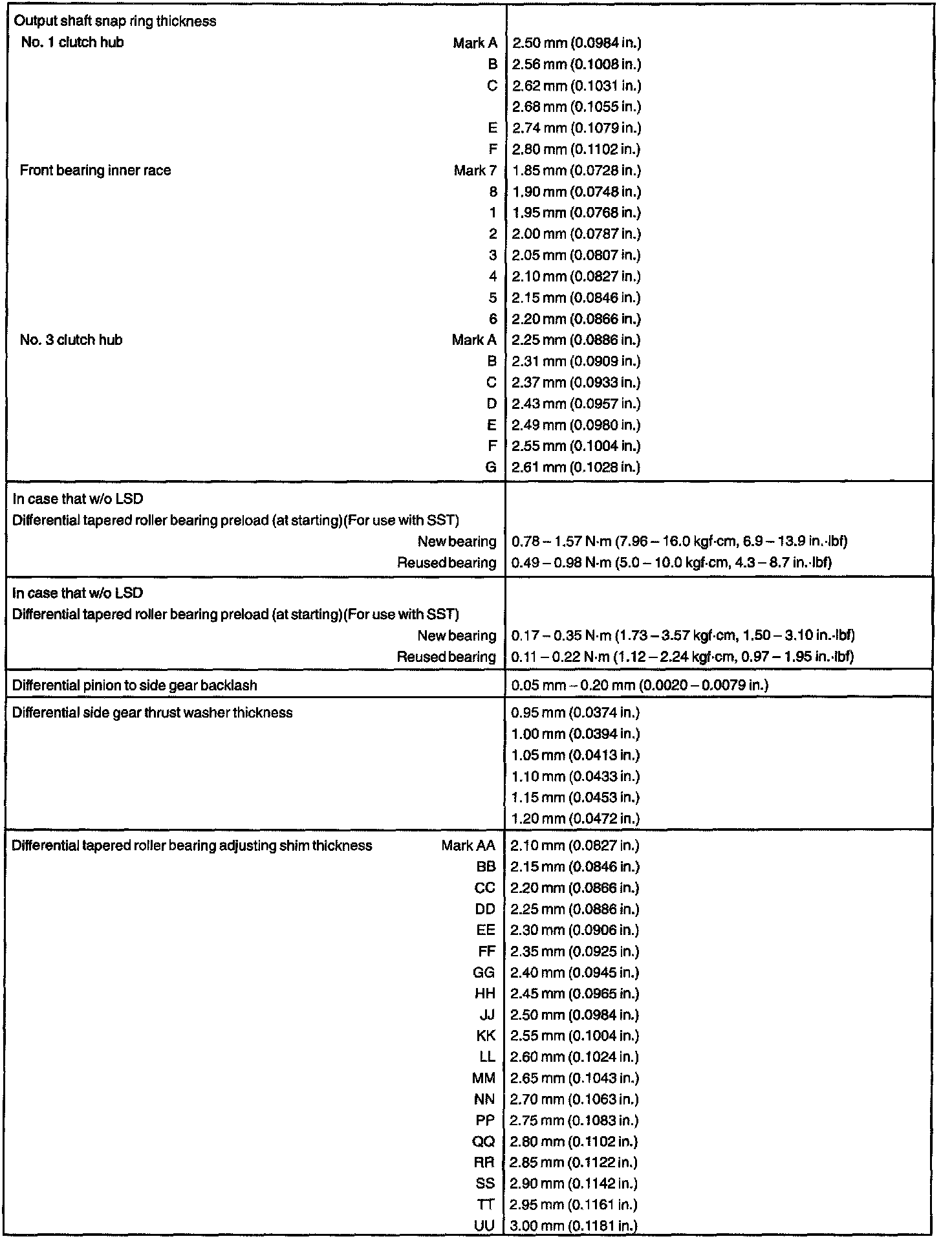

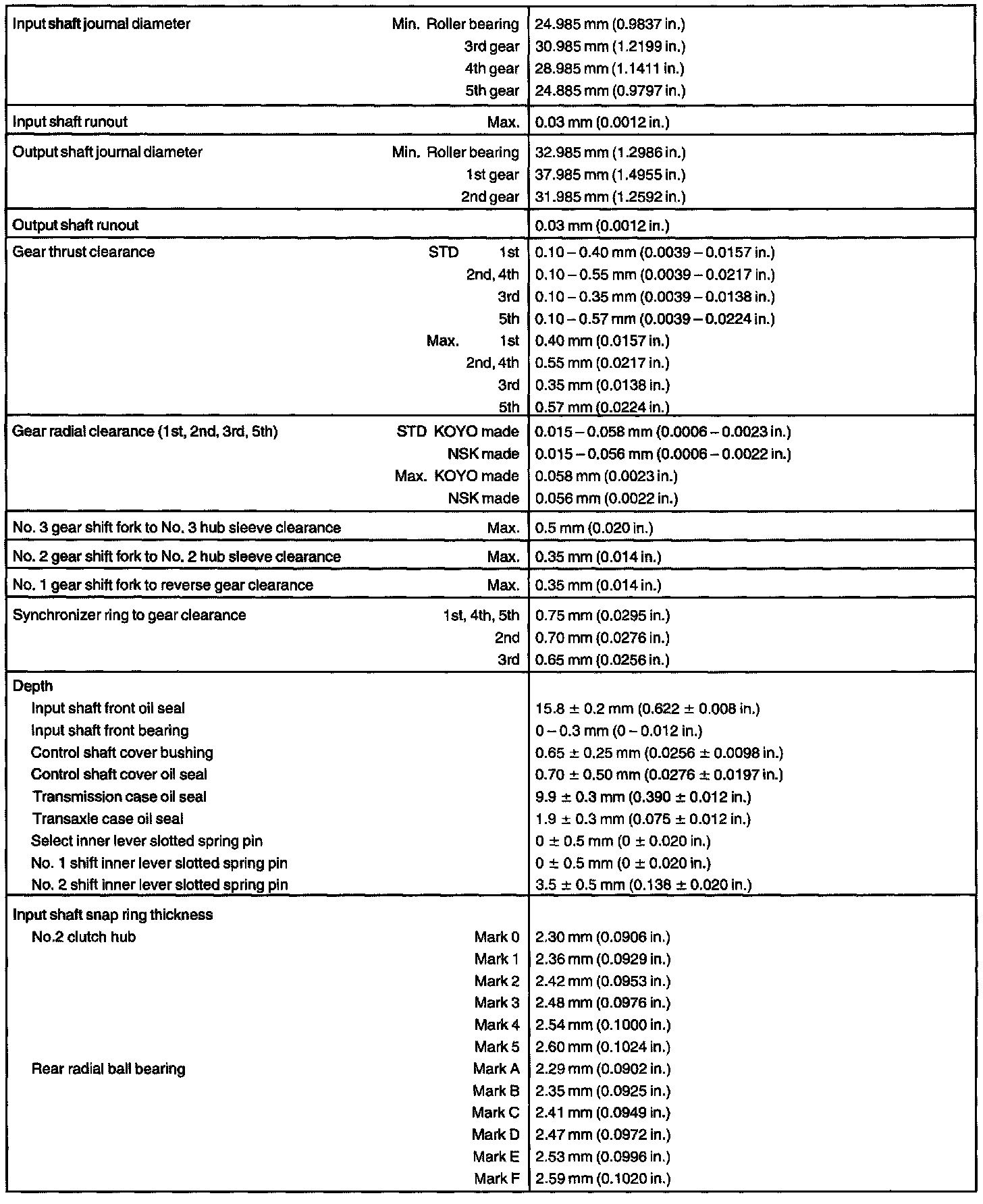

MANUAL TRANSAXLE SERVICE DATA:




MANUAL TRANSAXLE SERVICE DATA:

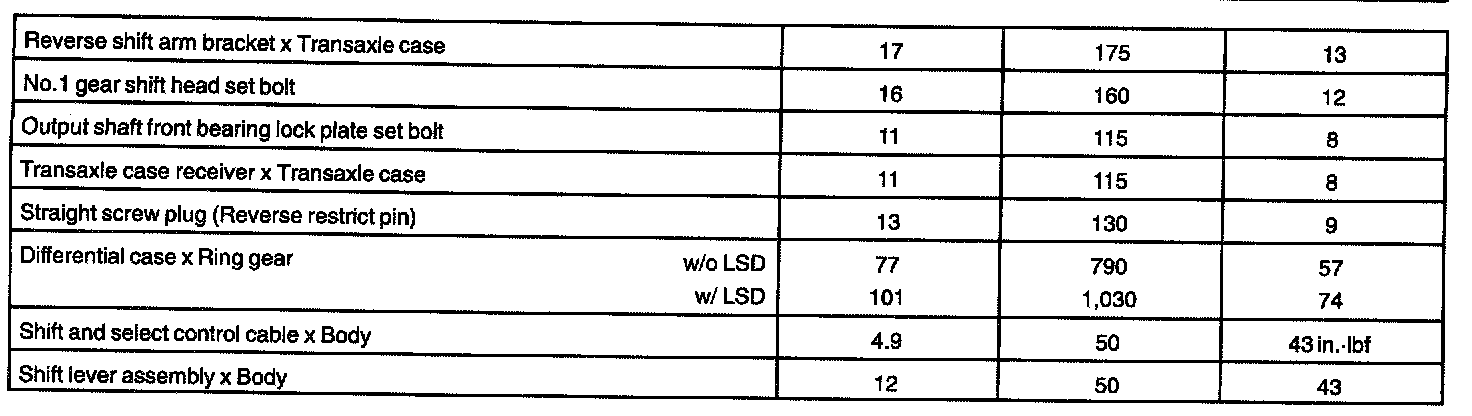

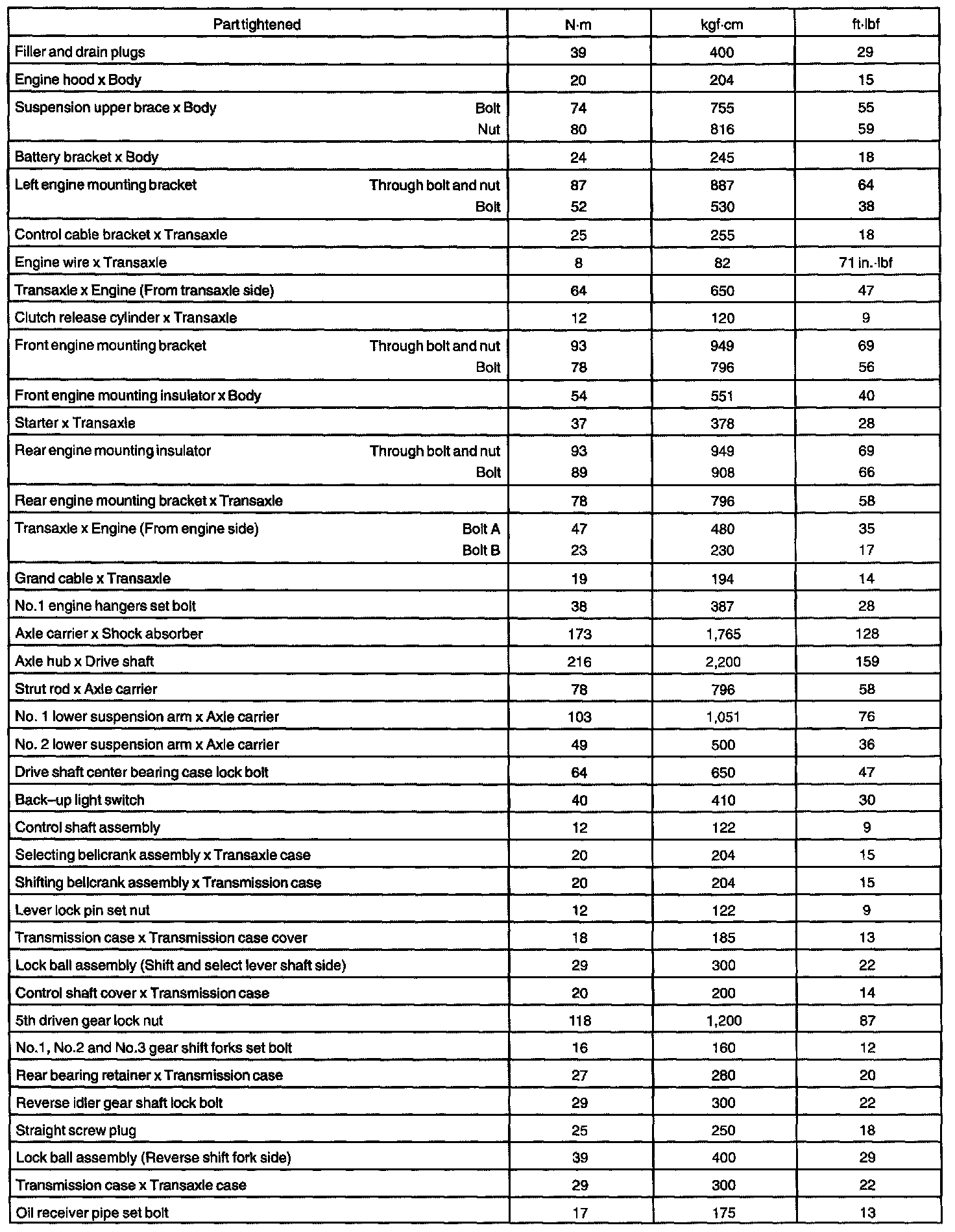

TORQUE SPECIFICATION:




TORQUE SPECIFICATION:
