Scan Tool Testing and Procedures

NORMAL SEQUENTIAL MANUAL TRANSMISSION OPERATING CONDITION

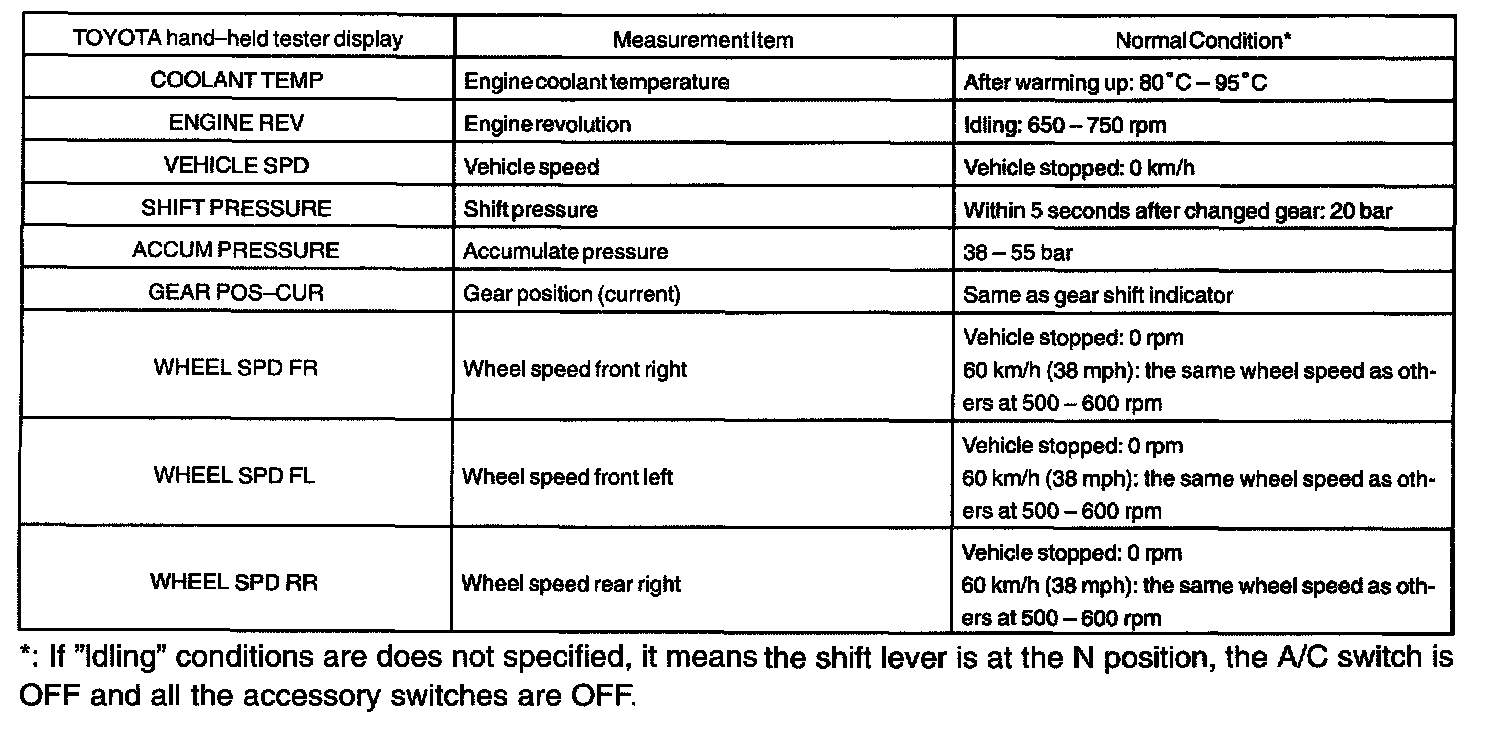

CARB Mandated Signals - Part 1:

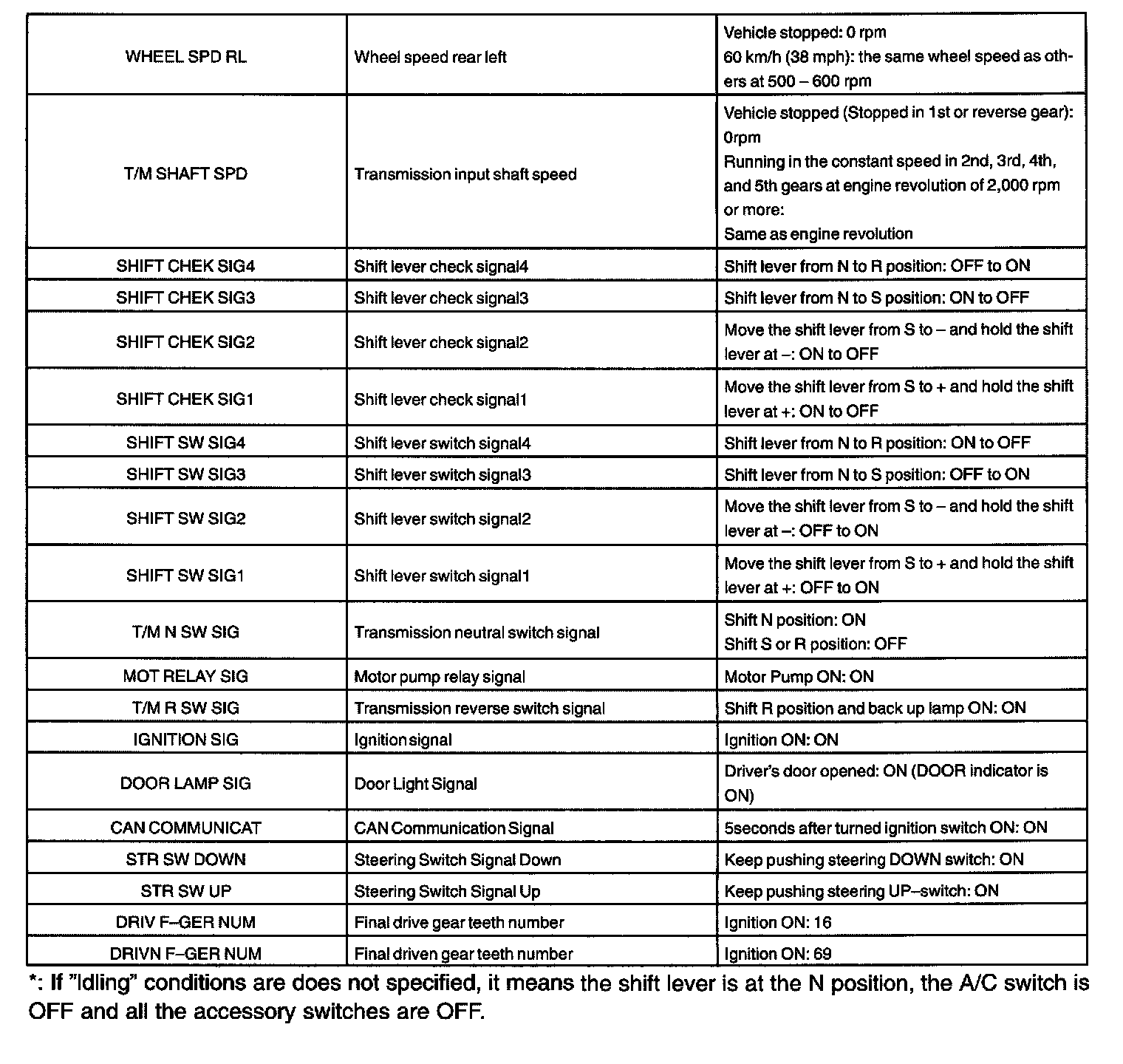

CARB Mandated Signals - Part 2:

NOTE: The values given for "Normal Condition" are representative values, so a vehicle may still be normal even if its value differs from those listed here. So do not depend solely on the "Normal Condition" here when deciding whether the part is faulty or not.
