Home >> Toyota >> 2002 >> Prius L4-1.5L (1NZ-FXE) Hybrid >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Steering >> System Specifications

System Specifications

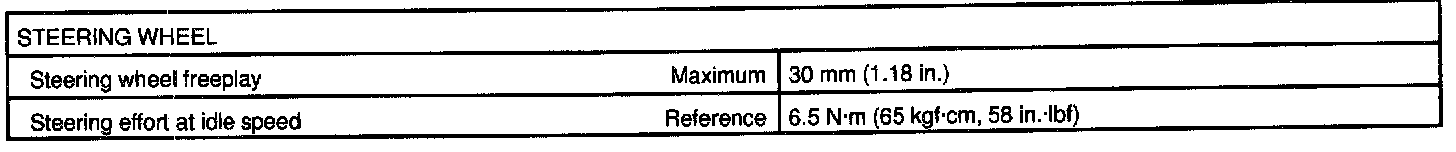

STEERING SERVICE DATA:

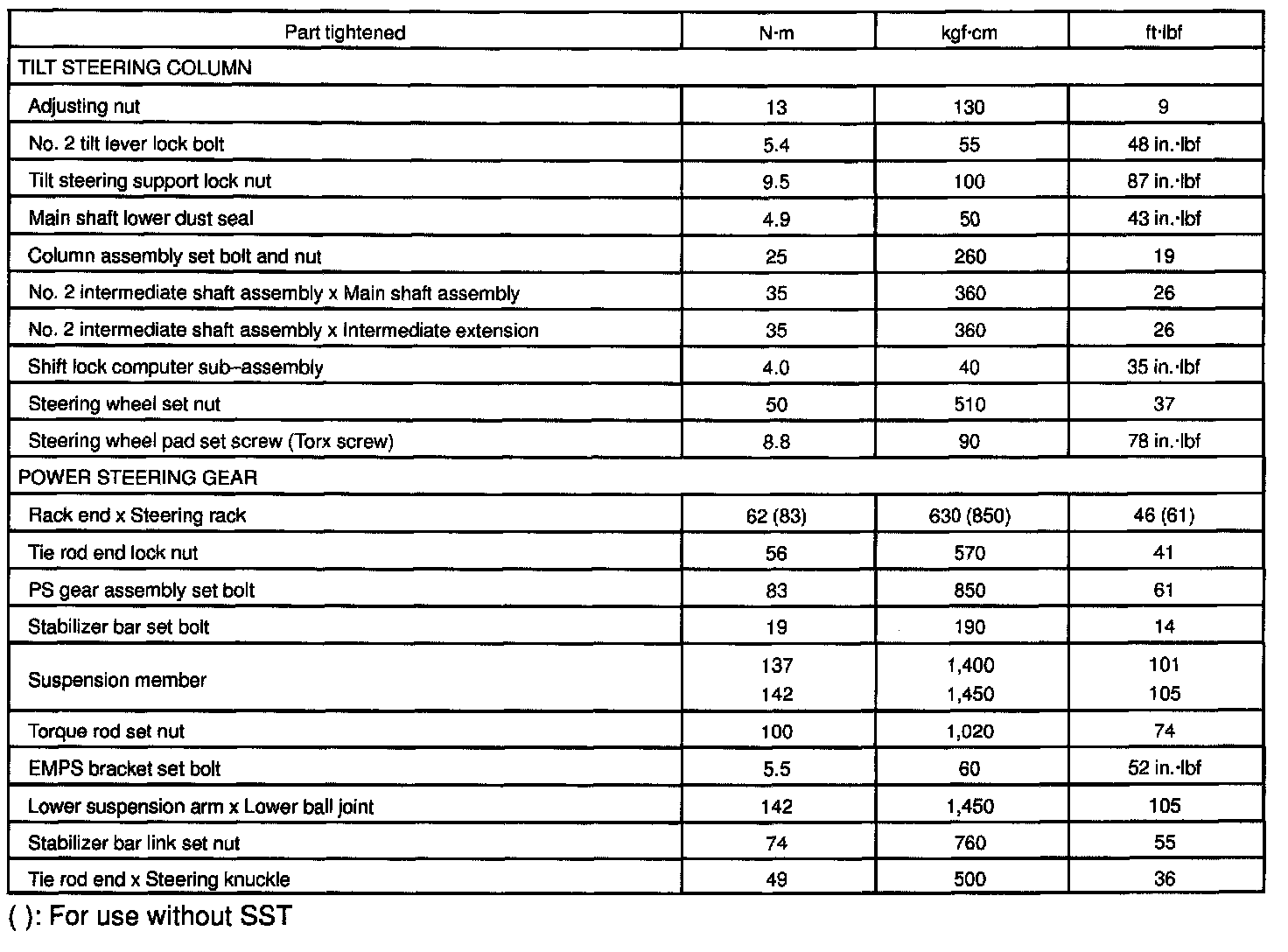

TORQUE SPECIFICATION:
