Ignition Switch Power Source Circuit
CIRCUIT DESCRIPTIONWhen the ignition switch is turned to the ON position, battery voltage is applied to terminal IG of the passenger side J/B ECU.

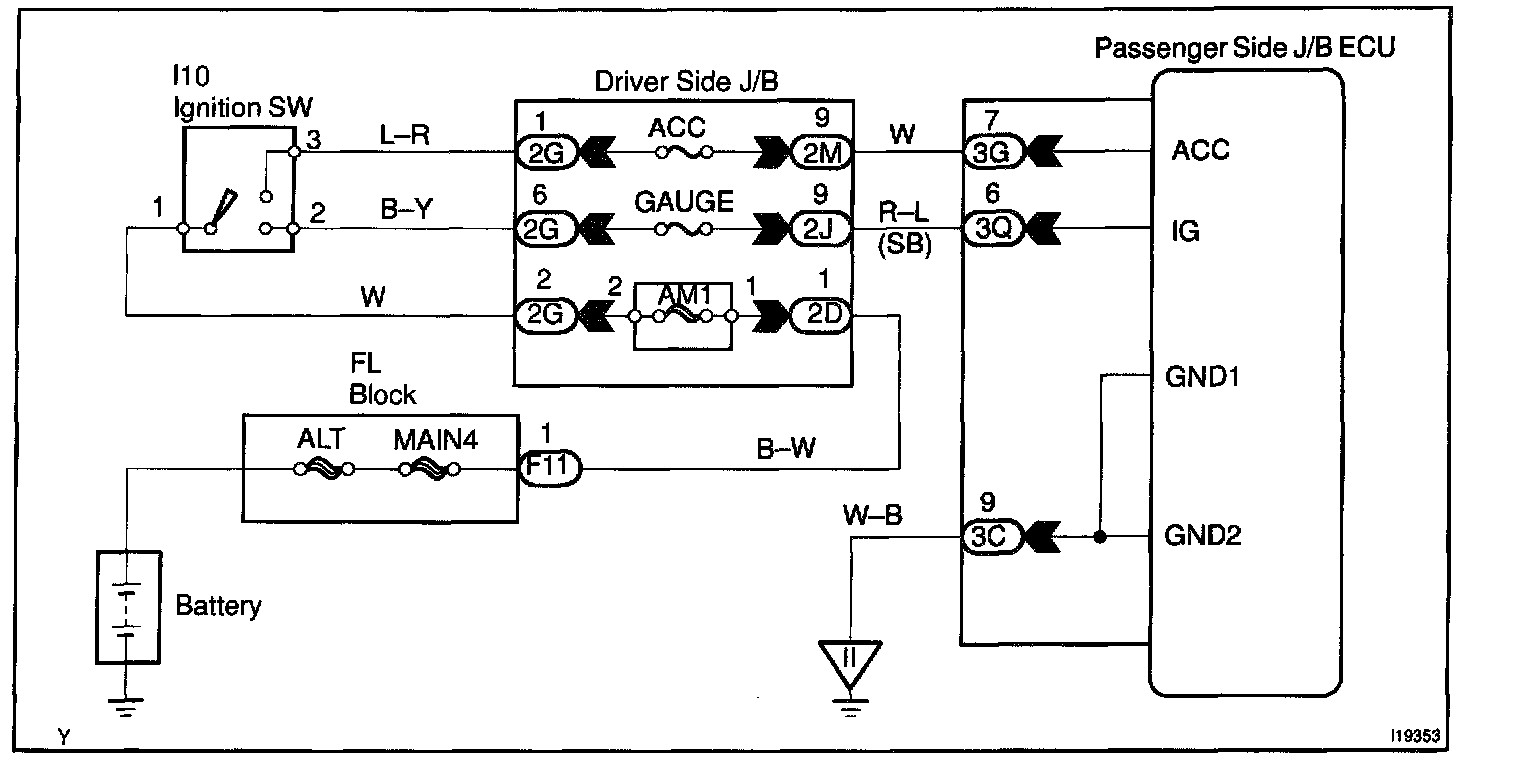

Wiring Diagram:

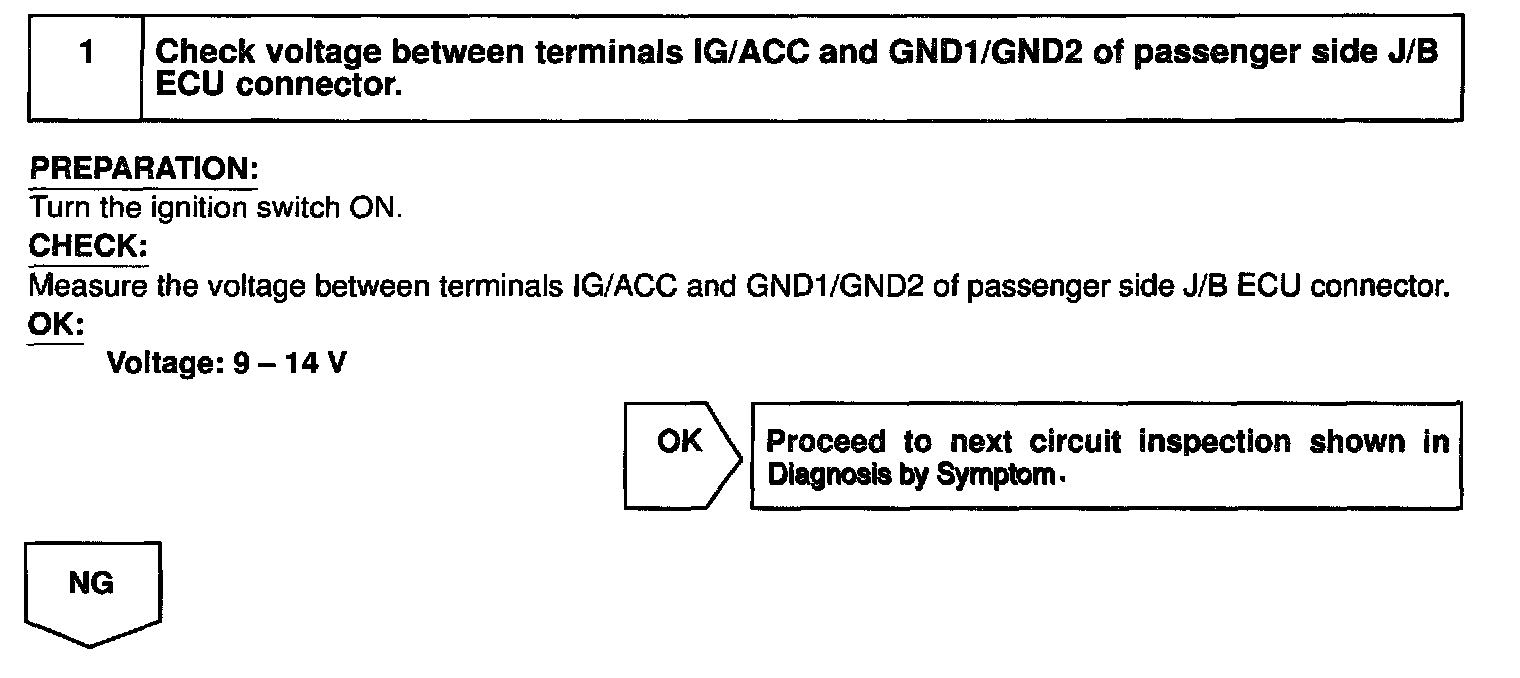

Step 1:
Step 2 - 4:
INSPECTION PROCEDURE
When the ignition switch is turned to the ON position, battery voltage is applied to terminal IG of the passenger side J/B ECU.
INSPECTION PROCEDURE
