Component Tests and General Diagnostics

Wireless Door Lock ECU Circuit

CIRCUIT DESCRIPTION
The signal from the wireless door lock ECU is input to the passenger side J/B ECU through RDA line.

The RDA line is diagnosed by the passenger side J/B ECU.

Wiring Diagram:

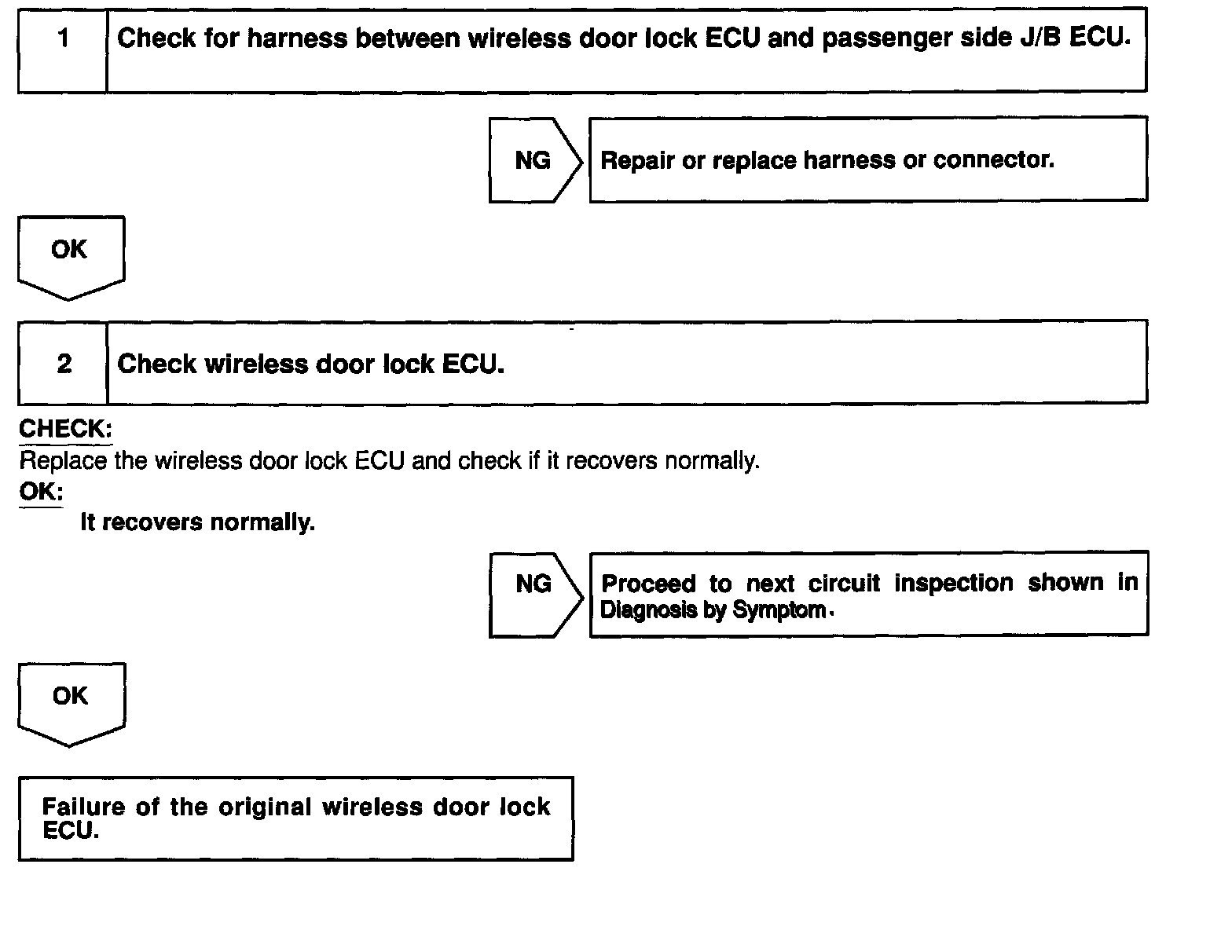

Step 1 - 2:

INSPECTION PROCEDURE
