Splice Locations

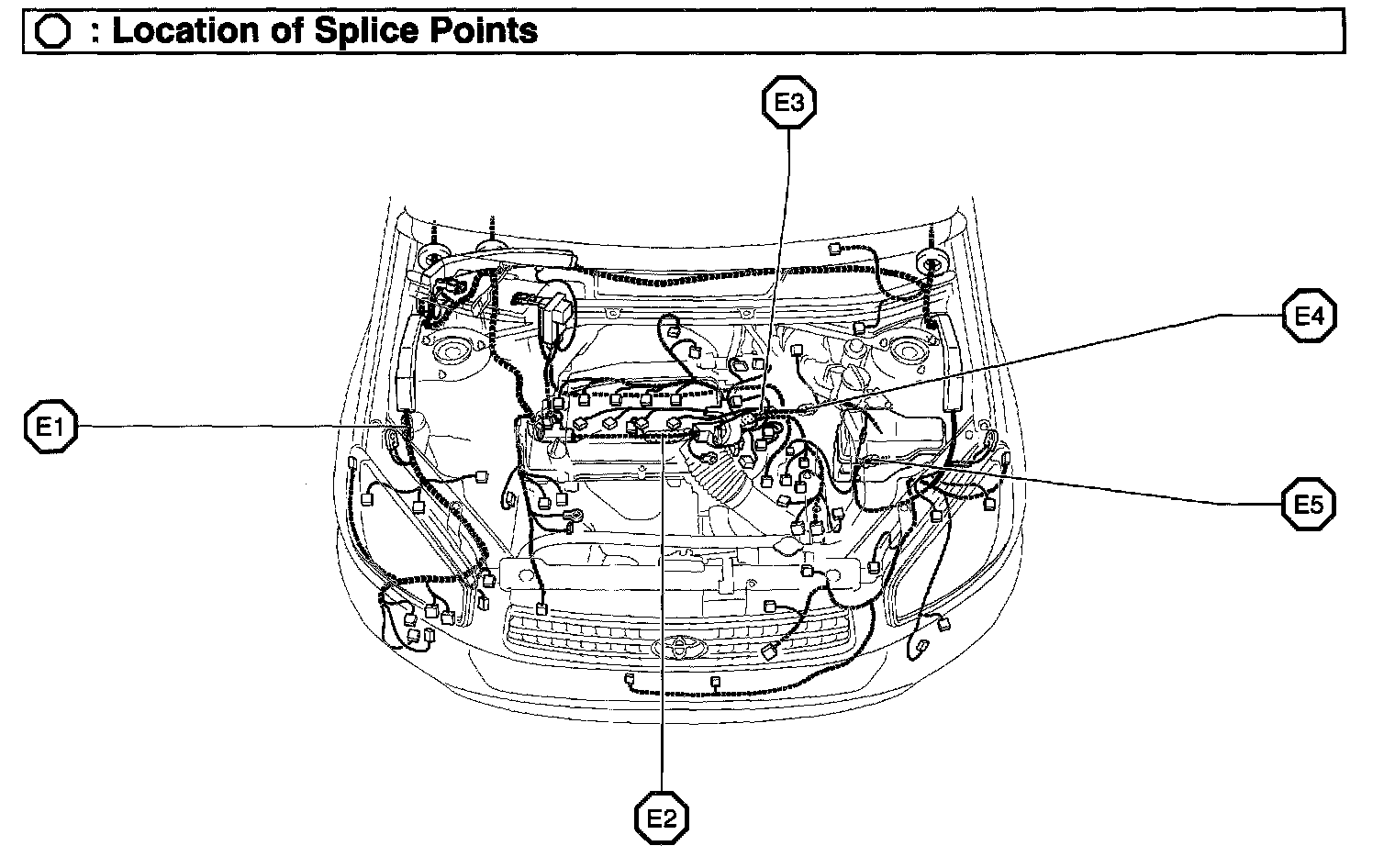

Engine Compartment:
Splice Location
E1 Engine Room Main Wire
E2 Engine Wire
E3 Engine Wire
E4 Engine Wire
E5 Engine Room Main Wire

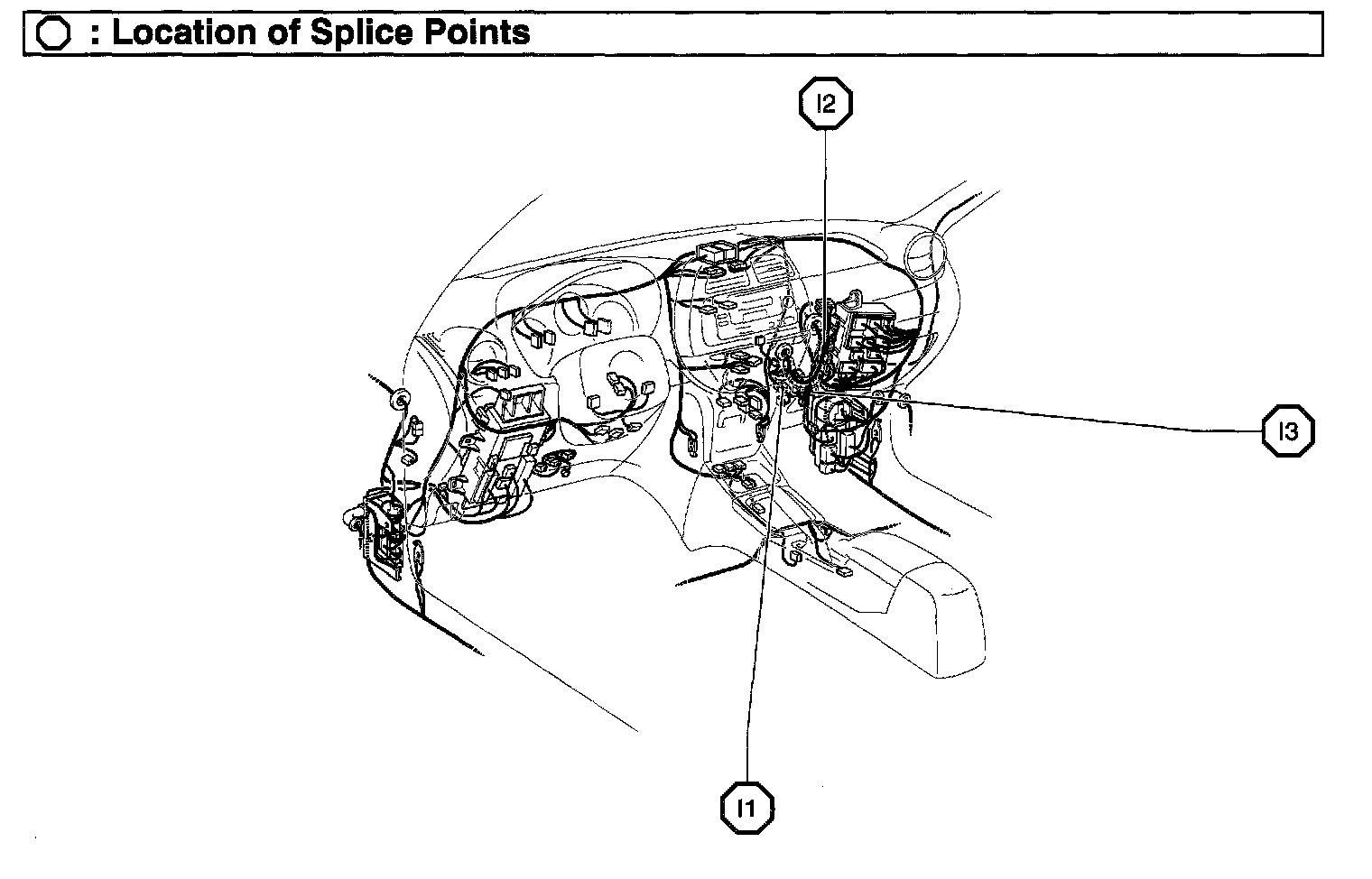

Instrument Panel:
Splice Location
I1 Instrument Panel Wire
I2 Engine Wire
I3 Engine Room Main Wire

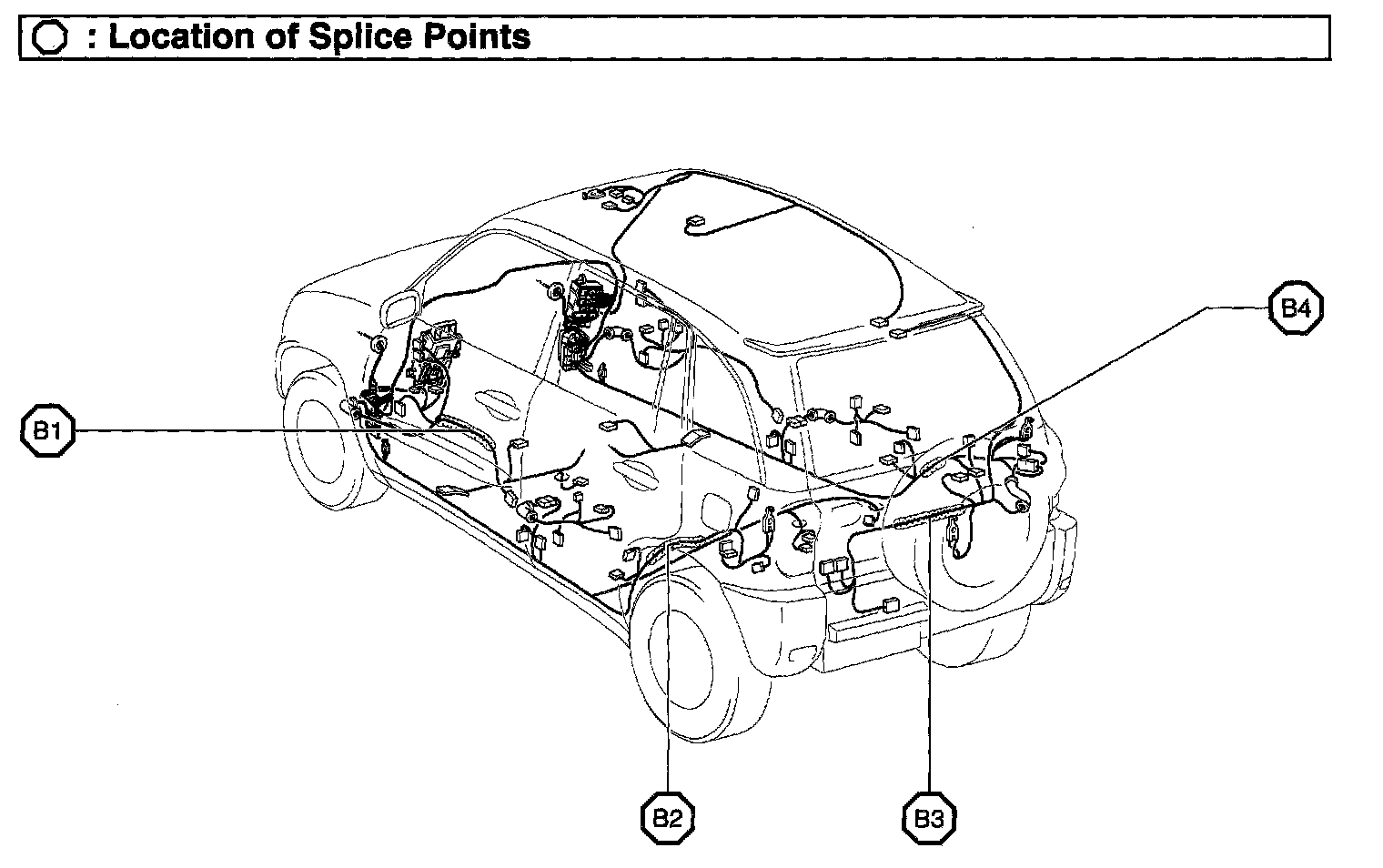

Body:
Splice Location
B1 Front Door LH Wire
B2 Floor Wire
B3 Back Door No.1 Wire
B4 Floor Wire
