Control Switch Circuit (Cruise Control Switch)
CIRCUIT DESCRIPTIONThis circuit sends the SET/COAST, RESUME/ACCEL and CANCEL signals (each voltage) to the ECU.

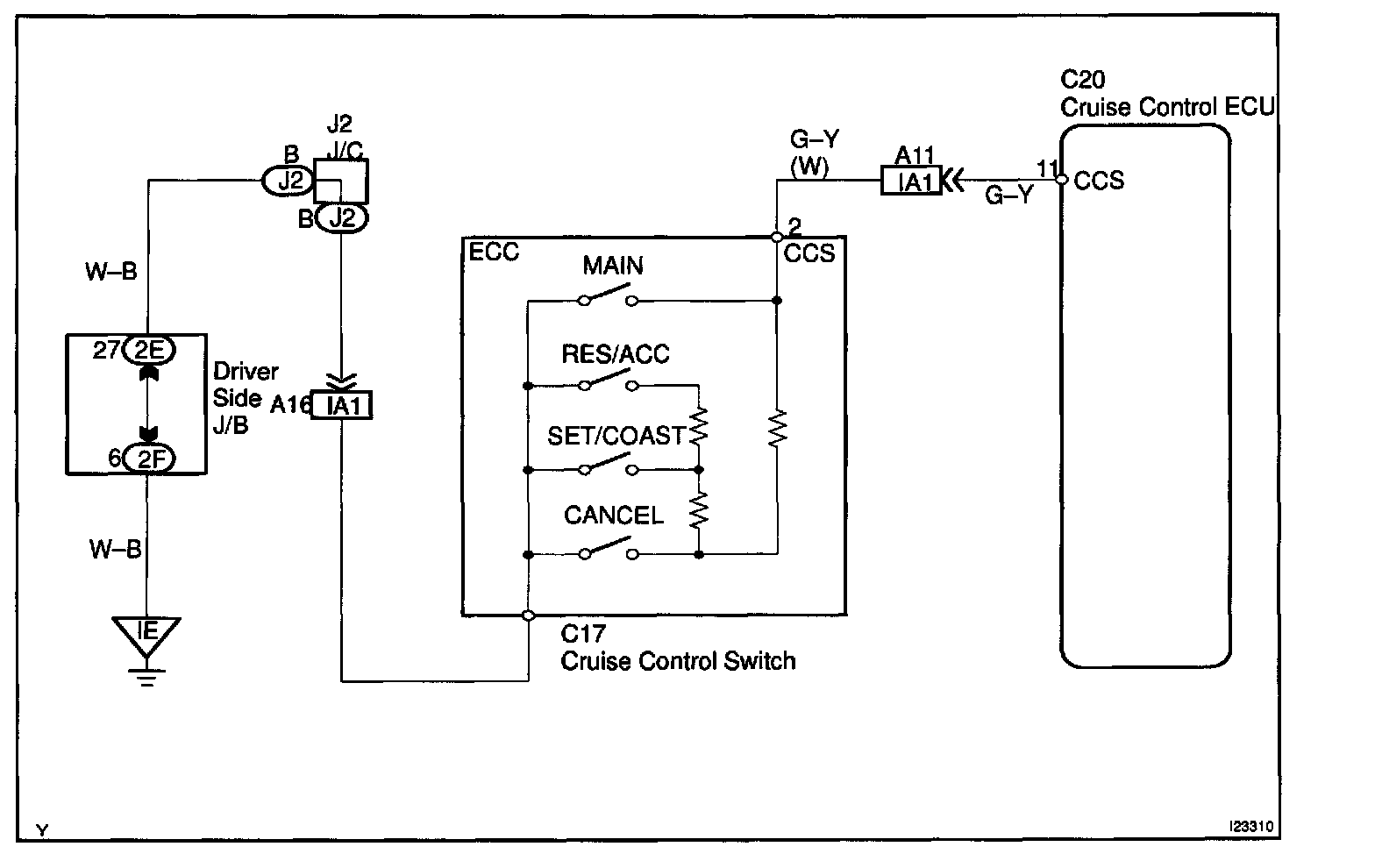

Wiring Diagram:

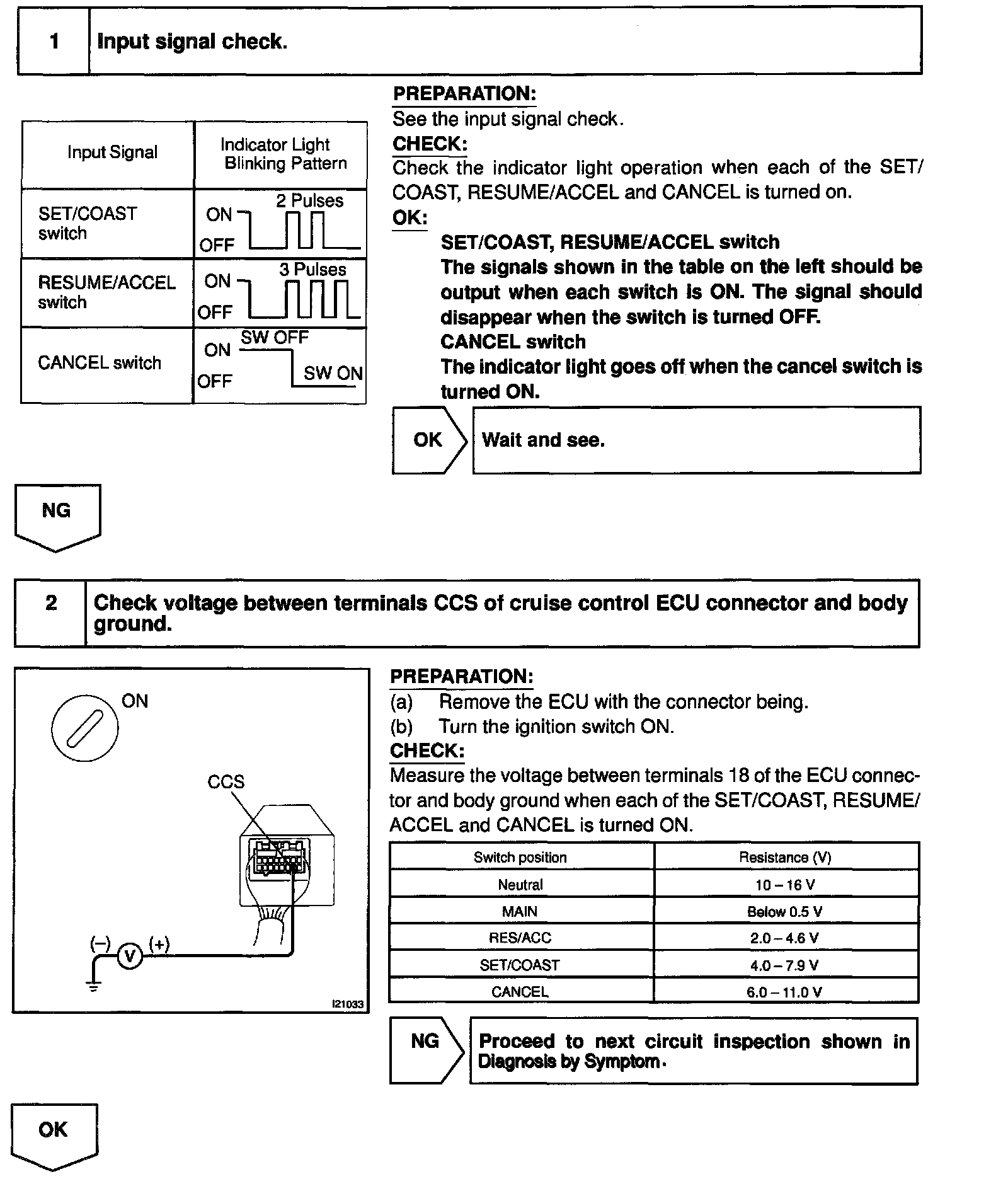

Step 1 - 2:

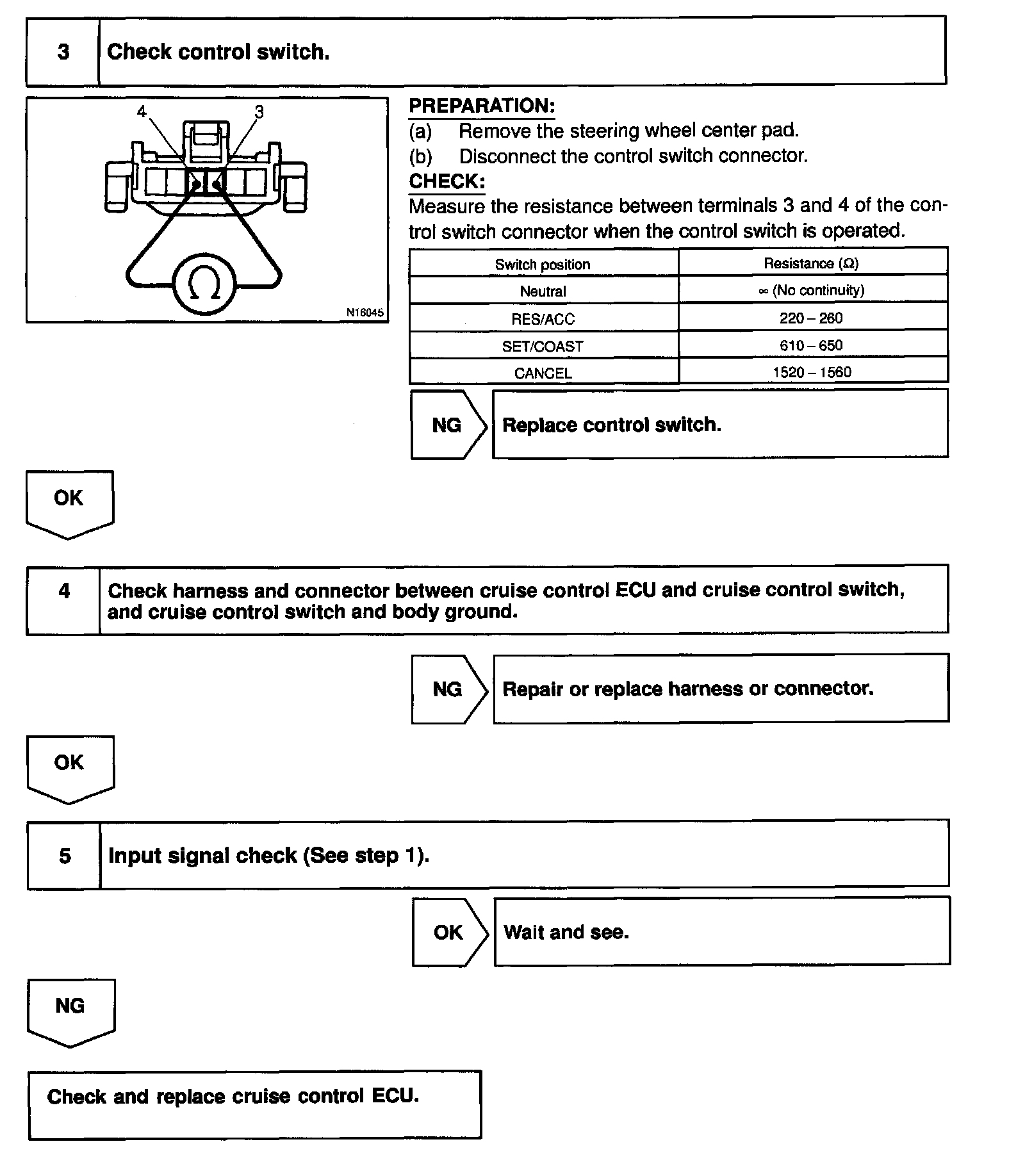

Step 3 - 5:
INSPECTION PROCEDURE
This circuit sends the SET/COAST, RESUME/ACCEL and CANCEL signals (each voltage) to the ECU.
INSPECTION PROCEDURE
