Connector Code Lists

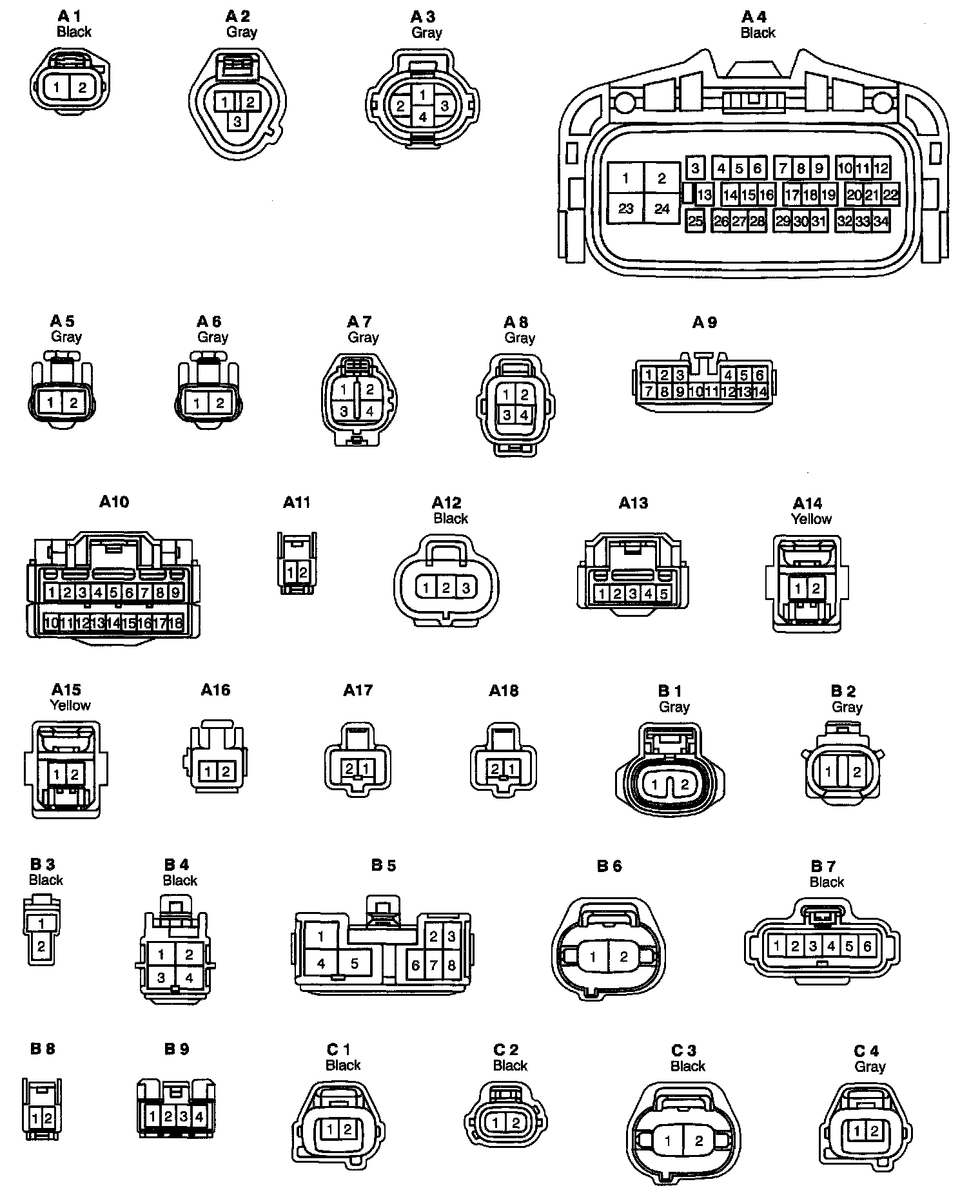

Connectors View A1 - C4:

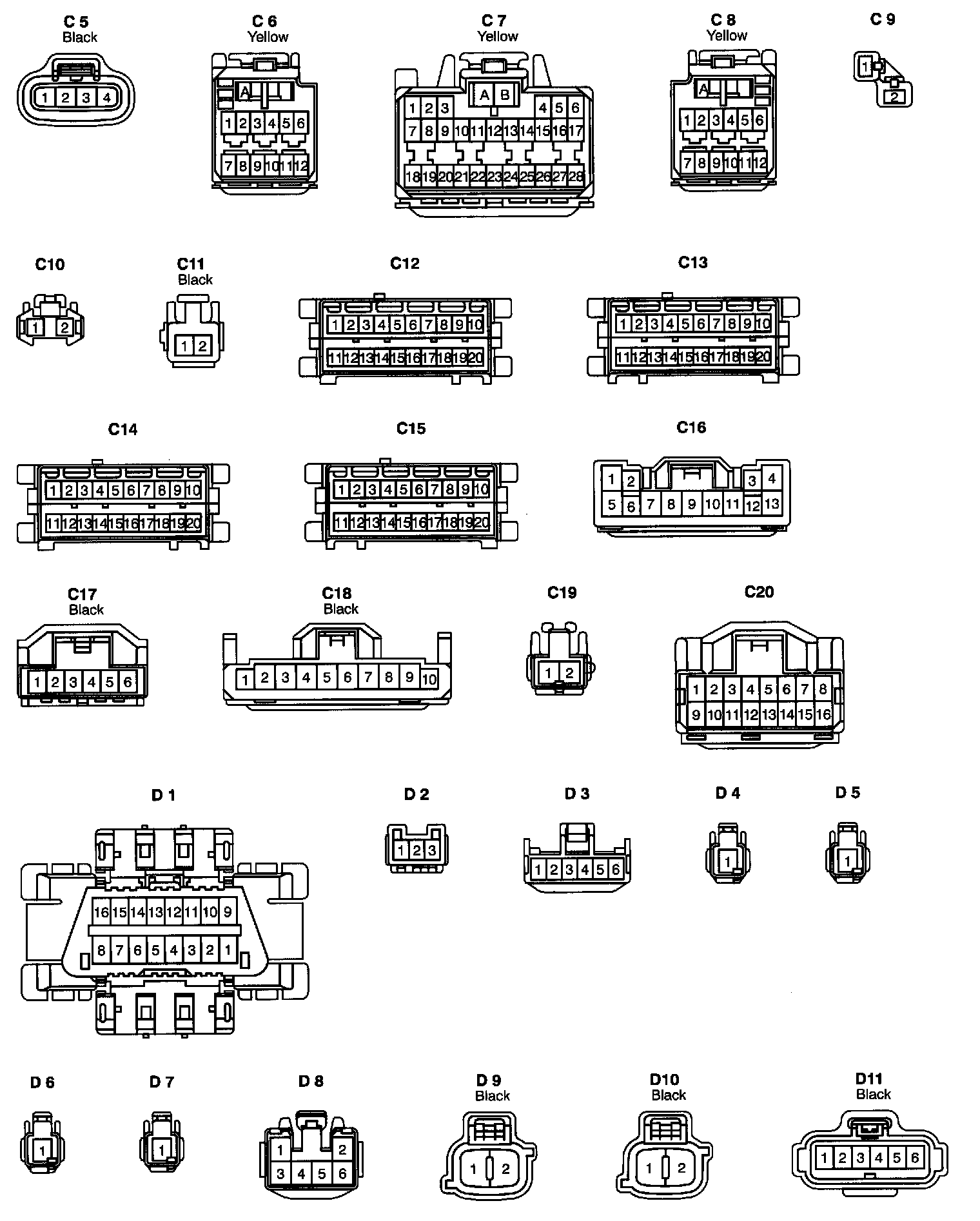

Connectors View C5 - D11:

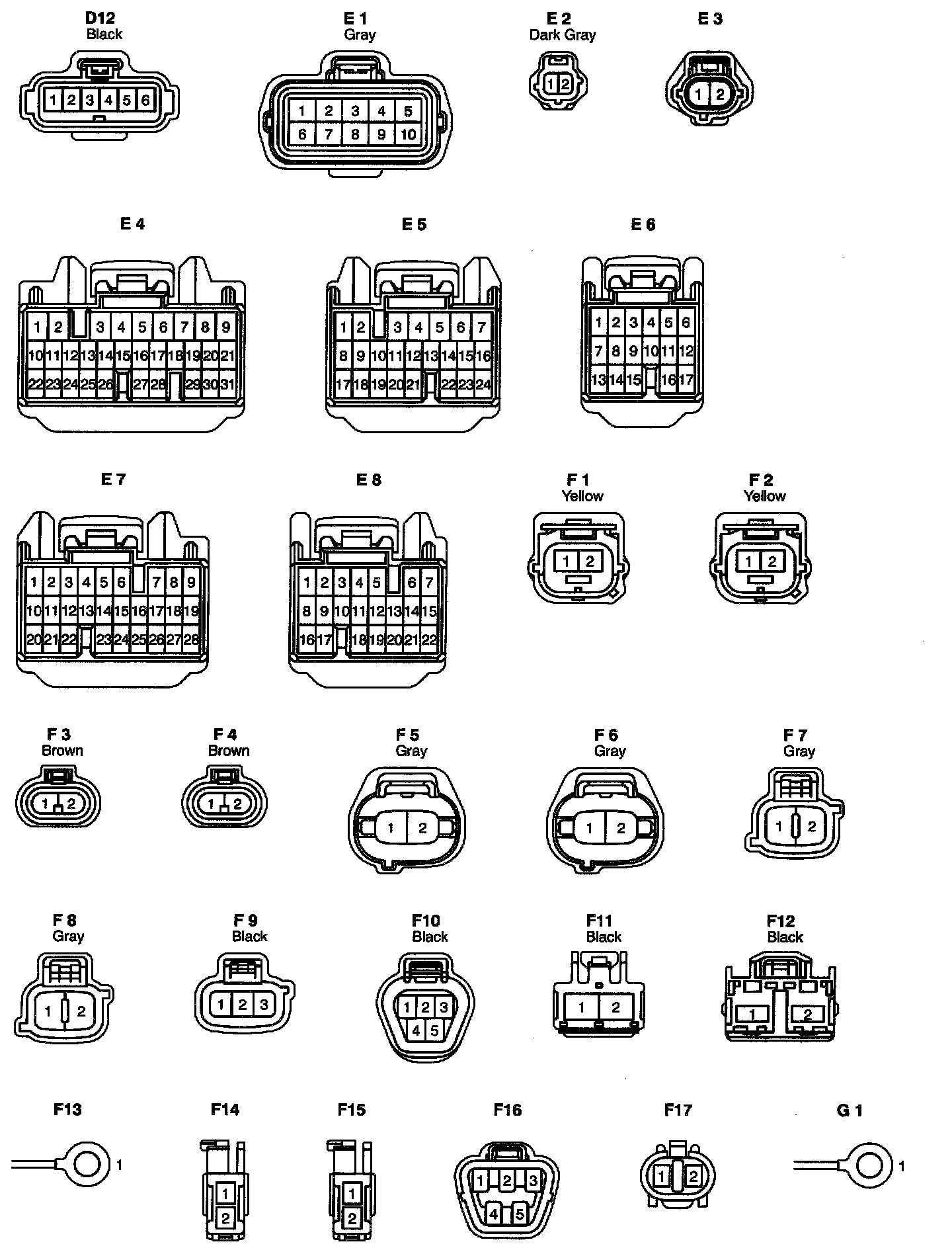

Connectors View D12 - G1:

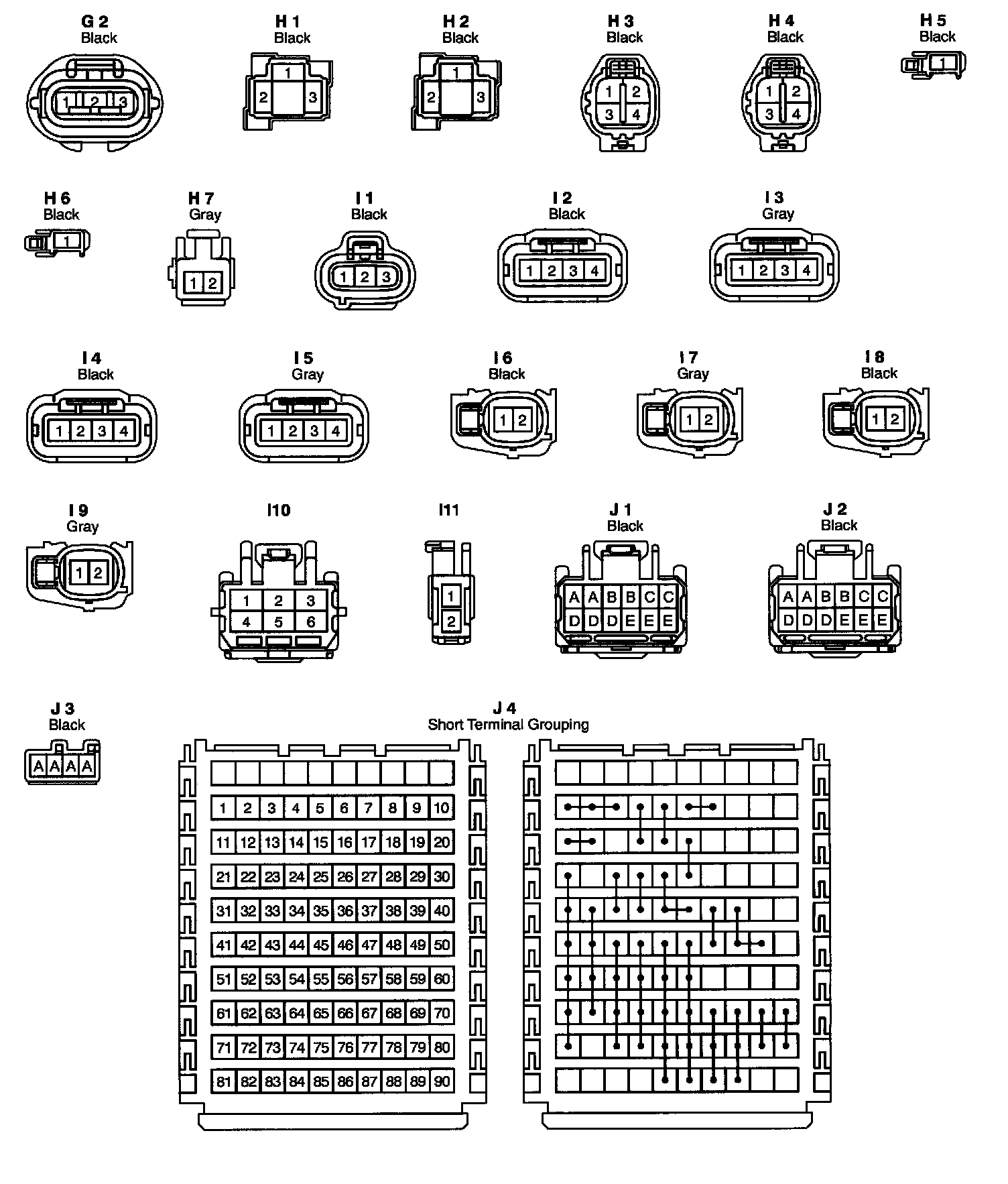

Connectors View G2 - J4:

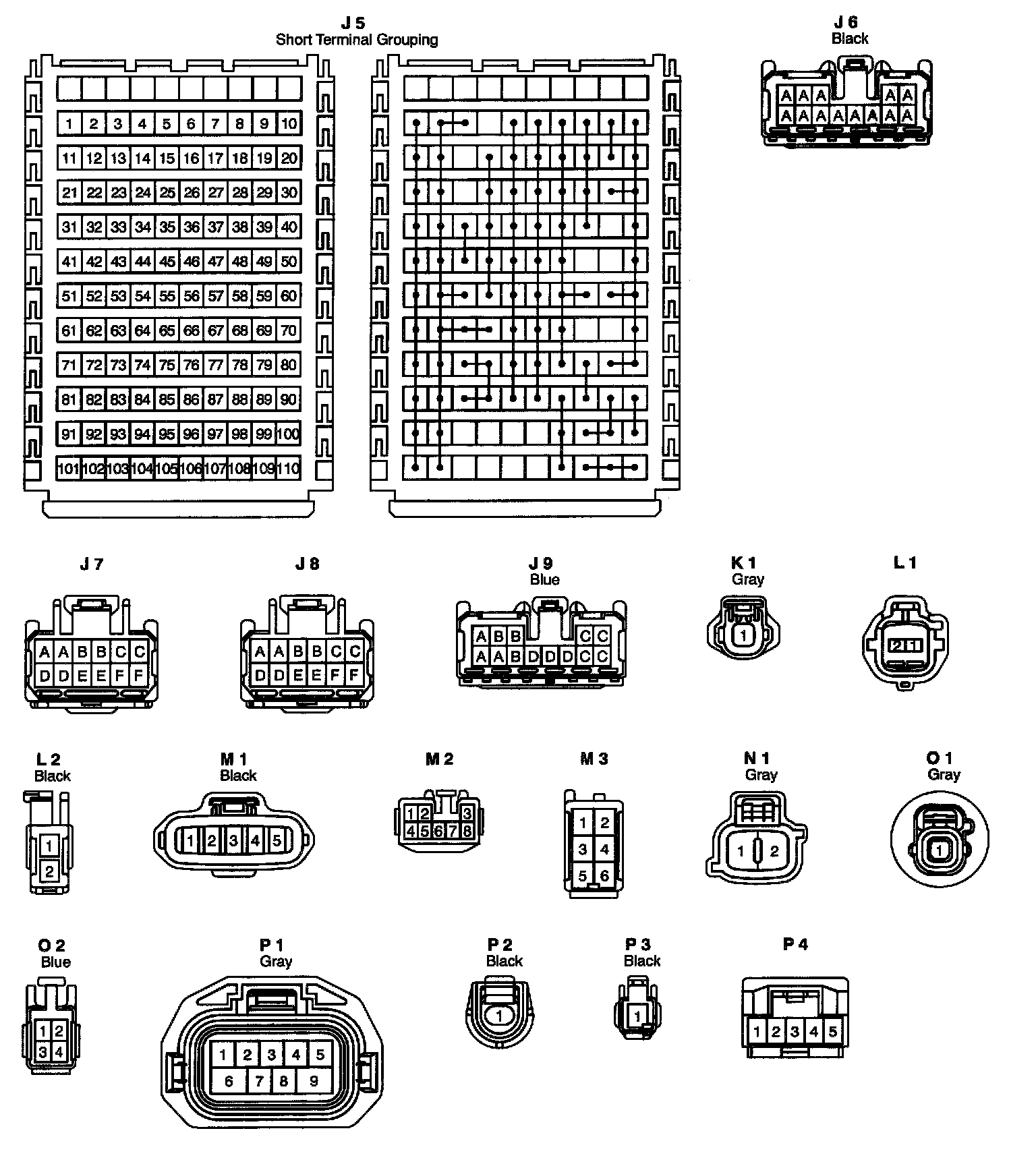

Connectors View J5 - P4:

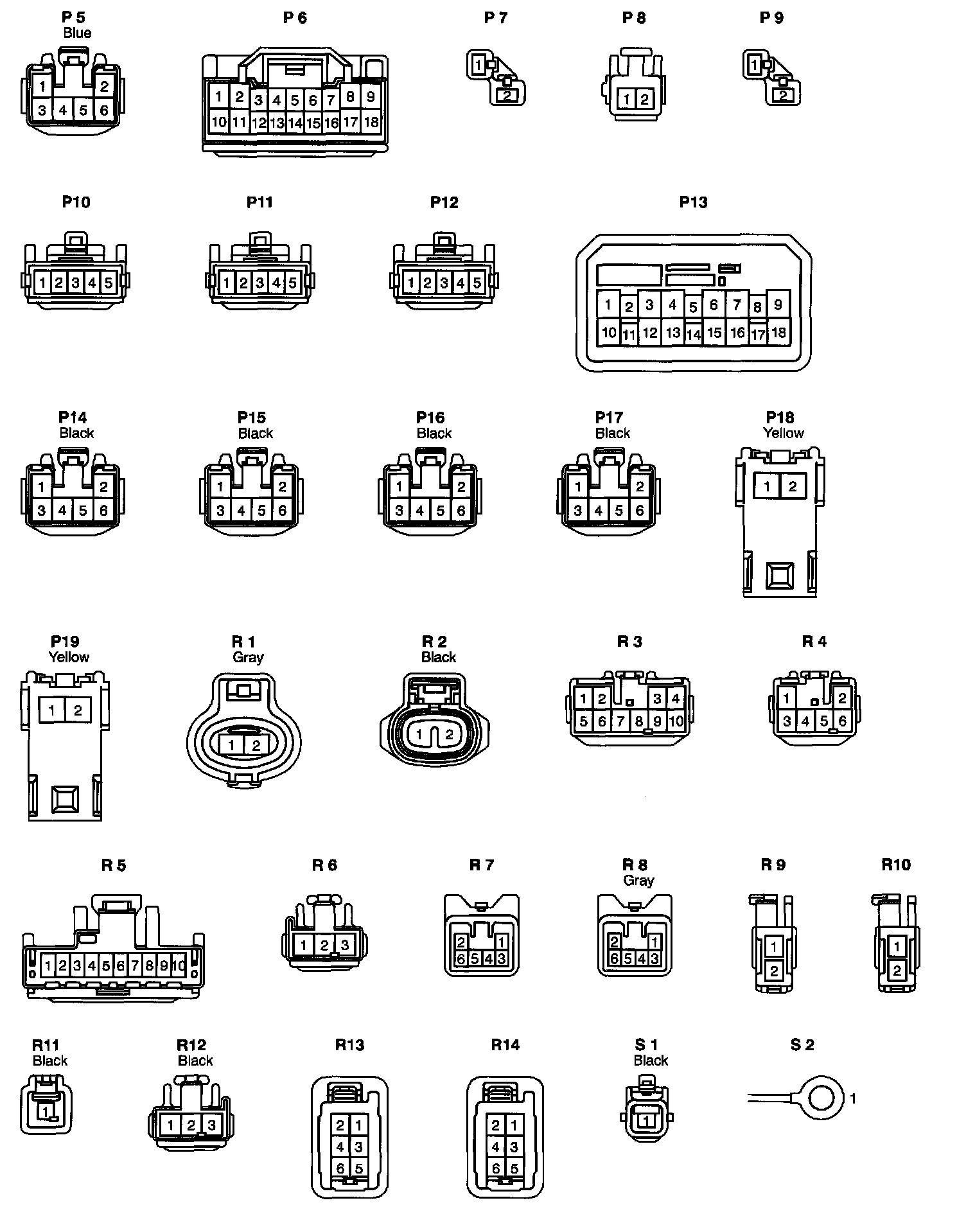

Connectors View P5 - S2:

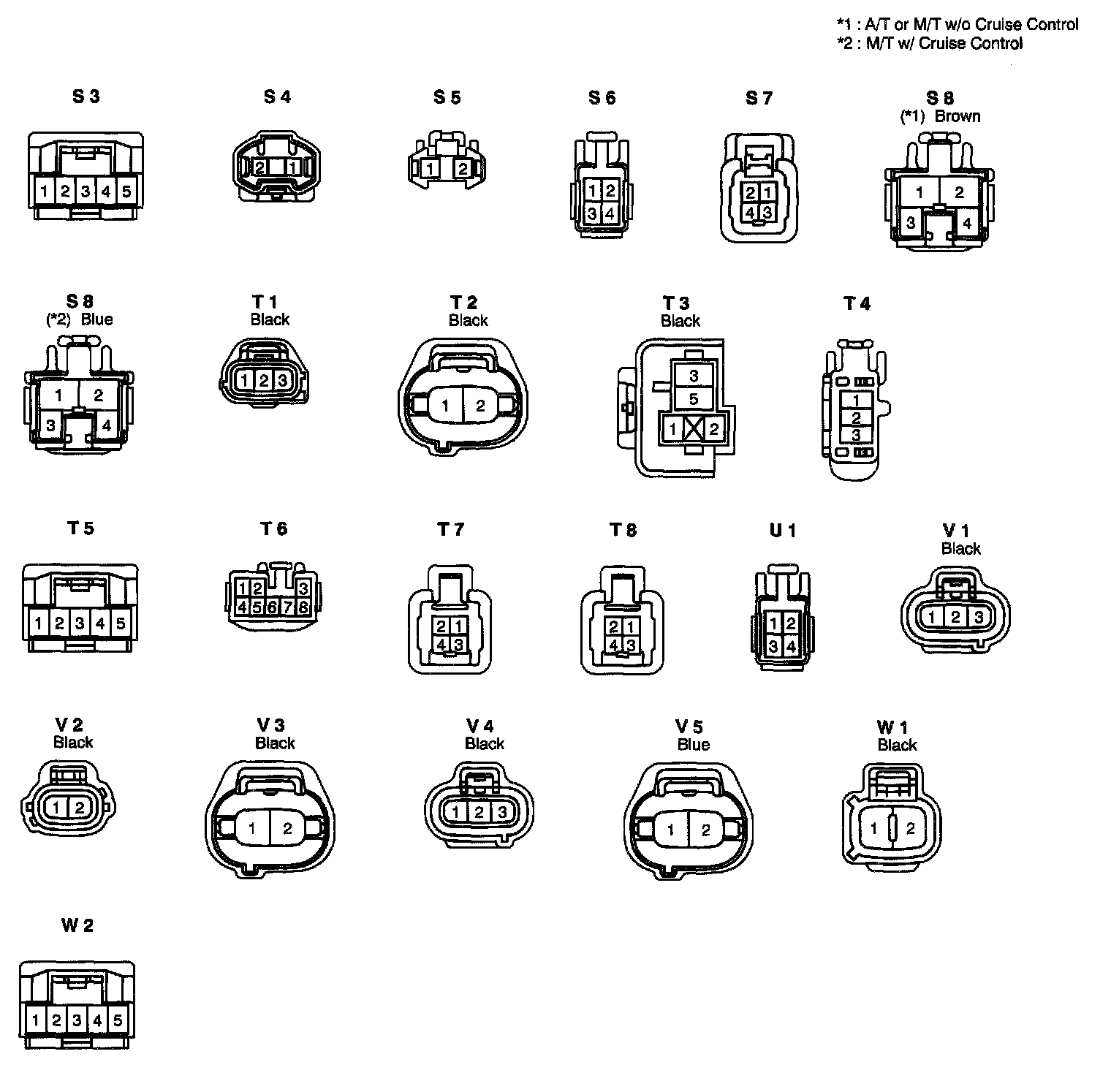

Connectors View S3 - W2:
