Cylinder Head Assembly
Cylinder Head Assembly

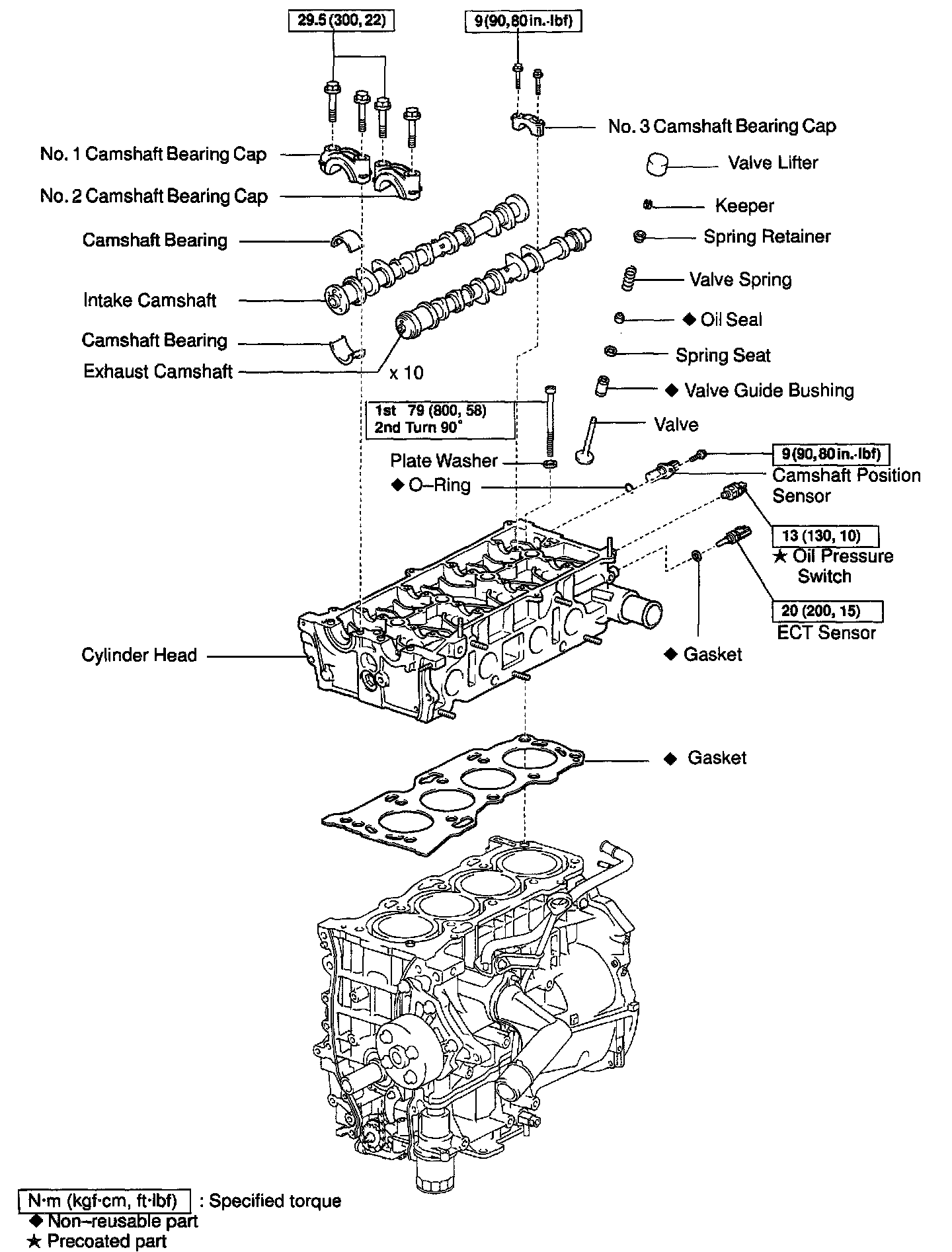

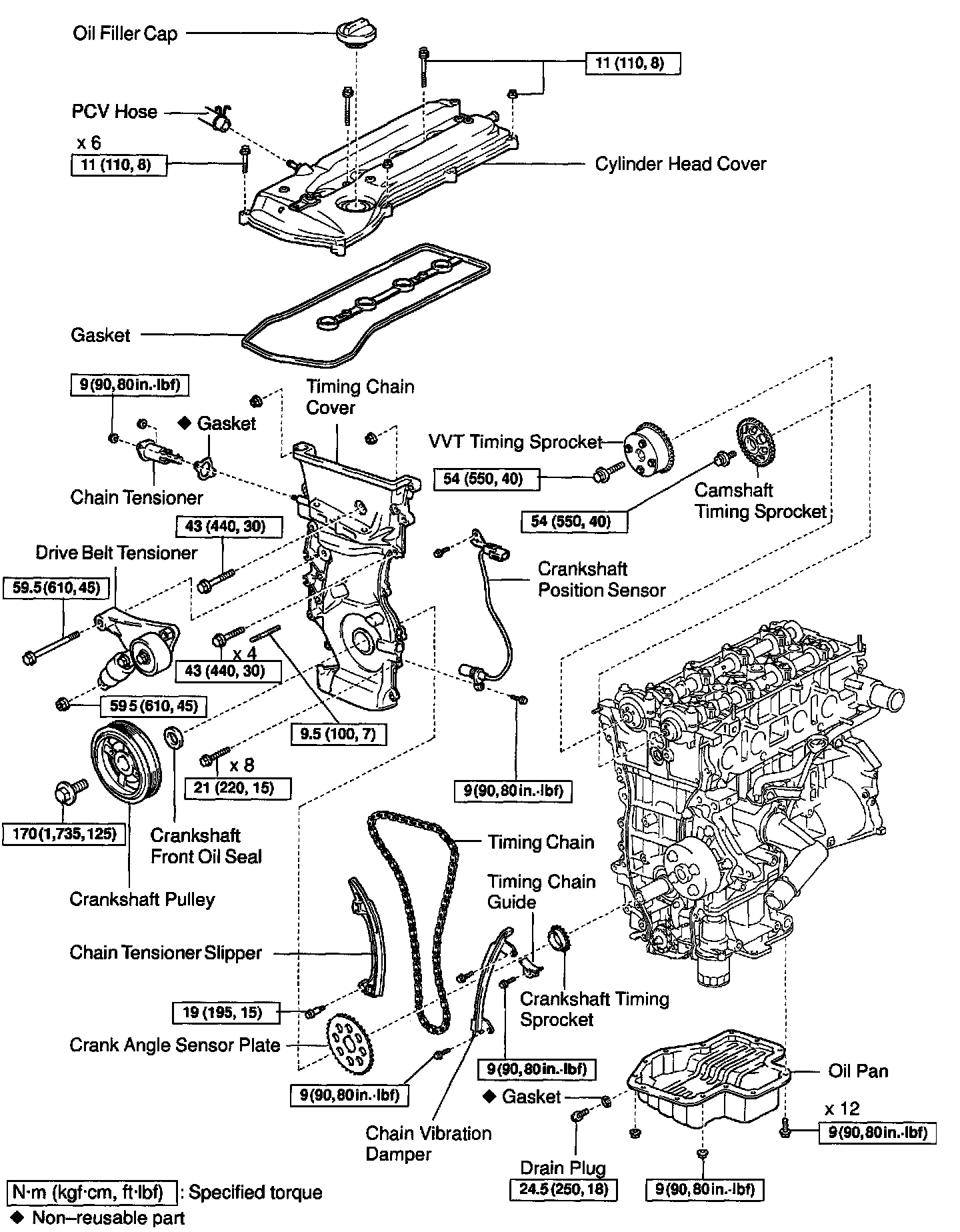

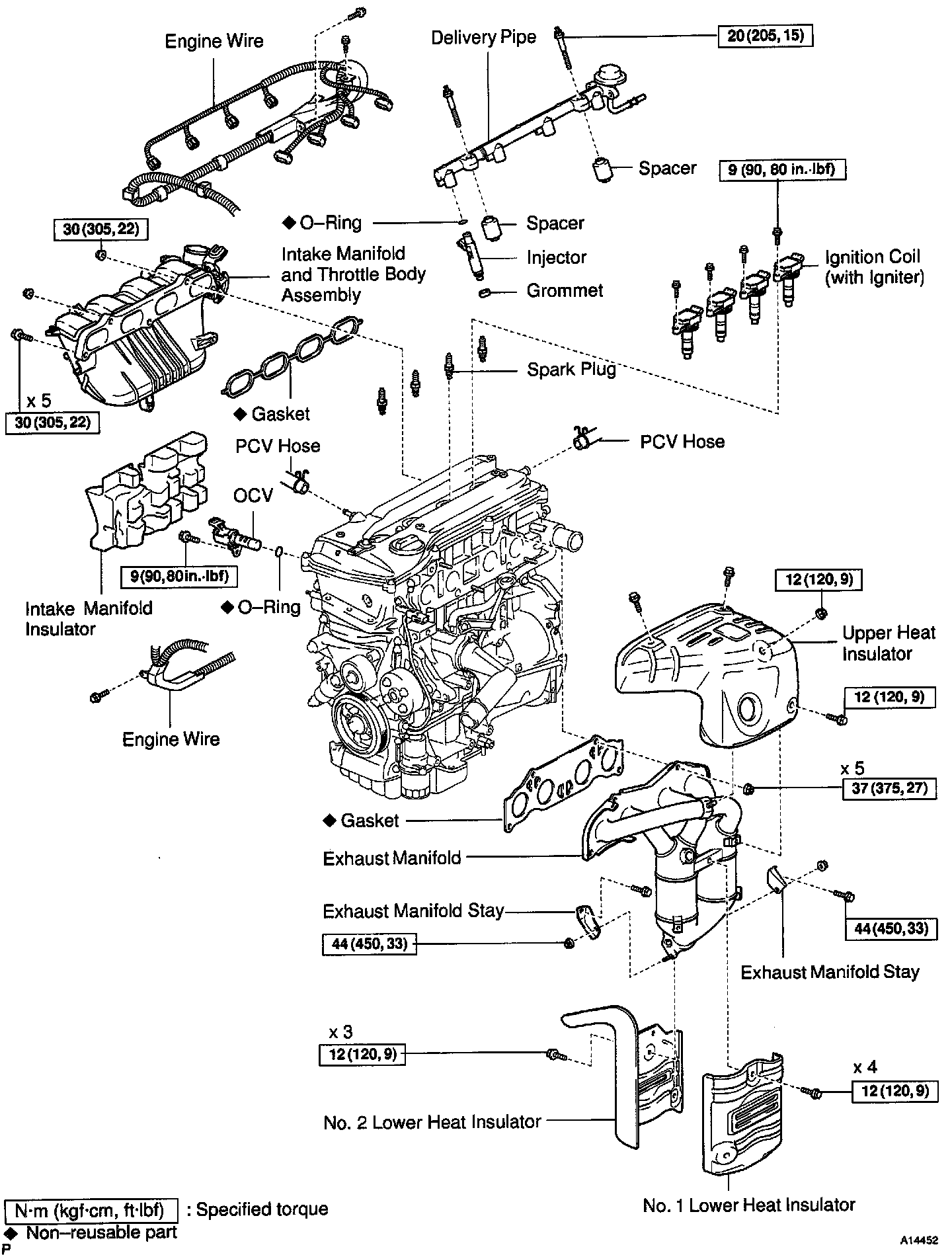

CYLINDER HEAD REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
