Steering and Suspension
>>
Steering Column

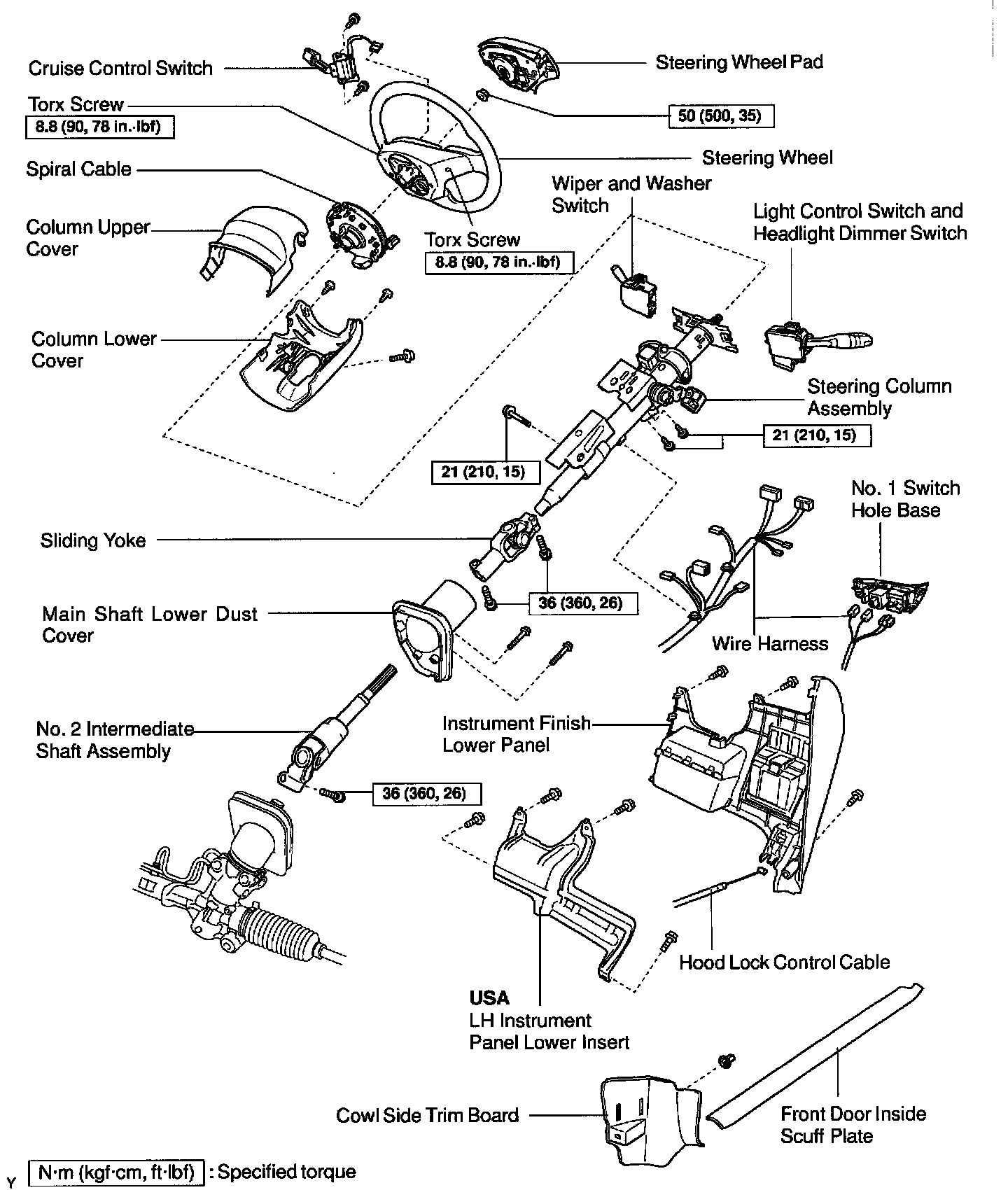

Steering Column

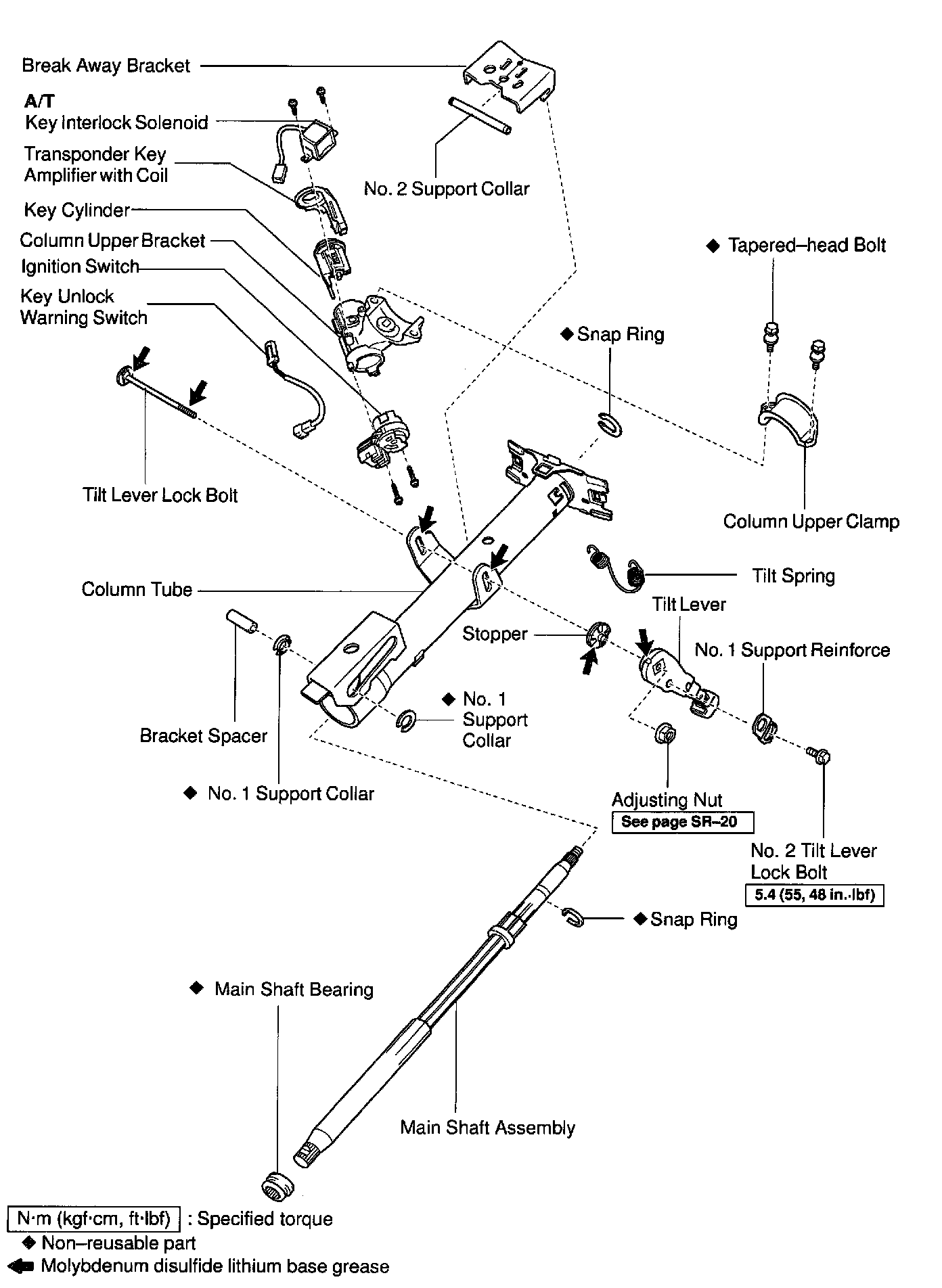

TILT
STEERING COLUMN
REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
