Symptom Related Diagnostic Procedures

Problem Symptoms Table - Meter, Gauges And Illumination: Combination Meter:

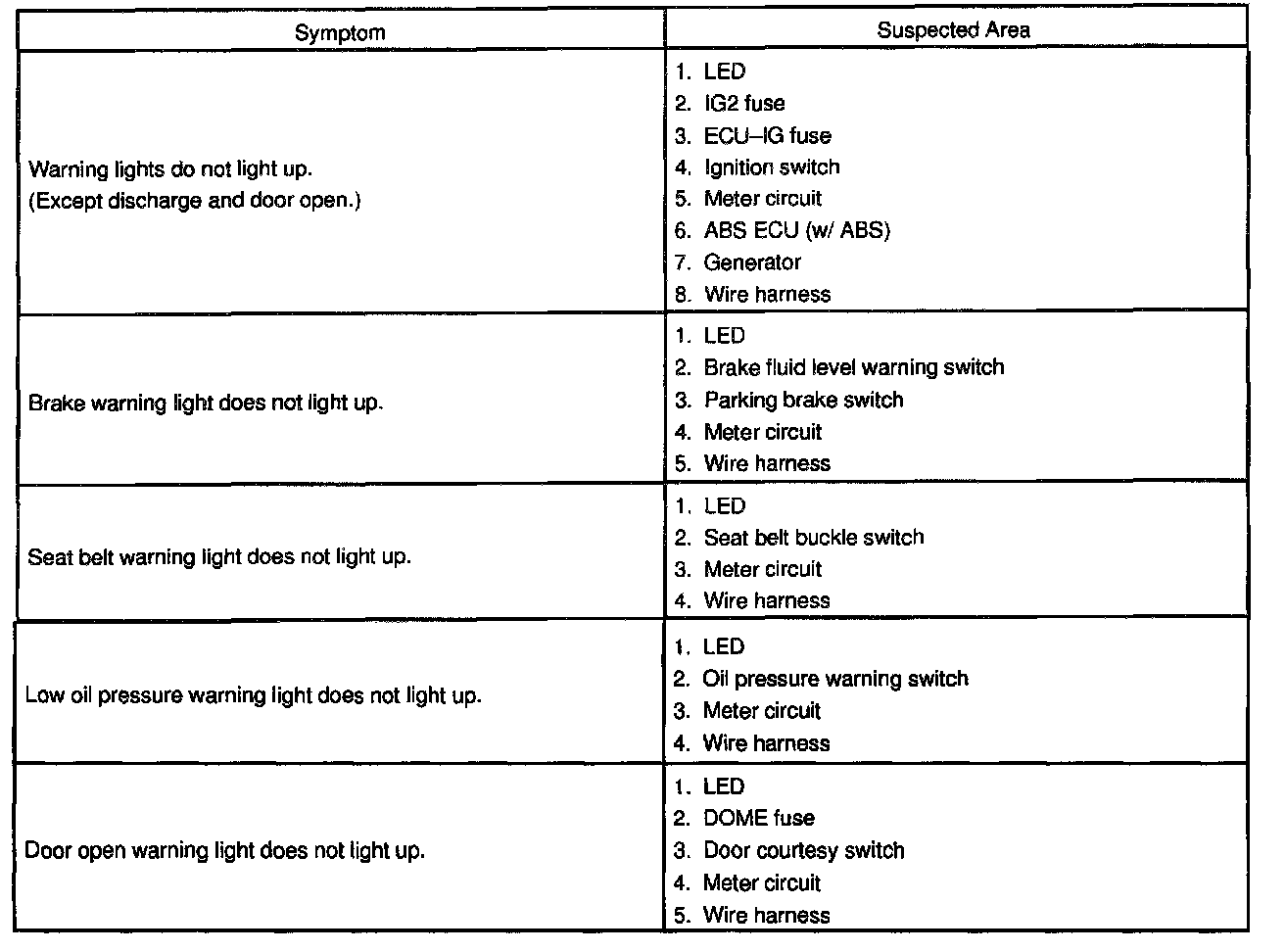

Problem Symptoms Table - Warning Lights: Combination Meter:



Problem Symptoms Table - Indicator Lights: Combination Meter:
