Instrument Panel / Center Console
Instrument Panel / Center Console

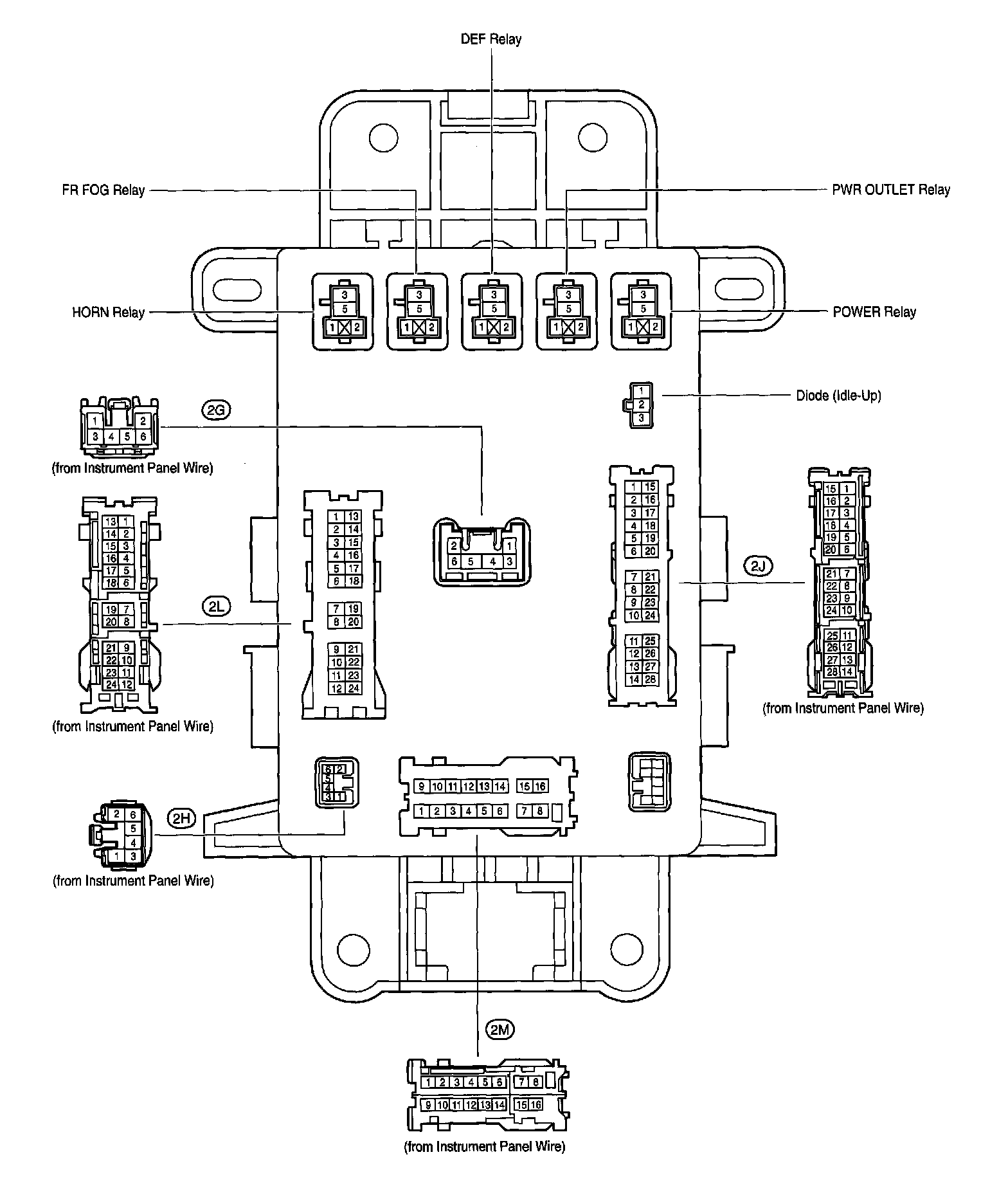

Driver Side J/B:
Driver Side J/B Part 2:
Passenger Side J/B:
