Camshaft Position Sensor: Testing and Inspection

ON-VEHICLE INSPECTION

NOTE: "Cold" and "Hot" in these sentences express the temperature of the coils themselves. "Cold" is from - 10 °C (14 °F) to 50 °C (122 °F) and "Hot" is from 50 °C (122 °F) to 100°C (212 °F).

INSPECT CAMSHAFT POSITION SENSOR
a. Remove the sensor connector.




b. Using an ohmmeter, measure the resistance between terminals.

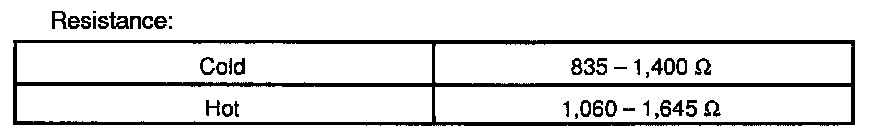

Resistance
If the resistance is not as specified, replace the sensor.

c. Reconnect the sensor connector.
