Symptom Related Diagnostic Procedures
PROBLEM SYMPTOMS TABLEIf a normal code is displayed during the diagnostic trouble code check although the trouble still occurs, check the circuits for each symptom in the order given in the charts and proceed to the appropriate troubleshooting given.
The Matrix Chart is divided into 3 charts.
Chart 1: Electronic Circuit Matrix Chart
Chart 2: On-vehicle Repair Matrix Chart
Chart 3: Off-vehicle repair Matrix Chart
- If the instruction "Proceed to next circuit inspection shown on matrix chart" is given in the flow chart of each circuit, proceed to the circuit with the next highest number in the table to continue the check.
- If the trouble still occurs even though there are no abnormalities in any of the other circuits, check and replace the ECM.
Problem Symptoms Table:
Chart 1: Electronic circuit matrix chart

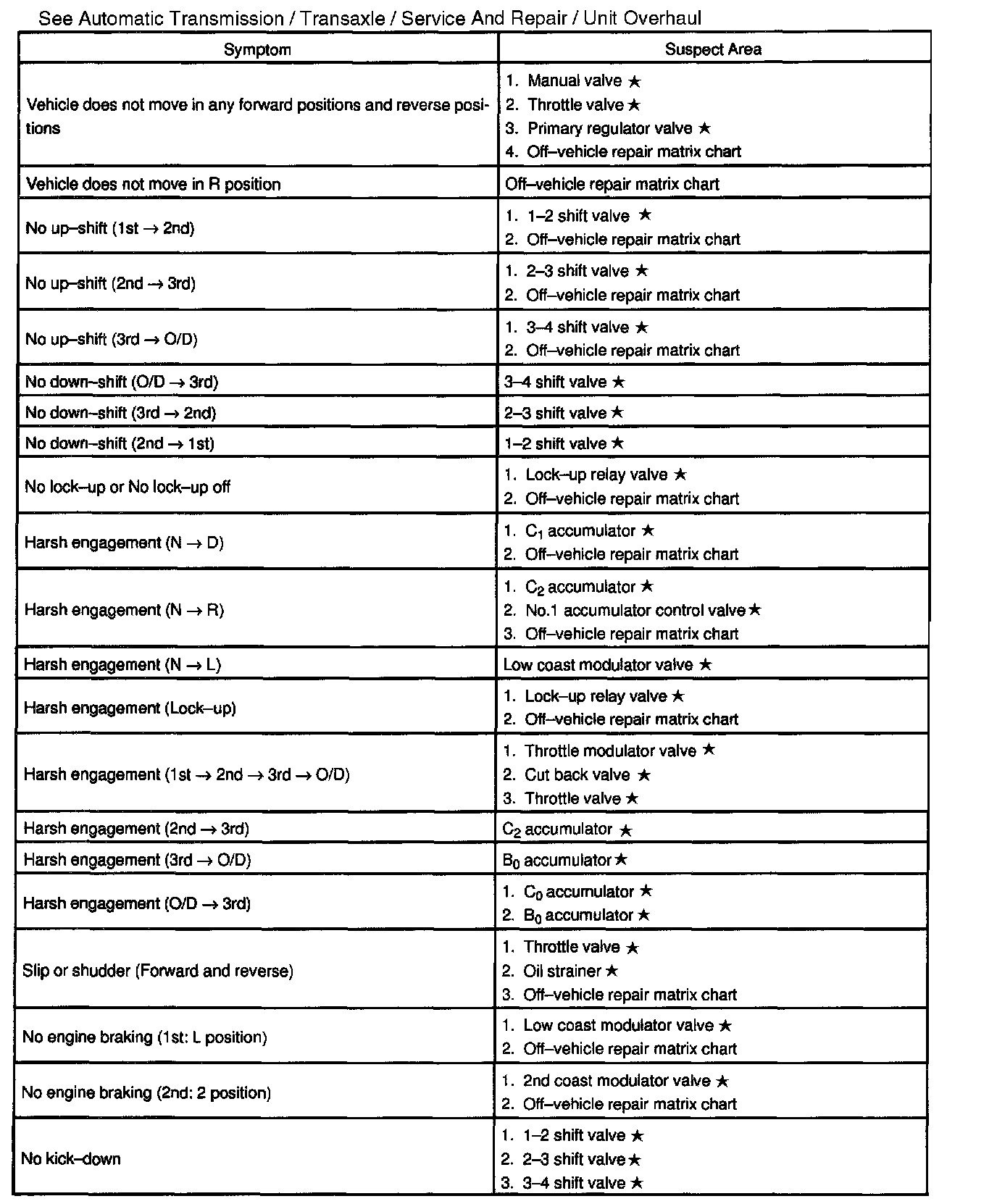

Chart 2: On-vehicle repair
Chart 3: Off-vehicle repair
