Body - Wind Whistle From Front Edge Of Hood

NVH
NV004-02
REVISED

August 30, 2002

Title:
WIND WHISTLE FROM EDGE OF HOOD

Models:
'02 RAV

Introduction

Some customers may experience a high-pitched wind whistle from the leading edge of the hood at highway speeds. The following field fix procedure is recommended to improve this condition.

Applicable Vehicles

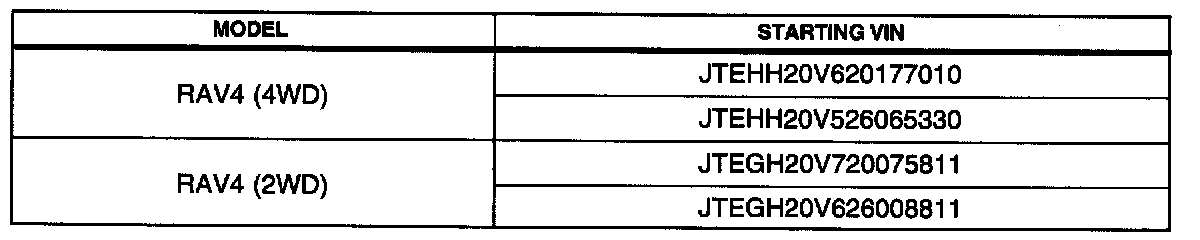

^ 2002 model year RAV4 vehicles produced before the VINs shown below.





Production Change Information





Parts Information





Warranty Information

Applicable Warranty*

This repair is covered under the Toyota Comprehensive Warranty. This warranty is in effect for 36 months or 36,000 miles, whichever occurs first, from the vehicle's in-service date.

* Warranty application is limited to correction of a problem based upon a customer's specific complaint.

Repair Procedure





1. Remove the hood to radiator grille Procedure seal from the hood.





2. Cut one piece of EPT sealer from the wind noise kit, and apply it to the hood seal as shown.

3. Reinstall the hood seal.
