Fluid - M/T: Service and Repair

ON-VEHICLE REPAIR
REPLACE TRANSAXLE OIL
a. Loosen the filler plug.
b. Remove the drain plug.

HINT: Use a container to catch the transaxle oil.

c. Remove the filler plug.
d. Reinstall the drain plug.
Torque: 49 Nm (500 kgf-cm, 36 ft. lbs.)

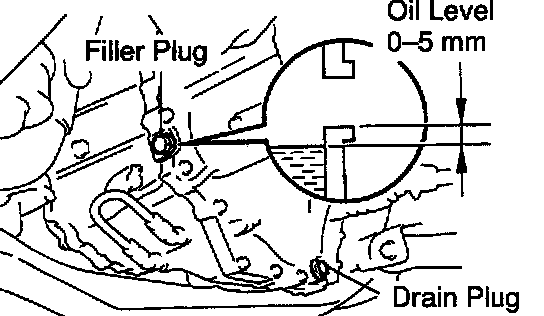

e. Refill new transaxle oil as shown in the illustration.
Oil grade: API GL-4 or GL-5
Viscosity: SAE 75W-90
Capacity: 3.4 liters (3.6 US qts, 3.0 Imp.qts)
f. Reinstall the filler plug.
Torque: 49 Nm (500 kgf-cm, 36 ft. lbs.)
