Vehicle Speed Sensor: Service and Repair

Vehicle Speed Sensor NO.1 on-vehicle repair


1. REMOVE FRONT SPEED SENSOR

a. Remove the air cleaner assembly.
b. Disconnect the front speed sensor connector.

Vehicle Speed Sensor NO.2(Front Speed Sensor):

c. Remove the bolt and front speed sensor assembly.

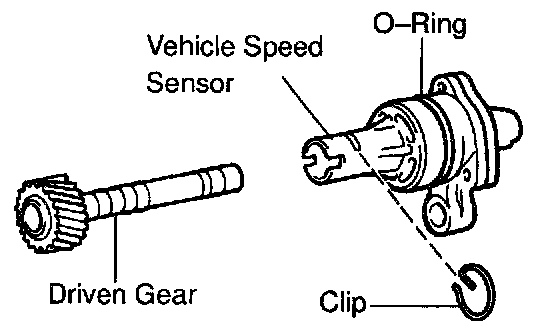

d. Remove the clip and speedometer driven gear from the front speed sensor.
e. Remove the O-ring from the front speed sensor.

2. INSTALL FRONT SPEED SENSOR ASSEMBLY

a. Coat a new O-ring with ATF and install it to the front speed sensor.
b. Install the speedometer driven gear to the front speed sensor with the clip.
c. Install the front speed sensor assembly with the bolt.

Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)

d. Connect the front speed sensor connector.
e. Install the air cleaner assembly.


Rear Vehicle Speed Sensor on-vehicle repair


1. Remove Rear Speed Sensor.

Rear Speed Sensor:

a. Remove the air cleaner assembly.
b. Disconnect the rear speed sensor connector.
c. Remove the bolt and rear speed sensor.

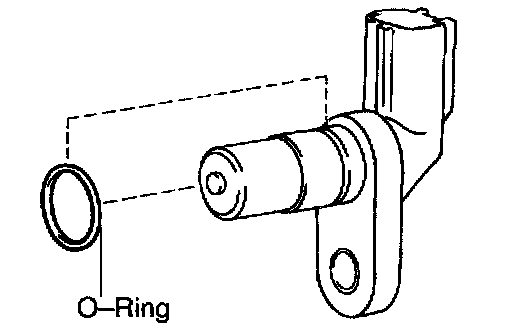

d. Remove the O-ring from the rear speed sensor.

2. INSTALL REAR SPEED SENSOR

a. Coat a new O-ring with ATF and install it to the rear speed sensor.
b. Install the rear speed sensor with the bolt.

Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)

c. Connect the rear speed sensor connector.
d. Install the air cleaner assembly.
