Traction Control Module: Testing and Inspection

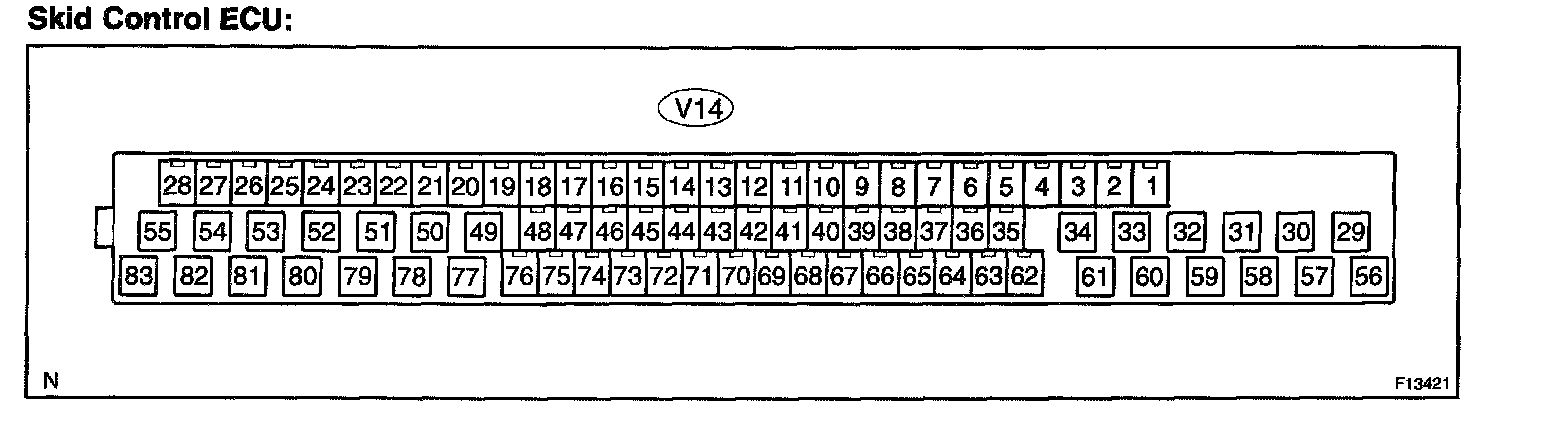

Terminals Of ECU (Skid Control ECU) - Connector View:

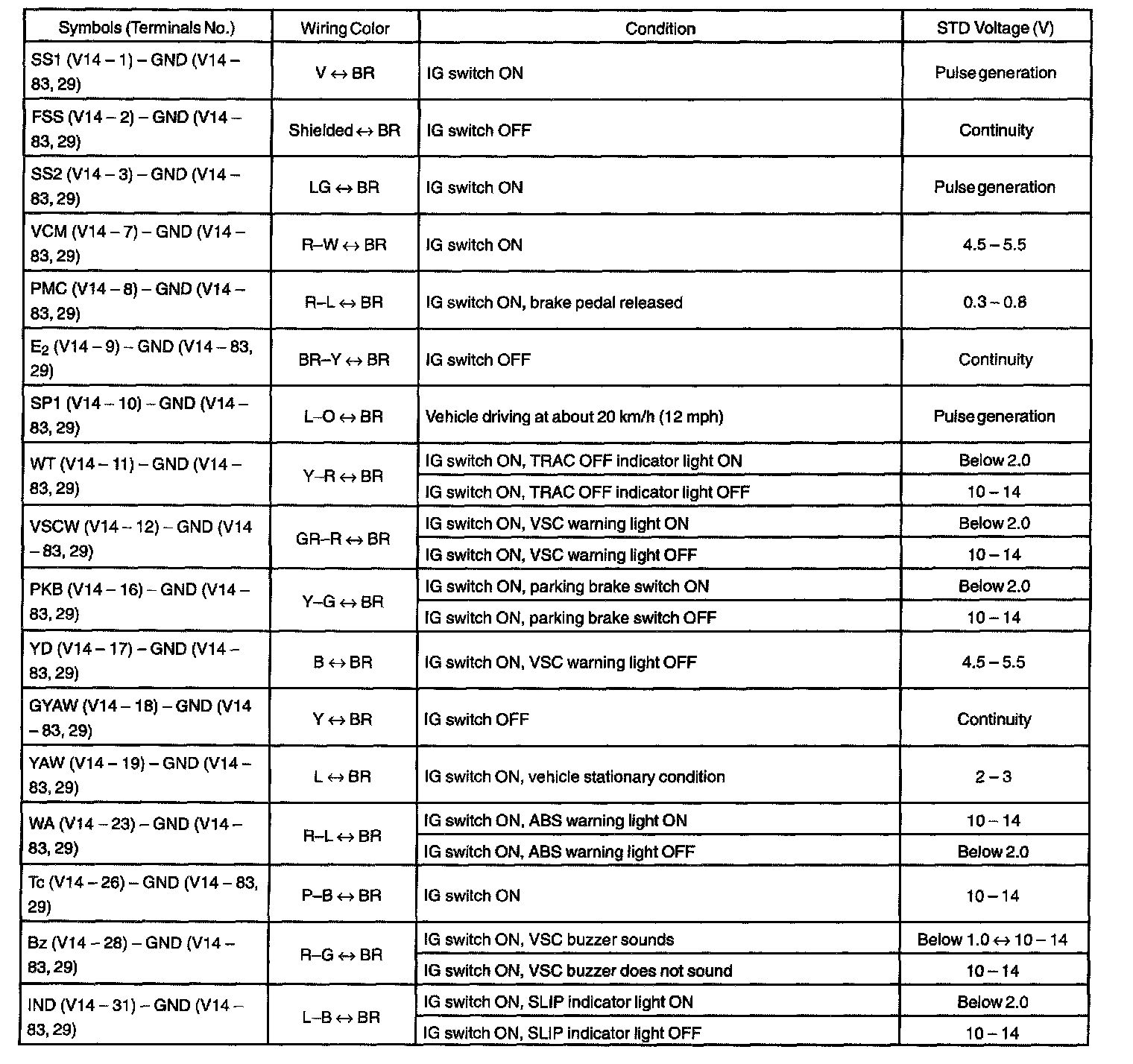

Terminals Of ECU (Skid Control ECU) - Pinouts Part 1:

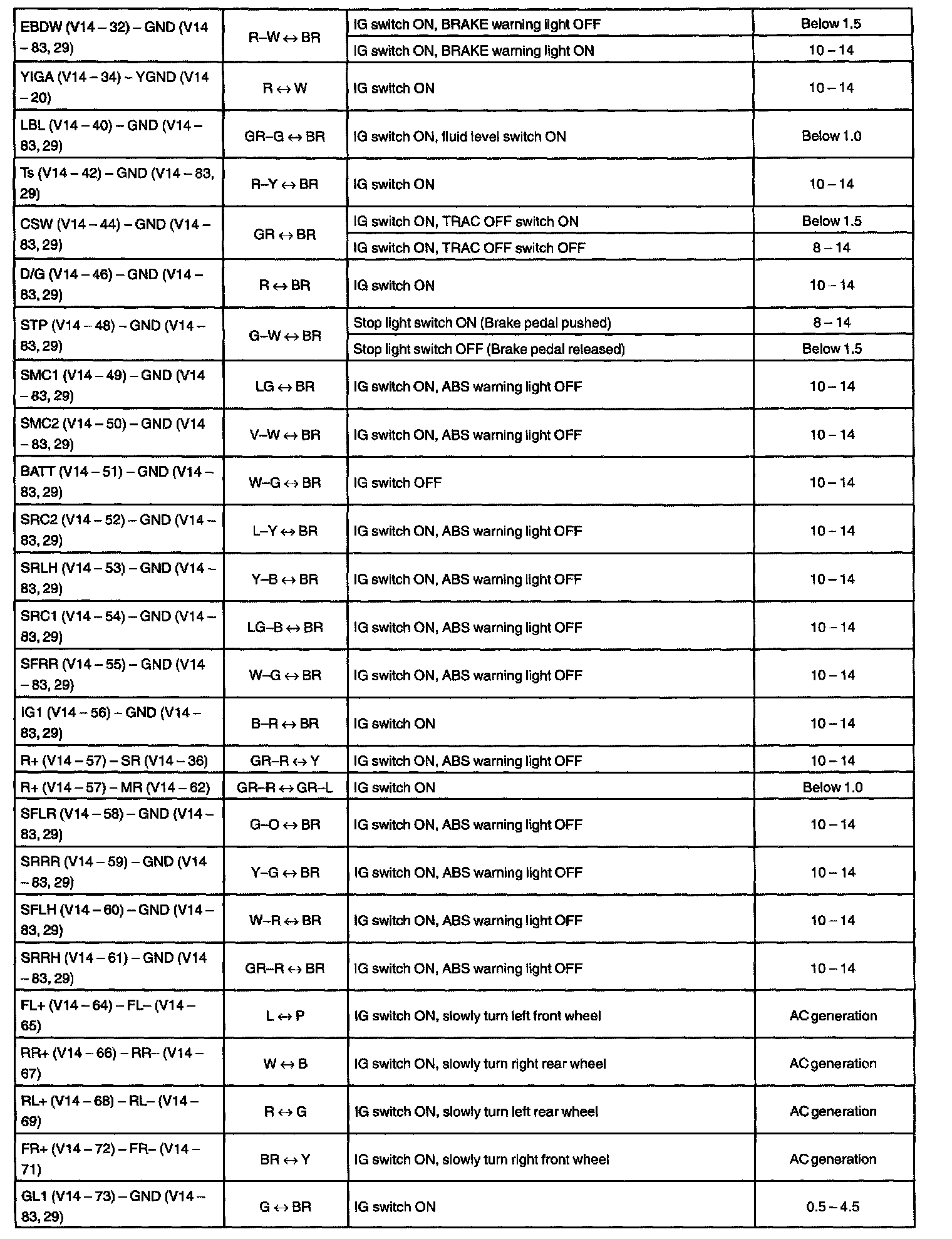

Terminals Of ECU (Skid Control ECU) - Pinouts Part 2:

Terminals Of ECU (Skid Control ECU) - Pinouts Part 3:

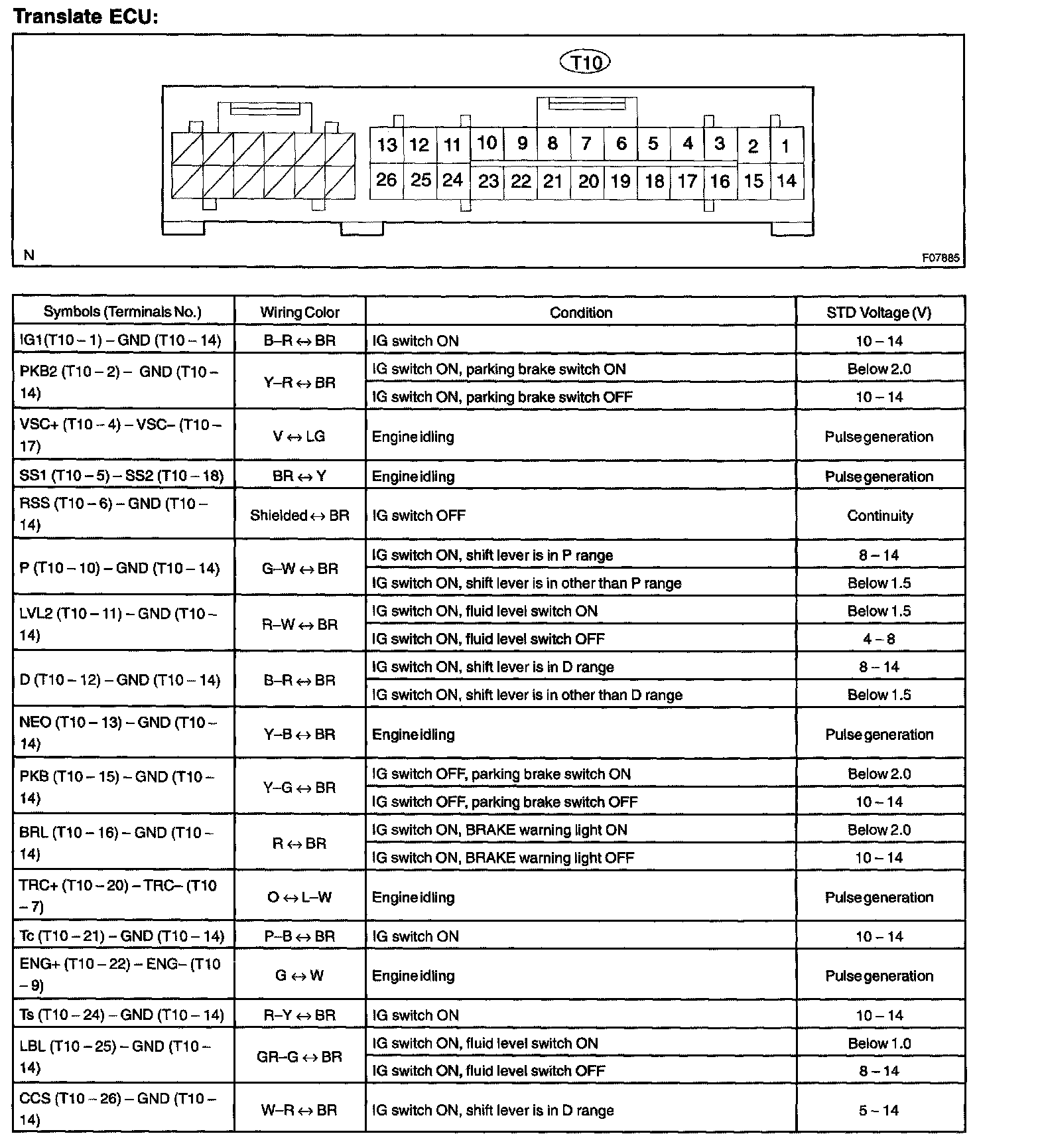

Terminals Of ECU (Translate ECU):
