Operation CHARM: Car repair manuals for everyone.
Home >> Toyota >> 2002 >> Sienna LE V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Diagrams >> Components >> Engine Compartment

Engine Compartment

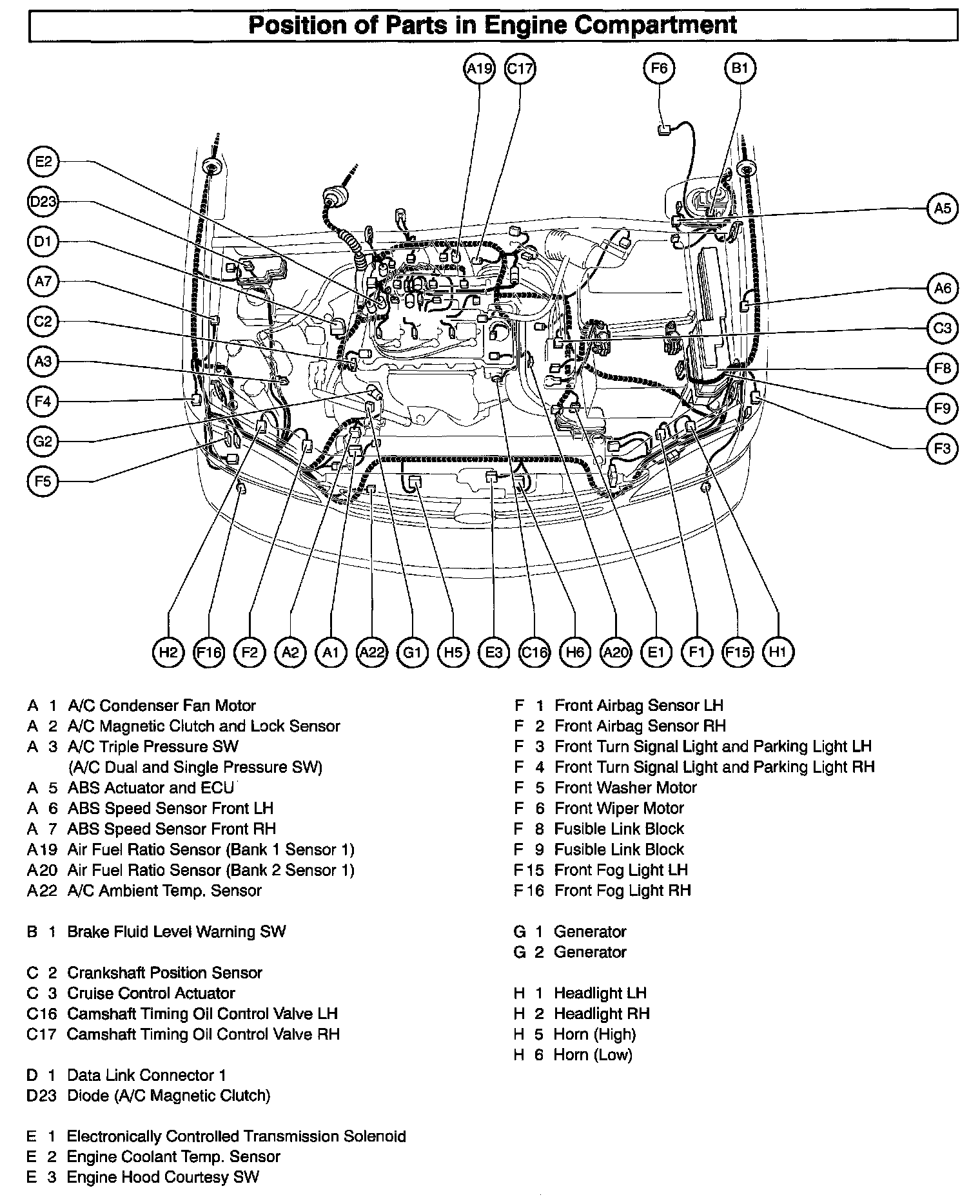

Engine Compartment Part 1:

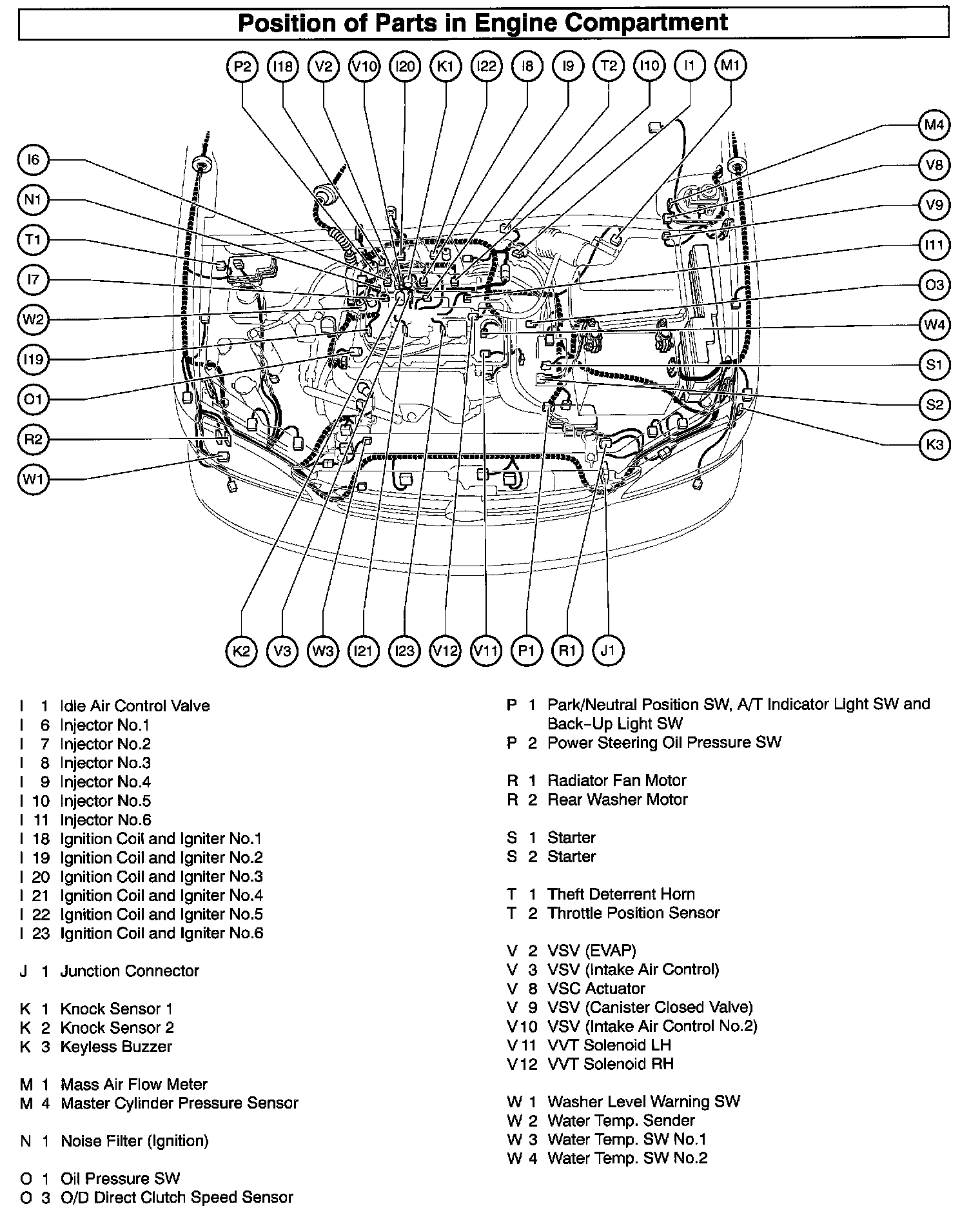

Engine Compartment Part 2:
