Inspection

INSPECTION

1. REMOVE ECM

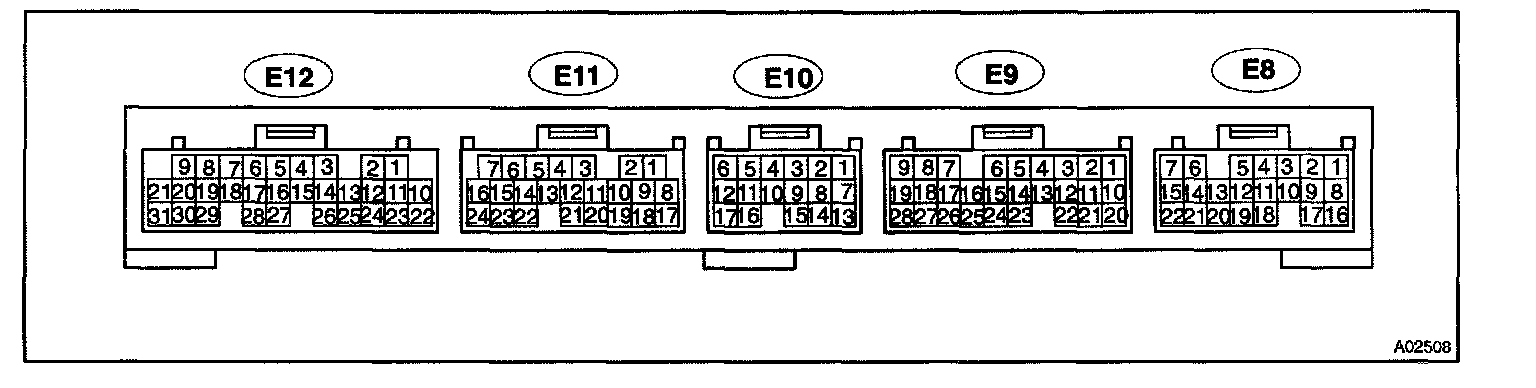

Terminals Of ECM - Connector View:

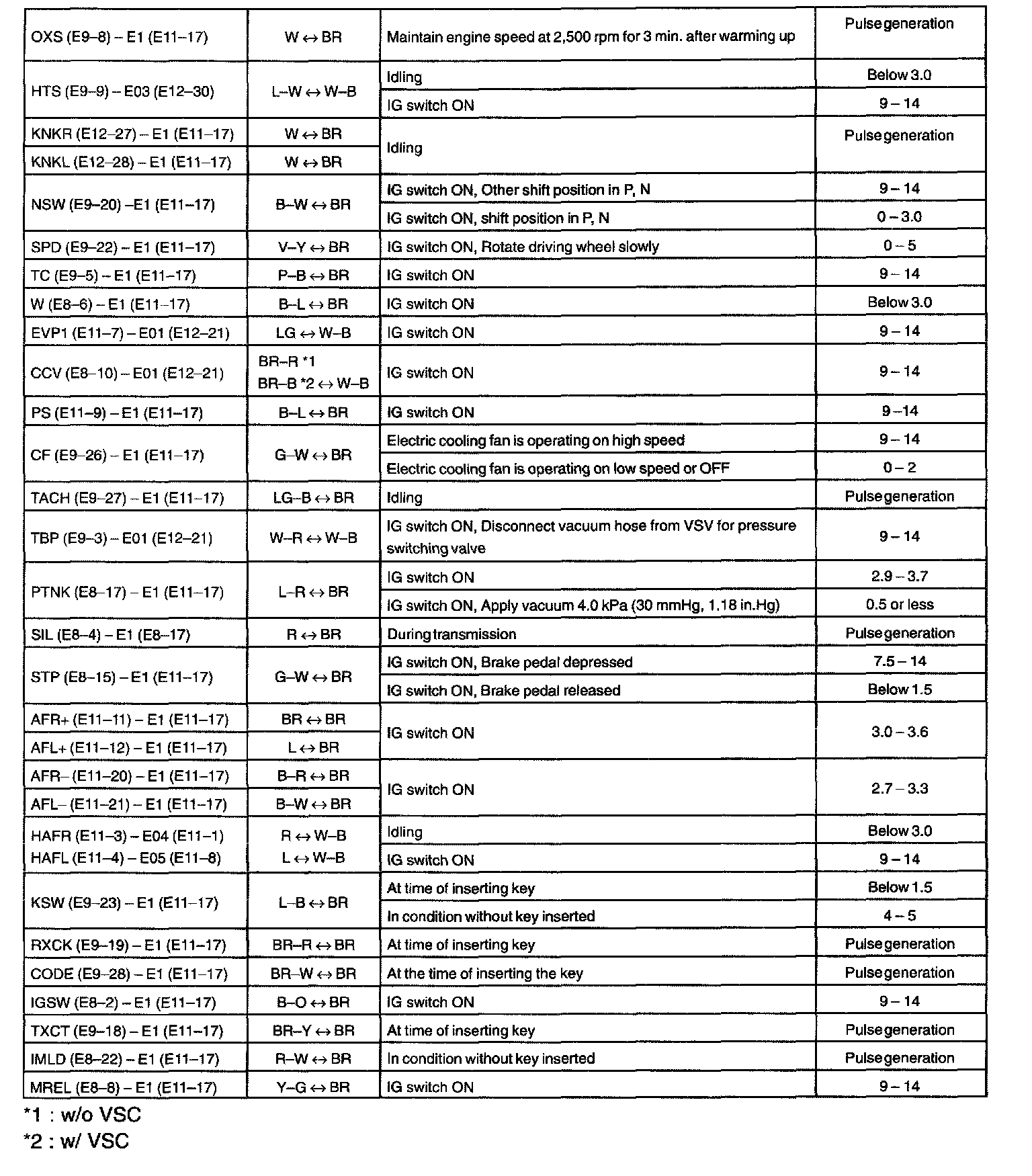

Terminals Of ECM - Connector Pinouts Part 1:




Pinouts Part 2:




2. INSPECT ECM

3. REINSTALL ECM
