Engine Compartment
Engine Compartment

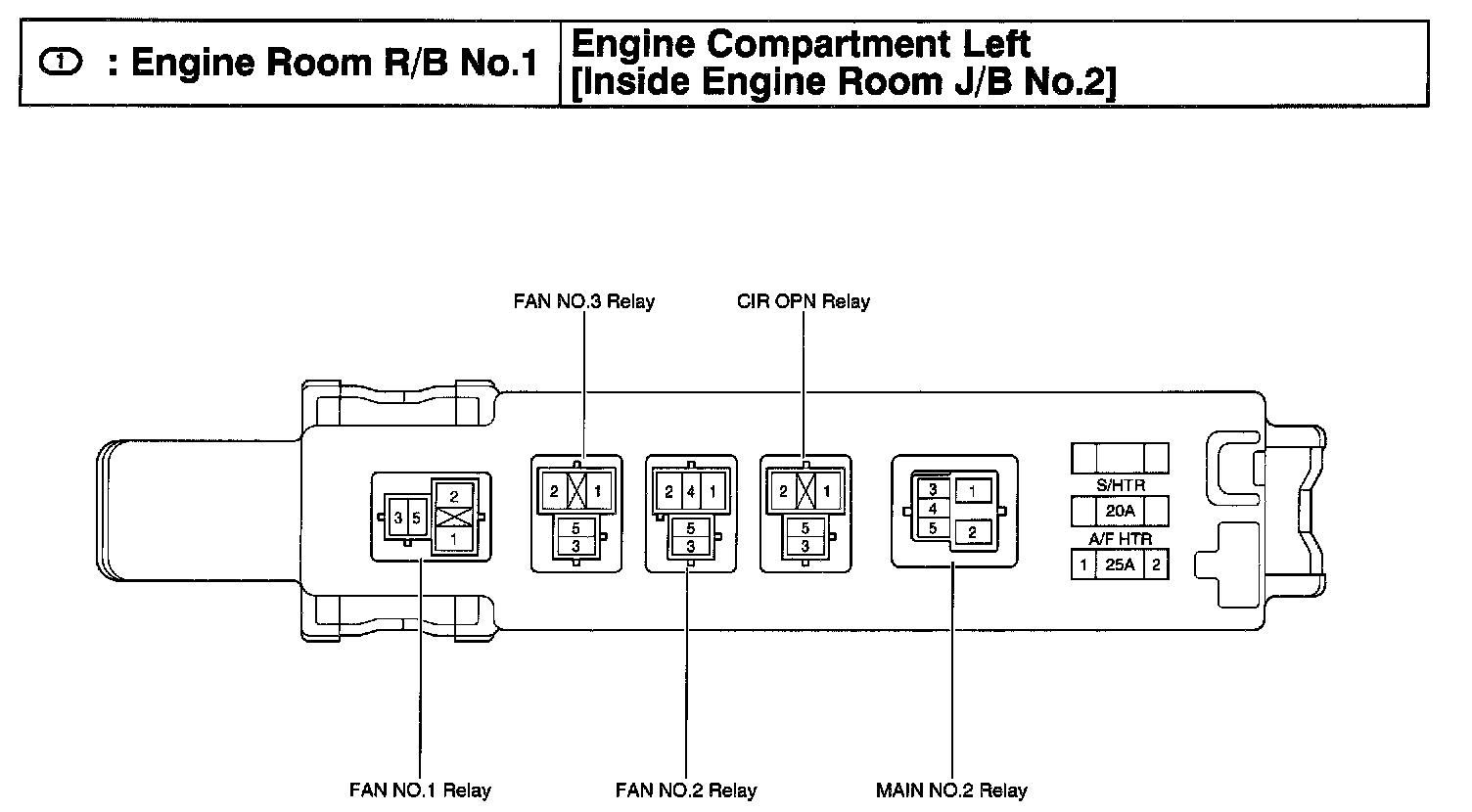

Engine Room R/B No.1:
Engine Room J/B No.2:
R/B No.7:
R/B No.8:
Fusible Link Block:
