Alignment: Specifications

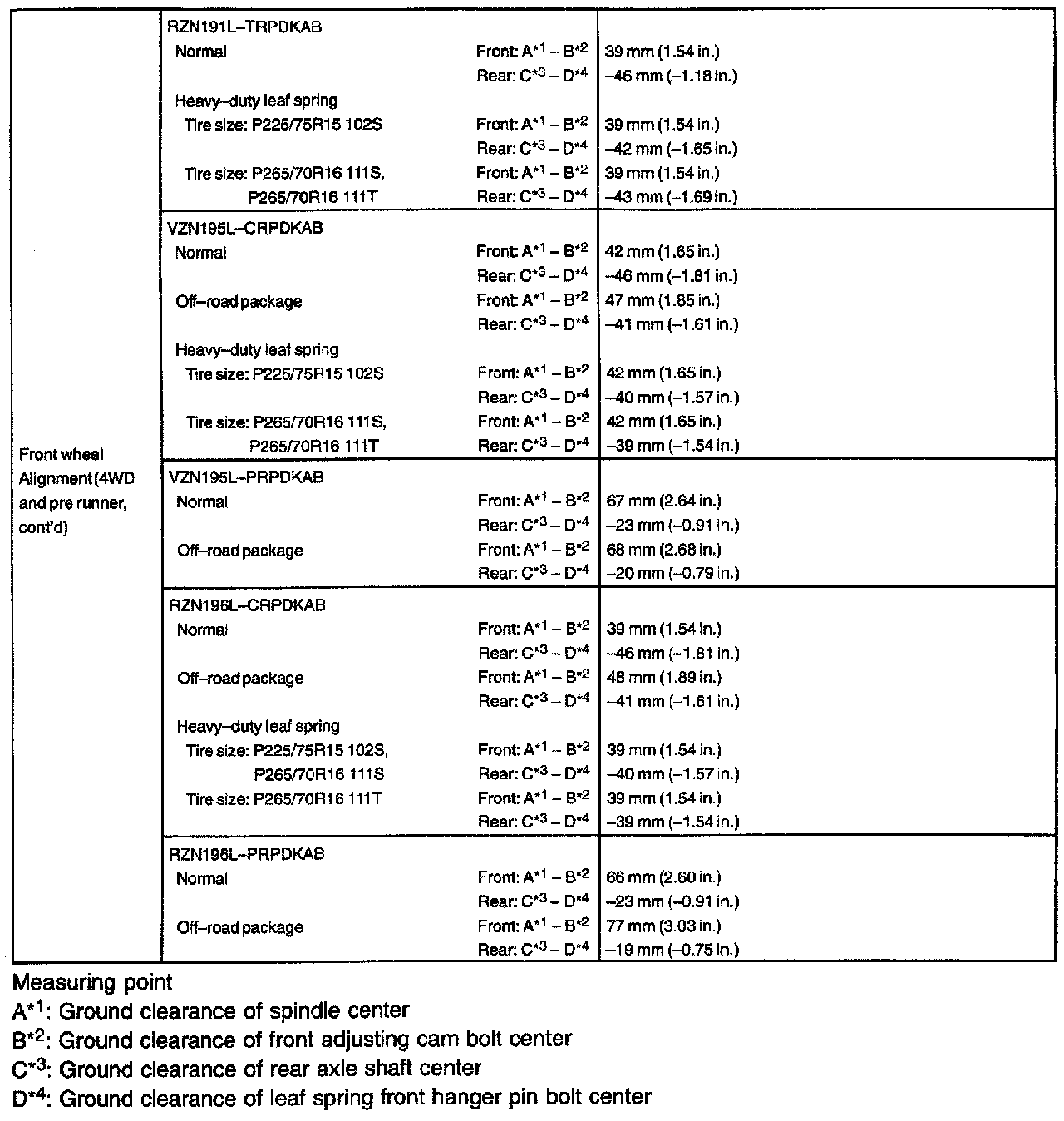

Part 1 Of 8:

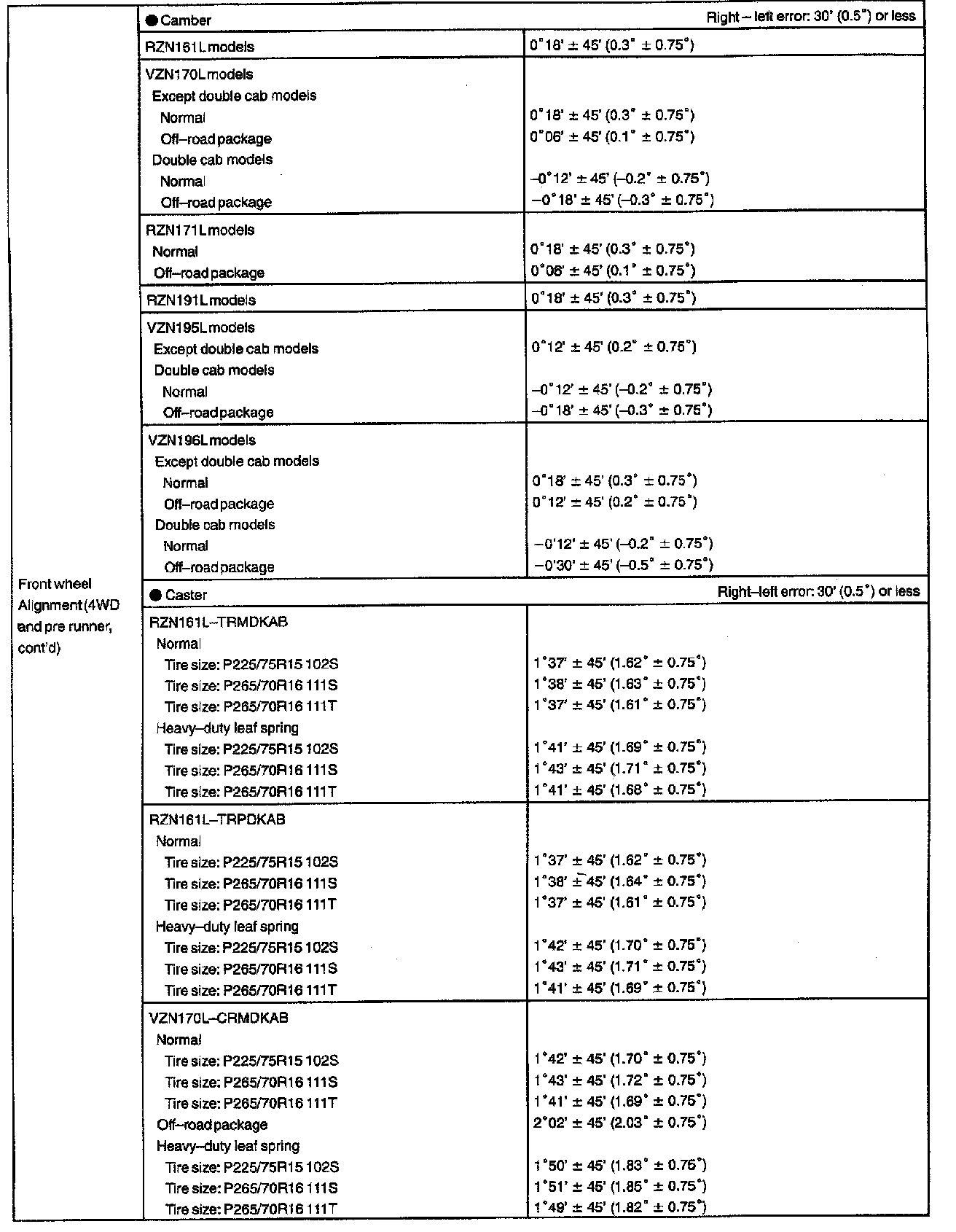

Part 2 Of 8:

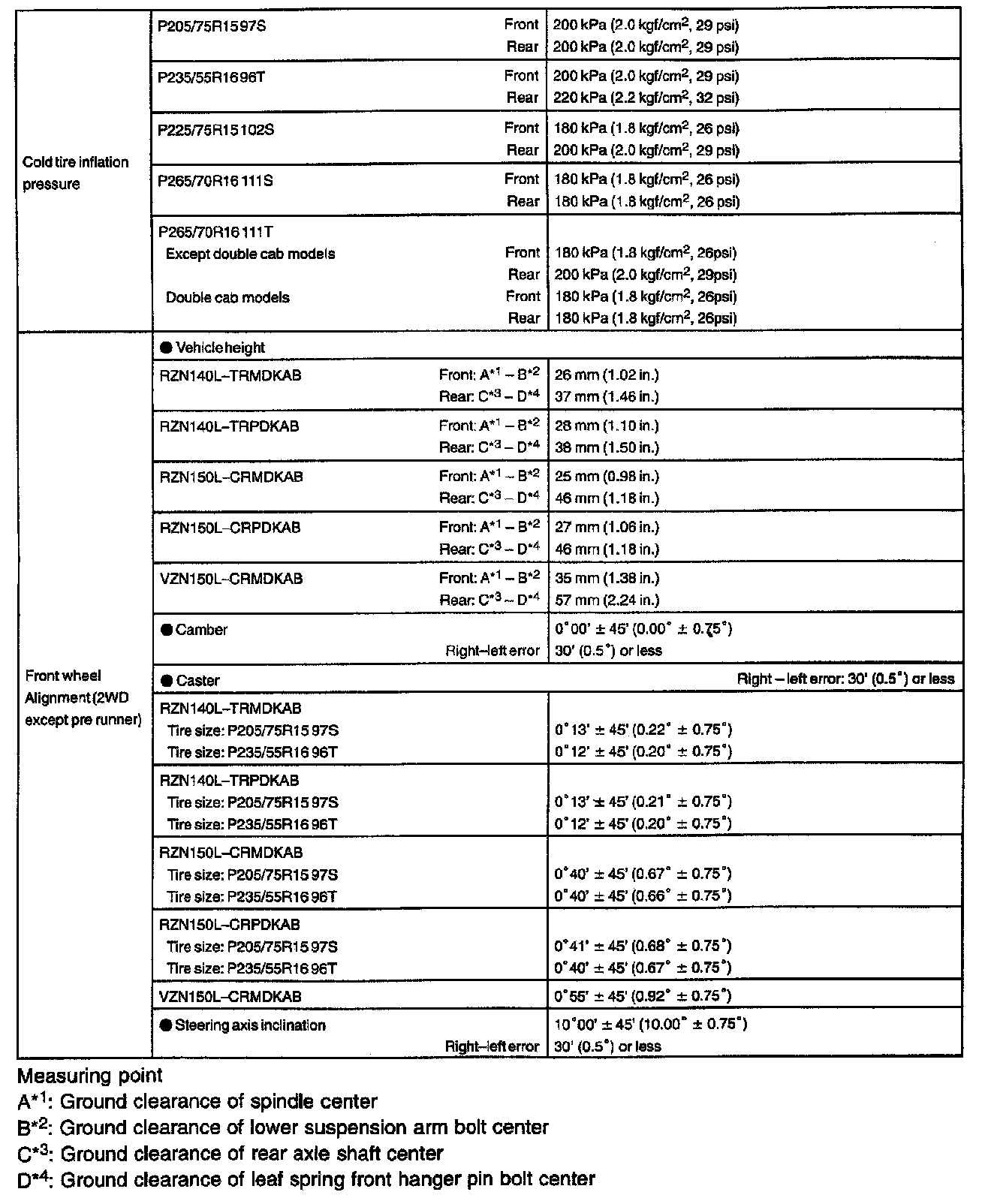

Part 3 Of 8:

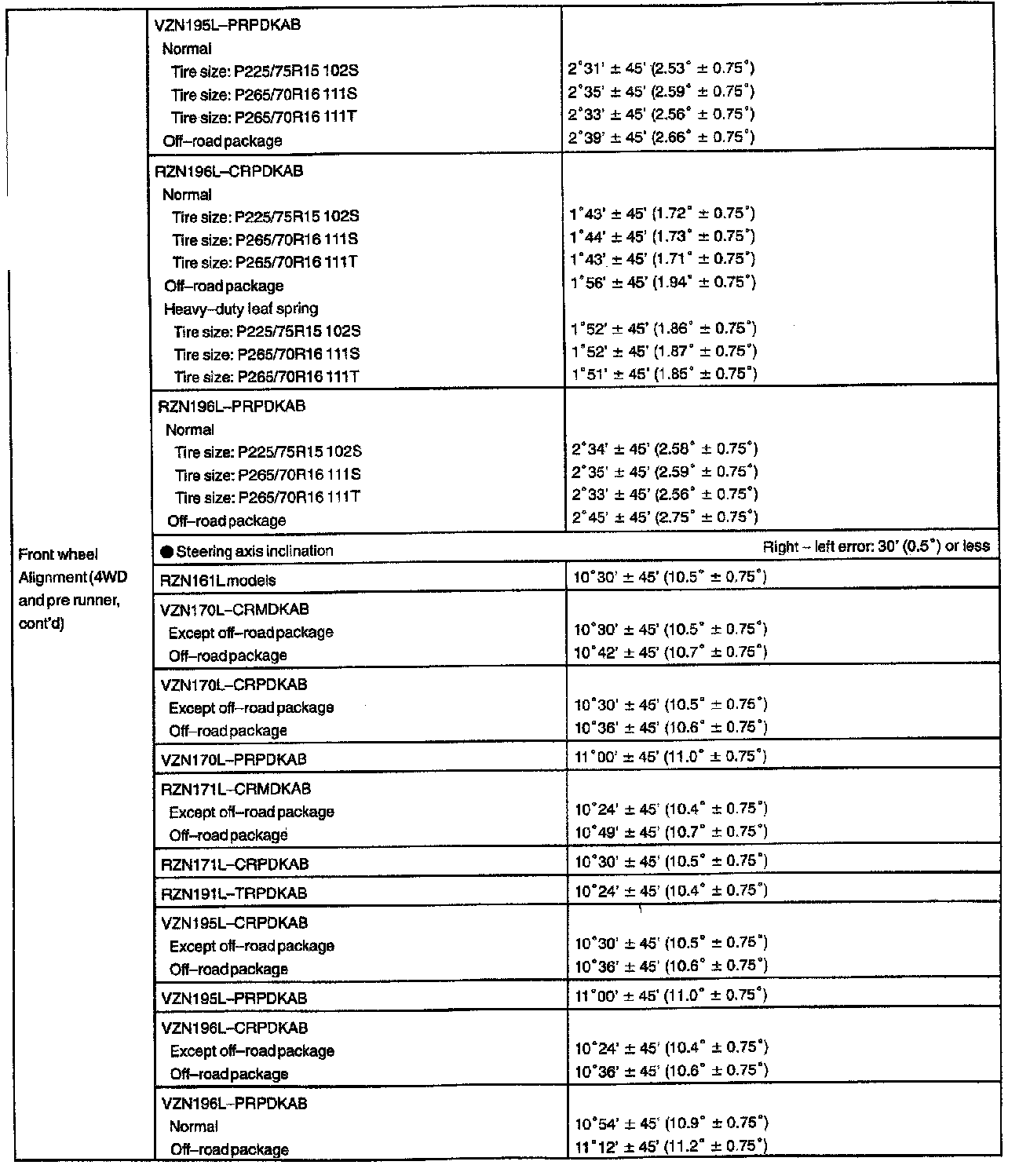

Part 4 Of 8:

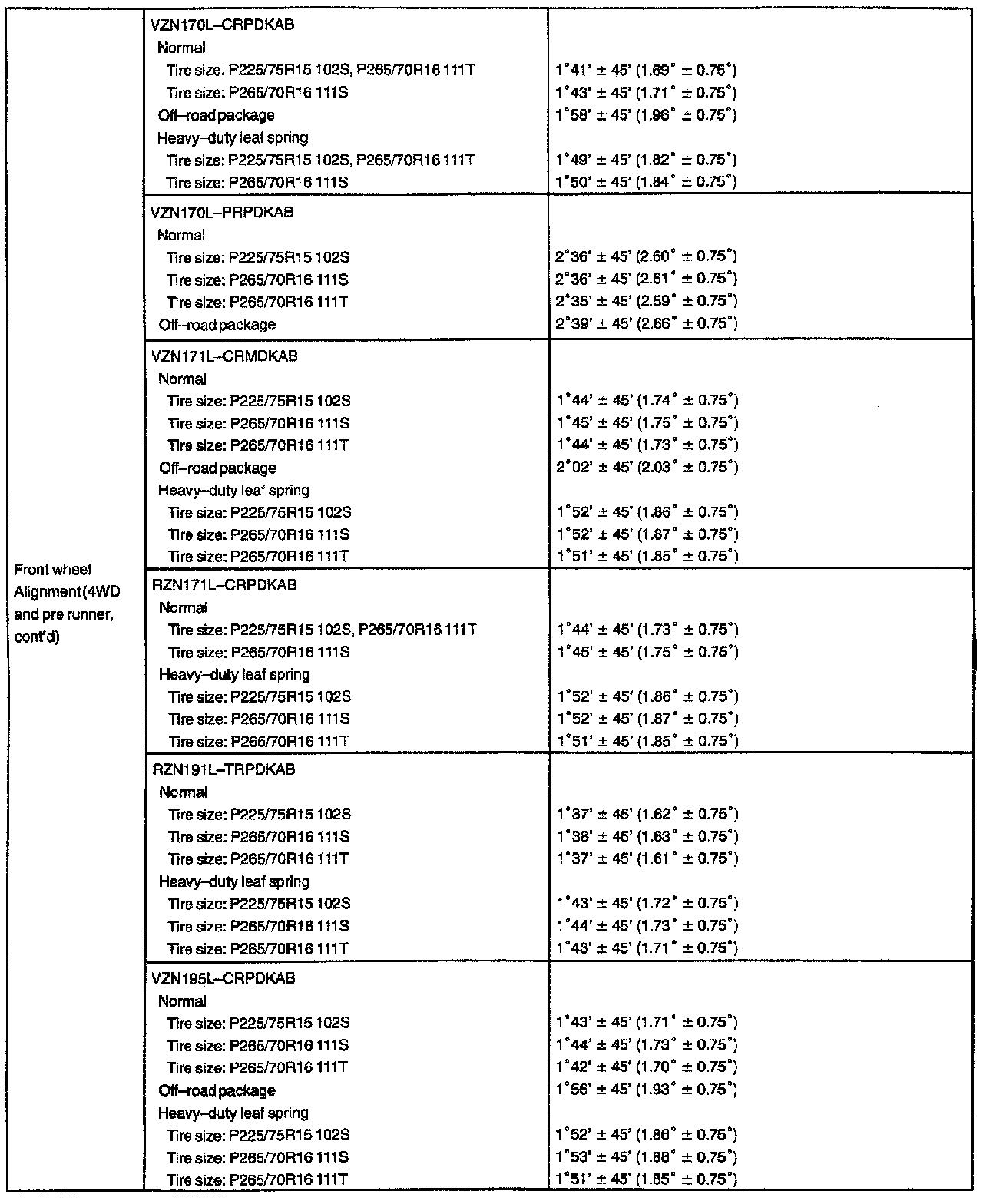

Part 5 Of 8:

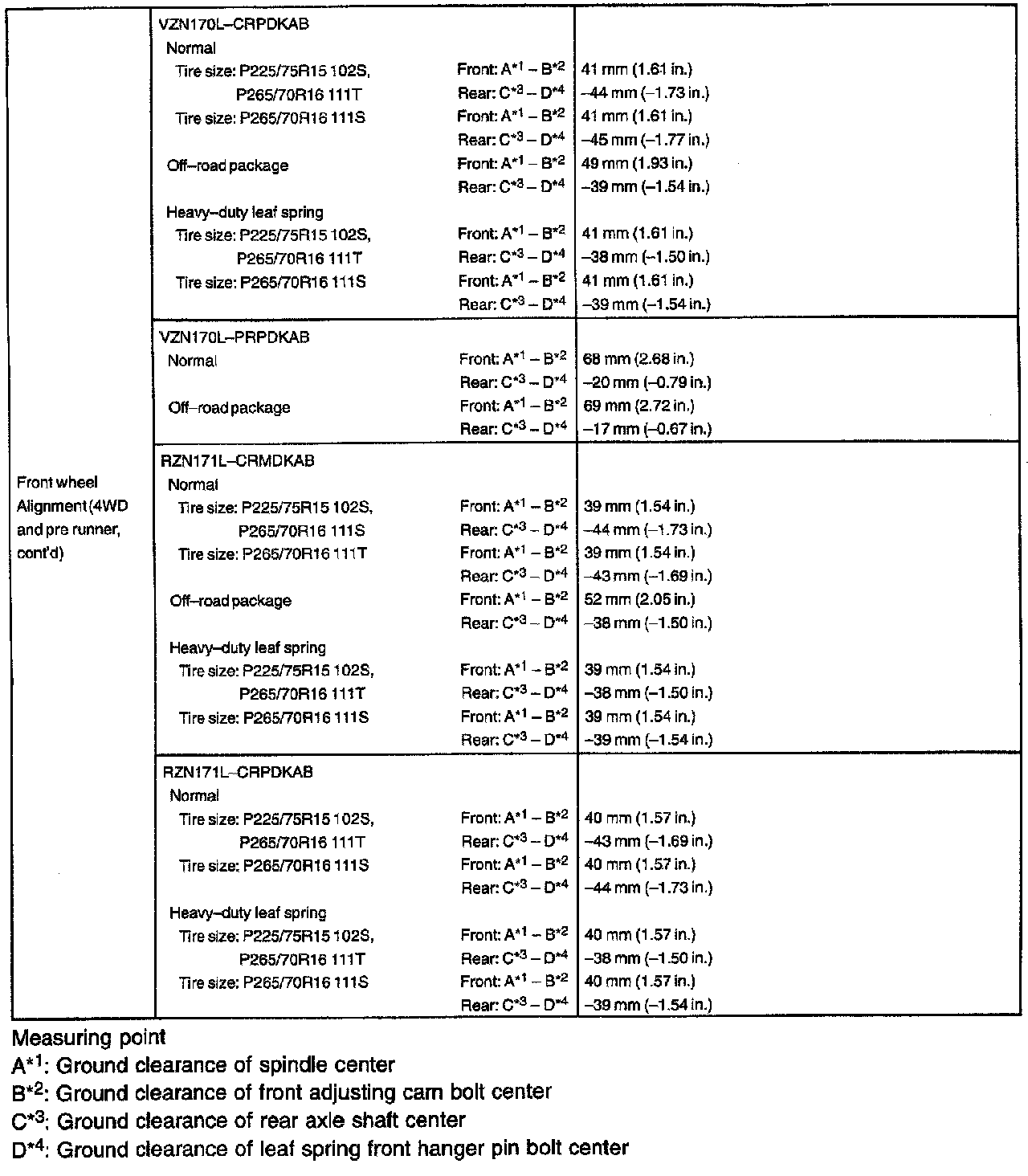

Part 6 Of 8:

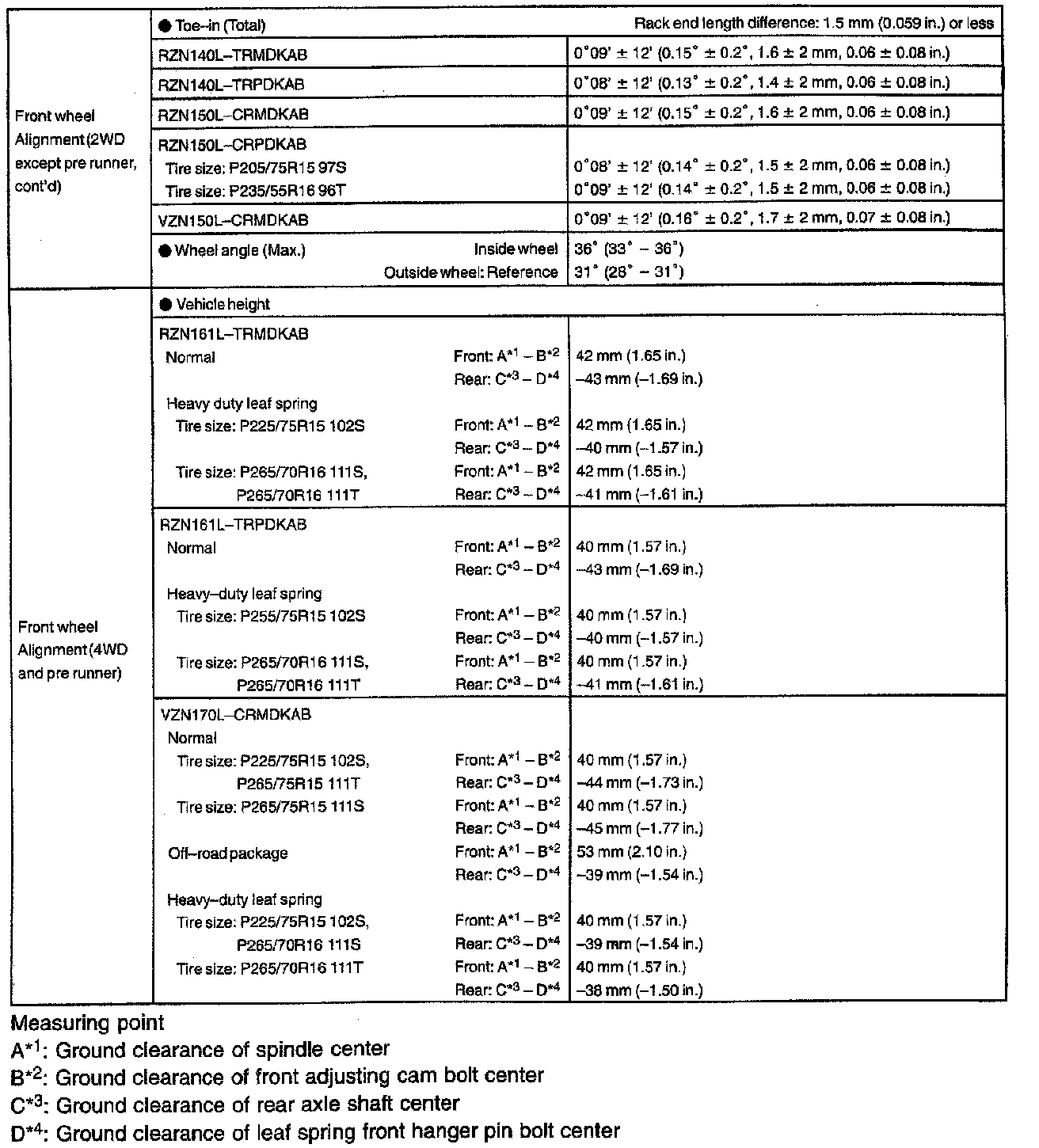

Part 7 Of 8:





Part 8 Of 8:
