Power Mirror Motor: Testing and Inspection

INSPECT MIRROR MOTOR OPERATION

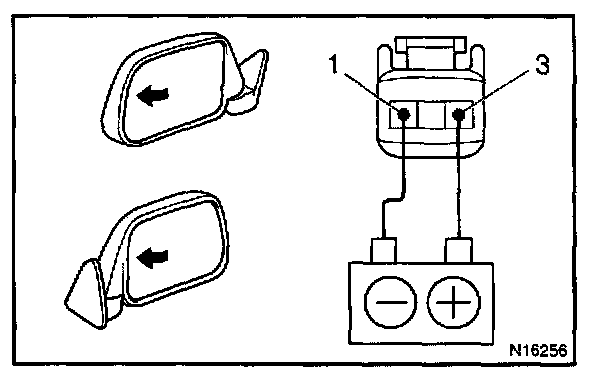

a. Connect the positive (+) lead from the battery to terminal 3 and negative (-) lead to terminal 1. Check that the mirror turns to left side.

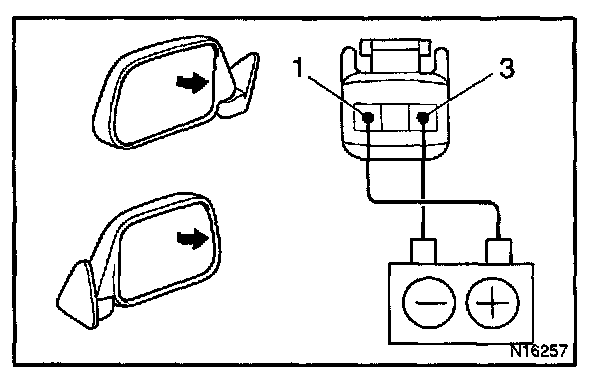

b. Reverse the polarity and check that the mirror turns to right side.

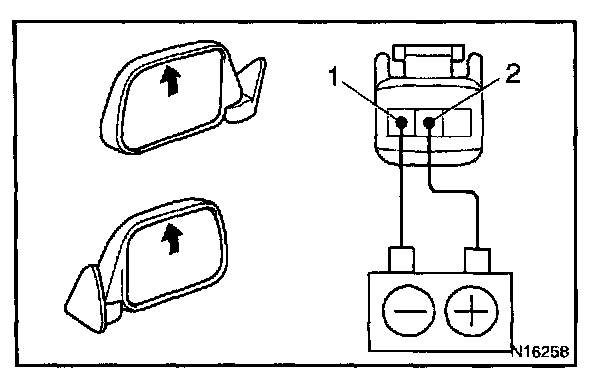

c. Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1. Check that the mirror turns upward.

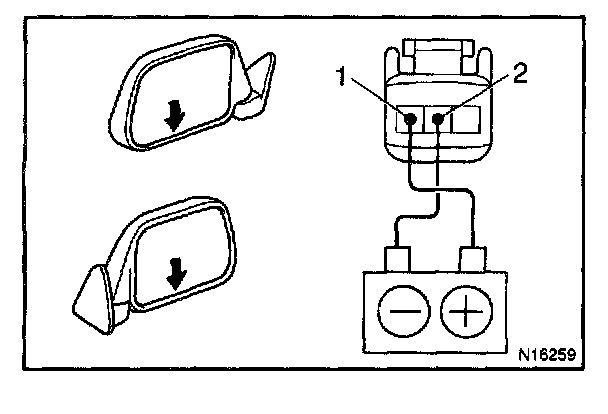

d. Reverse the polarity, check that the mirror turns downward.

If operation is not as specified, replace the mirror assembly.
