Engine Compartment
Engine Compartment

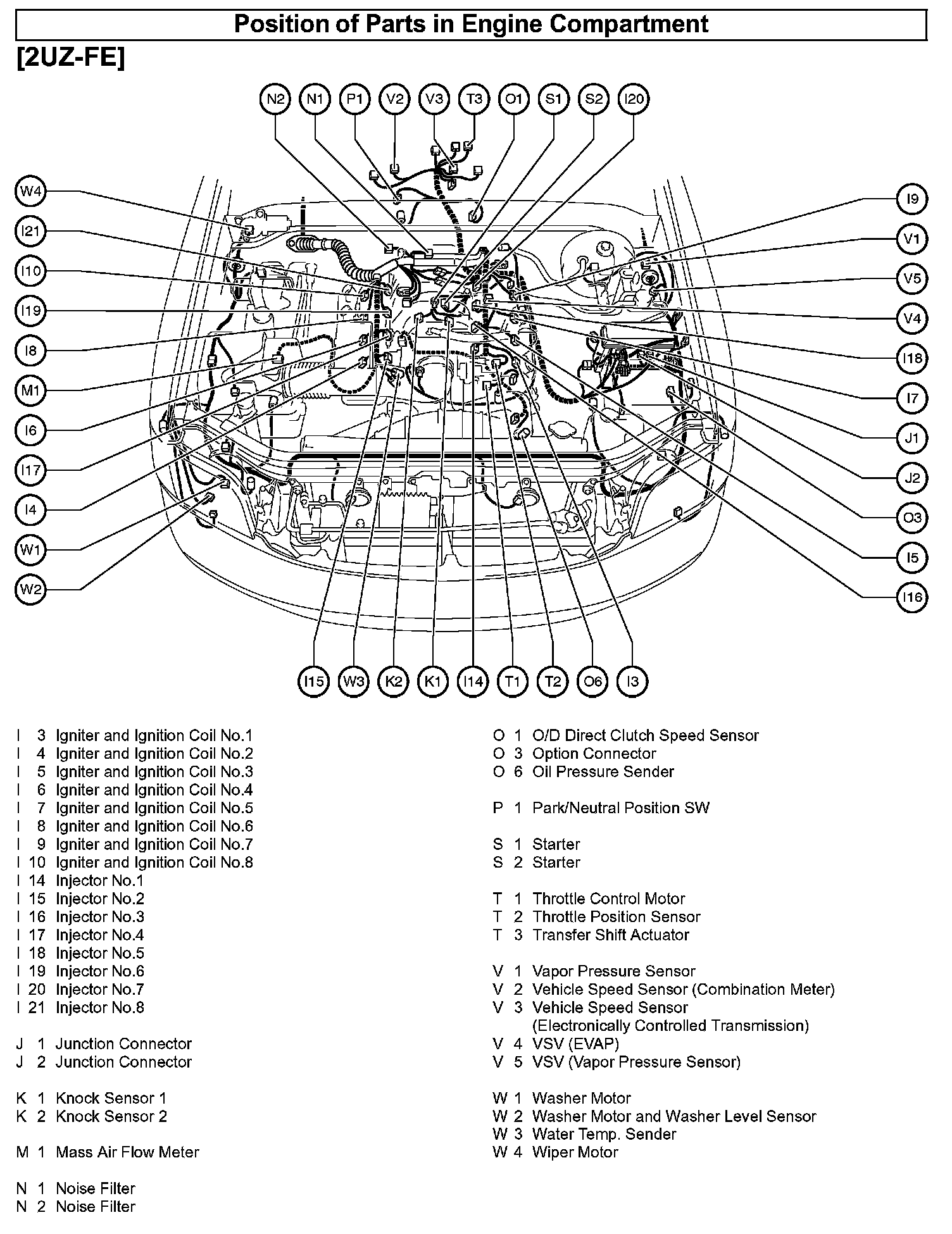

Position Of Parts In Engine Compartment (2UZ-FE) Part 1:

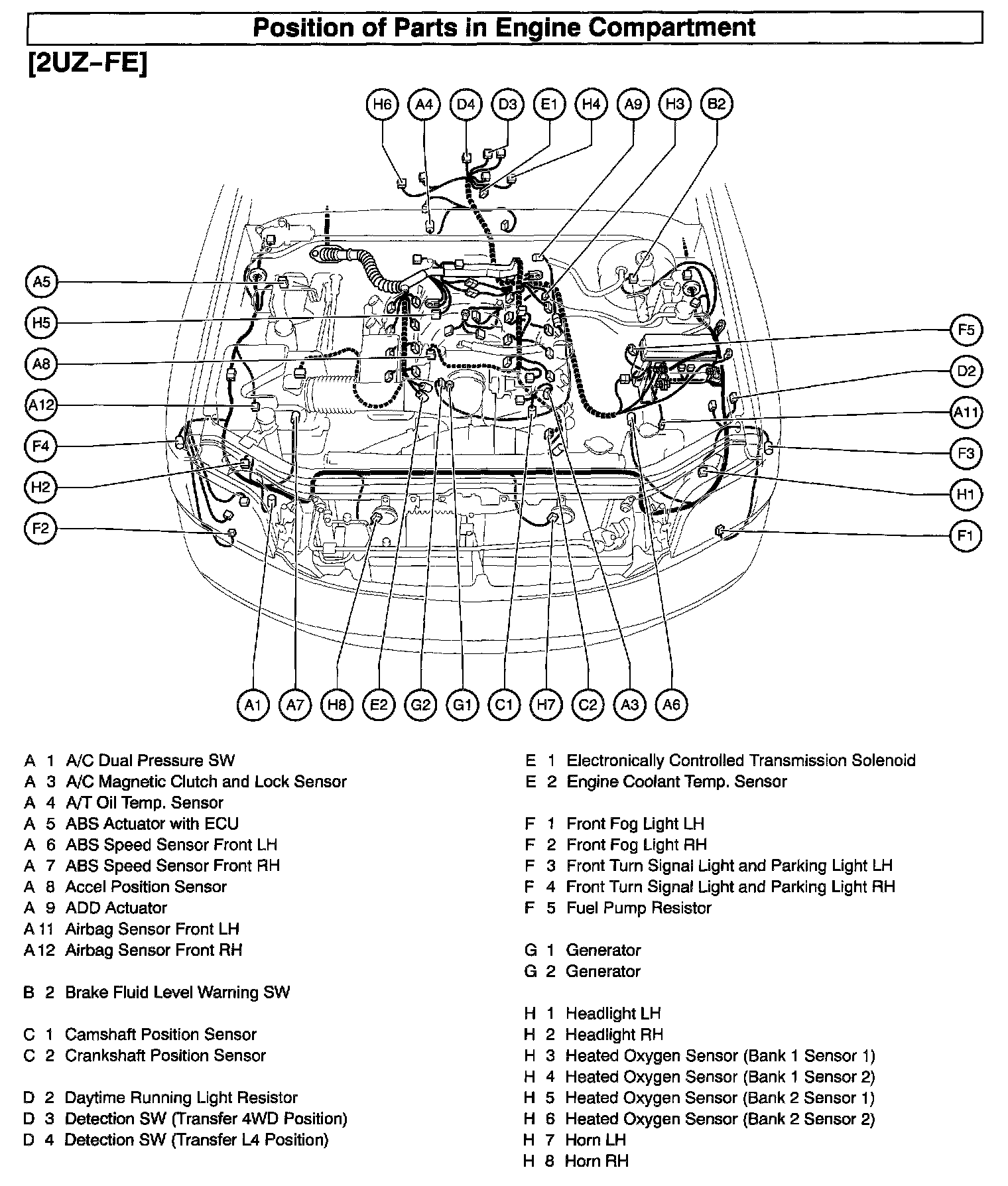

Position Of Parts In Engine Compartment (2UZ-FE) Part 2:
