Air Bag
Air Bag

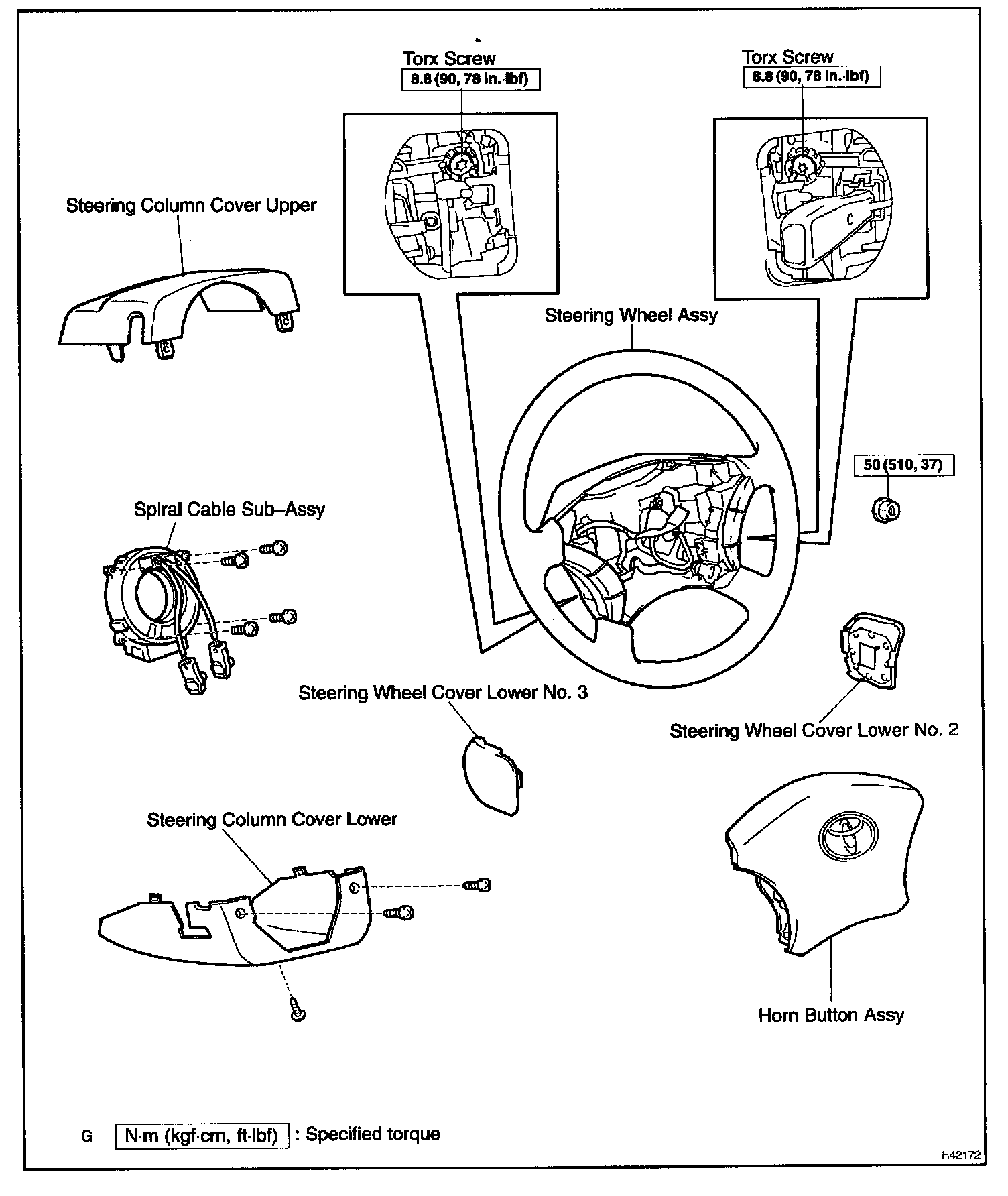

Horn Button Assy:

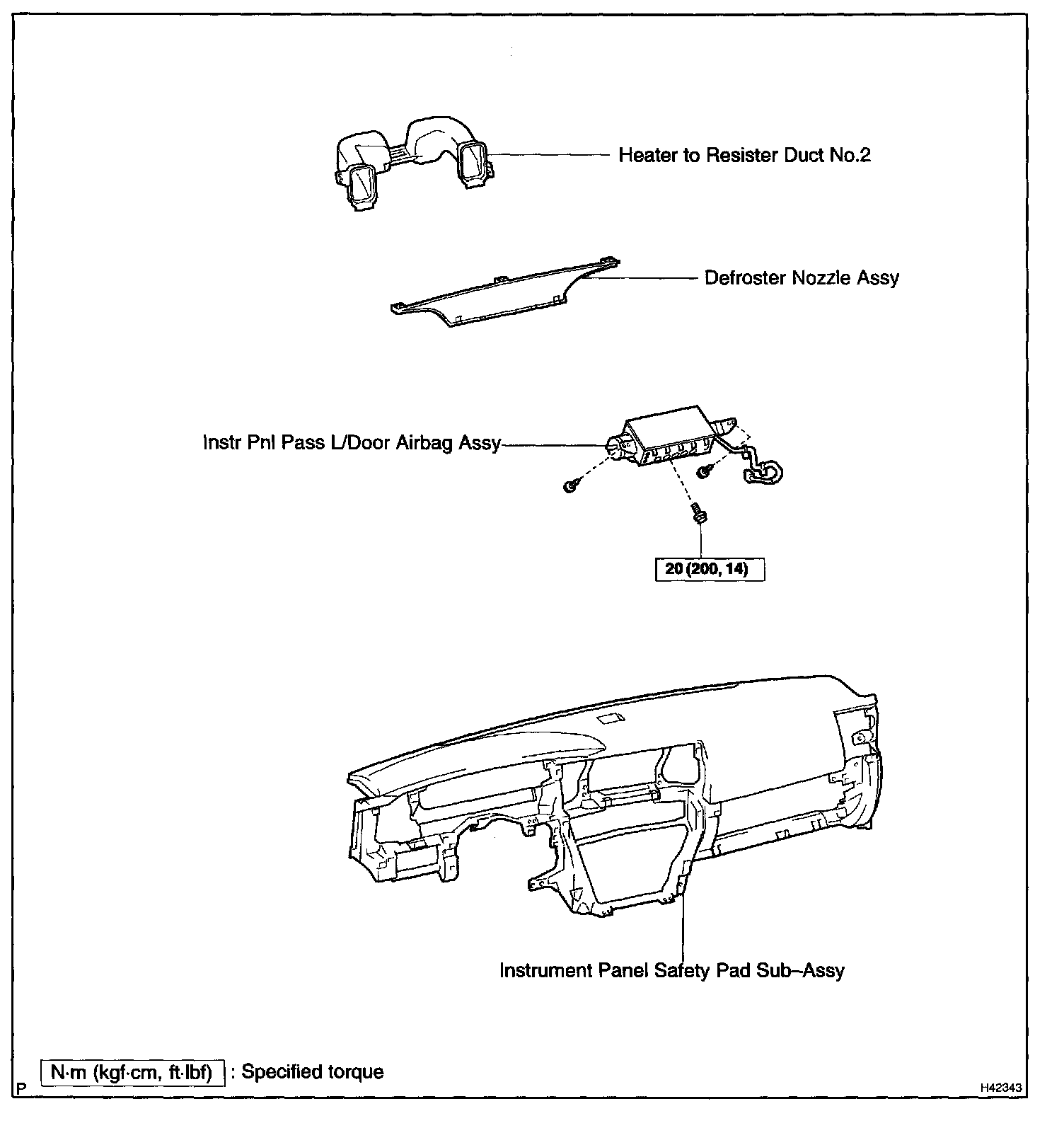

Instr PNL Pass L/Door Air bag assy:

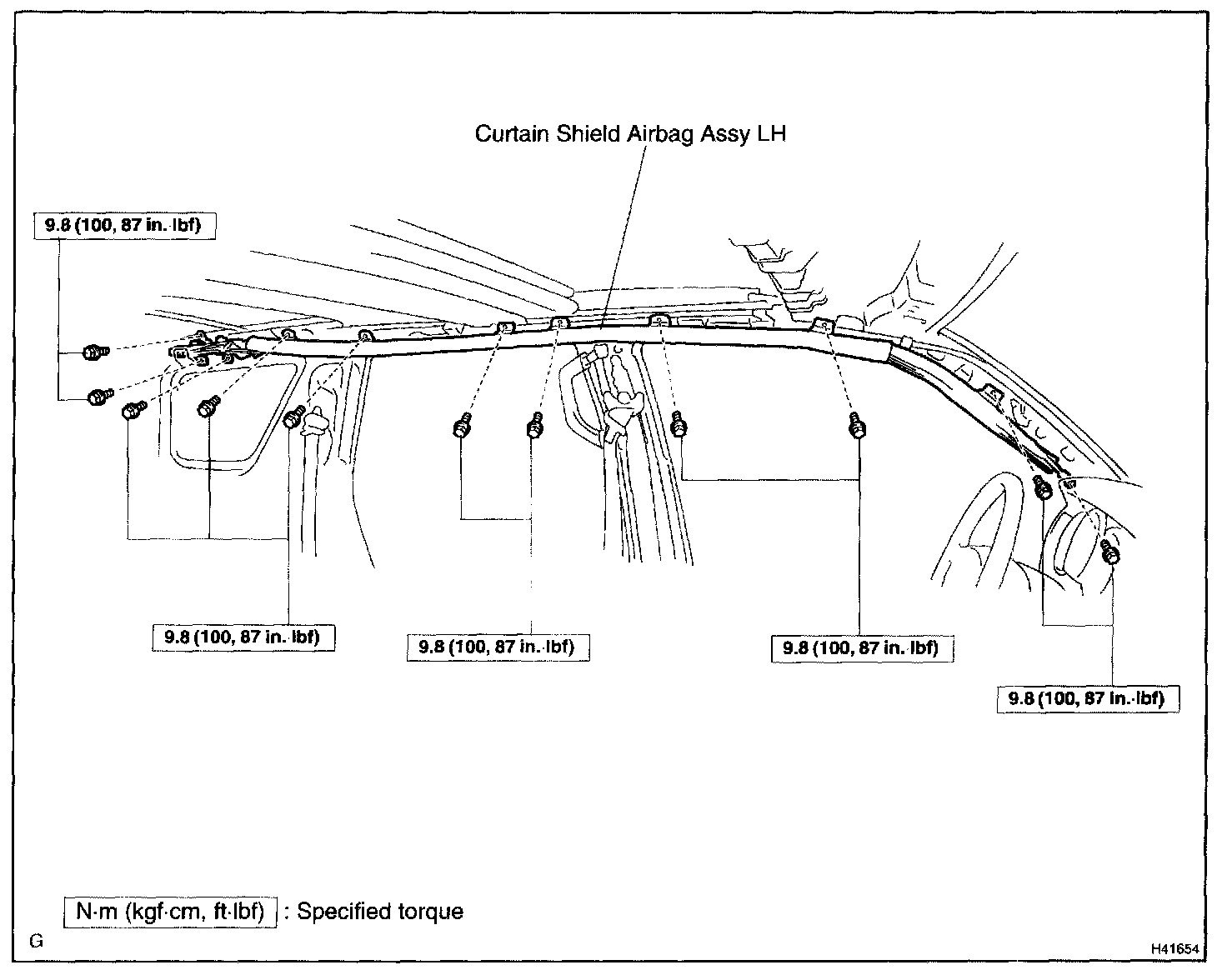

Curtain Shield Air Bag Assy LH:
