Data List

DATA LIST






HINT: By the DATA LIST displayed by the Hand-held tester, you can read the value of the switch, sensor, actuator, etc. Without removing any parts. Reading the DATA LIST as a first step of troubleshooting is one of the method to shorten the labor time.

a. Connect the Hand-held tester to the DLC3.
b. Turn the ignition switch ON.

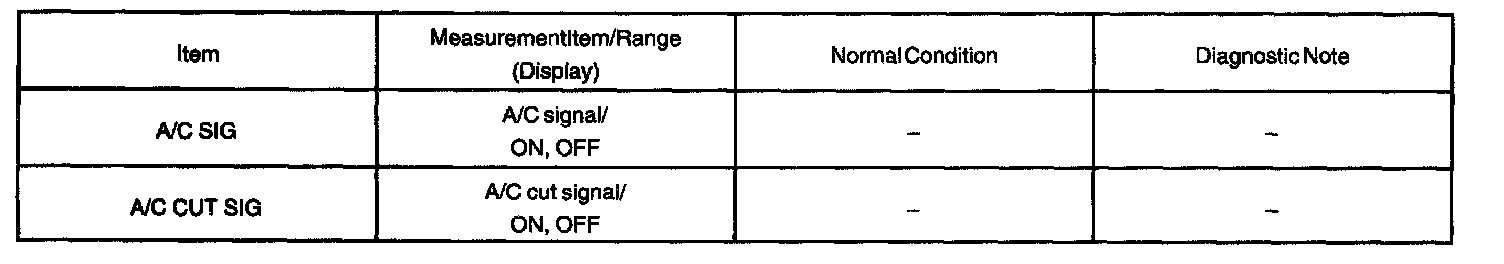

c. According to the display on tester, read the "DATA LIST".
