Fail-Safe Operation
Fail-Safe Operation
P0031 - P2119:

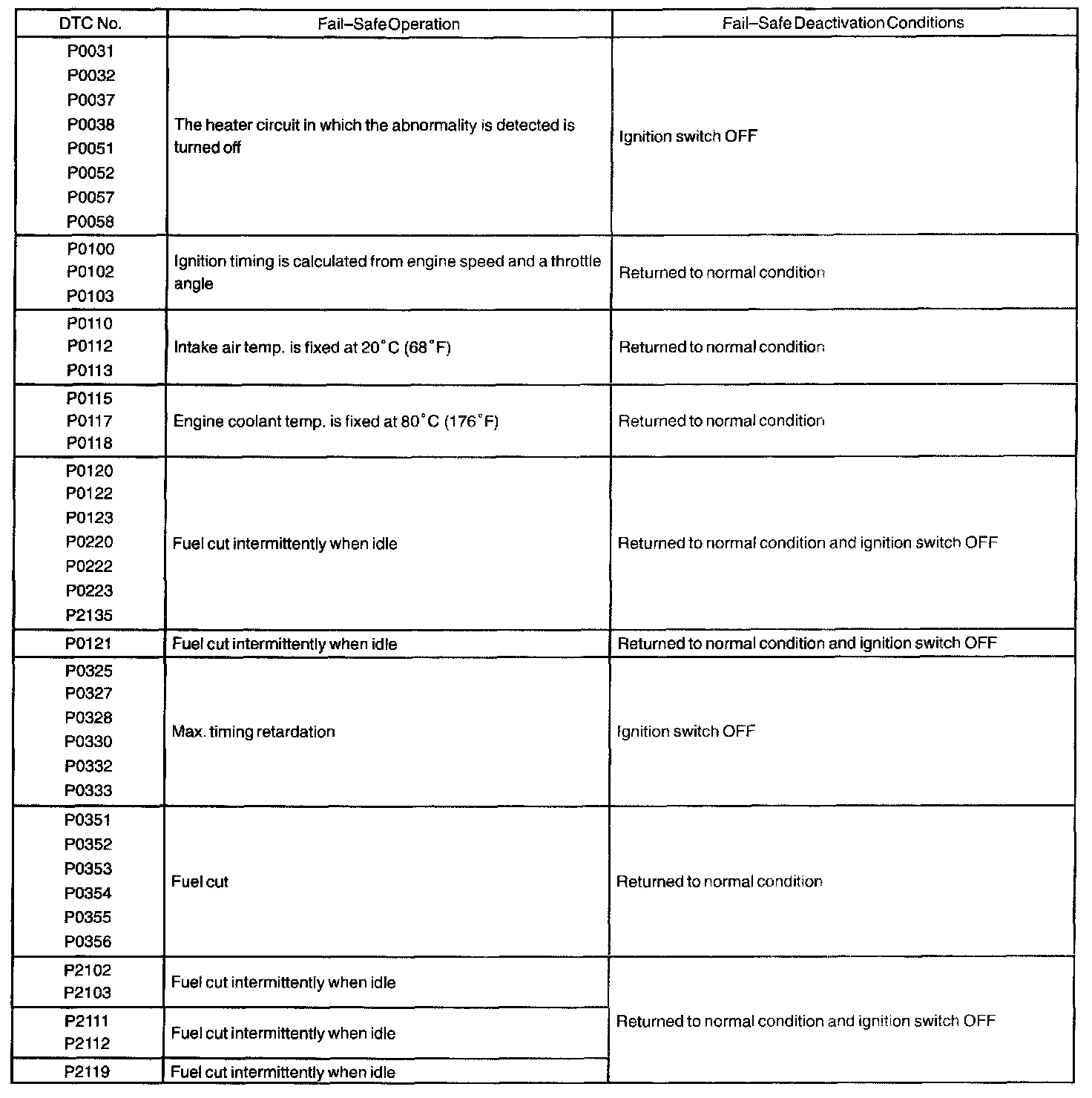

FAIL-SAFE CHART
If any of the codes listed is recorded, the ECM enters into the fail-safe mode.
