Diagnosis Circuit
Diagnosis Circuit
CIRCUIT DESCRIPTION
This circuit sends a signal to the ECU that DTC output is required.
Wiring Diagram:
Step 1 - 2:

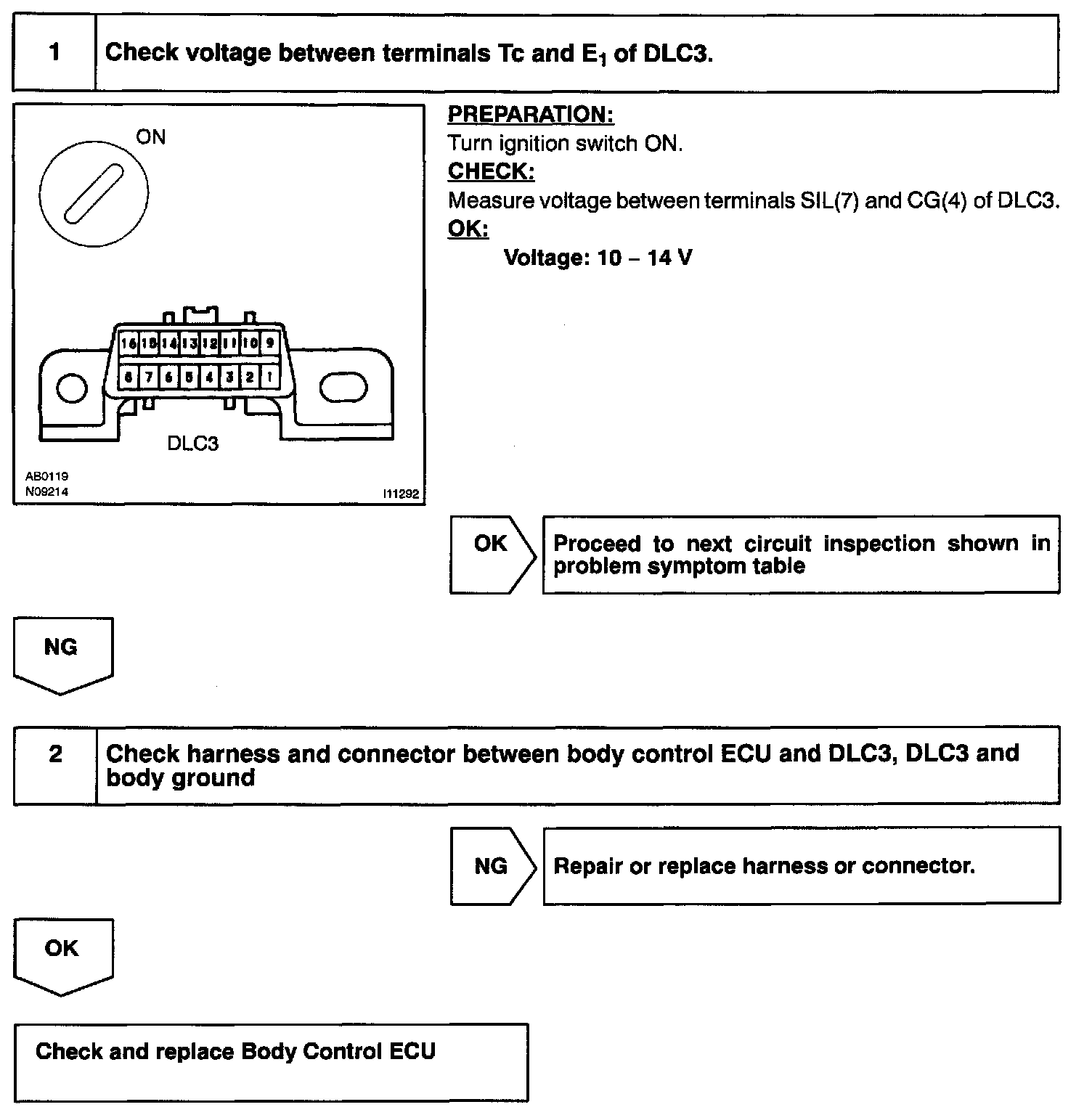

INSPECTION PROCEDURE
