Stop Light Switch Circuit
Stop Light Switch Circuit
CIRCUIT DESCRIPTION
The Body ECU is detecting the condition of the stop light switch.

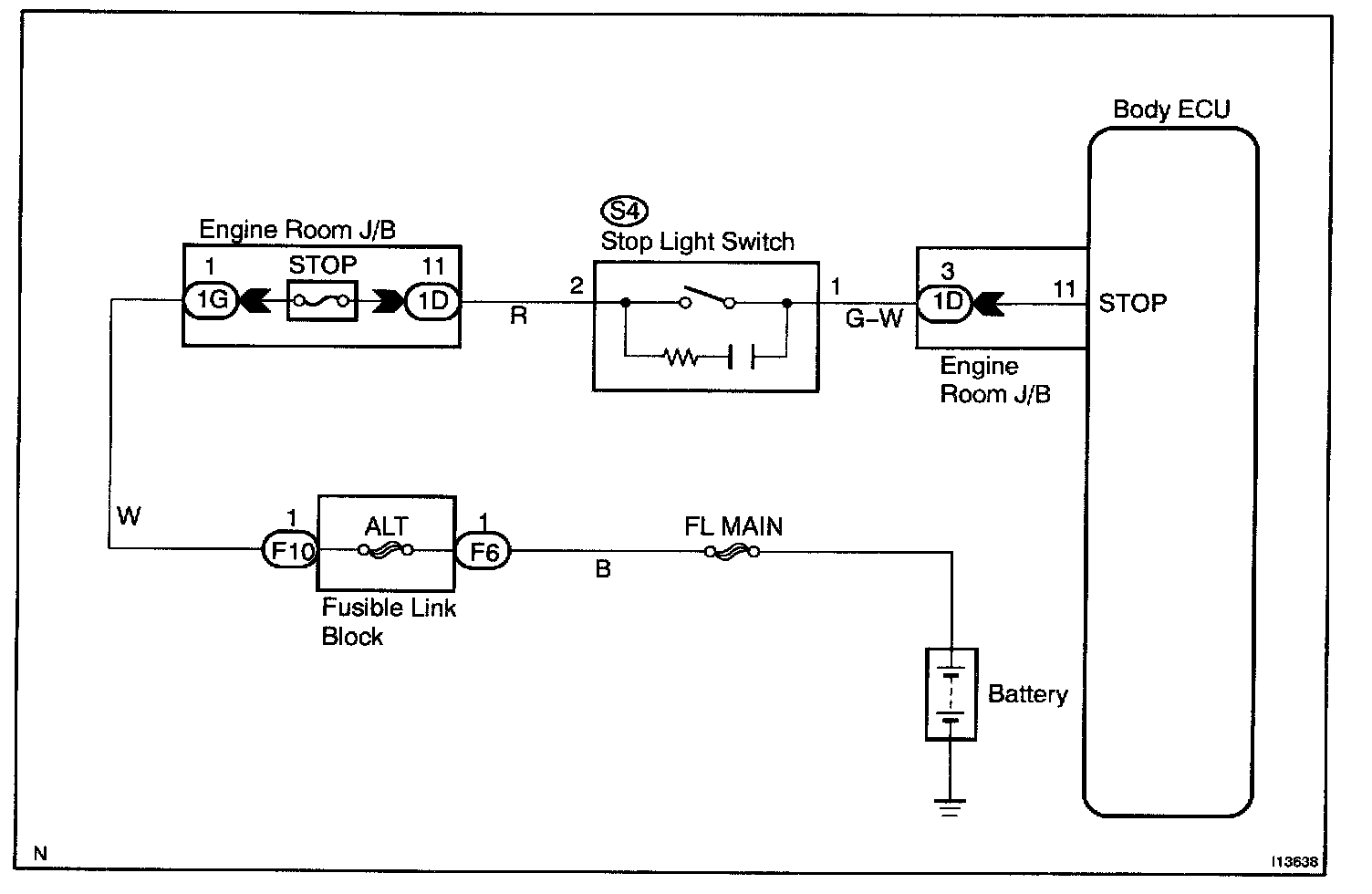

Wiring Diagram:

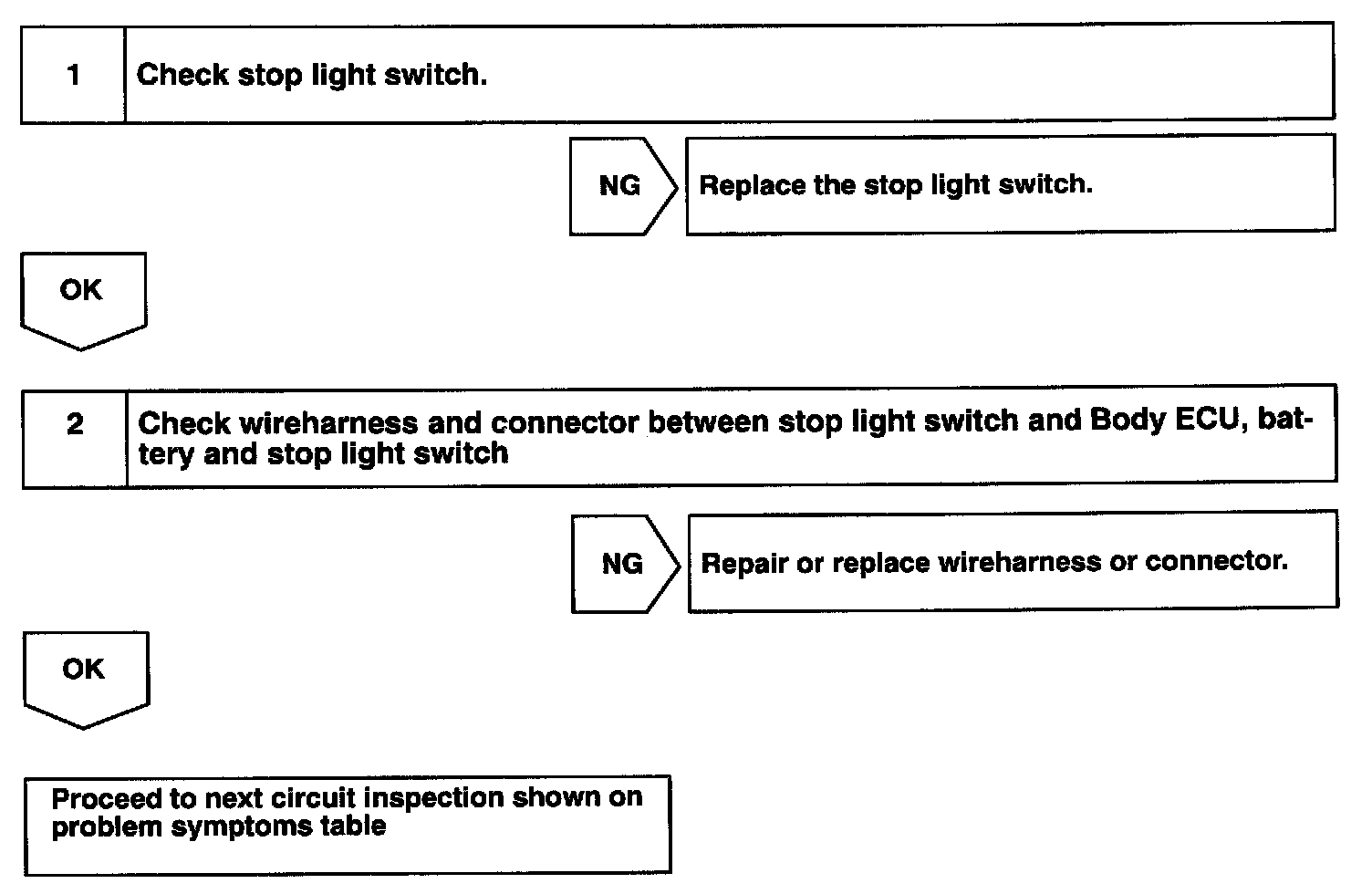

Step 1 - 2:
INSPECTION PROCEDURE
