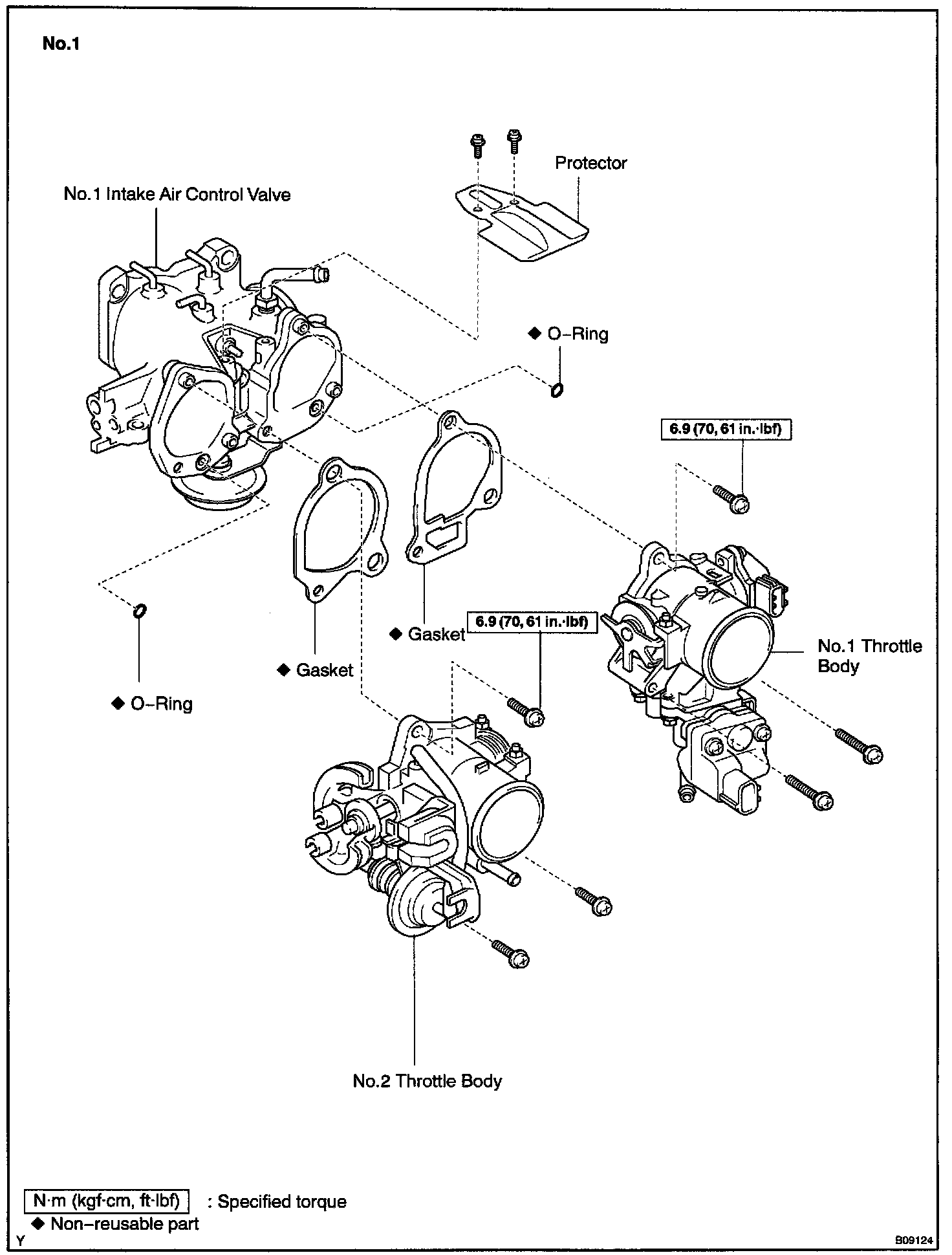

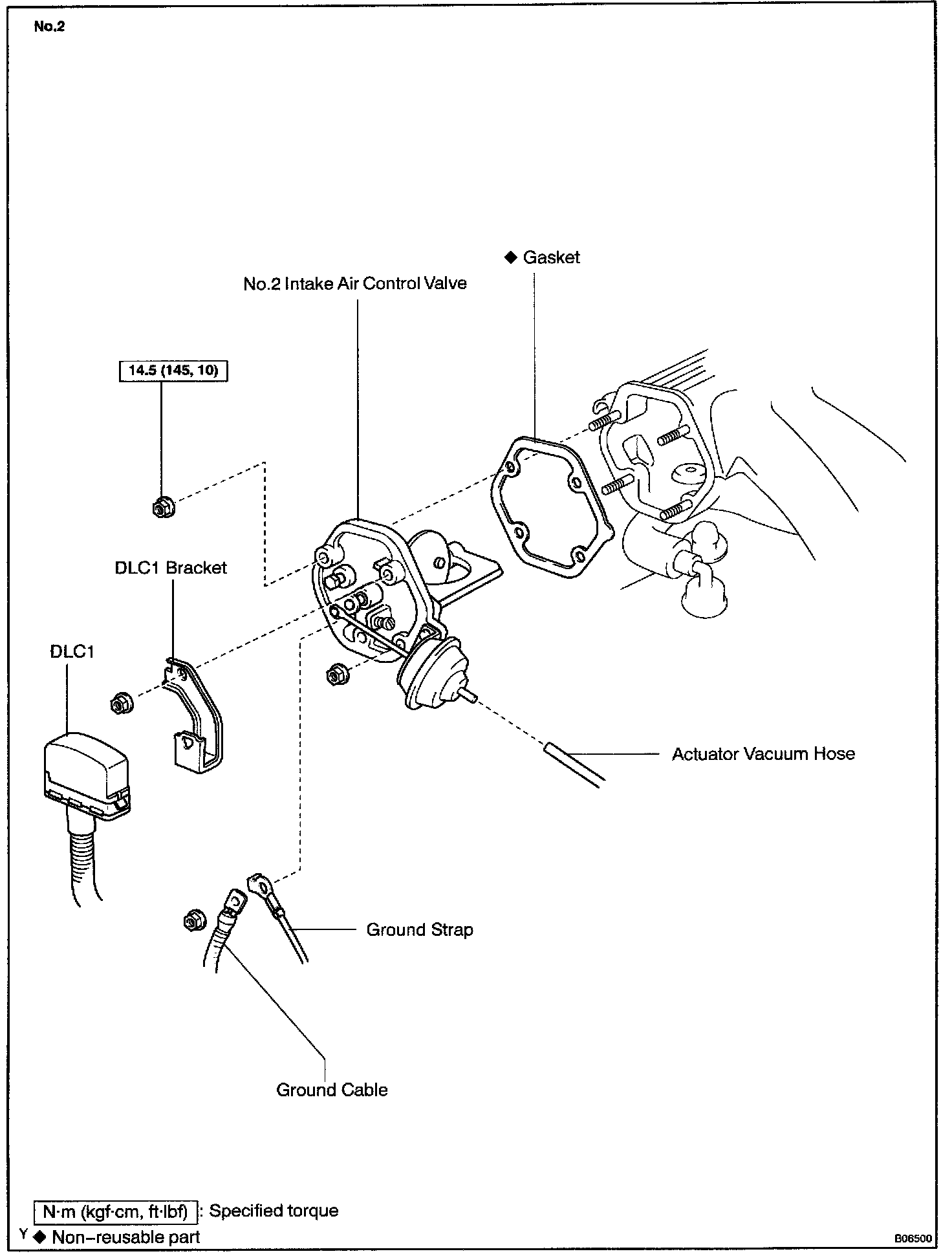

Variable Induction Control Valve
Variable Induction Control Valve

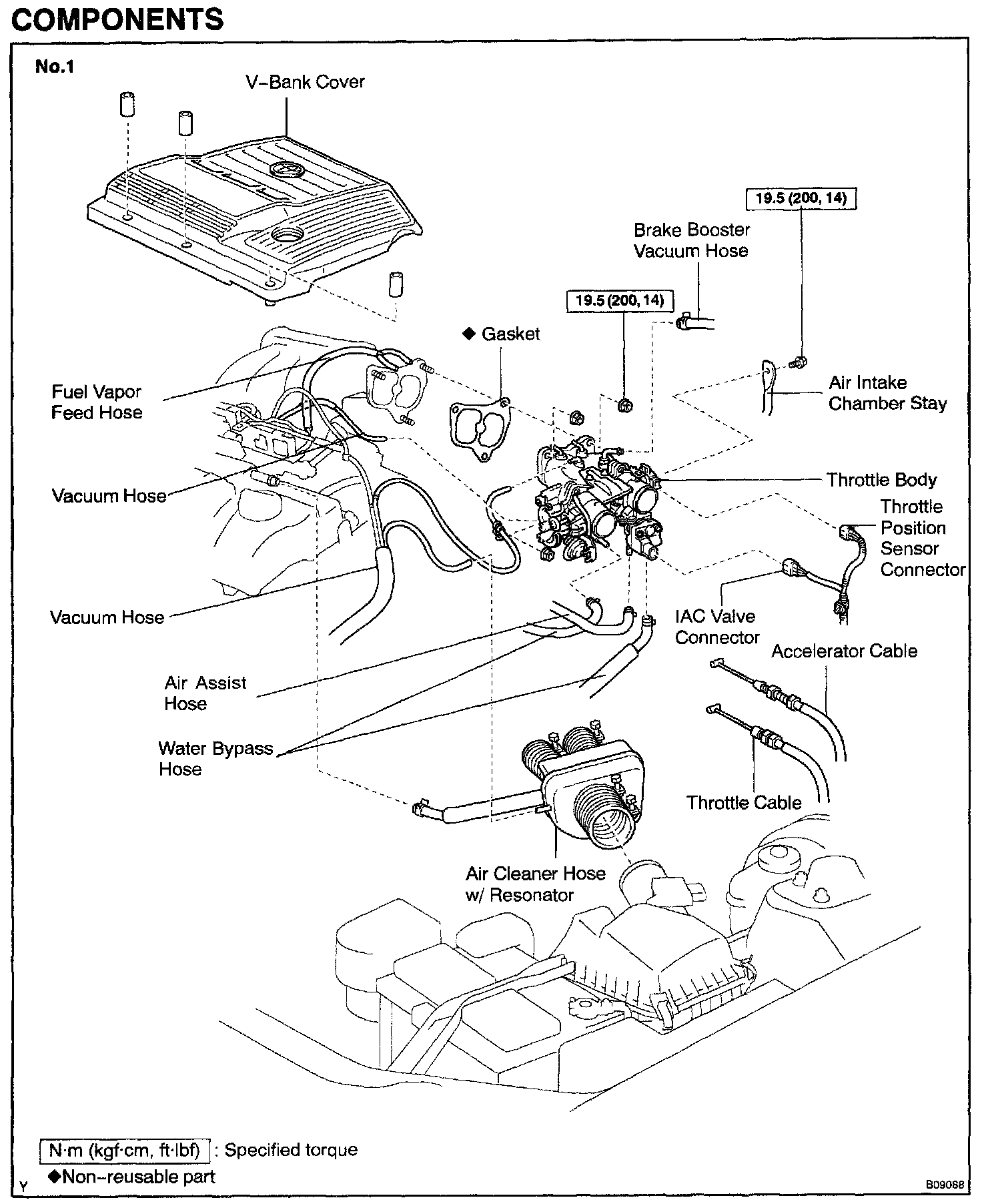

Acoustic Control Induction System (ACIS):
Acoustic Control Induction System (ACIS) Part 2:
Acoustic Control Induction System (ACIS) Part 3:
