Home
>>
Toyota
>>
2003
>>
Camry Sedan L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Fuel Tank
Fuel Tank

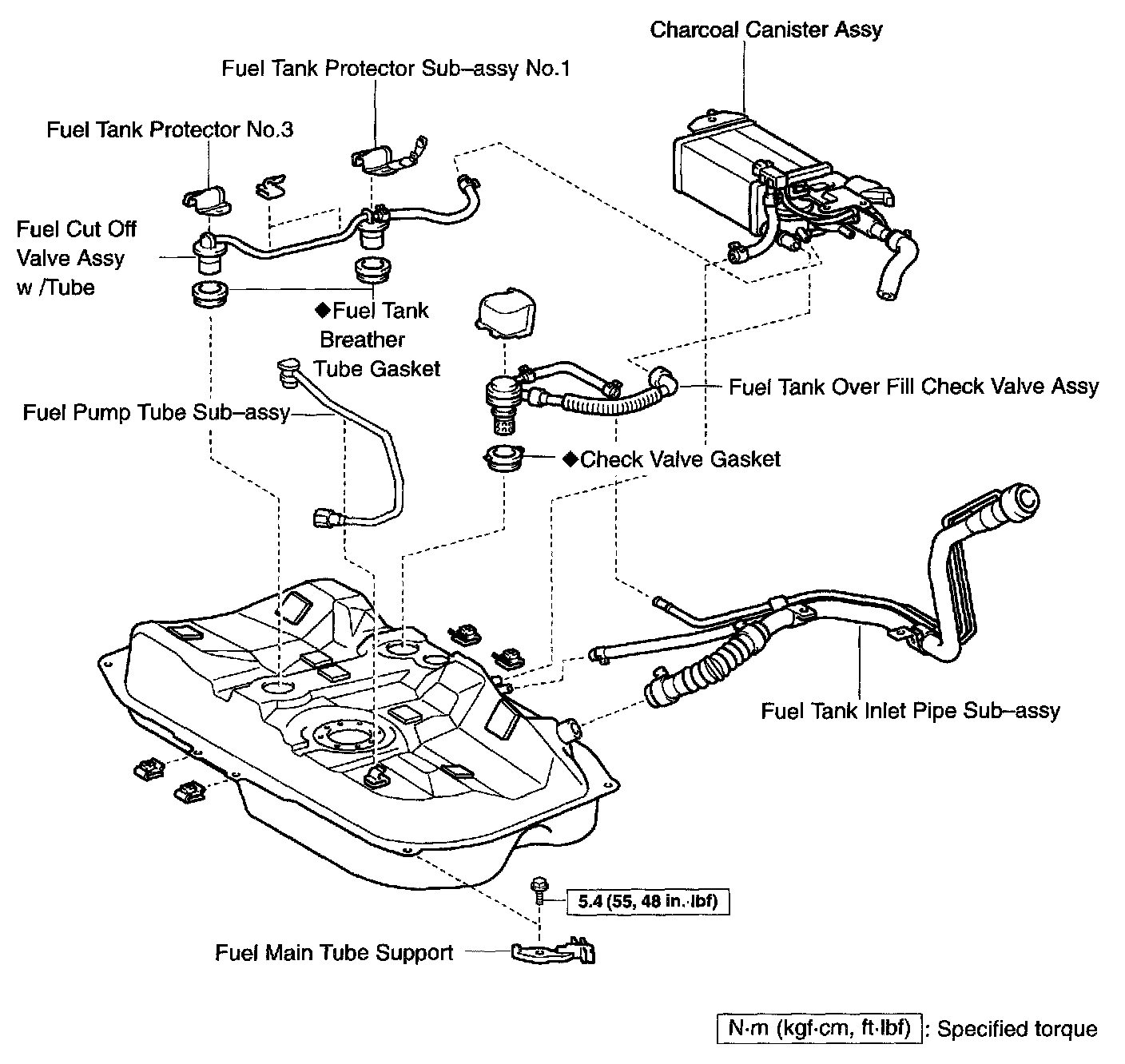

Fuel Tank Assy (2AZ-FE):

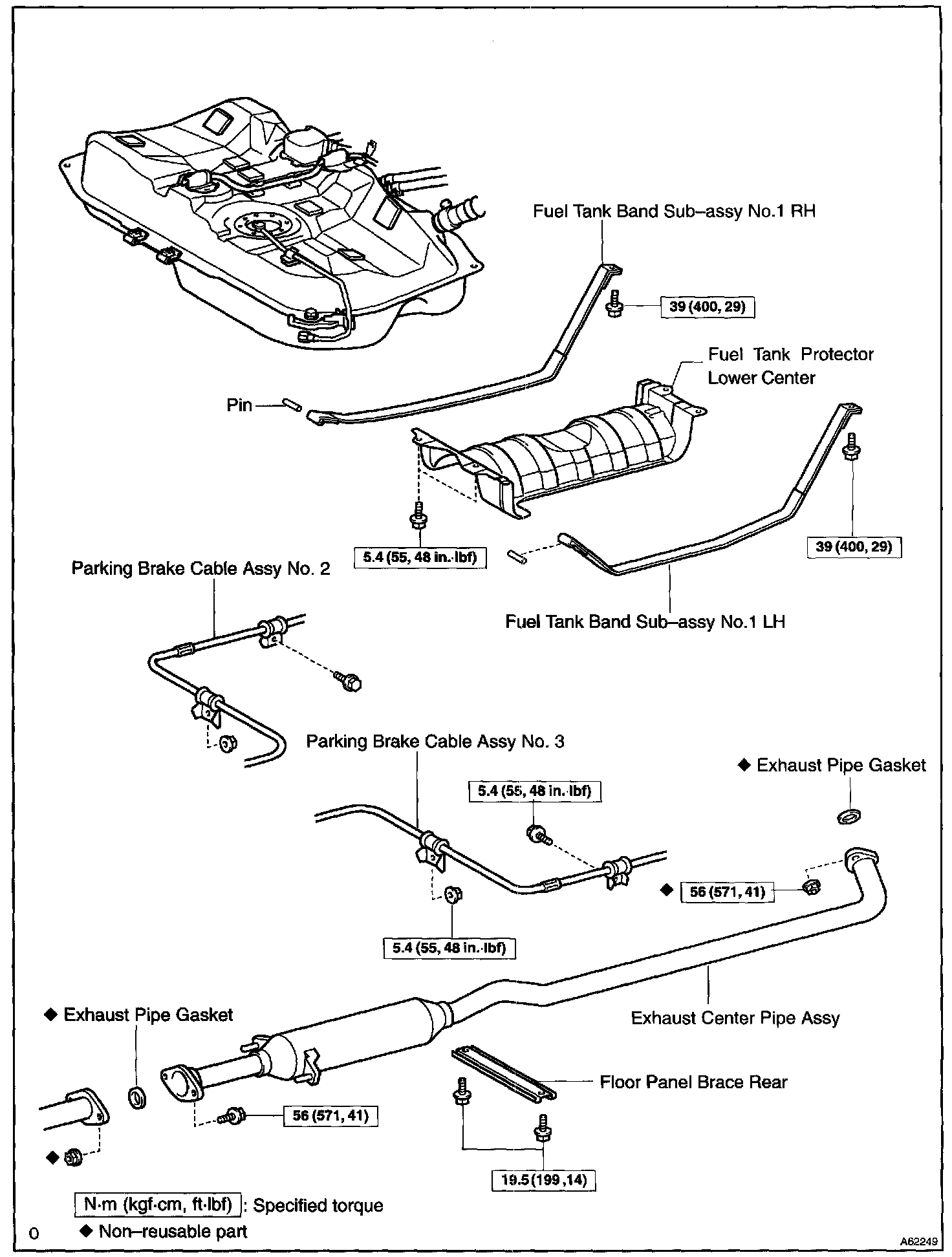

Fuel Tank Assy (2AZ-FE) Part 2:

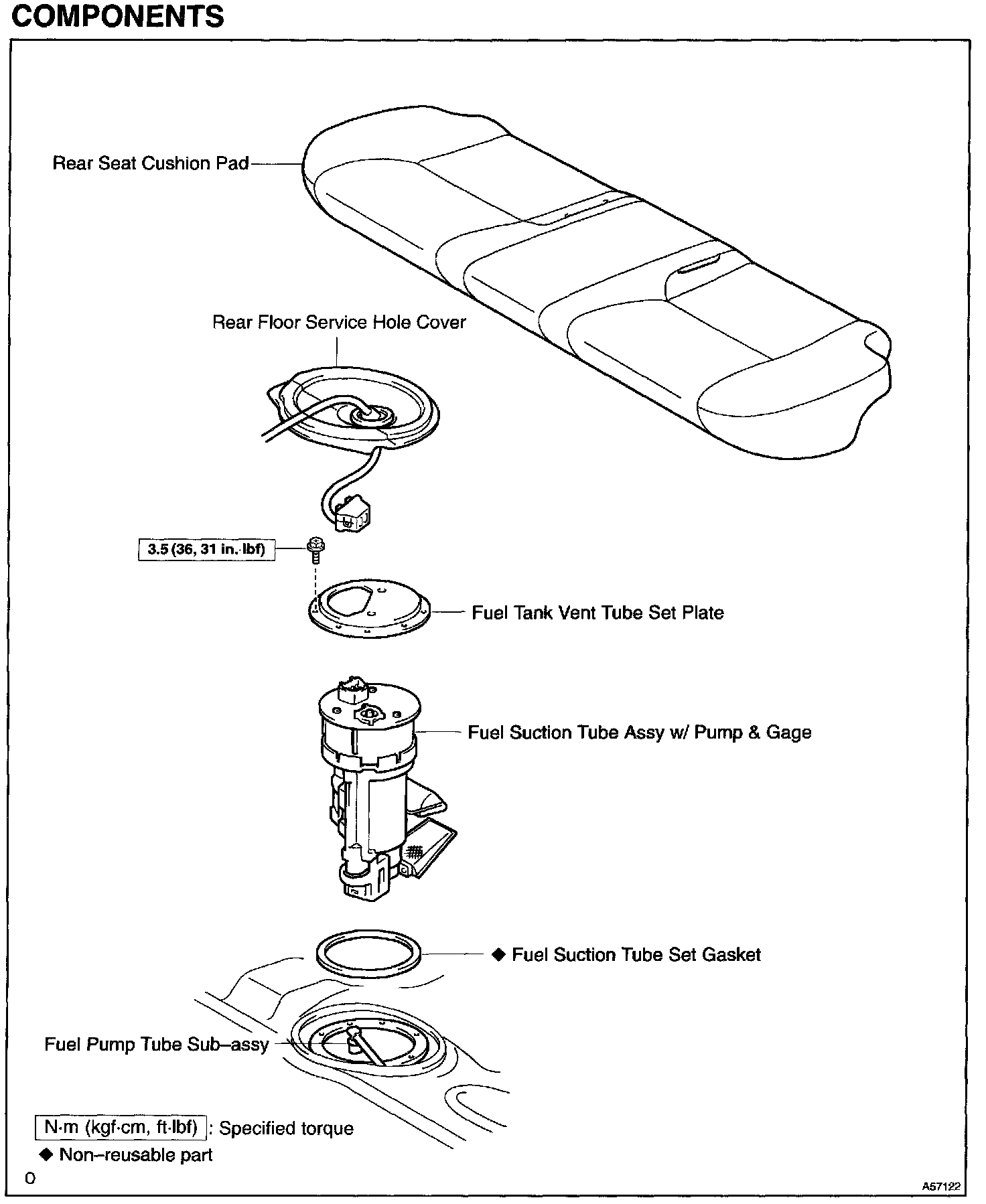

Fuel Tank Assy (2AZ-FE) Part 3:
