Air Conditioning Panel Sub-Assy
Air Conditioning Panel Sub-Assy:
OVERHAUL
1. REMOVE AIR CONDITIONING PANEL SUB-ASSY
2. REMOVE HEATER CONTROL HOUSING

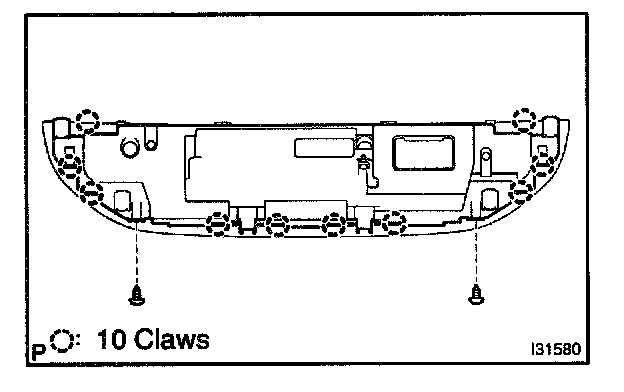

a. Remove the 2 screws.
b. Release the 10 fitting claws, remove the heater control housing.
OVERHAUL
1. REMOVE AIR CONDITIONING PANEL SUB-ASSY
2. REMOVE HEATER CONTROL HOUSING
a. Remove the 2 screws.
b. Release the 10 fitting claws, remove the heater control housing.
