Navigation Module: Testing and Inspection

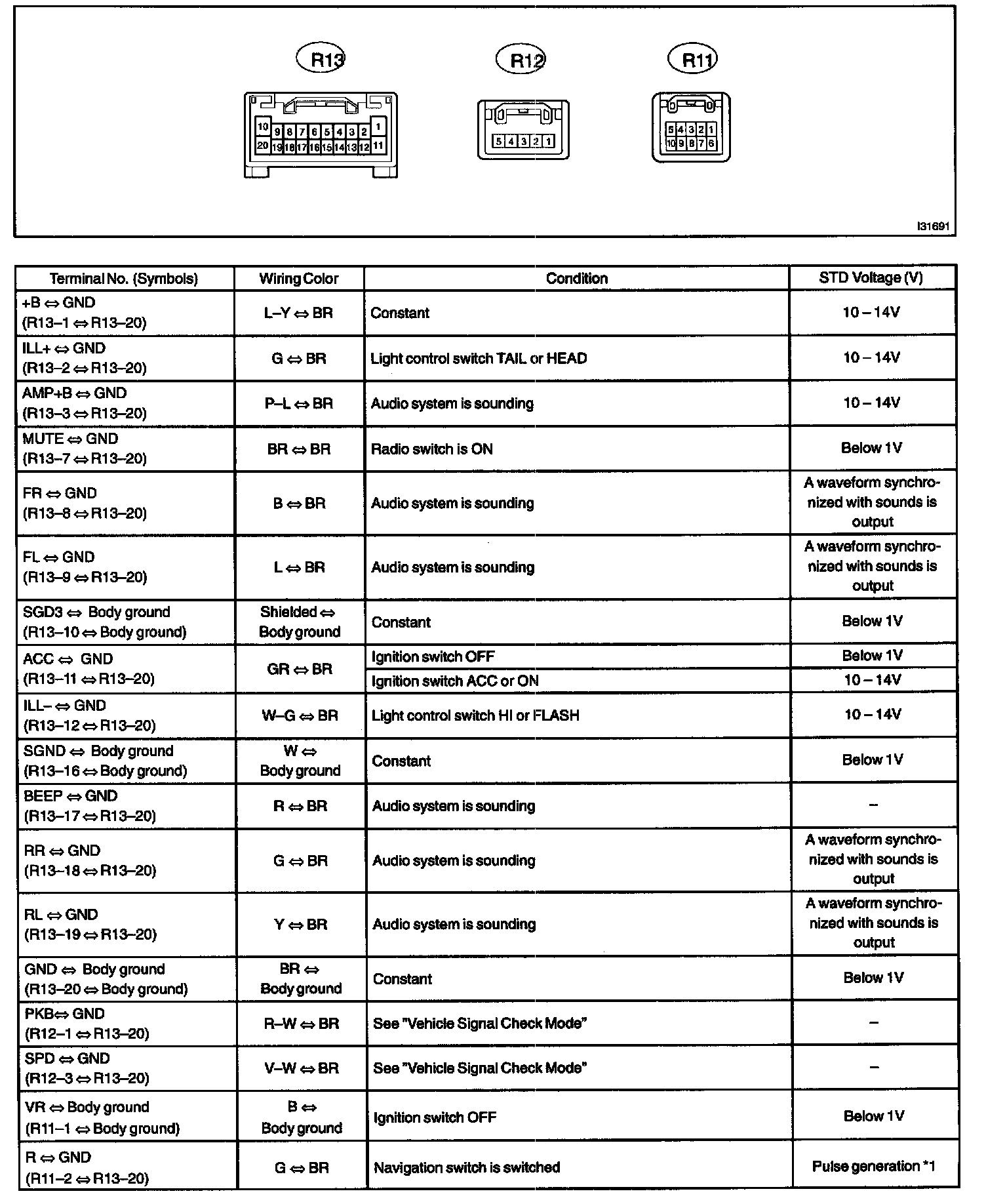

Terminals Of ECU - Radio Receiver Assy Part 1:

Terminals Of ECU - Radio Receiver Assy Part 2:

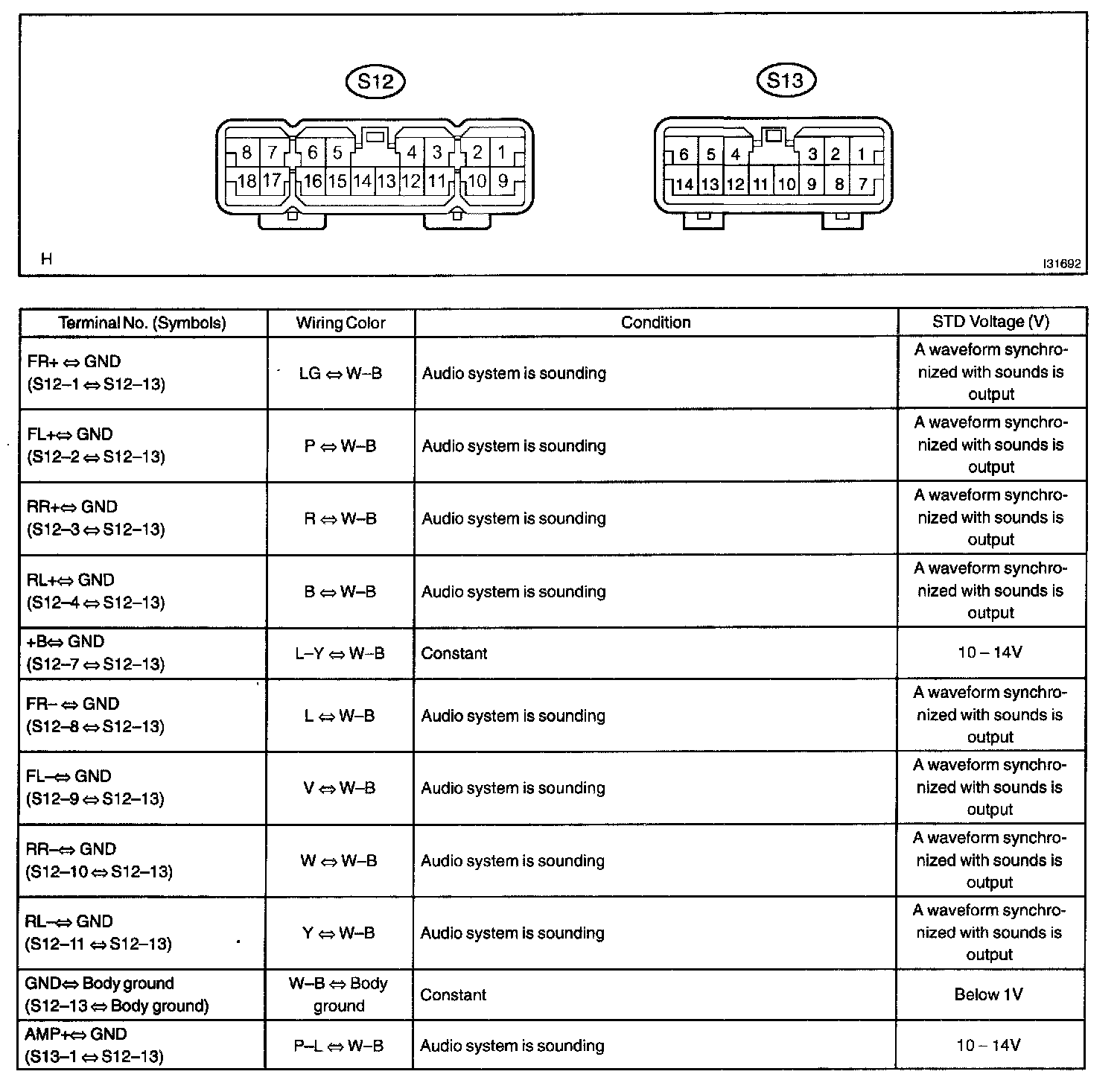

Terminals Of ECU - Stereo Component Amplifier Assy Part 1:

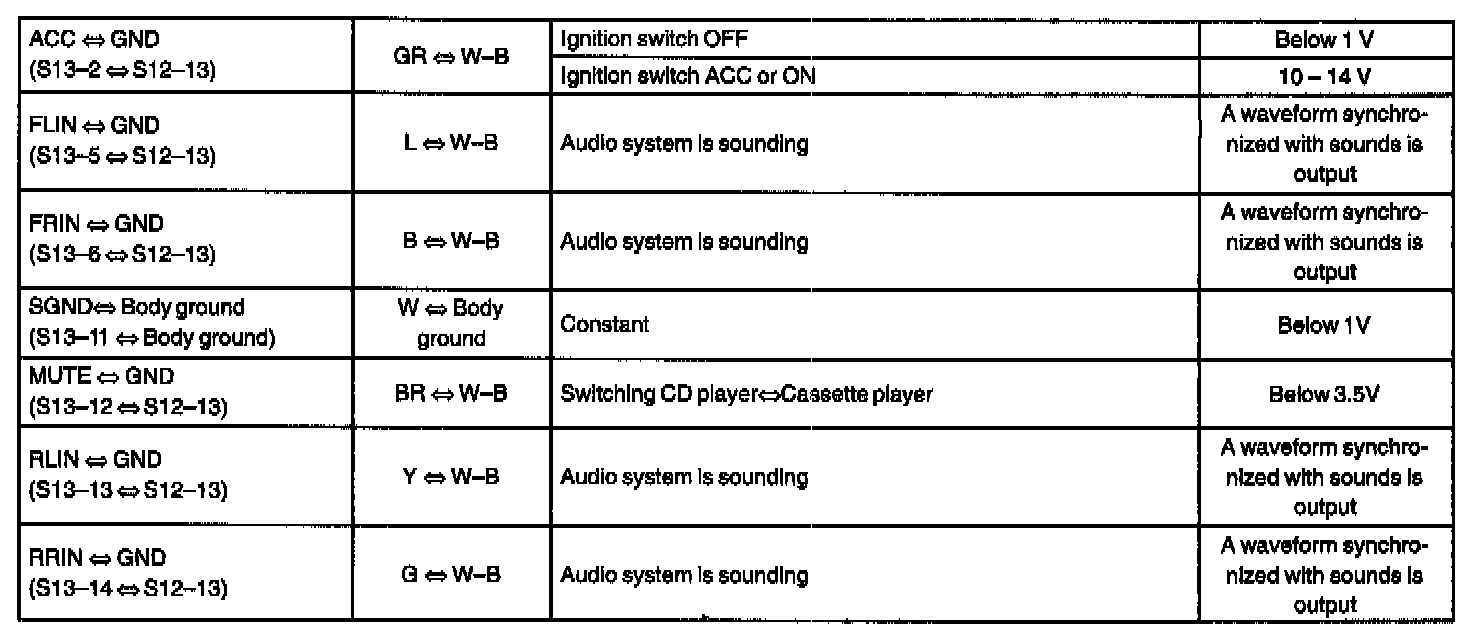

Terminals Of ECU - Stereo Component Amplifier Assy Part 2:

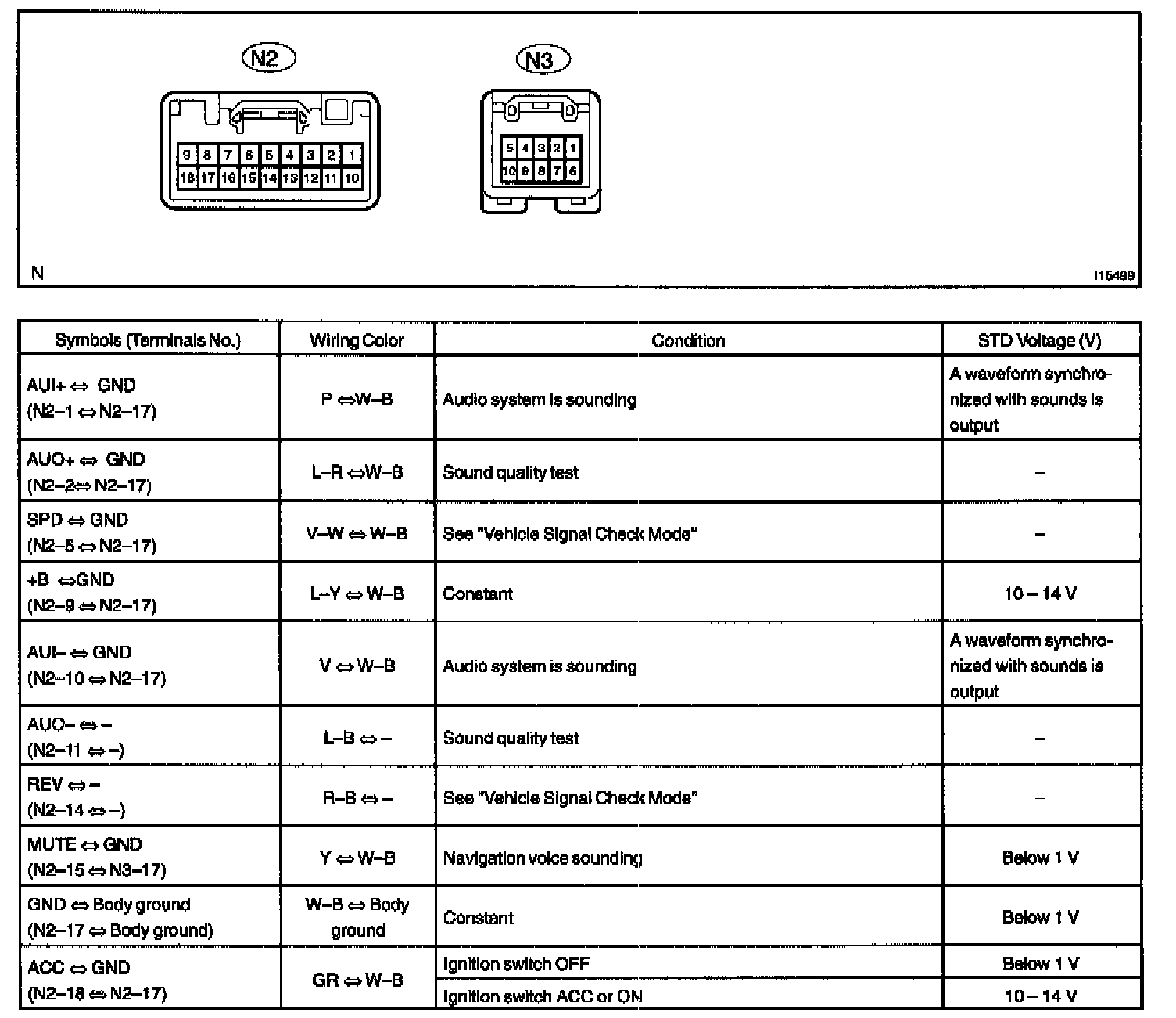

Terminals Of ECU - Navigation ECU Part 1:

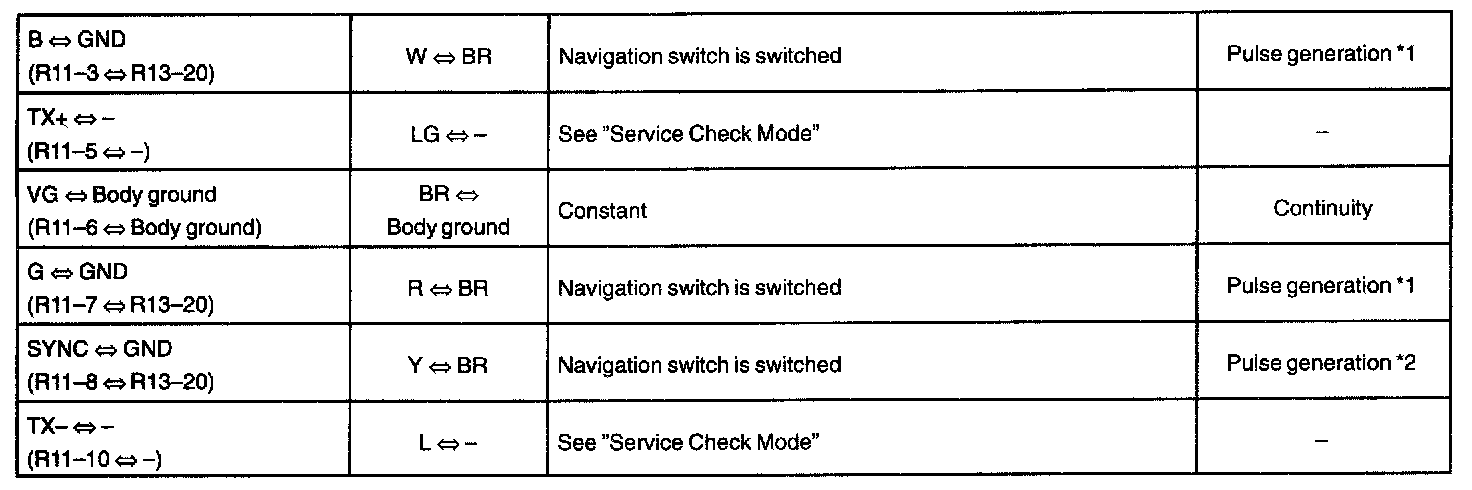

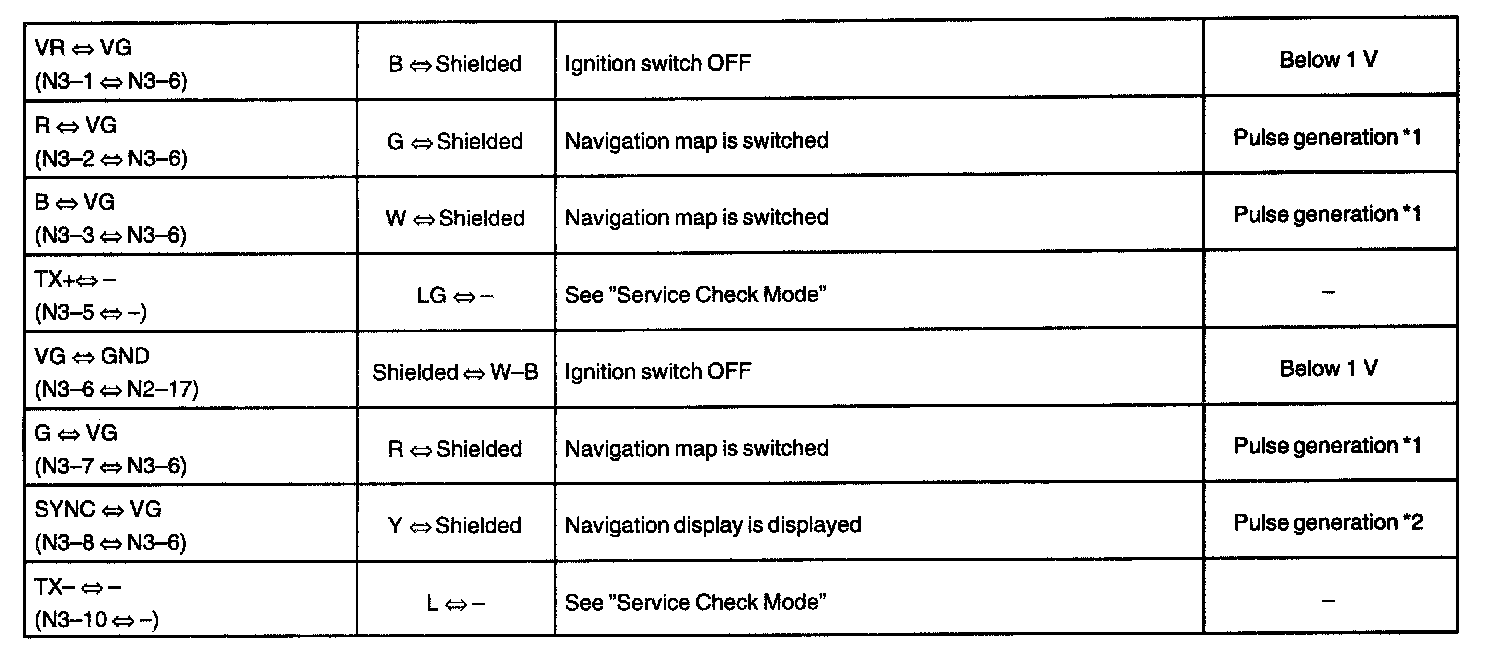

Terminals Of ECU - Navigation ECU Part 2:

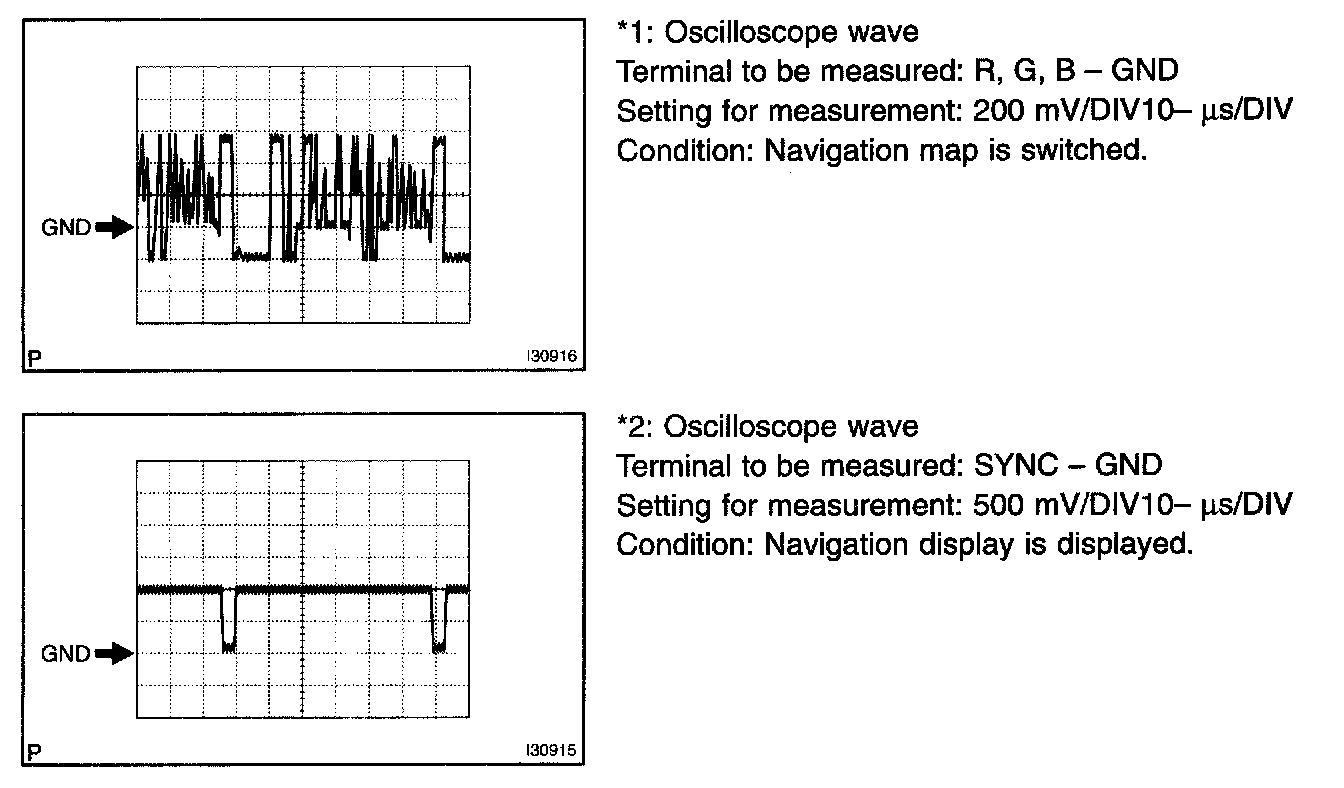

Waveform Oscilloscope:
