Control Module: Testing and Inspection

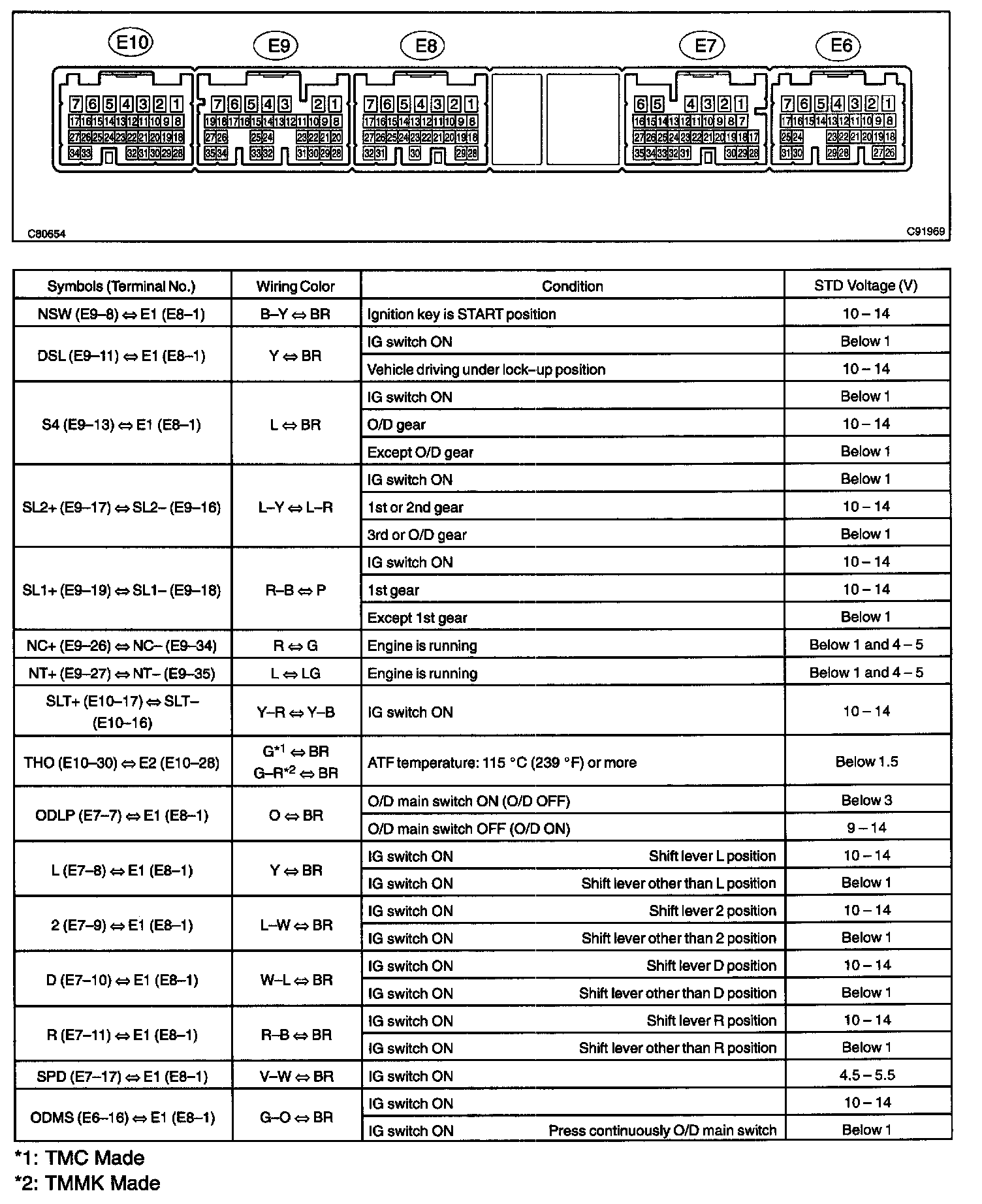

Terminals Of ECM / Pinouts:

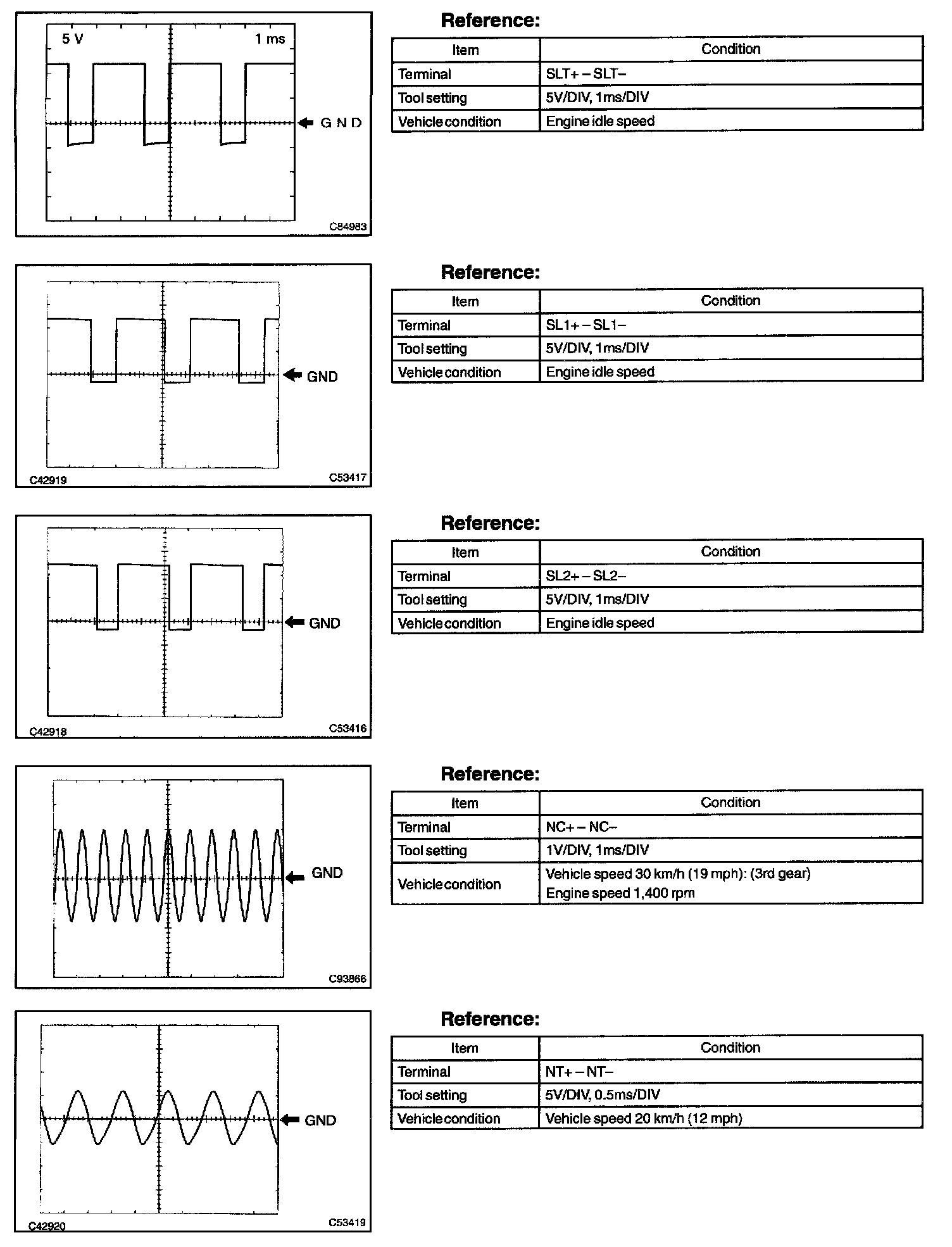

Oscilloscope Waveforms Part 1:

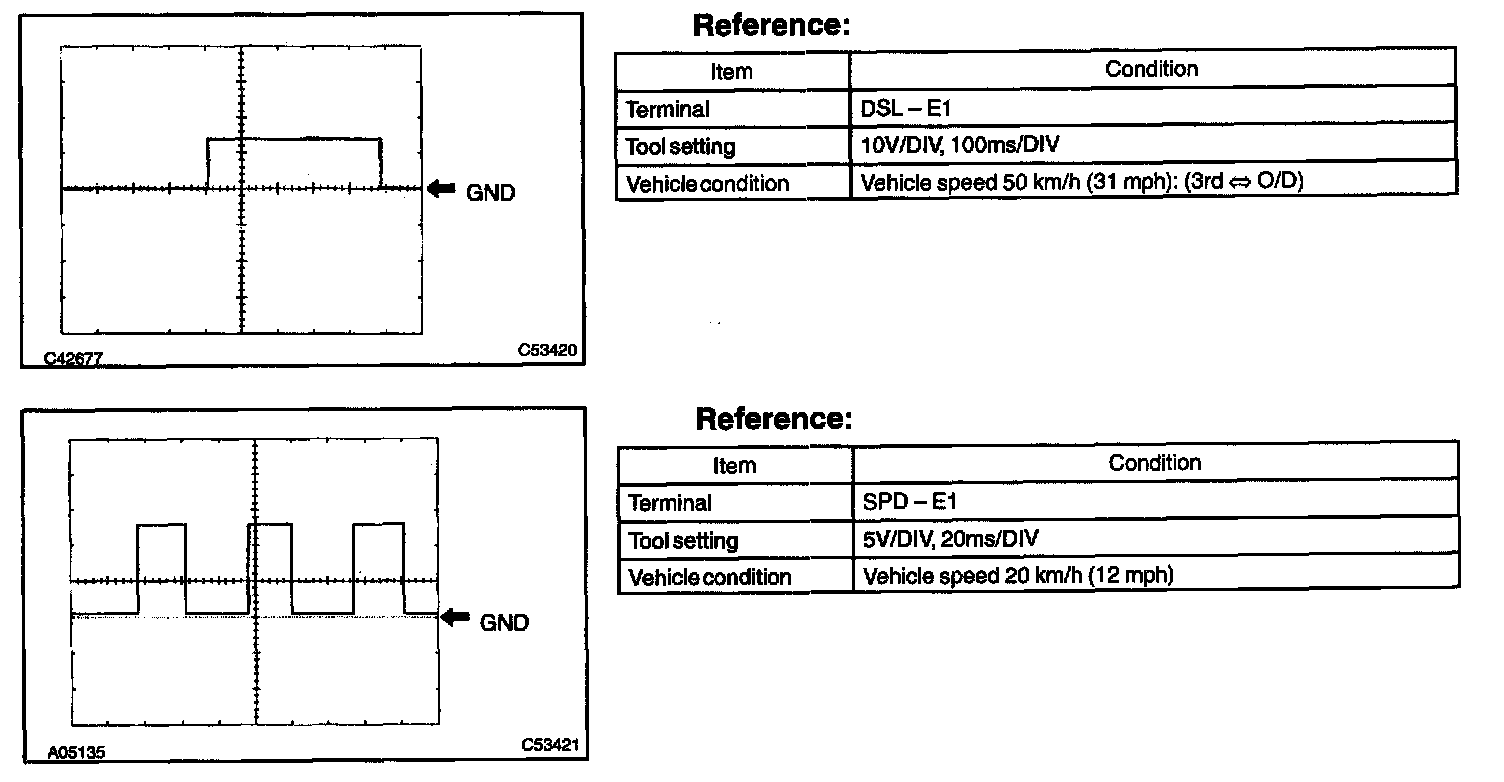

Oscilloscope Waveforms Part 2:
