Transmission Control System

DTC P0705 Transmission Range Sensor Circuit Malfunction (PRNDL Input)

CIRCUIT DESCRIPTION

DTC Detection Condition:

The park/neutral position switch detects the shift lever position and sends signals to the ECM. The ECM receives signals (PNP SW, REVERSE, DRIVE, 2ND and LOW) from the park/neutral position switch. When the signal is not sent to the ECM from the park/neutral position switch, the ECM judges that the shift lever is in D the position.

Wiring Diagram:

Step 1 - 2:

Step 3:

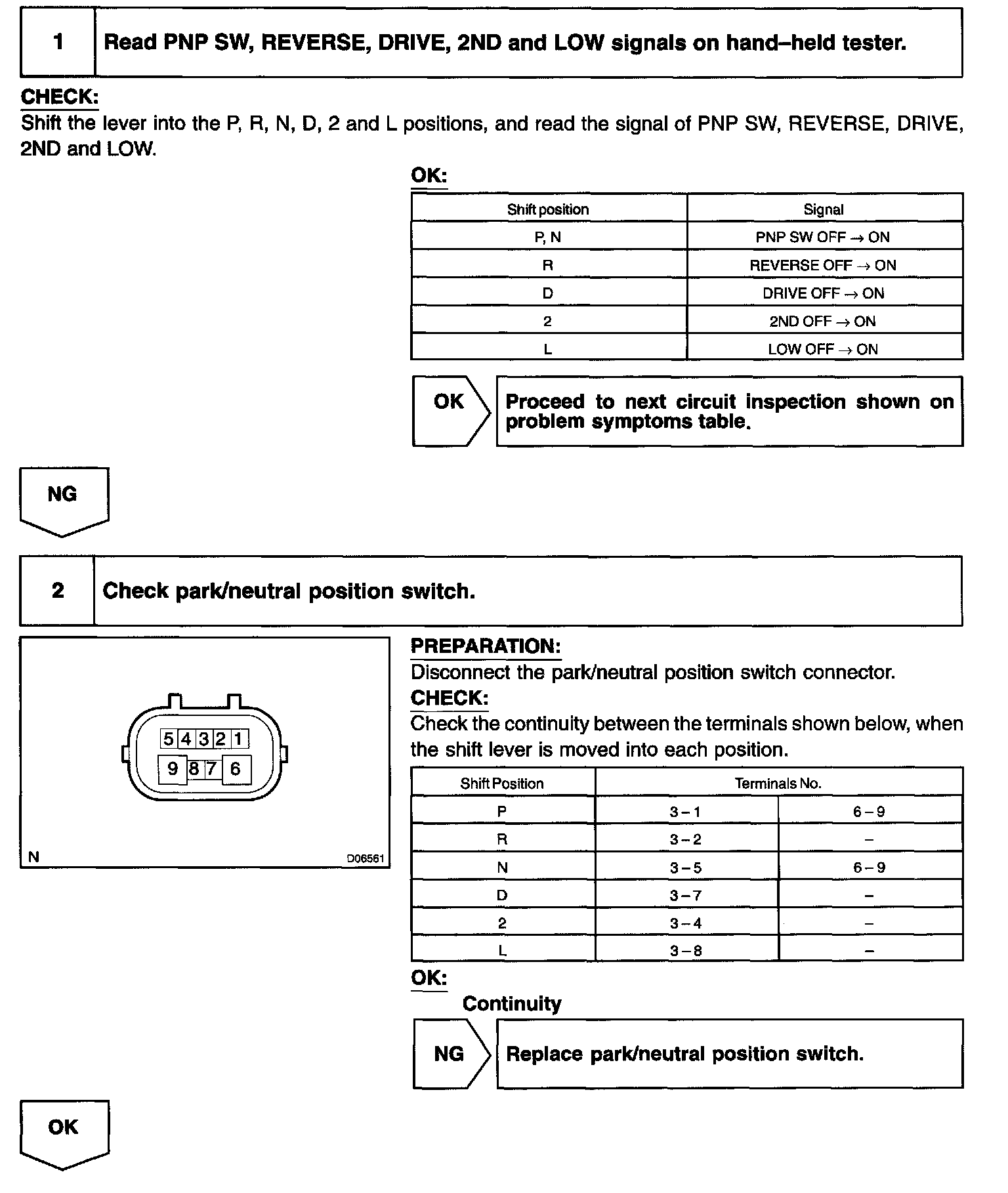

INSPECTION PROCEDURE
