Control Assembly: Locations

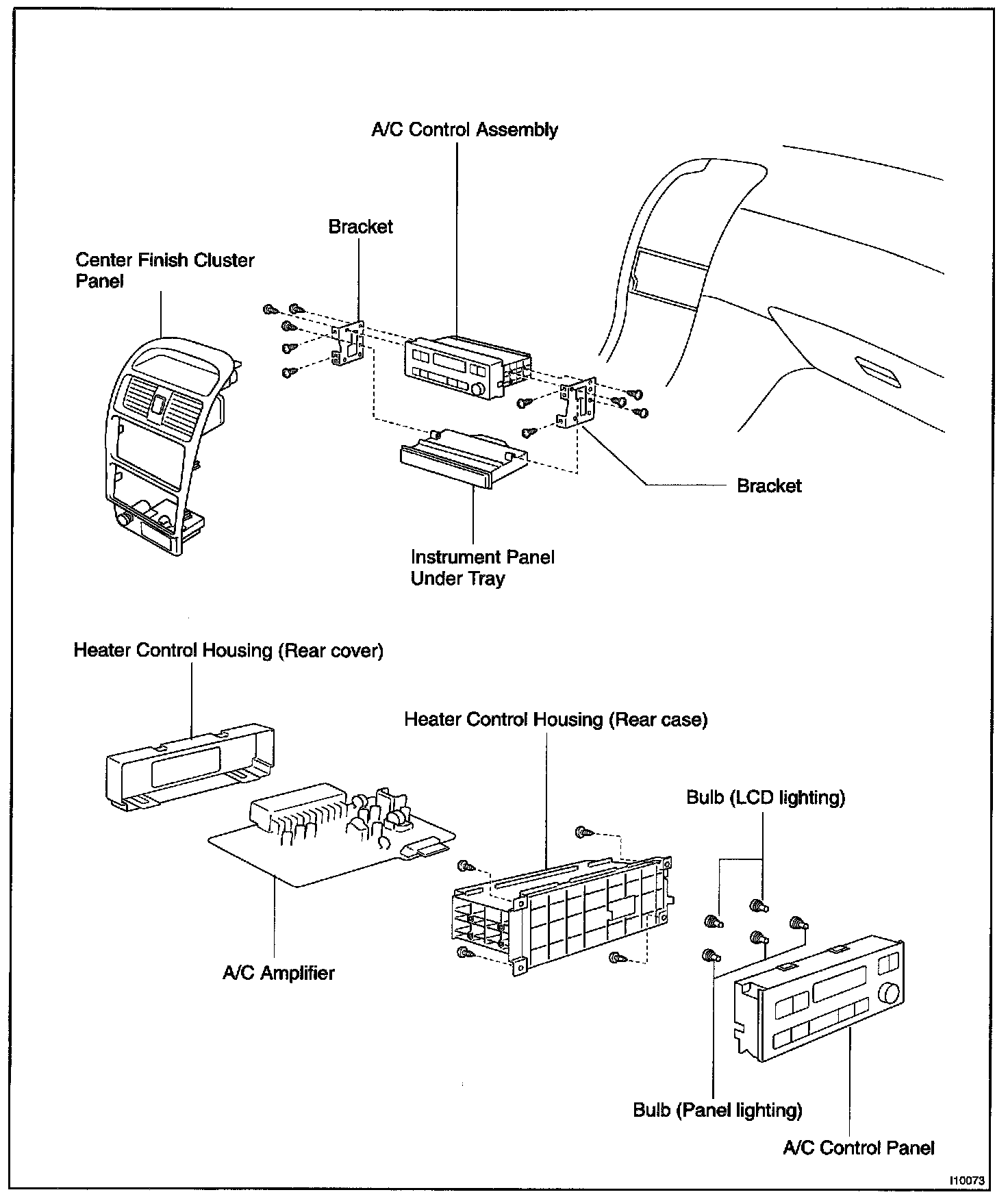

Air Conditioning Control Assembly (Auto A/C):

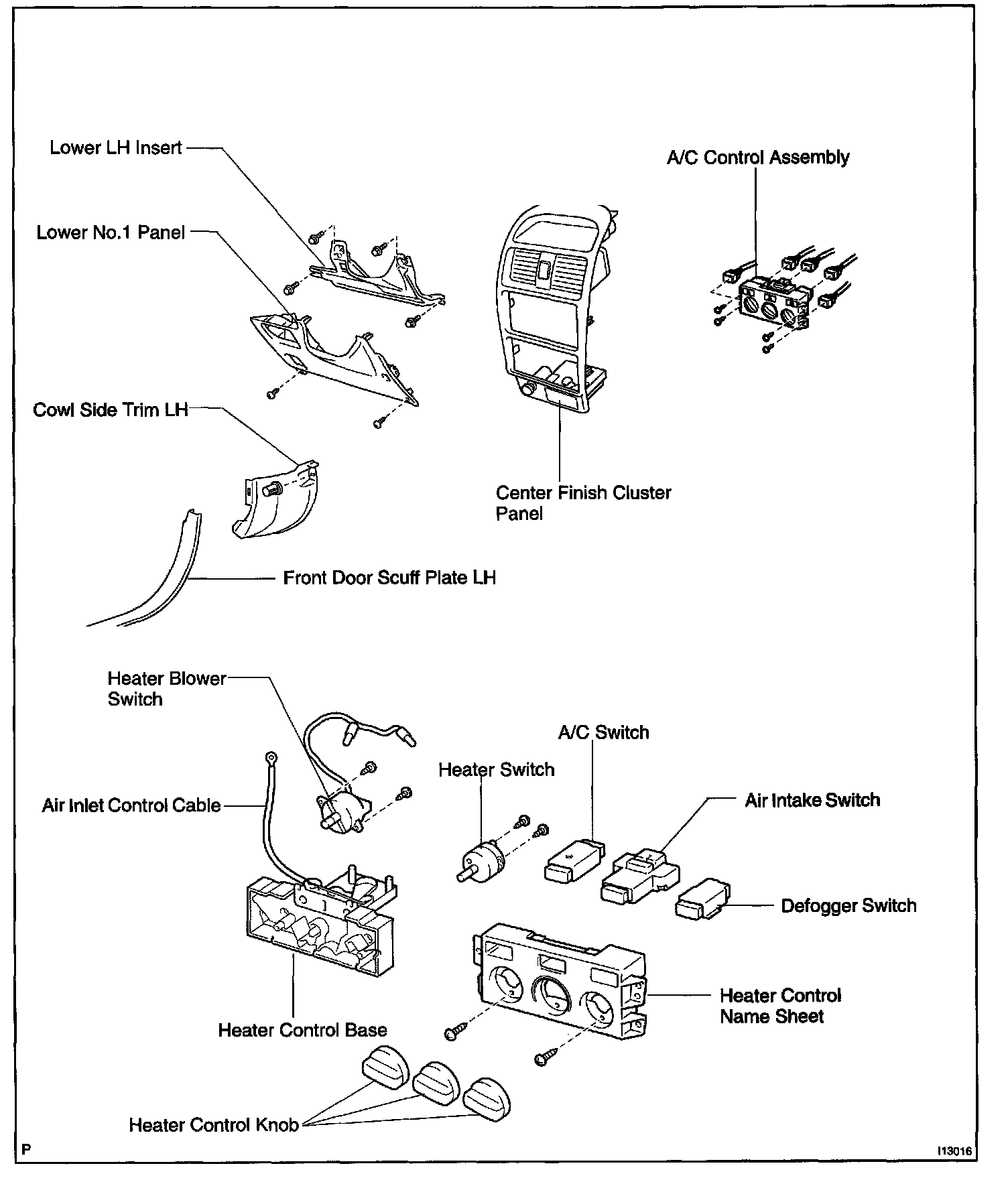

Air Conditioning Control Assembly (Manual A/C):
Instrument Panel:
Instrument Panel:
