Main Relay (Computer/Fuel System)
>>
Locations
Main Relay (Computer/Fuel System): Locations
Engine:

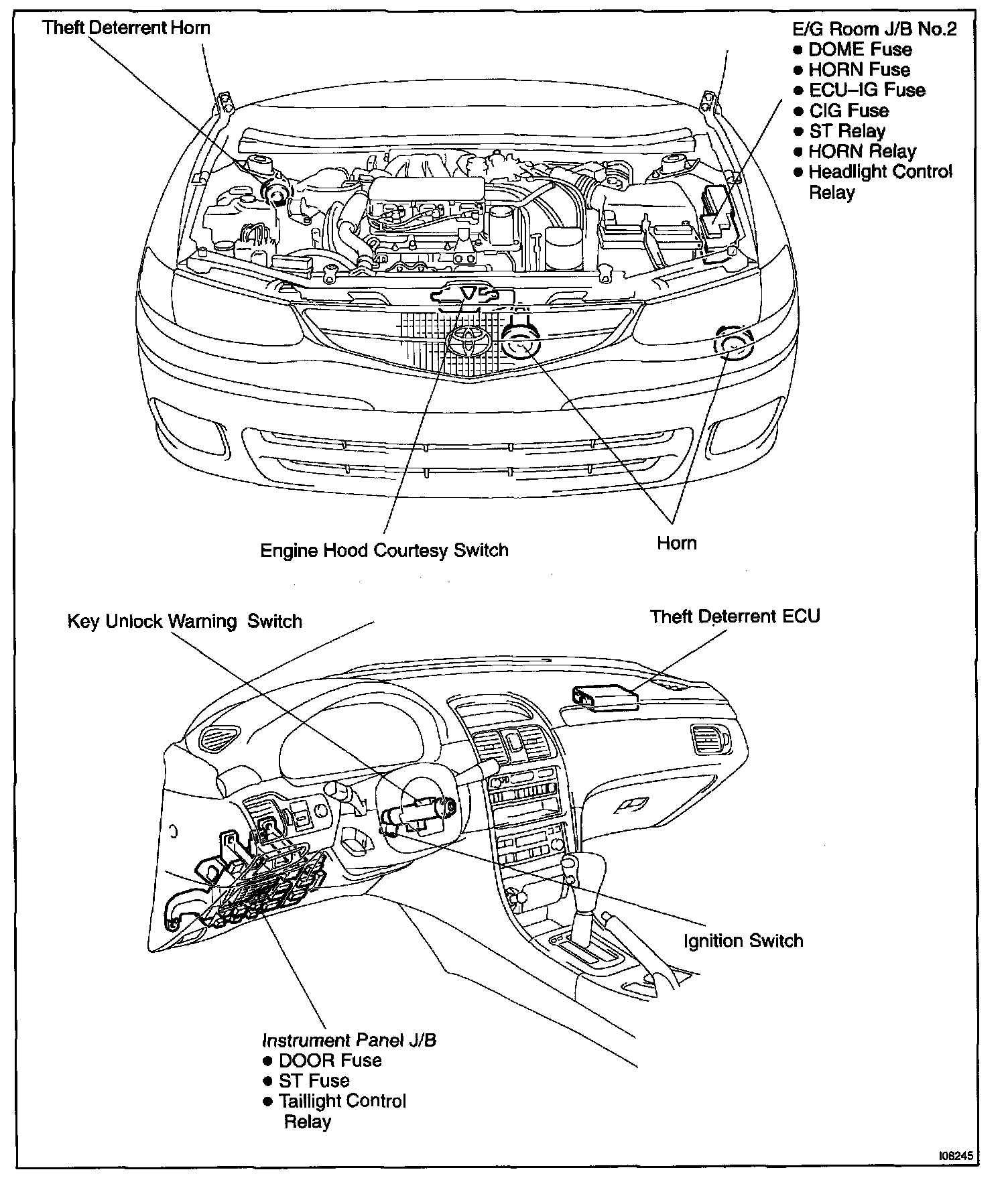

Theft Deterrent System 1:

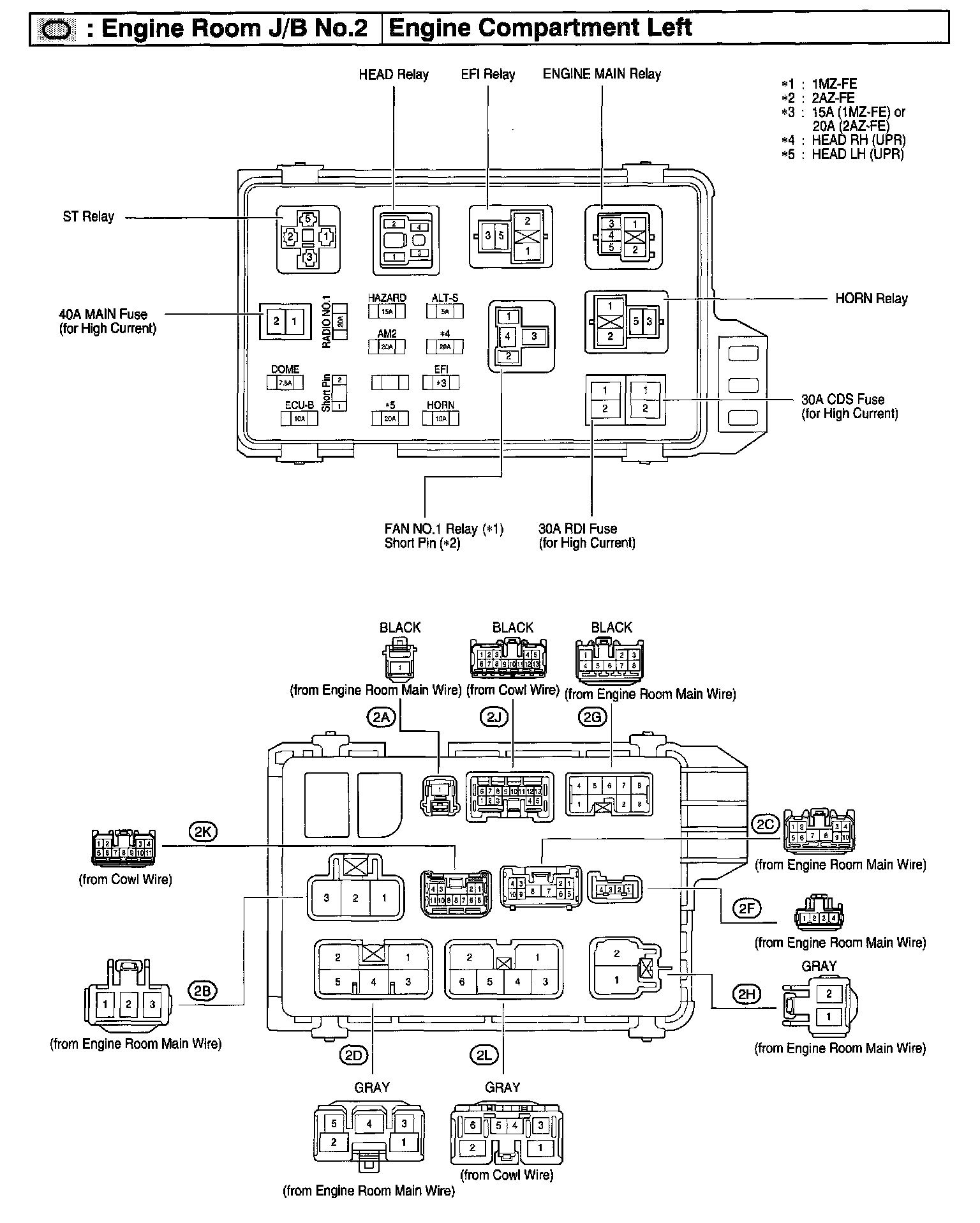

Engine Room J/B No.2 - Engine Compartment Left:
