Without Scan Tool

Clear the DTC.

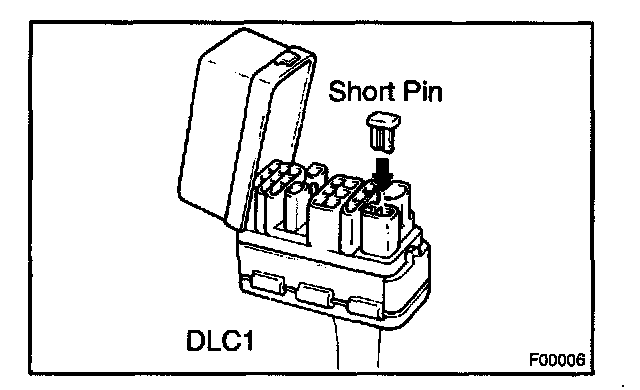

1. Using SST, connect terminals Tc and E1 of DLC2 or DLC1, and remove the short pin from the DLC1.
SST 09843-18020

2. Turn the ignition switch ON.

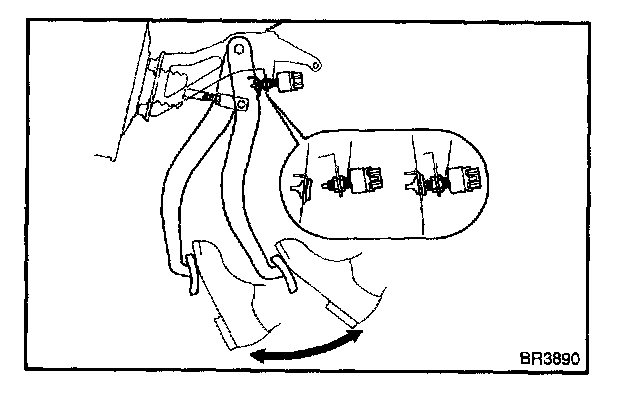

3. Clear the DTC stored in the ECU by depressing the brake pedal 8 or more times within 5 seconds.
4. Check that the warning light shows the normal code.
5. Remove the SST from the terminals of the DLC2 or DLC1.
SST 09843-18020




6. Connect the short pin to the DLC1.
