Theft Deterrent

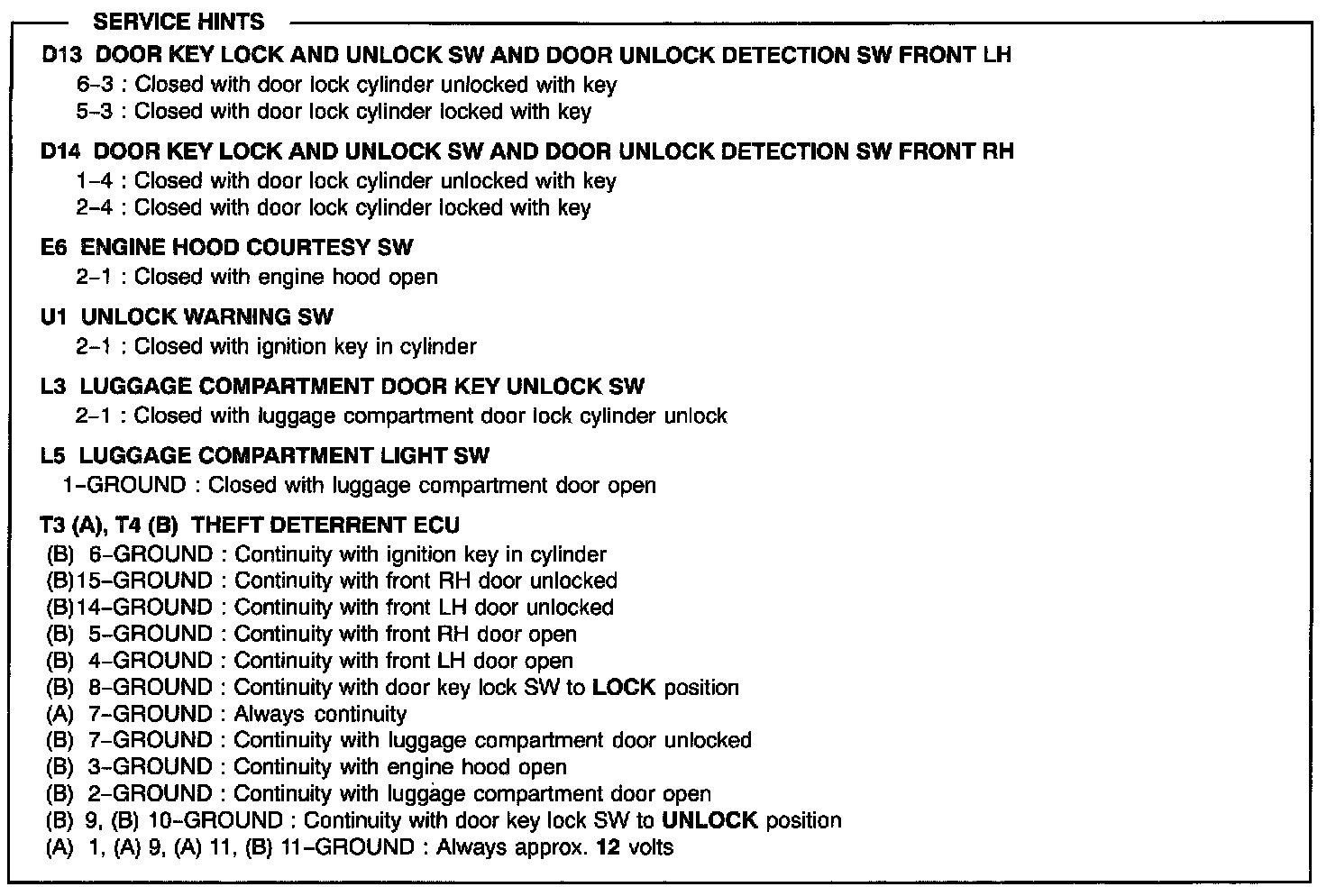

Theft Deterrent Part 1:




Theft Deterrent Part 2:

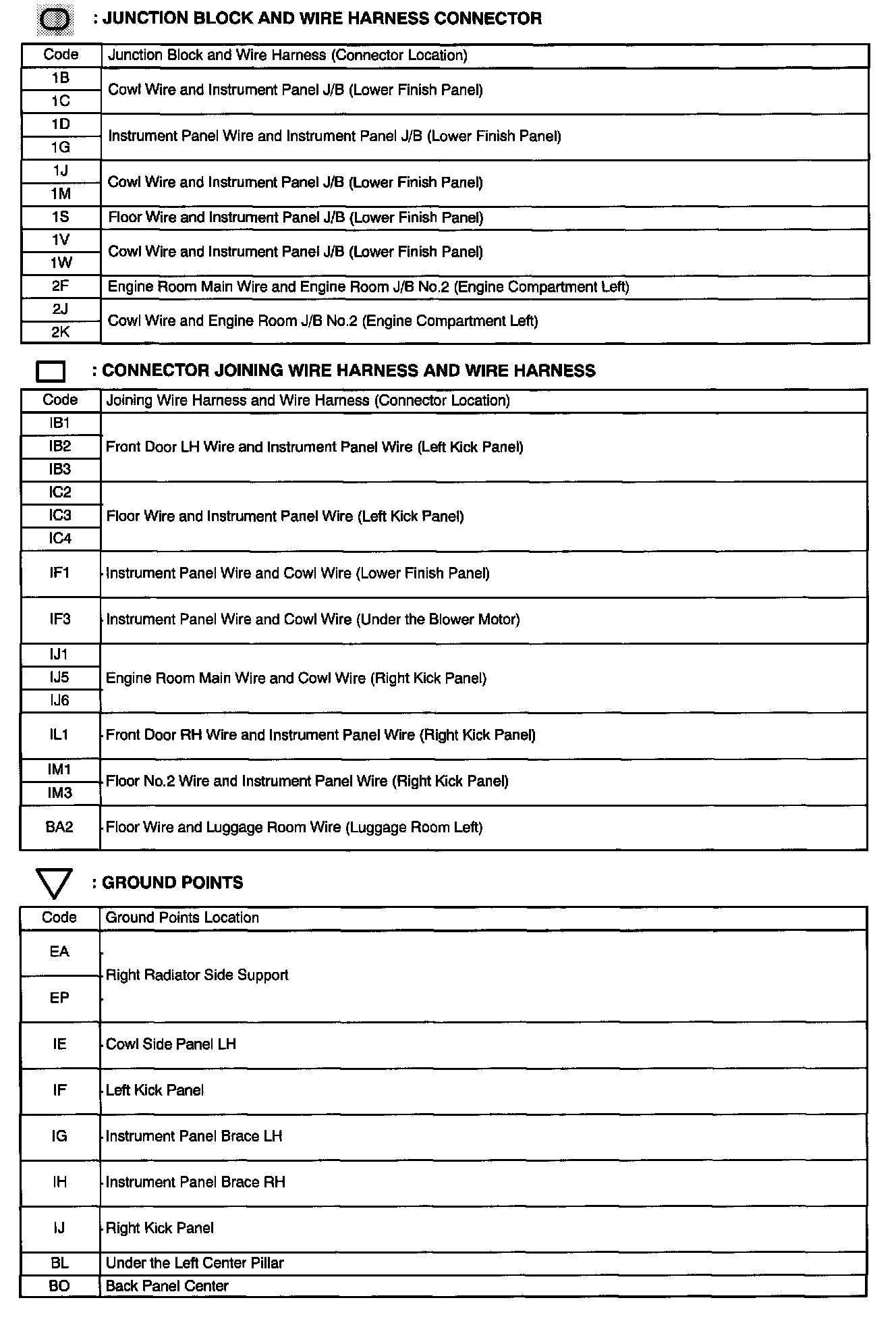

Diagram Legend Part 1:




Diagram Legend Part 2:

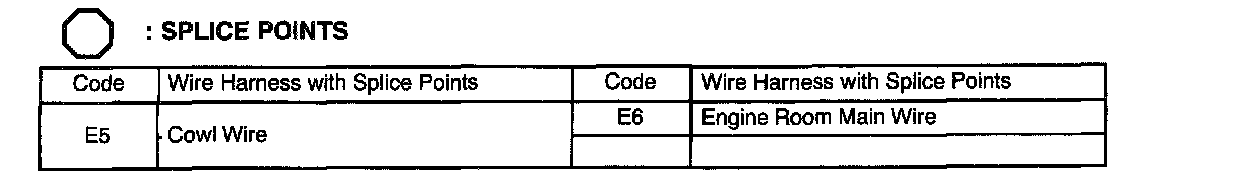

Diagram Legend Part 3:






Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations.

Connector Views: The connector views for connectors referred to within these diagrams can be found at the Vehicle level Connector Views.
