Control Switch Circuit (Cruise Control Switch)

CIRCUIT DESCRIPTION

This circuit carries the SET/COAST, RES/ACC and CANCEL signals (each voltage) to the cruise control ECU assy.

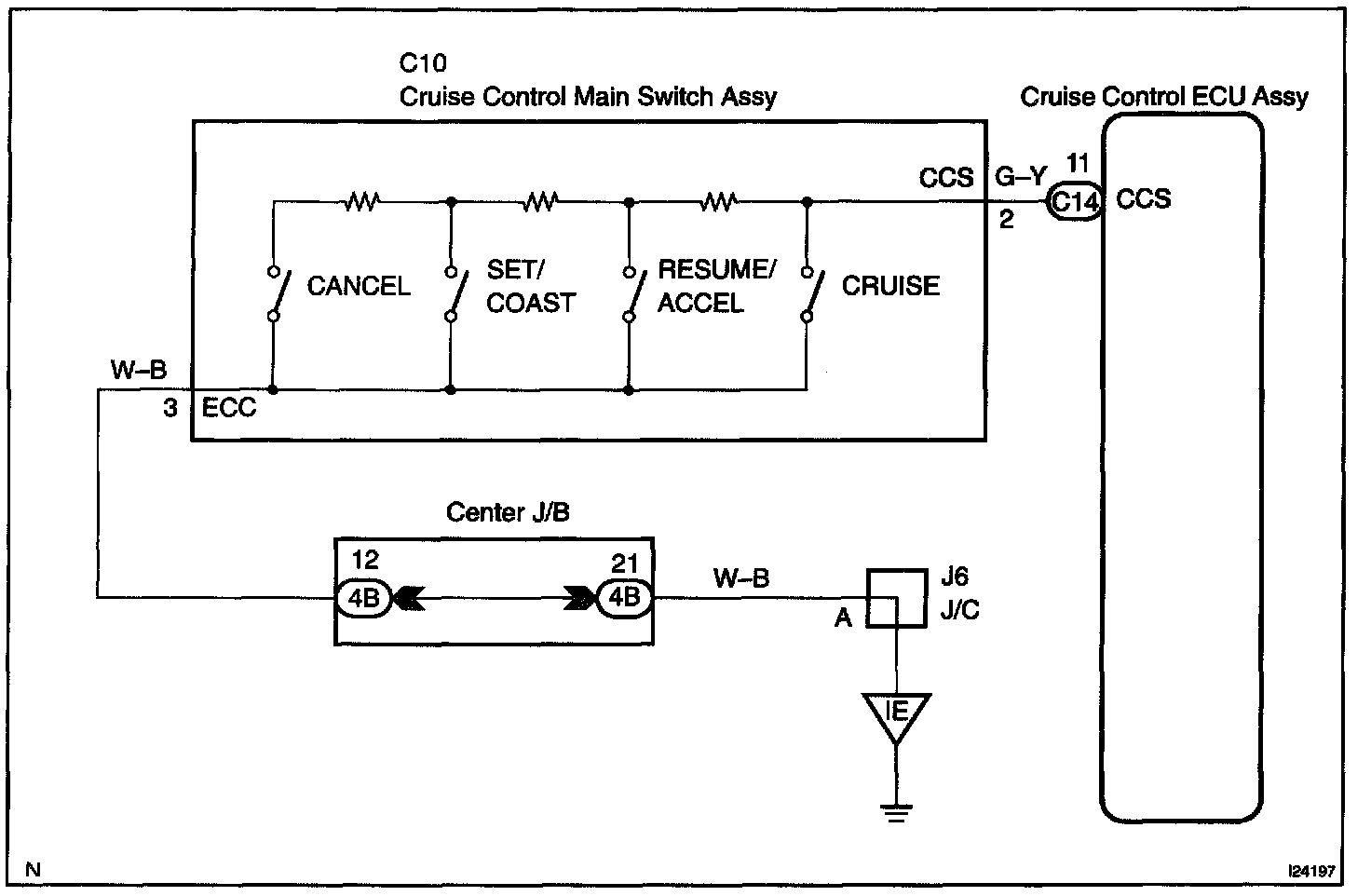

Wiring Diagram:

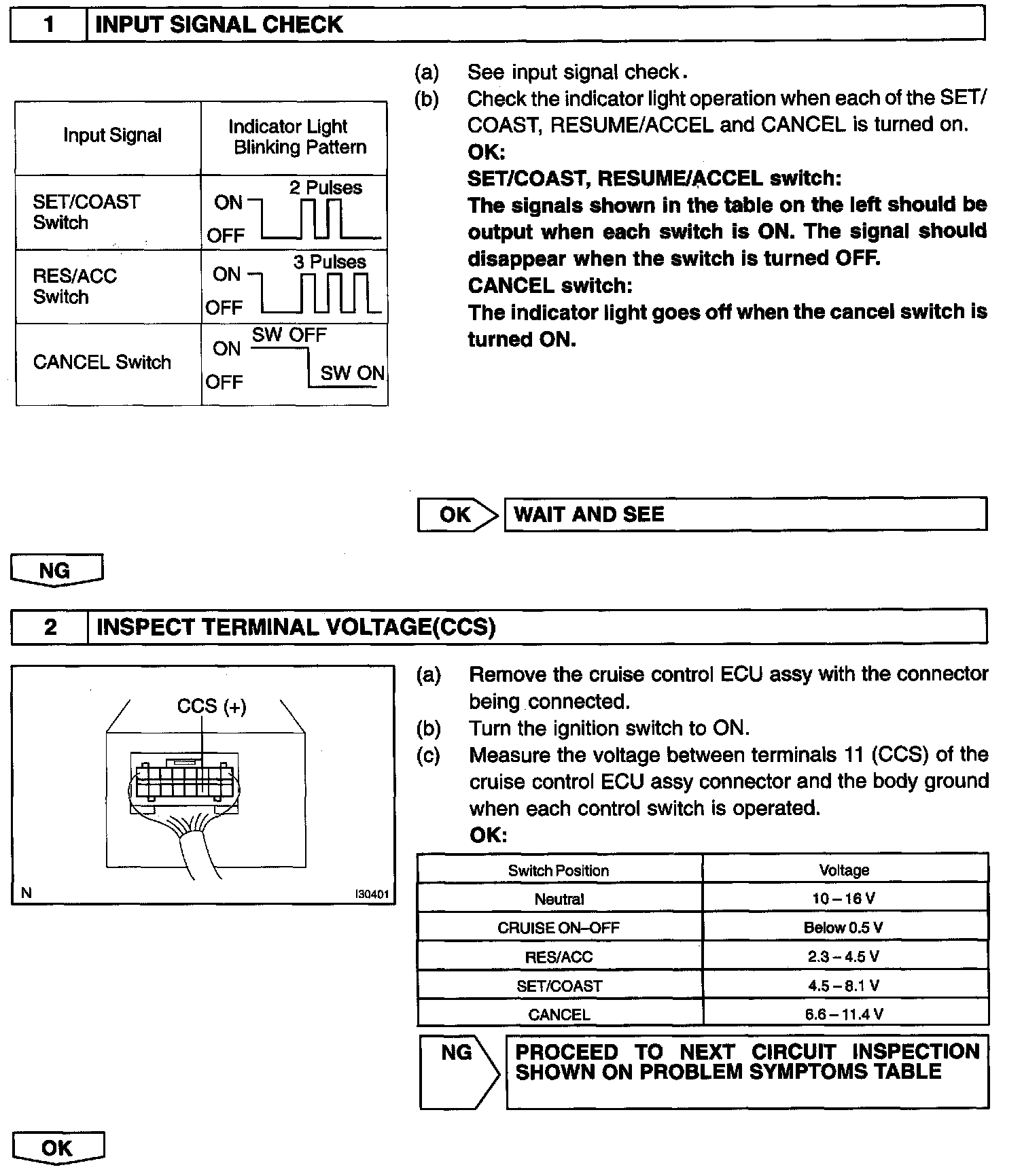

Step 1 - 2:

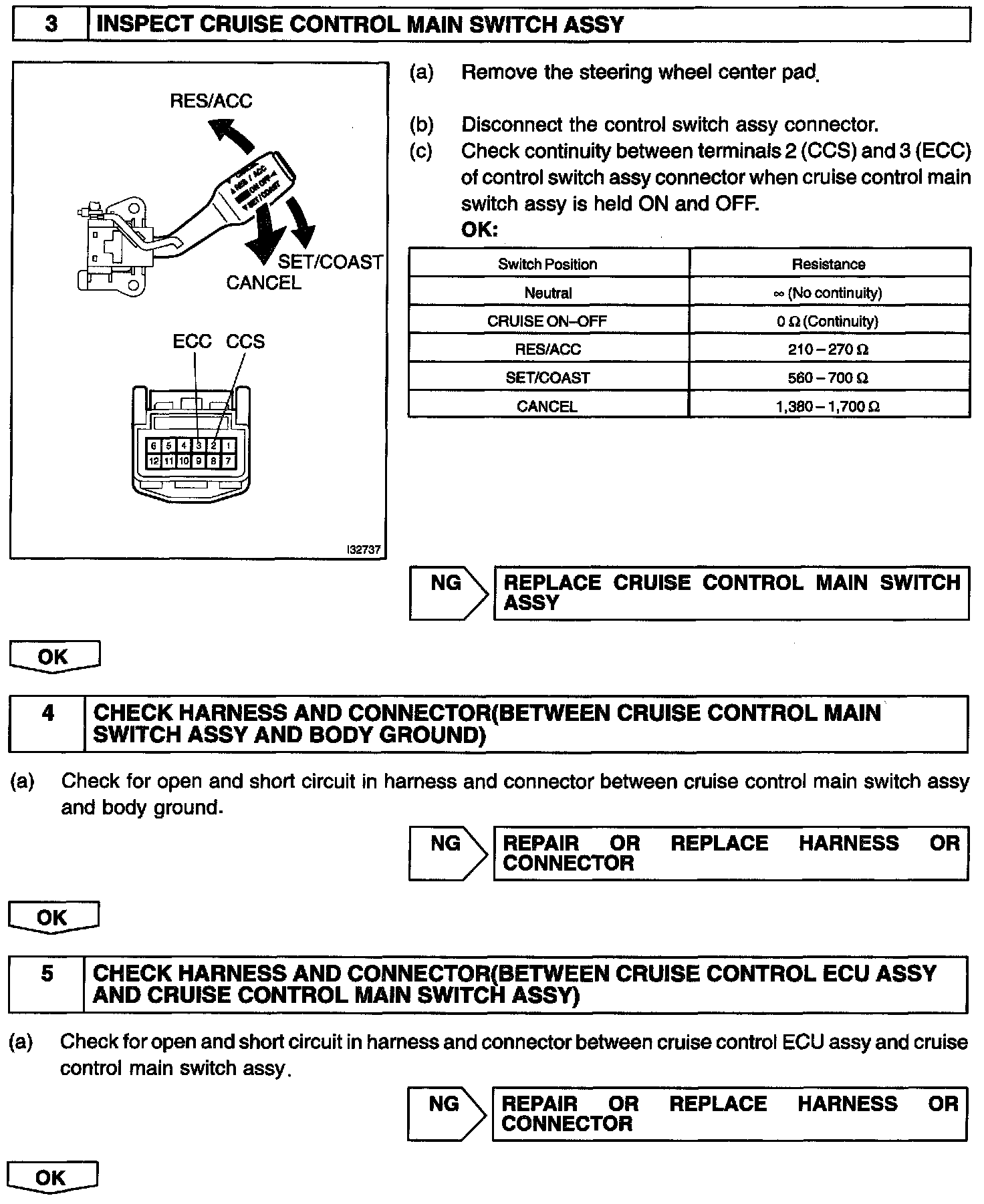

Step 3 - 5:

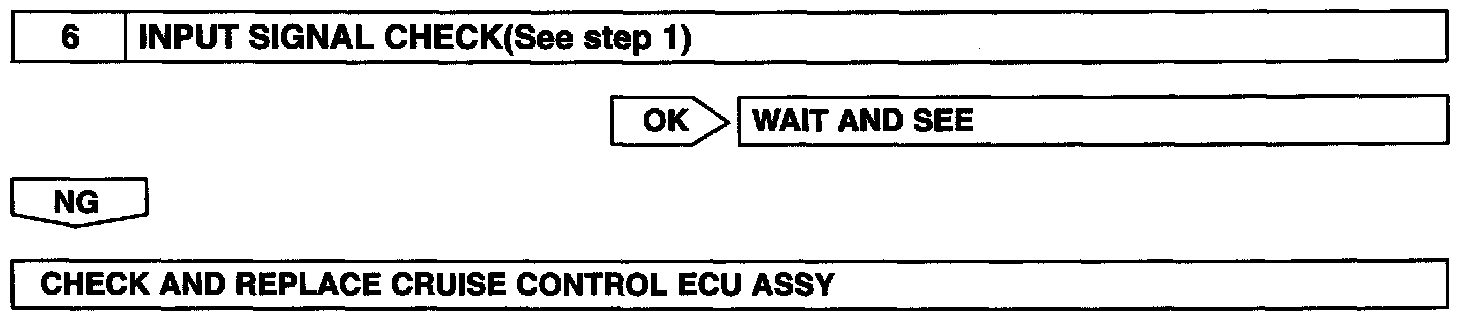

Step 6:

INSPECTION PROCEDURE
